28'-wide 3-Bed Southern Traditional Home Plan with Rear Garage - 1778 Sq Ft
Heated S.F.
1,778
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 521016TTL

Main Level
slide image 0

Plan 521016TTL

1-800-854-7852

1-262-521-4596

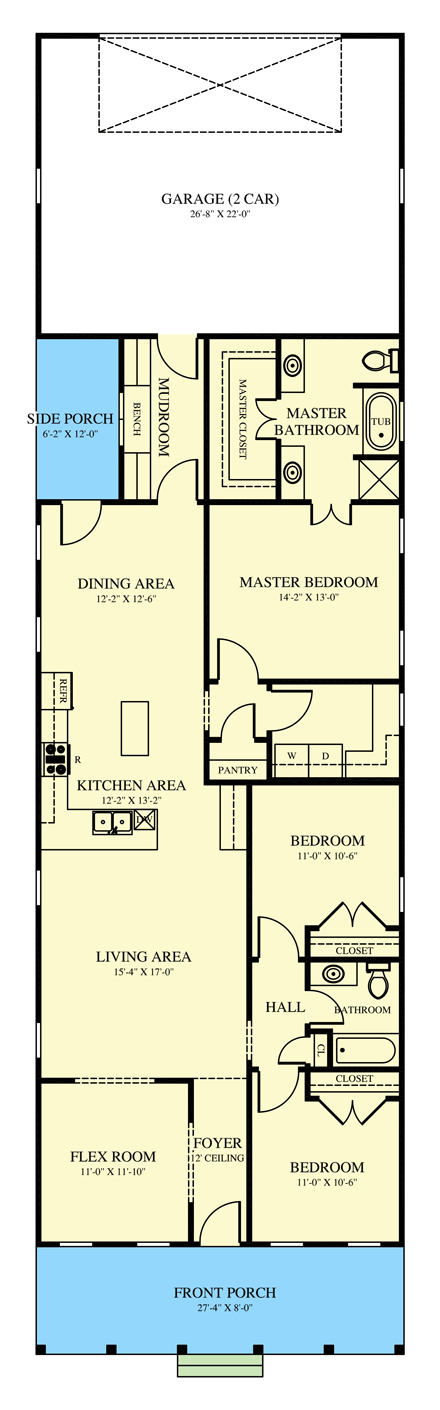

Main Level
floor plan image Main Level
Plan Details
  • Just 28'2" wide, this 3-bedroom home plan is perfect for narrow plot lines. The 8'-deep front porch spans the width of the home, adding to the curb appeal of this exclusive floor plan.
  • Step inside to find a flex room and bedroom to either side of the foyer, and the living room, kitchen, and dining area running down the left side of the home.
  • L-shaped cabinets help define the kitchen, and a central prep island increases workspace. A side porch off the dining area leads to the double garage.
  • The master bedroom is situated towards the back of the home, next door to the laundry room, and features a 5-fixture bathroom and walk-in closet.
  • Bedrooms 2 and 3 are identical in size and separated by a full bath.
  • Related Plan: Get an alternate version with house plan 521001TTL.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,778 sq. ft.

1st Floor

1,778 sq. ft.

Porch, Combined

292 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 2"

Depth

99' 0"

Max Ridge Height

21' 9"

Garage

Type

Attached

Area

614 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery
