2800 Square Foot 4-Bed House Plan with Nicely Balanced Exterior
Heated S.F.
2,800
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 420114WNT

Main Level
slide image 0

Plan 420114WNT

1-800-854-7852

1-262-521-4596

Main Level

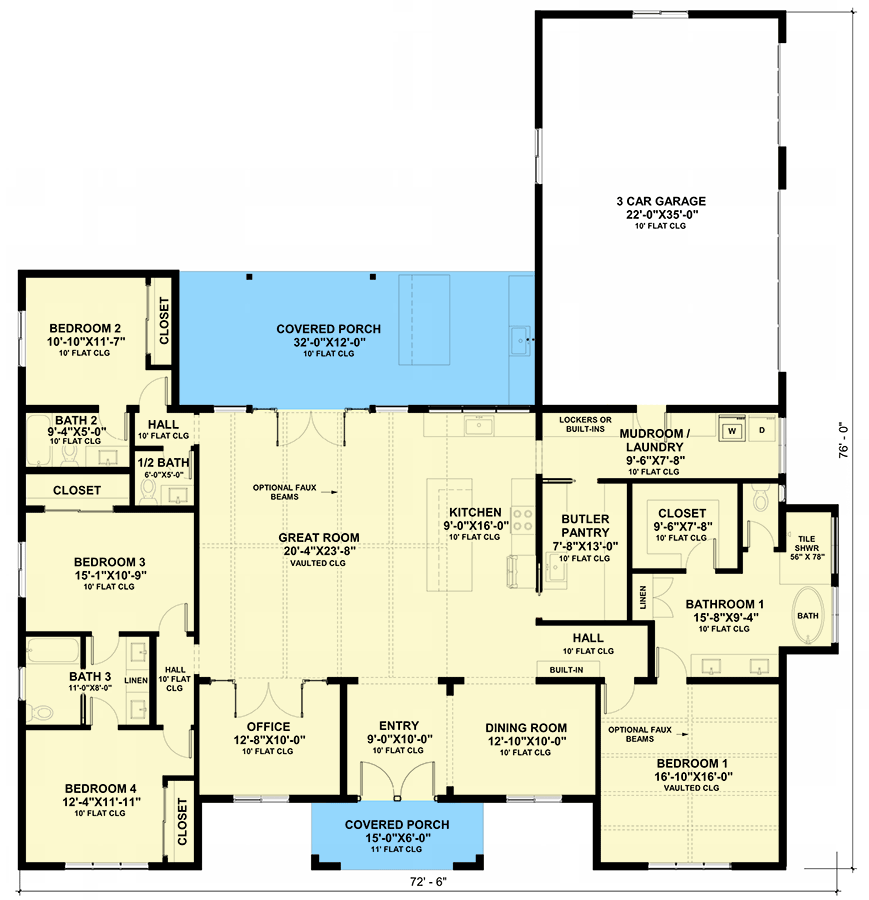

floor plan image Main Level
Plan Details
  • This 4 bed, 3.5 bath house plan gives you 2,800 square feet of heated living wrapped up in a nicely balanced exterior with two gable ends flanked the covered porch entry.
  • The great room of this New American House Plan has a vaulted ceiling with optional faux beams opens to the covered porch in back and to the island kitchen with butler pantry.
  • Work from home in the office set behind French doors in front of the home.
  • The master suite has a vaulted ceiling (also with faux beam option) and is isolated on the right of the home. Three guest beds are across the home with Beds 3 and 4 sharing a Jack and Jill bath.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,800 sq. ft.

1st Floor

2,800 sq. ft.

Porch, Front

90 sq. ft.

Porch, Rear

384 sq. ft.

Porch, Combined

474 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 6"

Depth

76' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

770 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

13' 6''

Bedroom 1

Vaulted

12' 6''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Hill Country

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Exclusive

Home Office
