Plan 280219JWD
RV Friendly Garage Shop with Expandable Apartment - 1216 Sq Ft Garage - 612 Sq Ft Apt
Heated S.F.
1,400
Beds
1
Baths
2
Stories
1-2
Cars
3- 5
Floor Plan

Plan 280219JWD

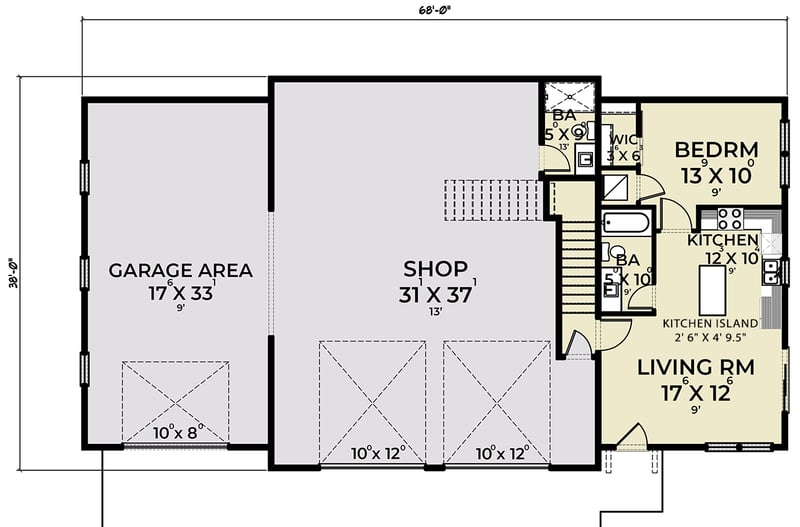

Main Level
slide image 0

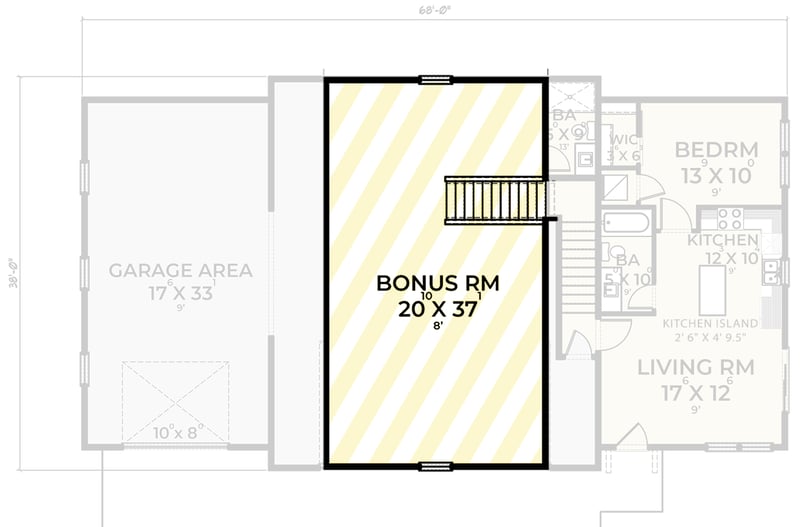

2nd Floor
slide image 1

Plan 280219JWD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This RV garage shop gives you 1,216 square feet of garage and shop space and 612 square feet of living space on the ground level. Finish the bonus room and you get an additional 788 square feet of space to enjoy.
  • On the left, the overhead door measures 10' by 8' while the RV-friendly overhead doors are a roomy 10' by 12'. The exterior is an attractive board and batten.
  • The main floor living space has a roomy kitchen with island and a 2'6" by 4'10" island and a double sink centered below a window looking out the side that opens to a living in front.
  • The bedroom with walk-in closet is in back. There are two full baths: one in the apartment on the right and the second in the garage, giving you a convenient clean-up spot after working on your vehicles or outside.
  • Related Plans: Get alternate versions with barndominium plan 280119JWD and 280164JWD.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,400 sq. ft.

1st Floor

612 sq. ft.

Bonus

788 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

38' 0"

Max Ridge Height

27' 5"

Garage

Type

Detached, RV Garage

Area

1828 sq. ft.

Count

3, 4, or 5 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Shop Height

13' 0''

Garage Height

9' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Carriage

Country

Craftsman

New American

Special Features

Bonus Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Workshop
