Plan 28046J
1650 Square Foot 3-Bed Craftsman House Plan with Upstairs Laundry
Heated S.F.
1,650
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28046J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28046J

1-800-854-7852

1-262-521-4596

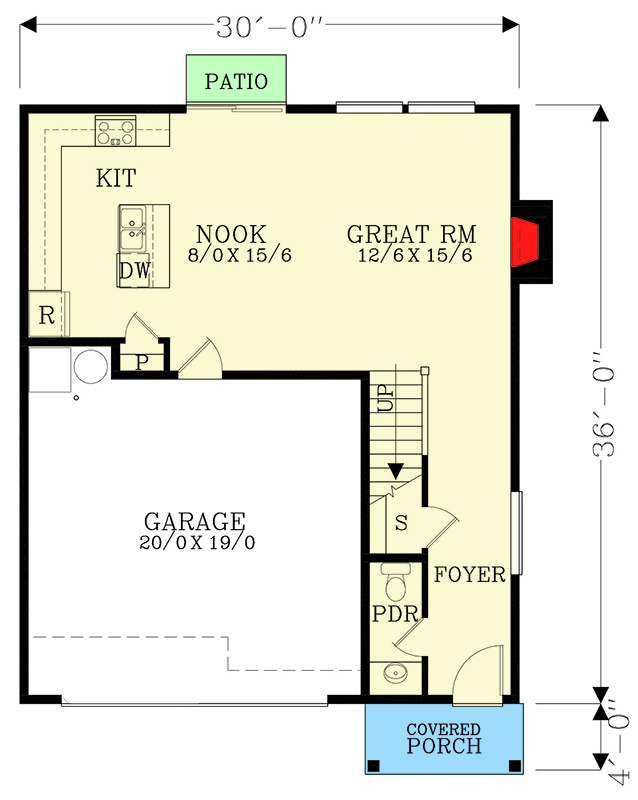

Main Level
floor plan image Main Level

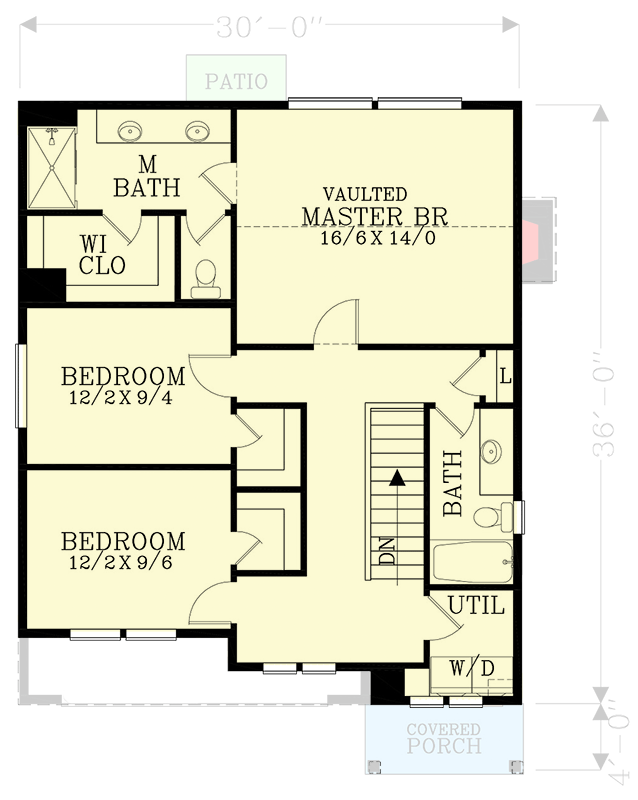

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A blend of vertical and horizontal siding pairs with oversized panels to bring a Contemporary appeal to this 1,650 square foot modern house plan.
  • A powder room is located off the foyer and a closet under the stairs gives you space to hang coats and put shoes. The primary living spaces can be found along the rear elevation. Sliding doors in the breakfast nook take you to a patio and the back yard.
  • Cabinets line two walls of the kitchen and an island has twin sinks, a dishwasher and casual seating. A nearby closet pantry boosts storage space.
  • A vaulted master suite consumes a large portion of the second-level real estate with two large windows inviting natural light to fill the space.
  • Two secondary bedrooms share a full bath, and the laundry room is tucked away in the front-right corner.
  • Related Plans: Get an alternate version with house plans 28047J and 28040J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,650 sq. ft.

1st Floor

669 sq. ft.

2nd Floor

981 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

36' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

380 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor
