Plan 380012ASH

Exclusive

2895 Square Foot Modern Farmhouse with Upstairs Loft and Den with Balcony

Heated S.F.

2,995

Beds

3

Baths

3

Stories

2

Cars

2

Floor Plan

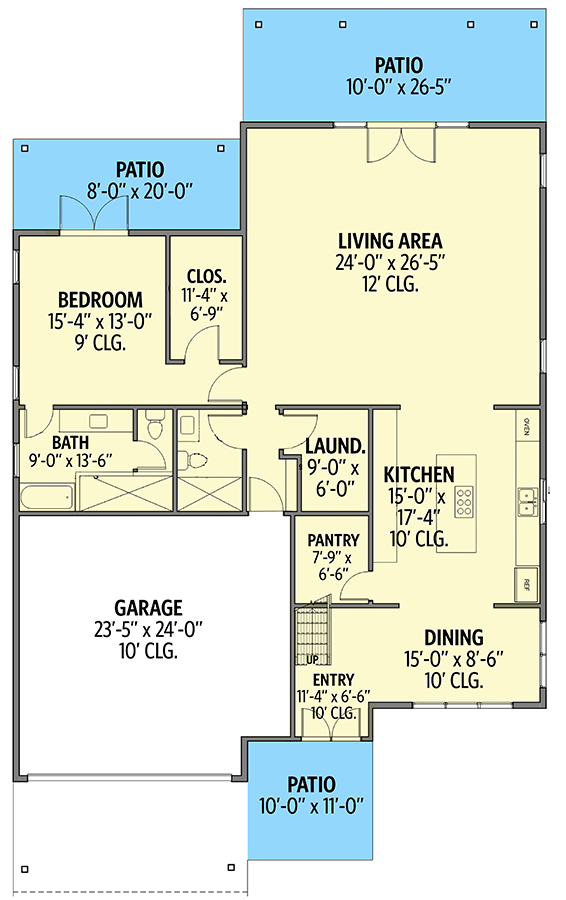

Main Level

floor plan image Main Level

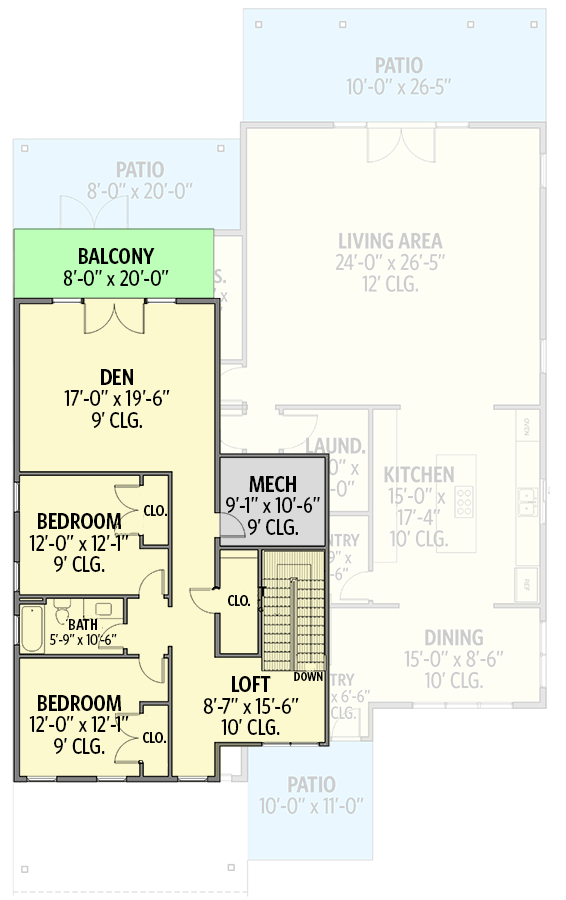

2nd Floor

floor plan image 2nd Floor

Plan Details

Large windows fill the front façade of this 2,995 square foot 3 bed, 2.5 bath modern farmhouse plan.
French doors open to to the foyer which guides you to the dining area and the island kitchen beyond. A true walk-in pantry gives you great storage.
In back, a large living room with 12' ceiling opens to the back covered patio. A second private covered patio is accessible from the master suite.
At the top of the stairs, a loft area with three windows and a den give the kids two places to enjoy outside of their bedrooms. The den has access to an outdoor balcony. Two beds on this floor share a bath.

What's Included

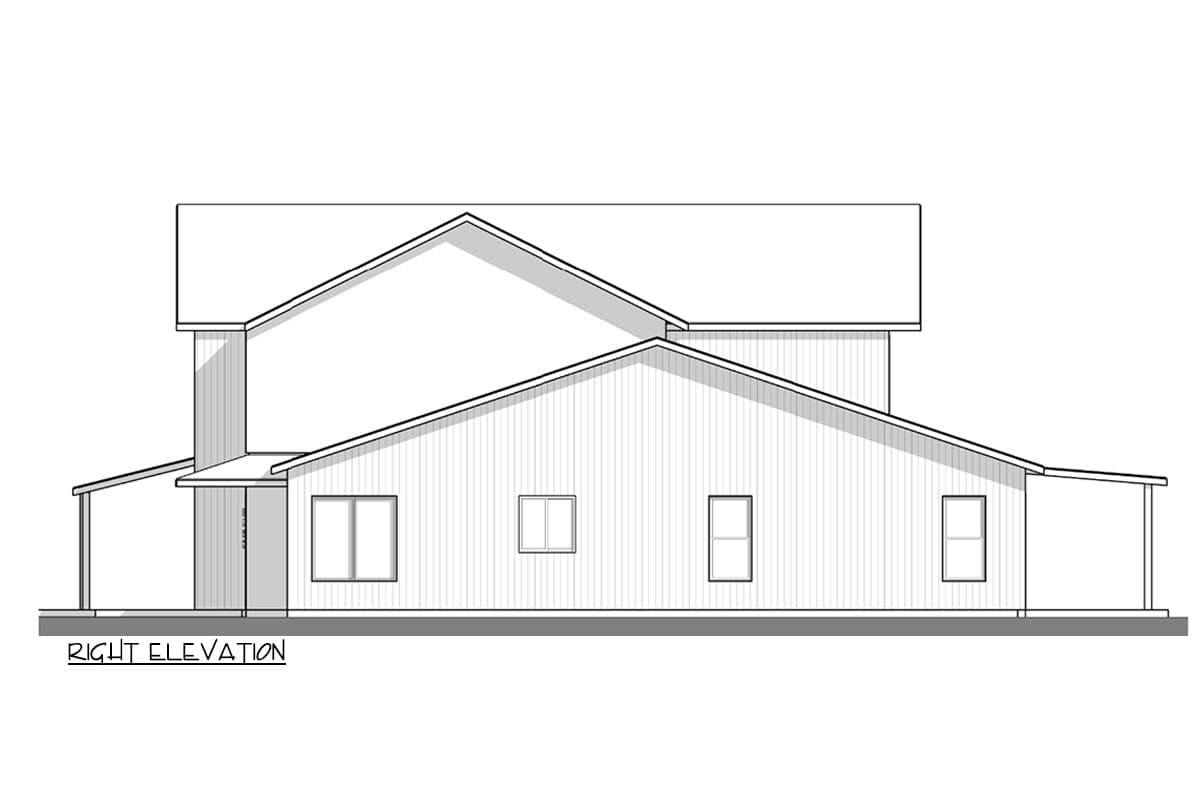

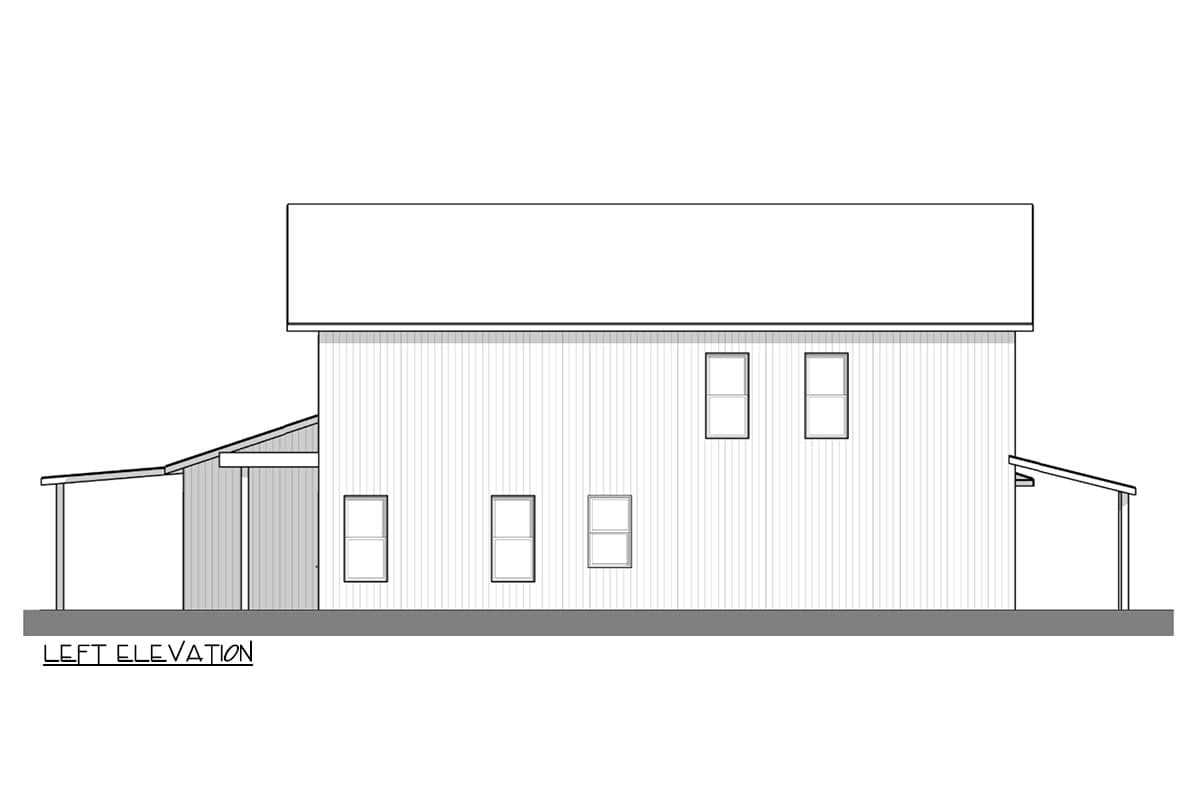

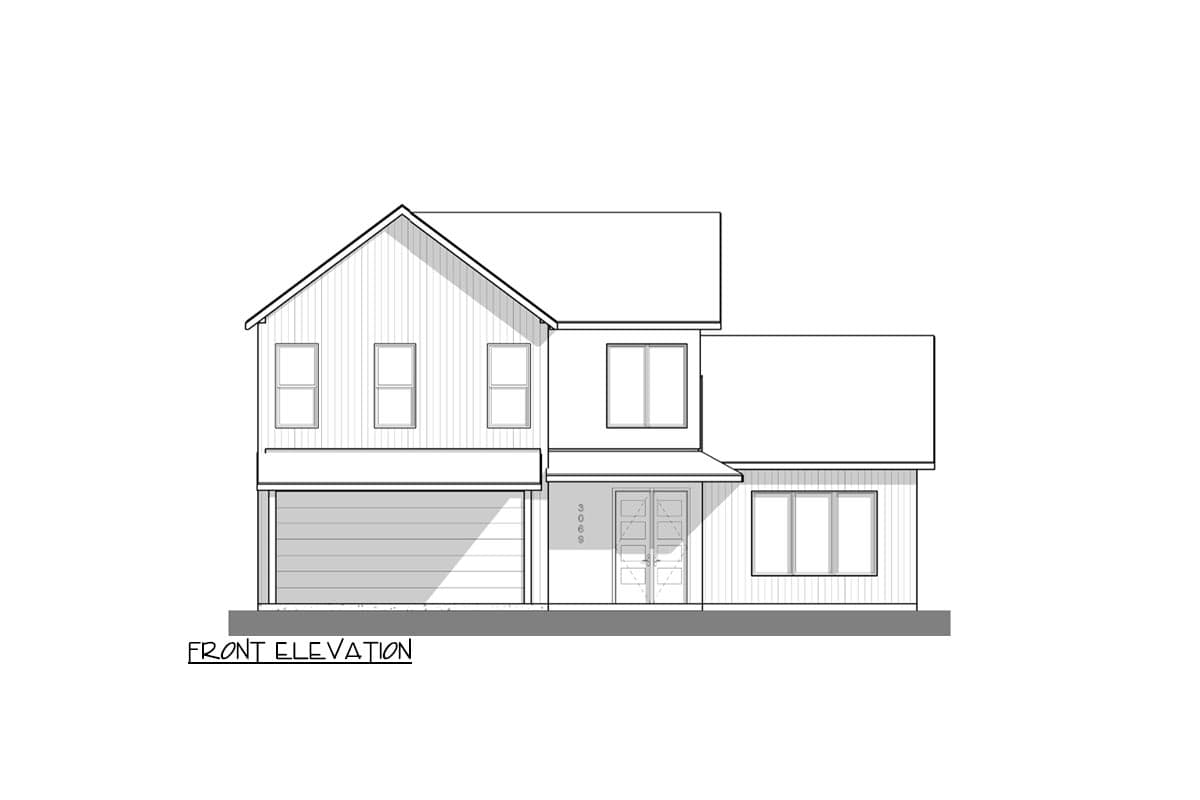

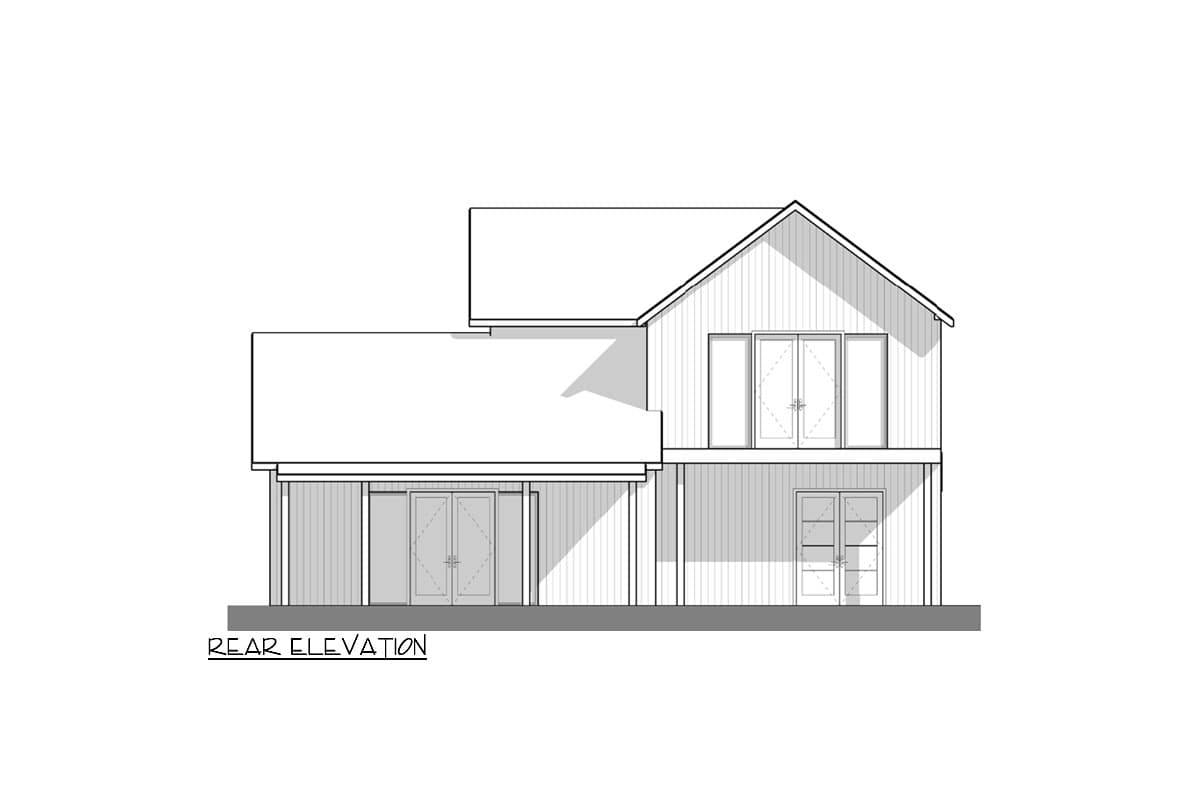

Exterior Elevations: Shows the front, rear and sides of the home
Floor Plans: Fully dimensioned floor plans
Suggested Electrical Layout
Foundation Layout
Roof Plan & sections
Window & door schedule

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,995 sq. ft.

1st Floor

1,815 sq. ft.

2nd Floor

1,180 sq. ft.

Loft

330 sq. ft.

Porch, Front

70 sq. ft.

Porch, Rear

438 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

77' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

LIVING ROOM

12' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick Or Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Stacked Porches

Plan Collections
