Plan 360047DK
3 Bay Carriage House Plan with Attractive Gable - Architectural Designs
Heated S.F.
1,114
Beds
1
Baths
1.5
Stories
2
Cars
3
Floor Plan

Plan 360047DK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 360047DK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3 bed carriage house plan is great as a guest house, an income-producing property an ADU or use as a workshop or man cave. A gable adds to its curb appeal, creates headroom upstairs and provides great light there as well.

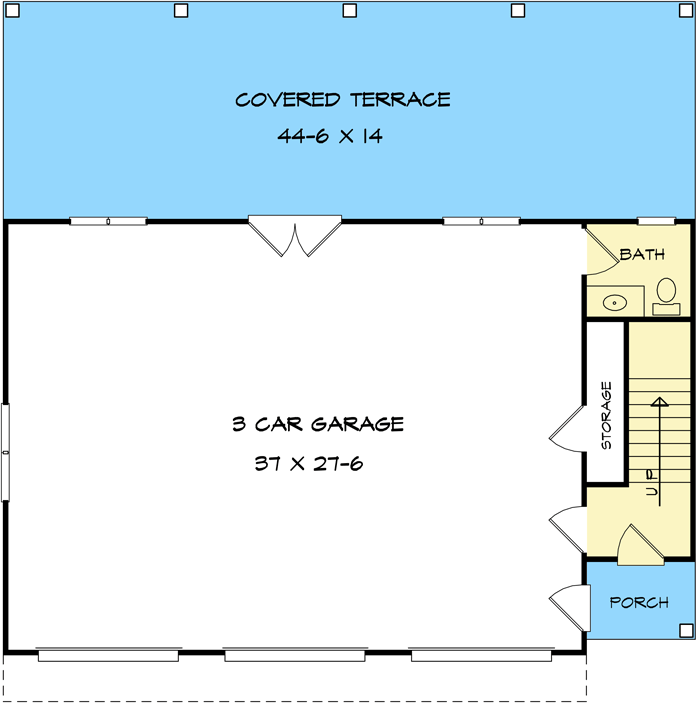

  • The garage doors each measure 9' by 8'. A man door gives you access off the covered entry and takes you either to the garage or upstairs. A half bath on the ground floor is a nice touch.

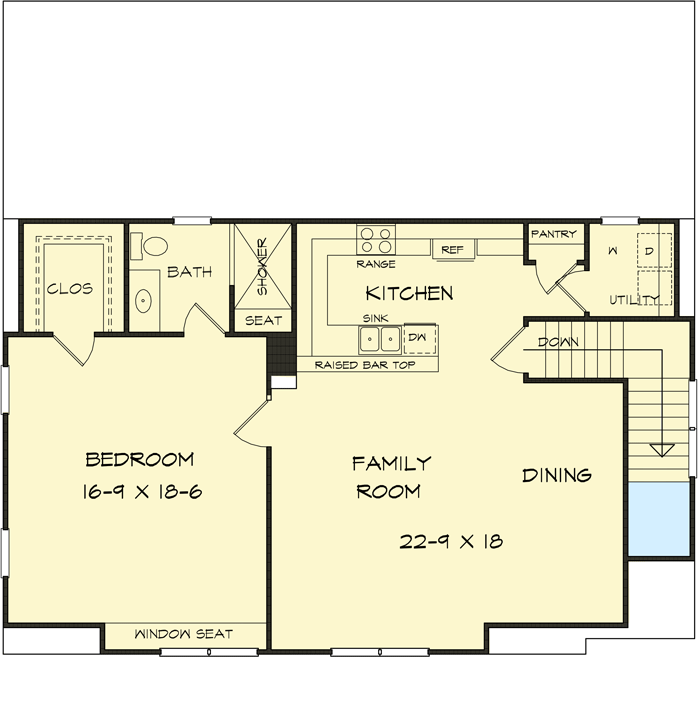

  • The upper floor gives you an open area combining a full kitchen with bar seating, a family and dining area. Laundry is tucked out of the way. The bedroom has a walk-in closet and a window seat.
  • In back, a shed roof provides cover above the terrace.
  • Related Plans: Get an alternate exterior with garage plans 36057DK and 360063DK. Get two bedrooms with garage apartment plans 360067DK and 360076DK.
What's Included

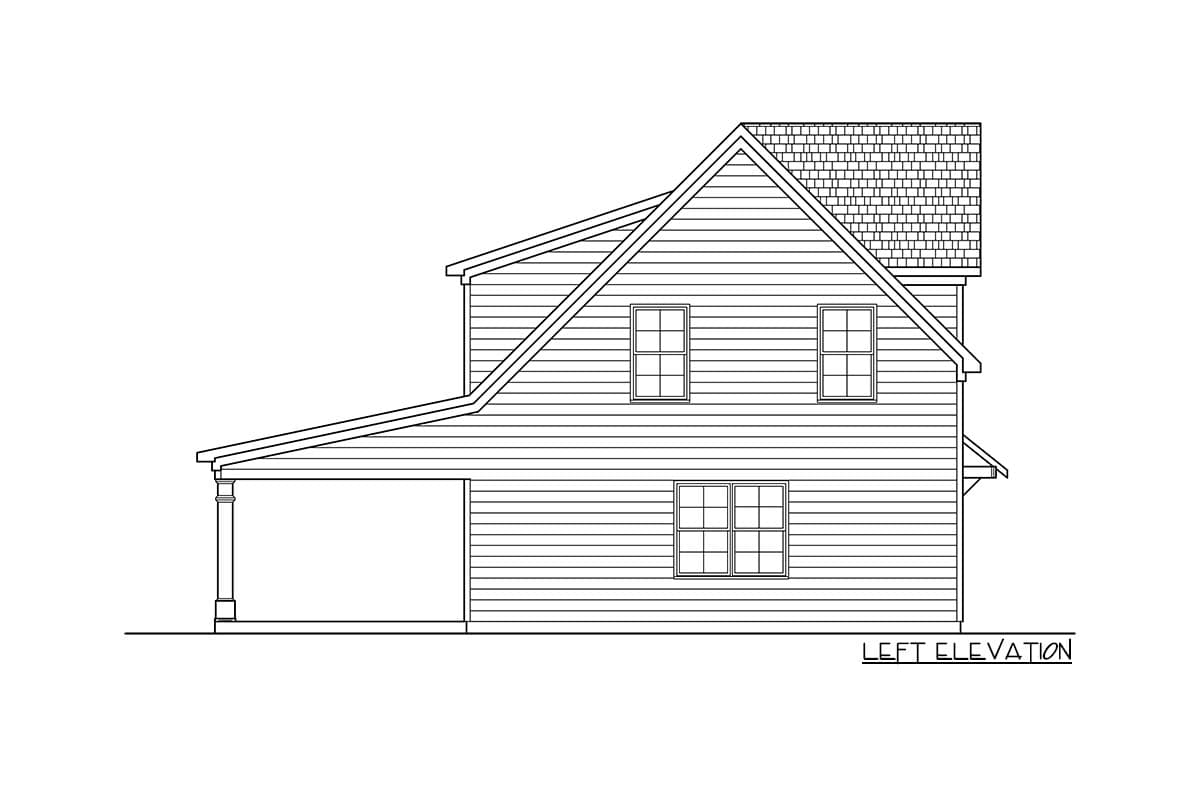

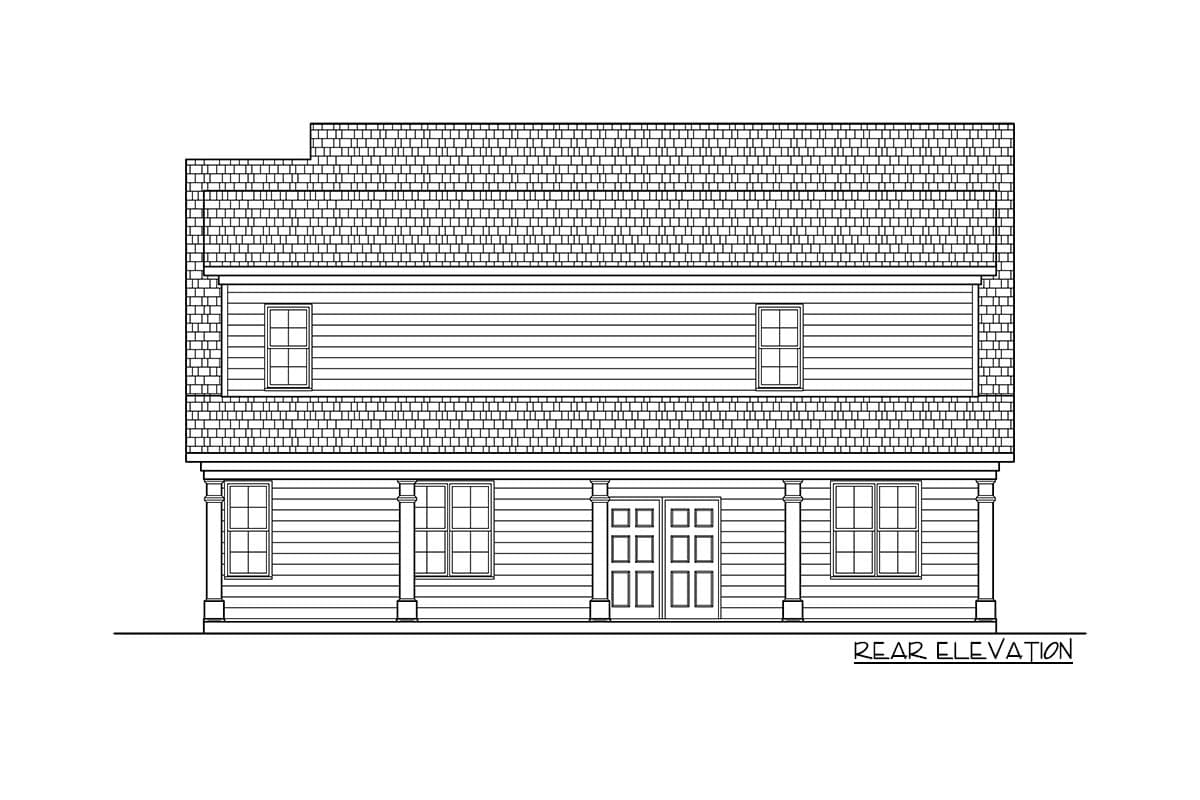

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,114 sq. ft.

2nd Floor

1,114 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

44' 6"

Depth

42' 0"

Max Ridge Height

28' 0"

Garage

Type

Detached

Area

1204 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

Farmhouse

Modern Farmhouse

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,114 sq. ft.

2nd Floor

1,114 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

44' 6"

Depth

42' 0"

Max Ridge Height

28' 0"

Garage

Type

Detached

Area

1204 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

Farmhouse

Modern Farmhouse

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop

Plan Collections

ADU
