3 Bed 2 Bath 1 Story House Plan with Courtyard Garage - 2369 Sq Ft
Heated S.F.
2,369
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 59849ND

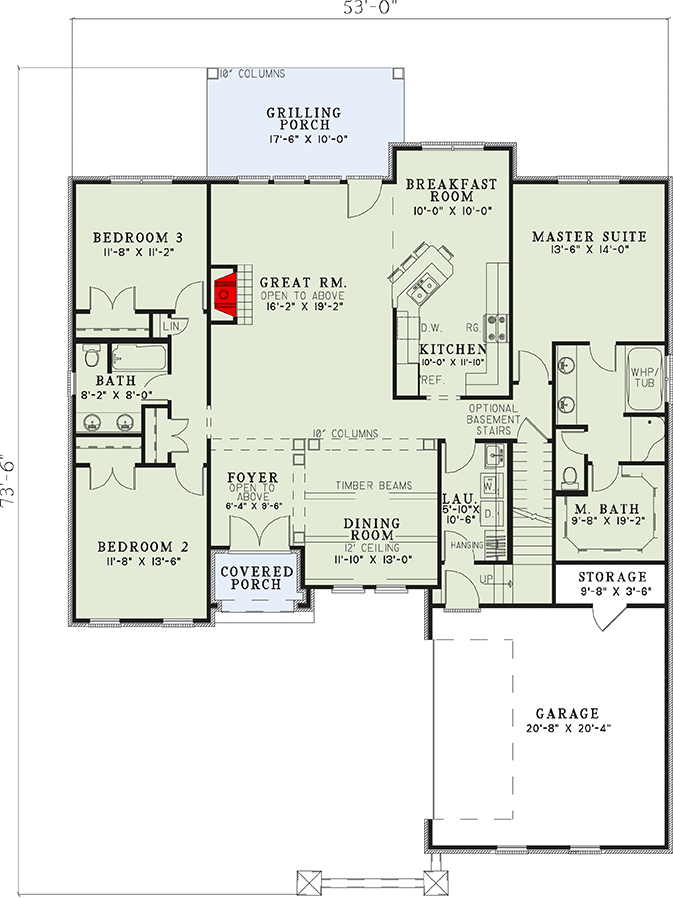

Main Level
slide image 0

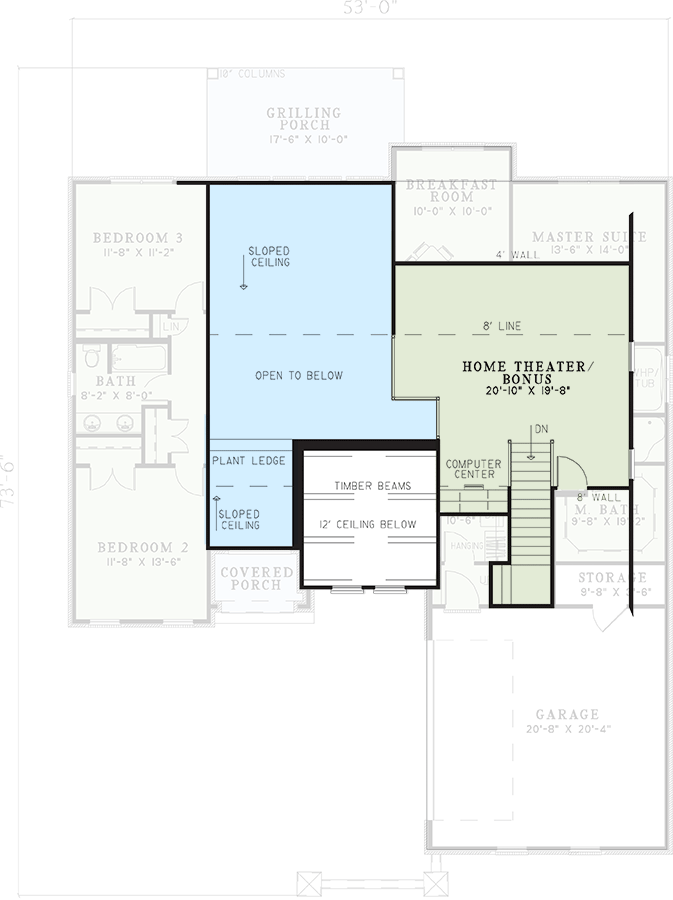

2nd Floor
slide image 1

Plan 59849ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3 bed, 2 bath house plan gives you 2369 square feet of heated living and has a 2-car (496 square foot) courtyard garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,369 sq. ft.

1st Floor

1,963 sq. ft.

2nd Floor

406 sq. ft.

Porch, Rear

176 sq. ft.

Entry

38 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

73' 6"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Square Footage Breakdown

Total Heated Area

2,369 sq. ft.

1st Floor

1,963 sq. ft.

2nd Floor

406 sq. ft.

Porch, Rear

176 sq. ft.

Entry

38 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

73' 6"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom
