Plan 51742HZ
3 Bed Acadian Home Plan with Bonus Over Carport - 1900 Sq Ft
Heated S.F.
1,900
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51742HZ Comes to Life in Mississippi, Again!

House Plan 51742HZ Comes to Life in Mississippi, Again!

13

Photos

build gallery item - House Plan 51742HZ comes to life in Texas

House Plan 51742HZ comes to life in Texas

16

Photos

build gallery item - House Plan 51742HZ comes to life in Mississippi

House Plan 51742HZ comes to life in Mississippi

14

Photos

build gallery item - House Plan 51742HZ Comes to Life in Tennessee (again!)

House Plan 51742HZ Comes to Life in Tennessee (again!)

34

Photos

build gallery item - House Plan 51742HZ comes to life in Texas with a modified gable (again)!

House Plan 51742HZ comes to life in Texas with a modified gable (again)!

4

Photos

build gallery item - House Plan 51742HZ comes to life with a modified gable in Texas

House Plan 51742HZ comes to life with a modified gable in Texas

33

Photos

Photos
Floor Plan

Plan 51742HZ

Main Level
slide image 0
Bonus Room
slide image 1
Basement option
slide image 2

Plan 51742HZ

1-800-854-7852

1-262-521-4596

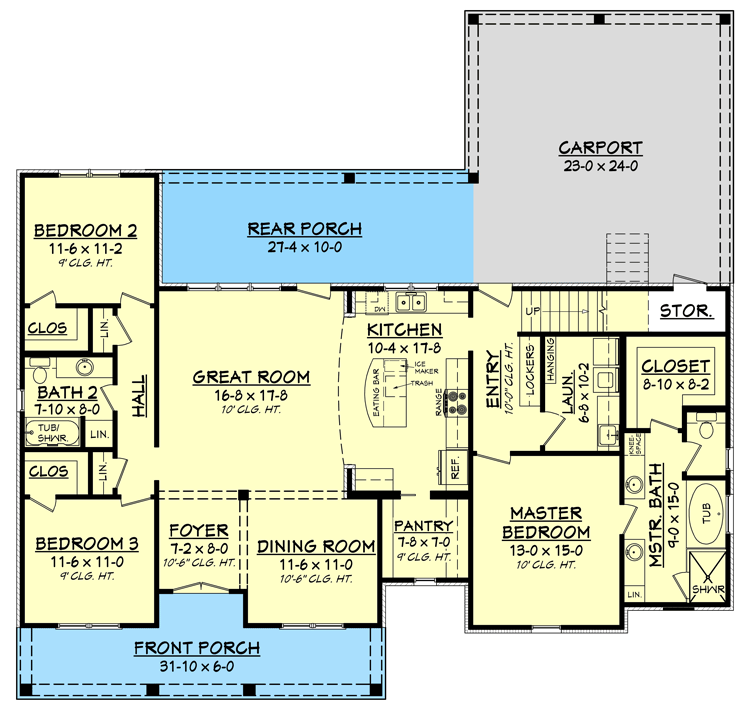

Main Level
floor plan image Main Level

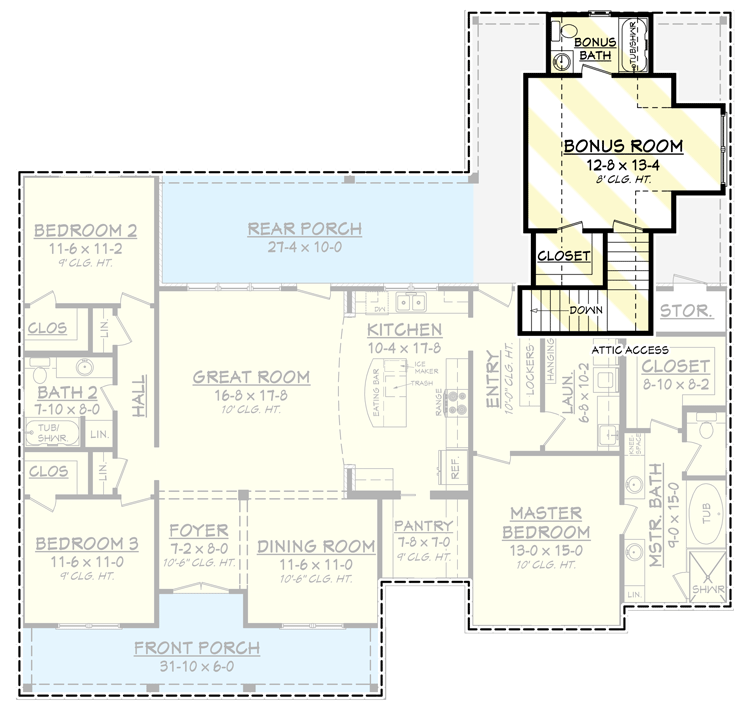

Bonus Room
floor plan image Bonus Room

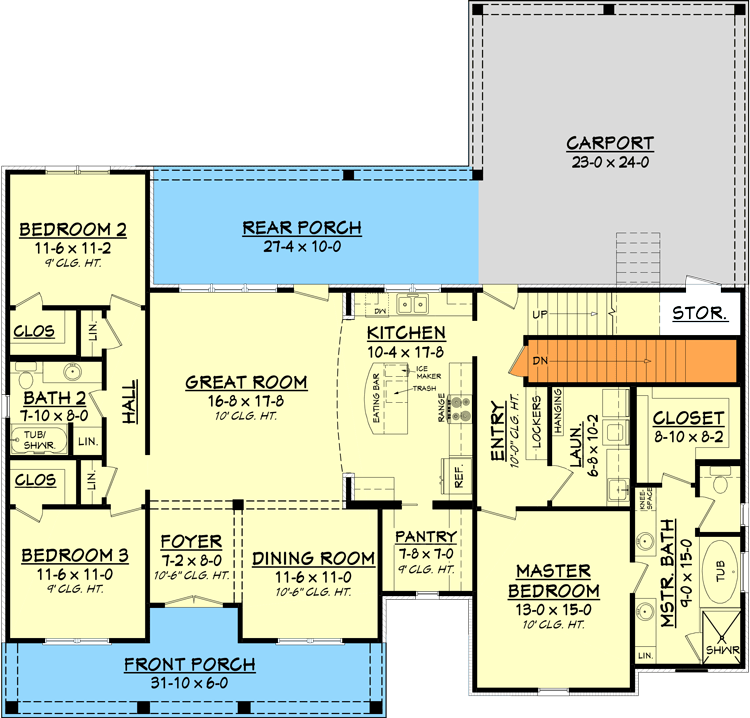

Basement option
floor plan image Basement option
Plan Details
  • This beautiful 3 bed Acadian house plan has an elegant exterior with an inviting front porch. Inside, the home plan gives you 3 beds, 2 baths and 1,900 square feet of heated living with bonus expansion including a bathroom above the carport giving you the potential to add 325 square feet to your home.
  • The formal foyer and dining space open into a large open living area with raised ceilings and brick accent wall.
  • The large kitchen has views to the rear porch and features an island with eating bar as well as a large pantry.
  • The 3 bedrooms are well-sized and all include walk-in closets.
  • As an extra feature, a bonus space is also provided that would be perfect for a guest suite or that family game room.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
This plan set includes the following:
1. cover sheet with index and abbreviations along with a rendering for home.
2. foundation plan with footing details
3. detailed floor plan displaying all dimensions, door and window sizes and plumbing fixture locations.

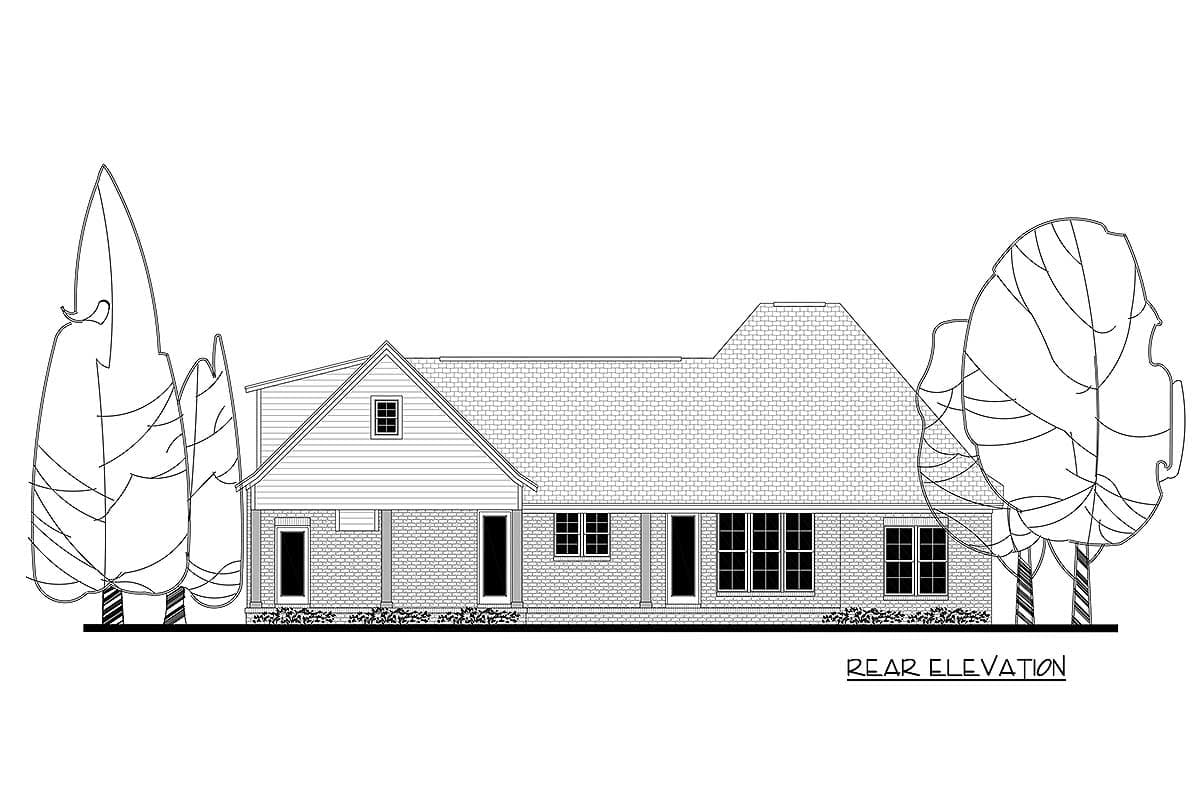

4. front and rear exterior views along with wall section

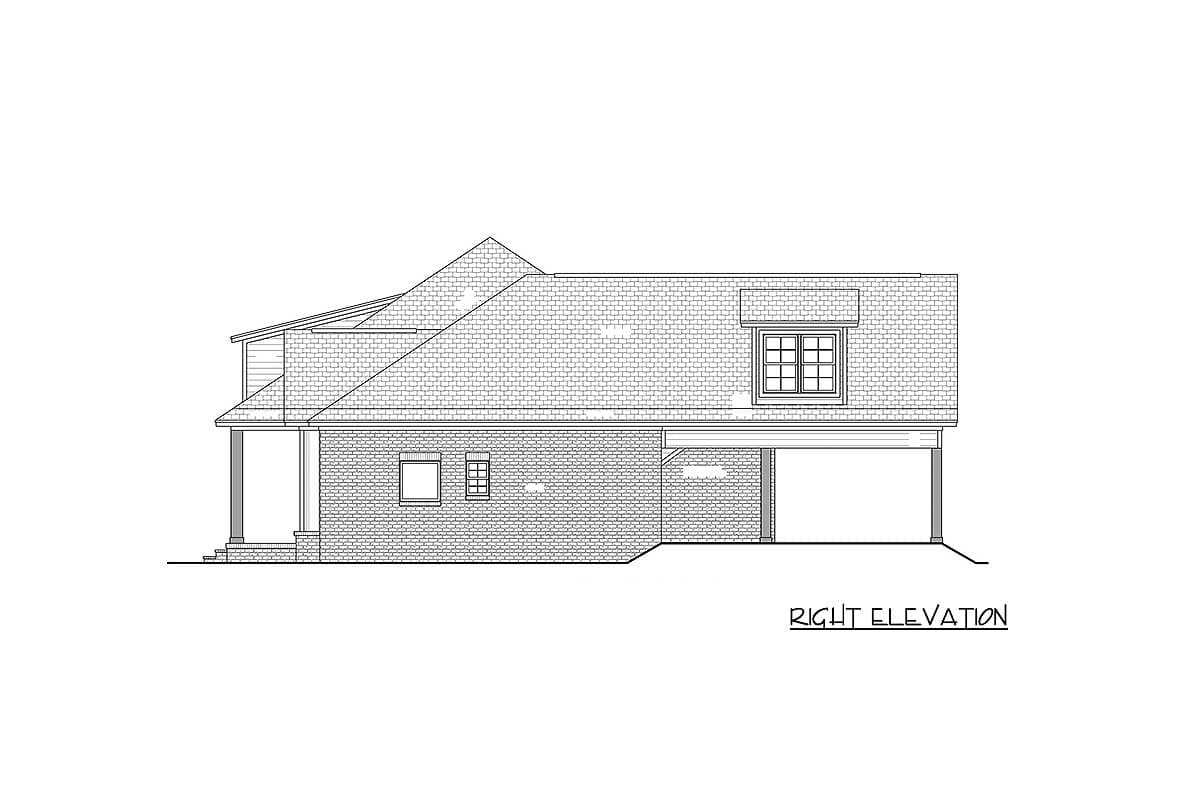

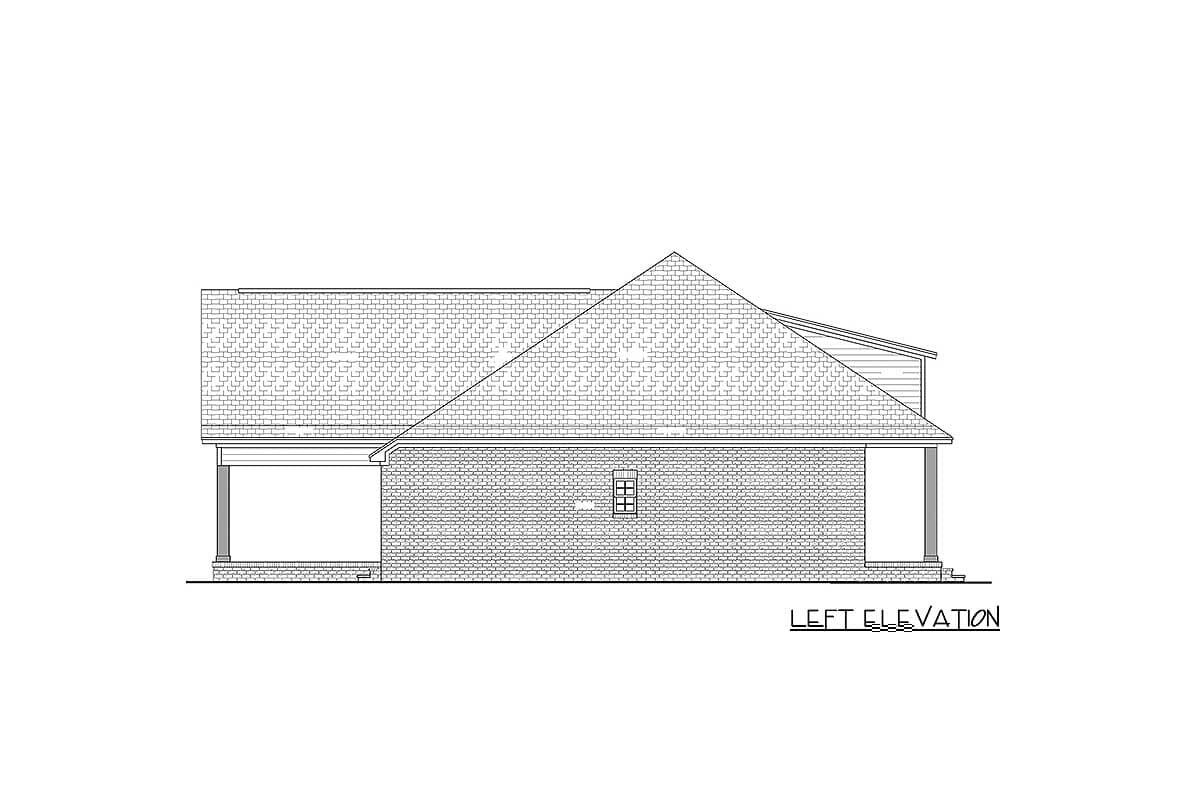

5. right and left exterior views along with wall section and carport section
6. building section along with kitchen cabinet elevations
7. roof plan (birds eye view) along with span charts
8. electrical plan
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,900 sq. ft.

1st Floor

1,900 sq. ft.

Bonus

325 sq. ft.

Porch, Front

214 sq. ft.

Porch, Rear

273 sq. ft.

Storage

29 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 6"

Depth

60' 0"

Max Ridge Height

25' 6"

Garage

Type

Carport

Area

552 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Acadian

Country

European

French Country

Louisiana

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

USDA Approved
