Plan 51705HZ
3 Bed Acadian House Plan With Bonus Room - 1870 Sq Ft
Heated S.F.
1,870
Beds
3
Baths
2
Stories
1
Cars
2
Photos
Floor Plan

Plan 51705HZ

Main Level
slide image 0

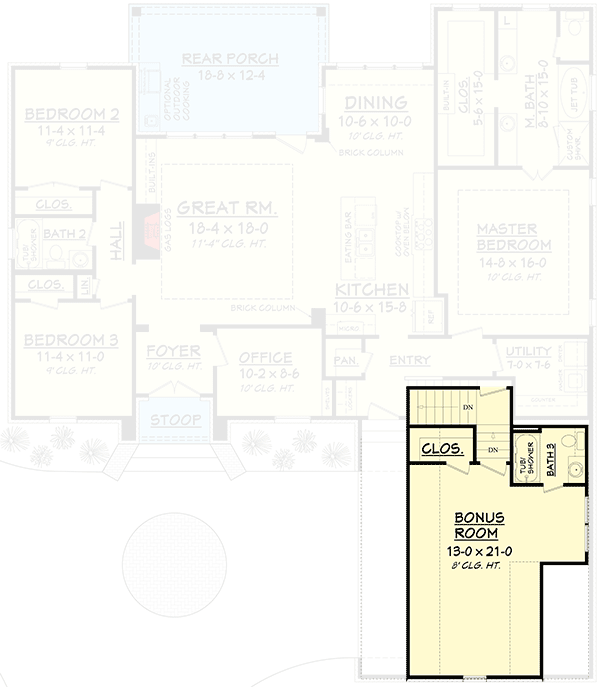

Bonus
slide image 1

Plan 51705HZ

1-800-854-7852

1-262-521-4596

Main Level

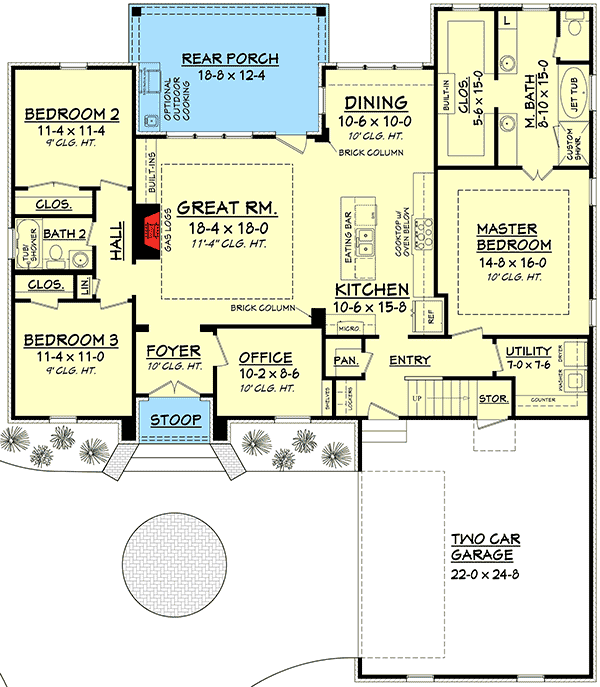

floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • This 3 bed Acadian house plan delivers 3 bedrooms and 2 baths with an optional bonus room with an additional bedroom and bath over the garage.

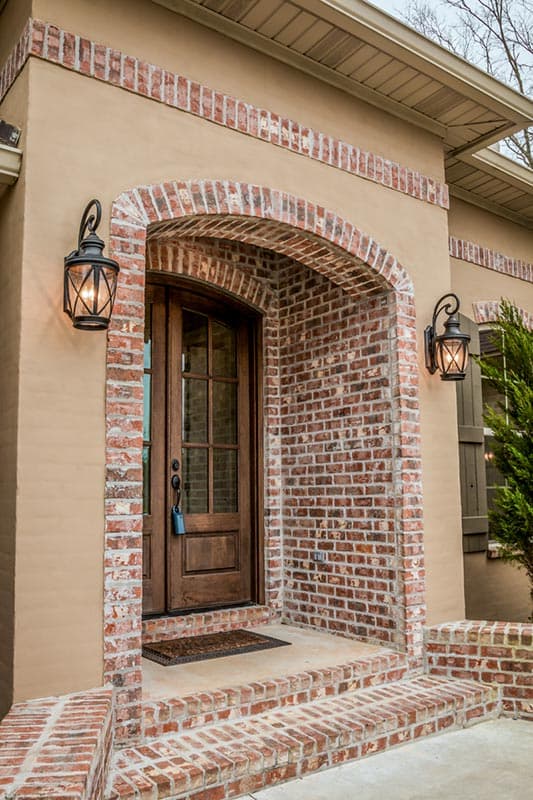

  • The main floor offers tall ceilings, open floor plan, and decorative brick columns creating a feeling of luxury and style.

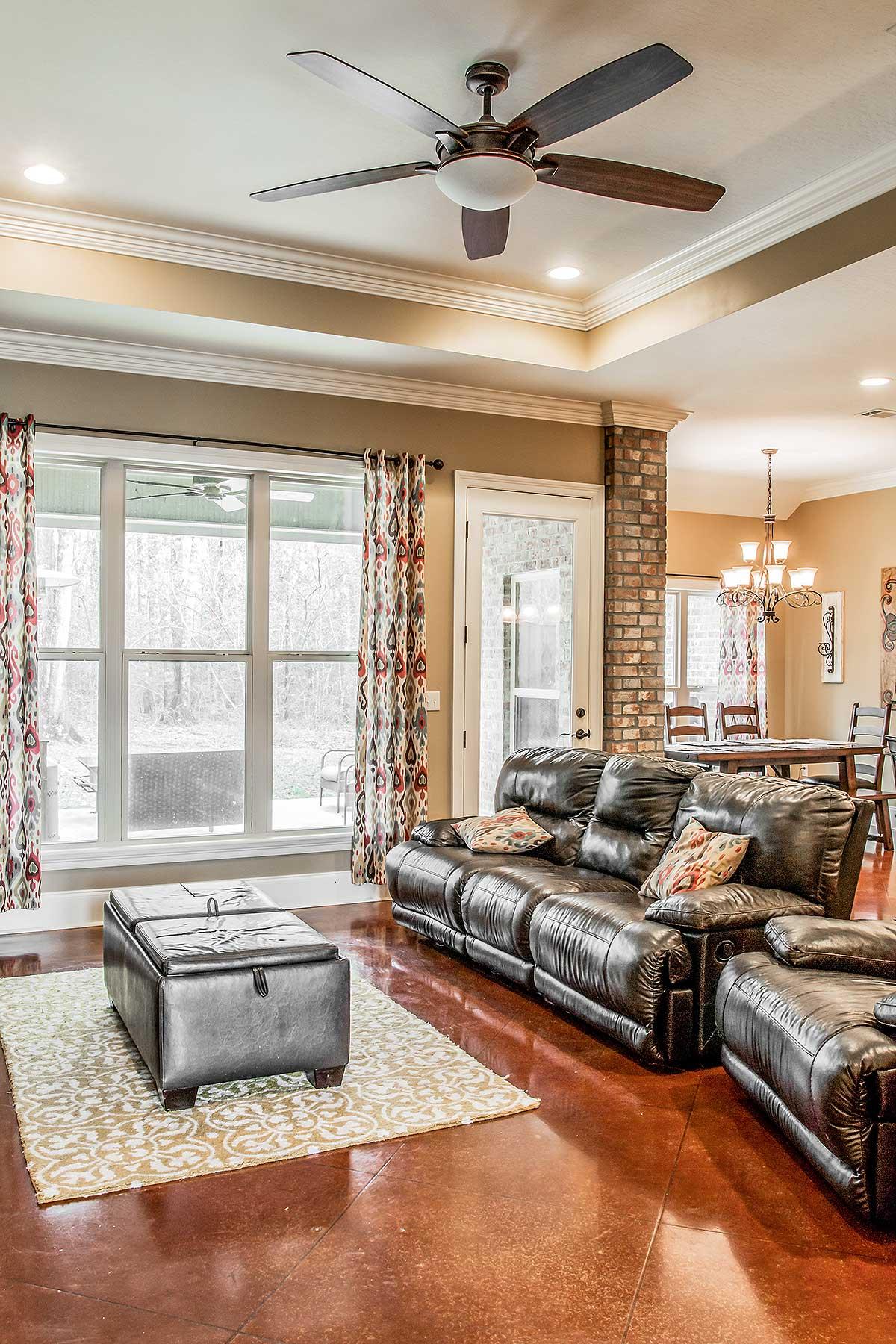

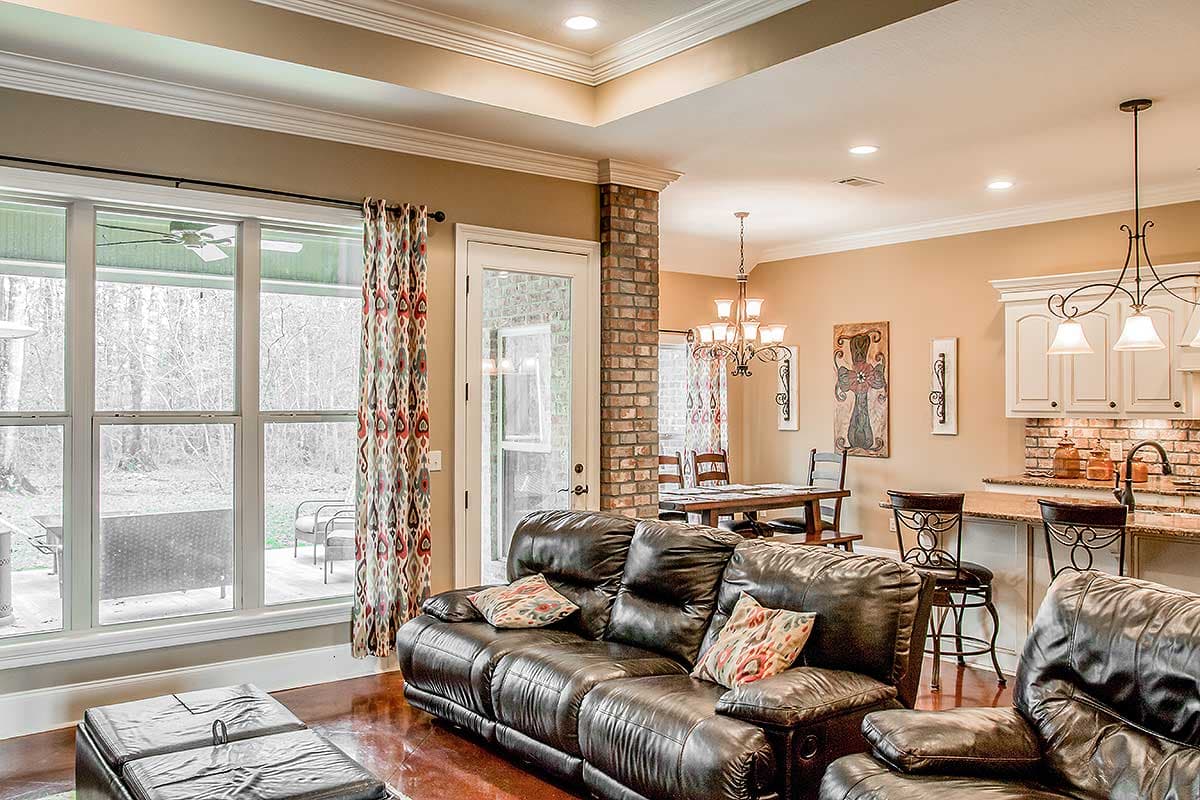

  • The great room is open to the kitchen and dining room and has direct access to the rear porch with optional outdoor grilling area for al fresco dining and get-togethers. A fireplace on the left, built-ins and the tray ceilings make this room one you'll really enjoy spending time in.

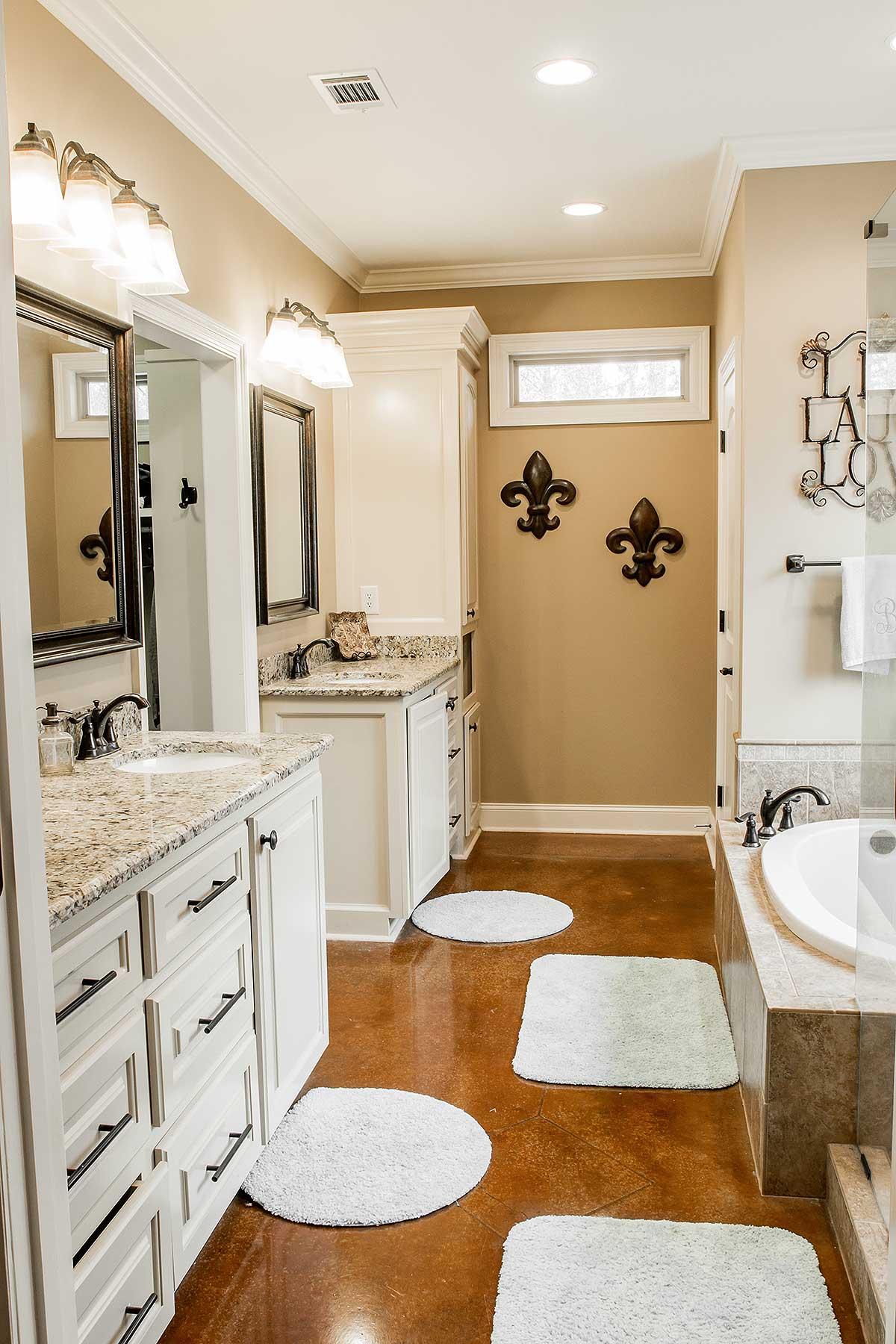

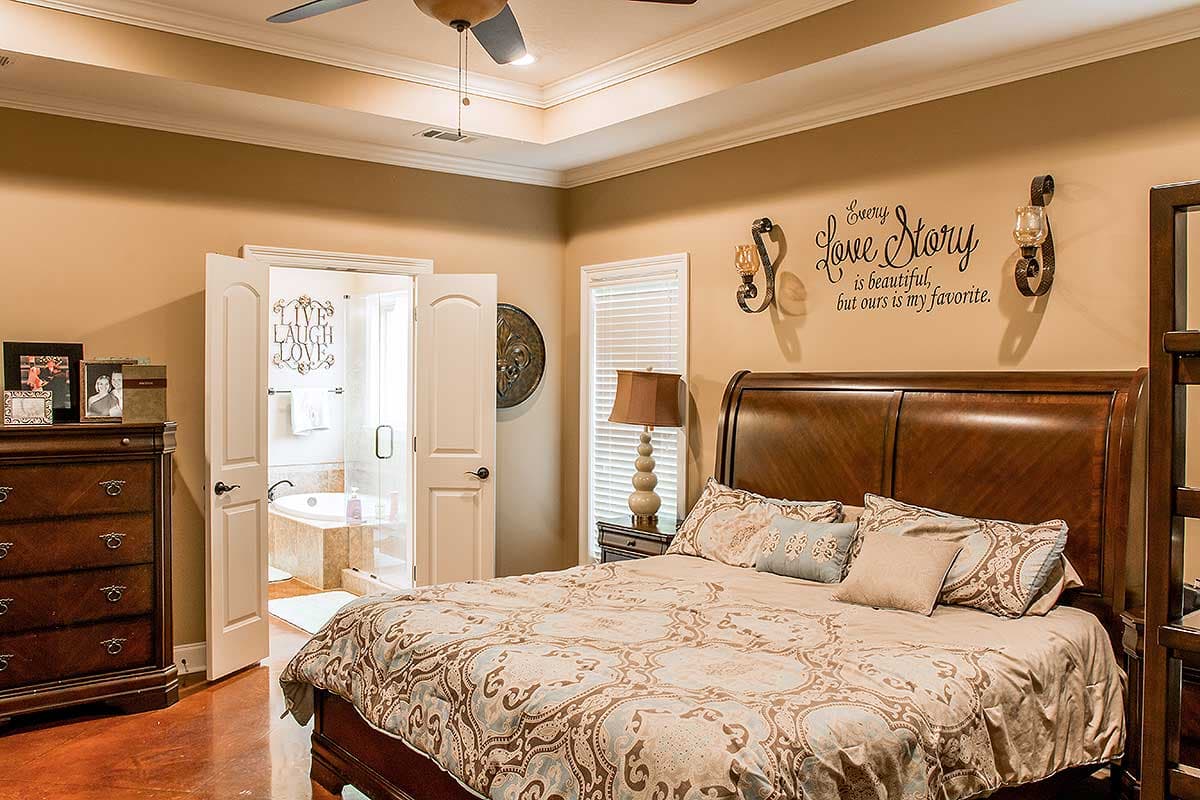

  • The master suite offers a large glass walk in shower and oversized closet giving you great storage space.
  • The bonus room upstairs gives you great expansion opportunities.
  • The roof is stick framed with an 8:12 front to back pitch, 12:12 side pitch except over the front door (13:12) and bonus room dormer (4:12).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

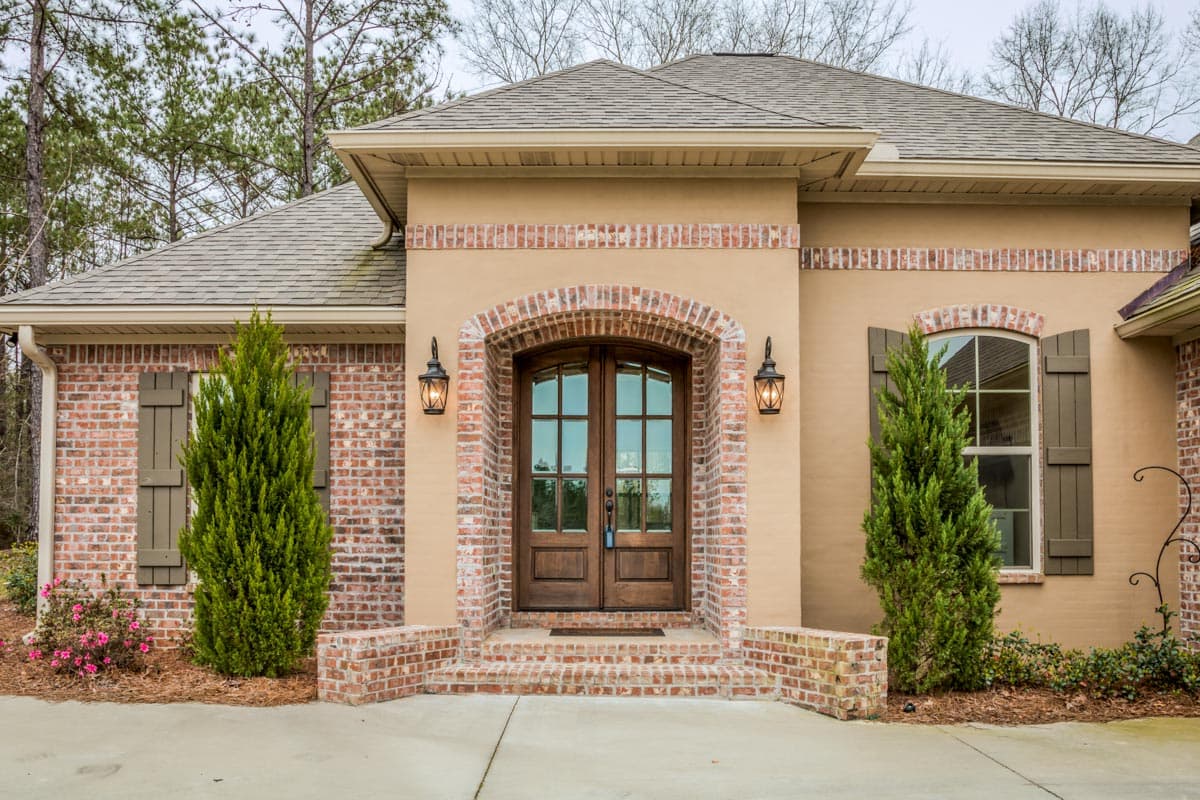

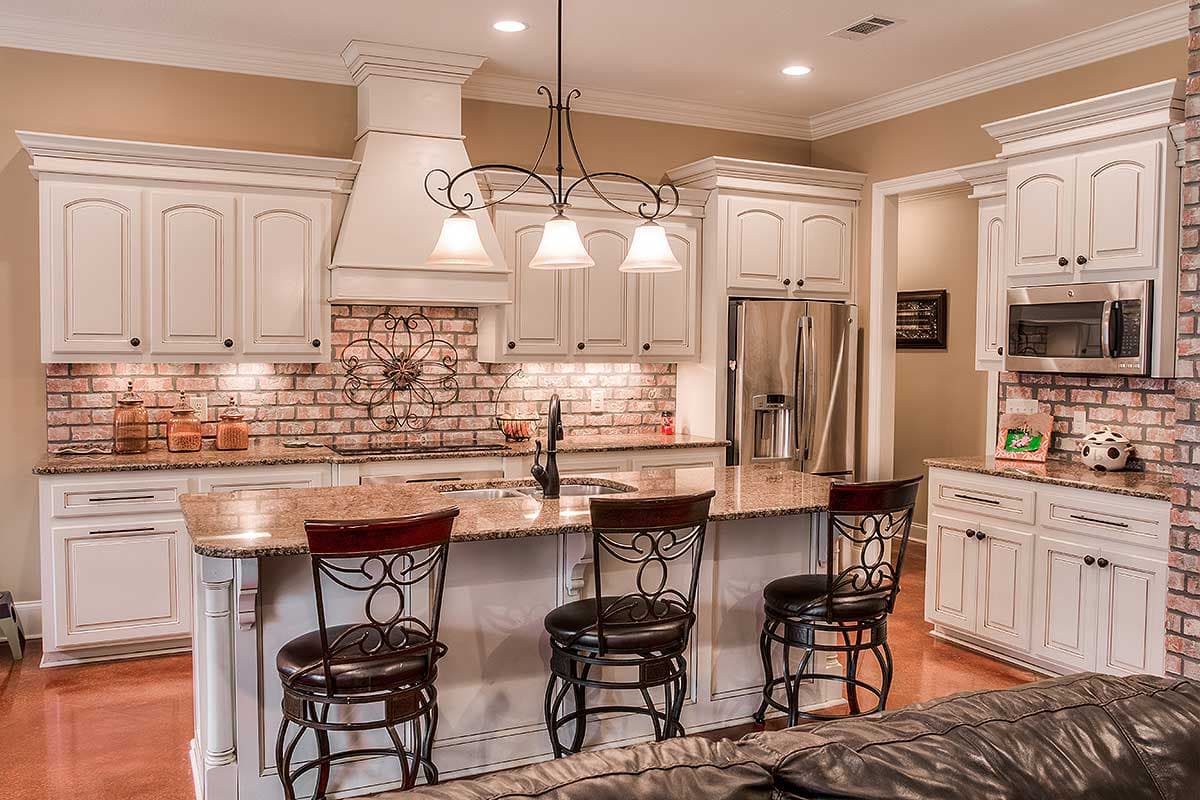

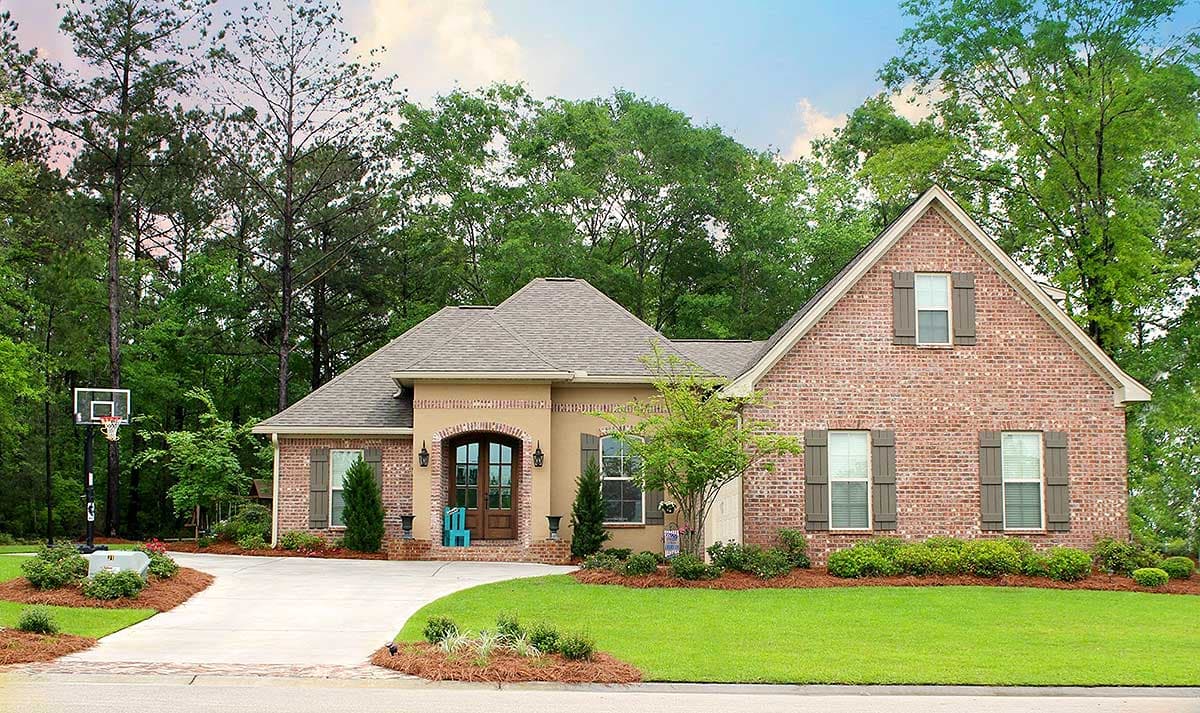

build gallery item - House Plan 51705HZ built with an all-brick exterior in Mississippi

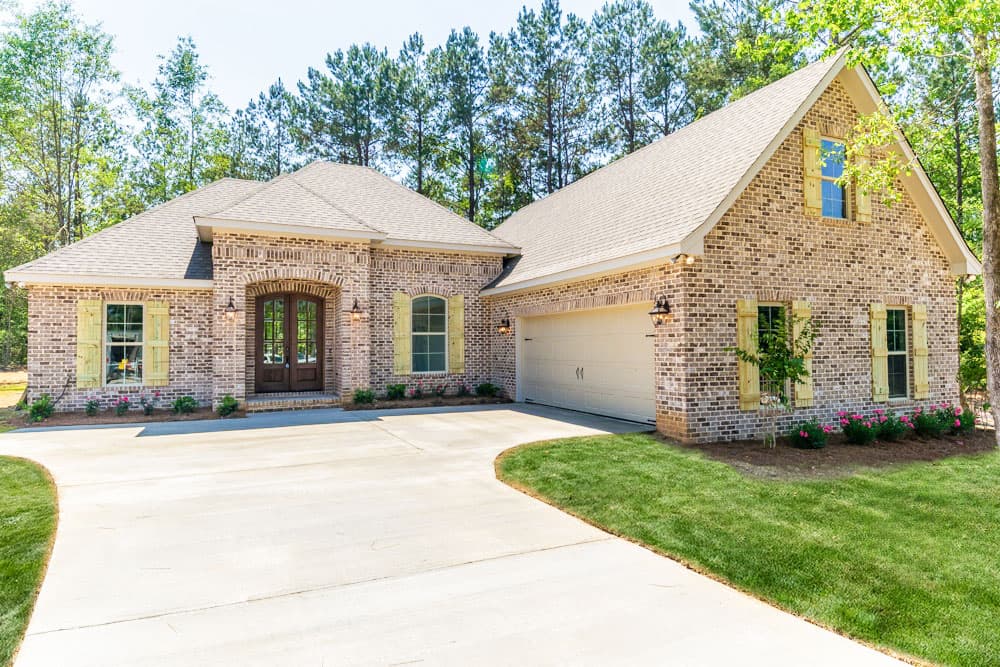

House Plan 51705HZ built with an all-brick exterior in Mississippi

31

Photos

What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

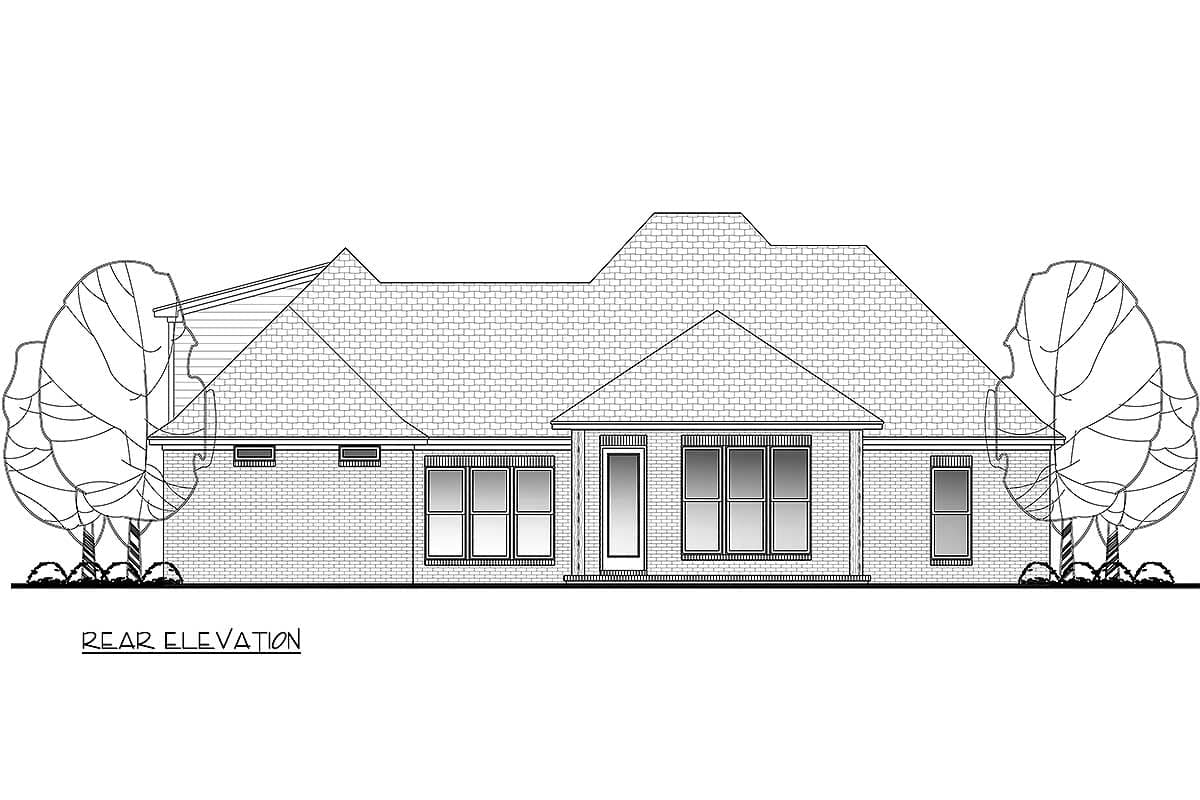

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,870 sq. ft.

1st Floor

1,870 sq. ft.

Bonus

409 sq. ft.

Porch, Front

37 sq. ft.

Porch, Rear

226 sq. ft.

Storage

20 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 2"

Depth

64' 10"

Max Ridge Height

22' 11"

Garage

Type

Attached

Area

567 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Tray

11' 4''

Foyer

10' 0''

Office

10' 0''

Kitchen

10' 0''

Dining Room

10' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
