Name: Plan 69604AM: 3 Bed Angled Ranch with Finished Lower Level
SKU: 69604AM
Price: 2217.0 USD
Availability: InStock

Plan 69604AM

3 Bed Angled Ranch with Finished Lower Level

Heated S.F.

3,806

Beds

Baths

2.5

Stories

Cars

Floor Plan

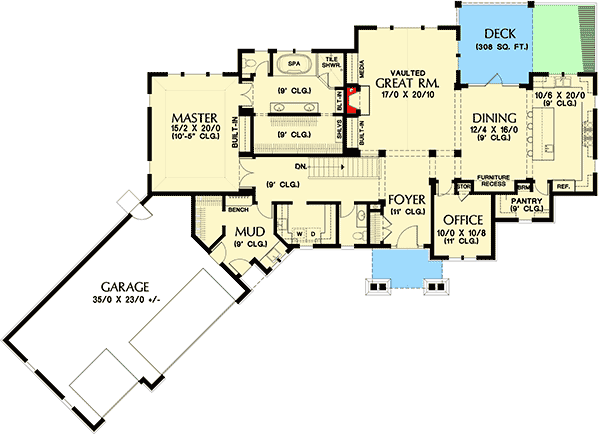

Main Level

Lower Level

Plan Details

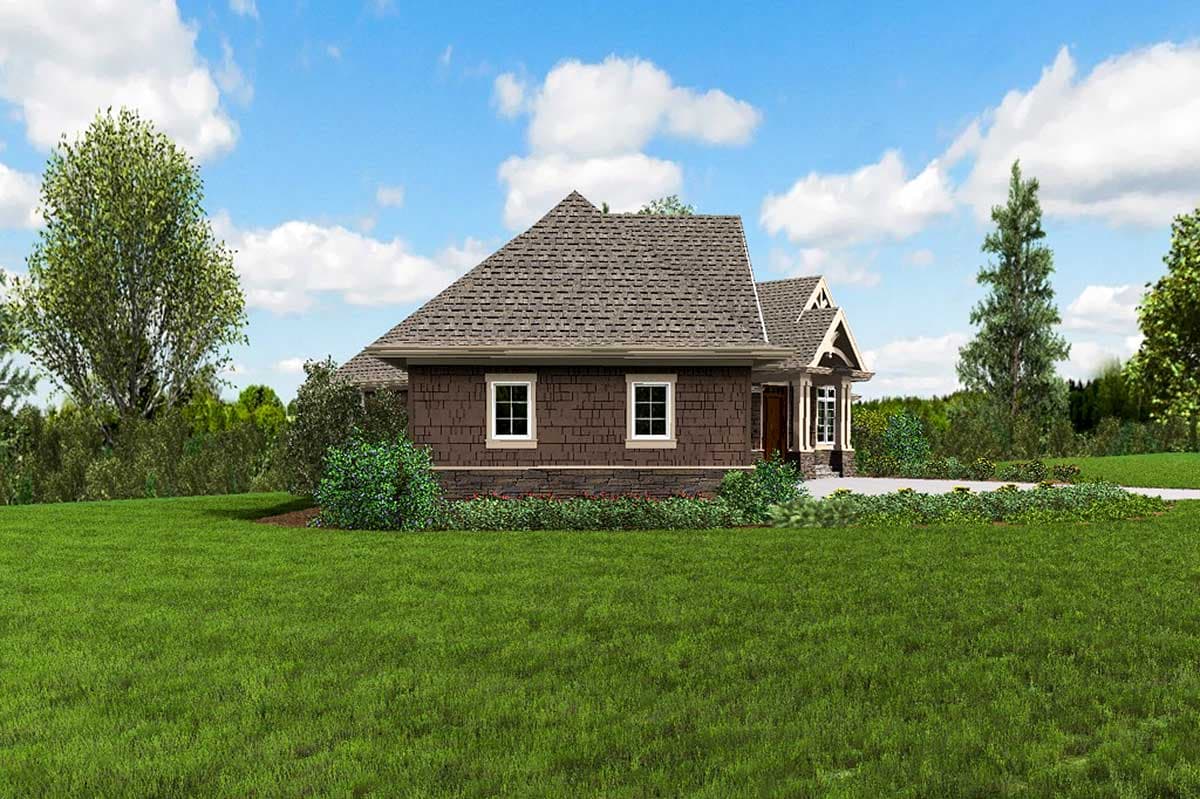

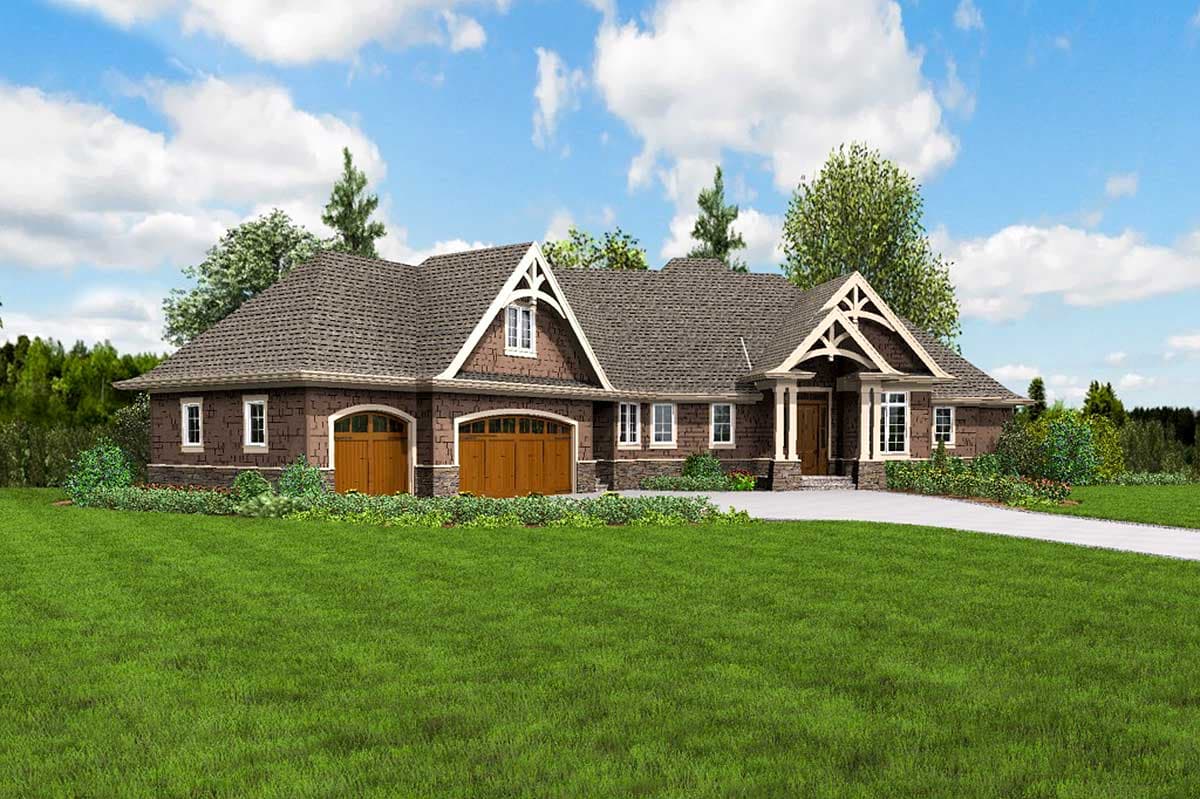

This 3 bed ranch house plan has attractive shingle siding and beautiful wood detailing with decorative trusses atop the three front gables. The covered entry has twin columns that are set in stone bases.

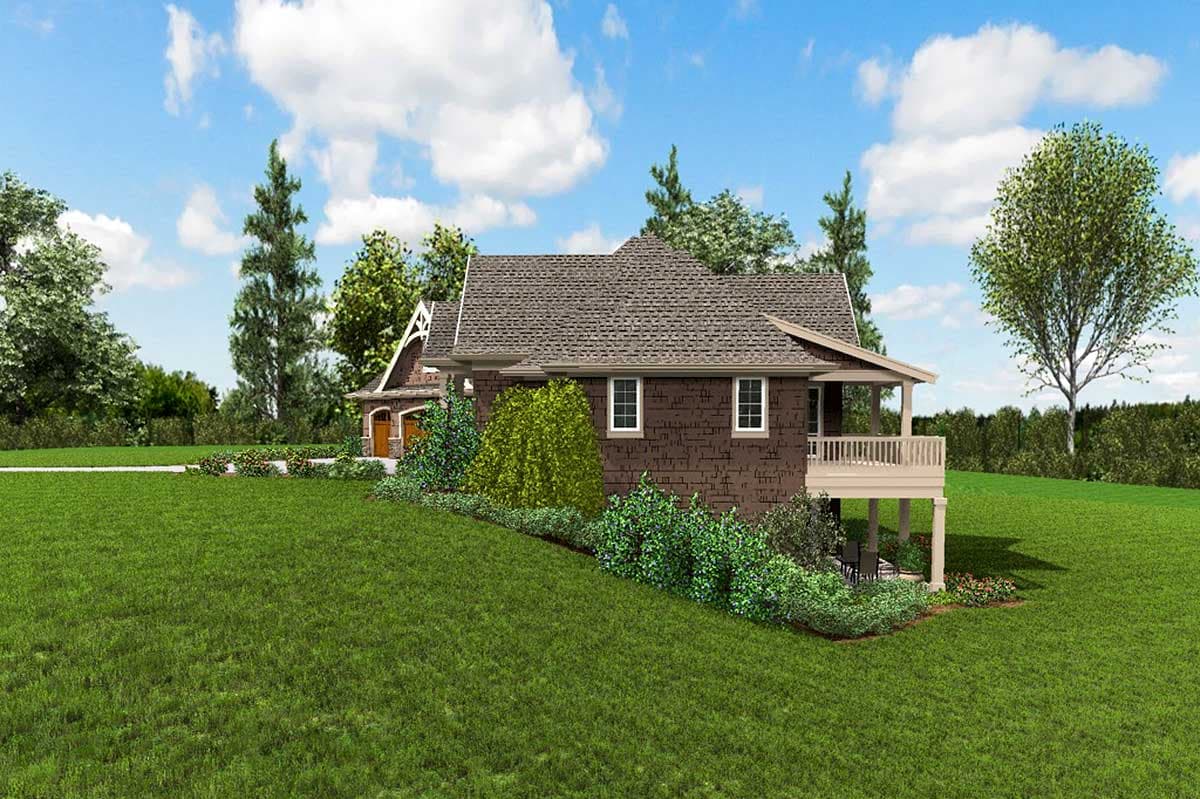

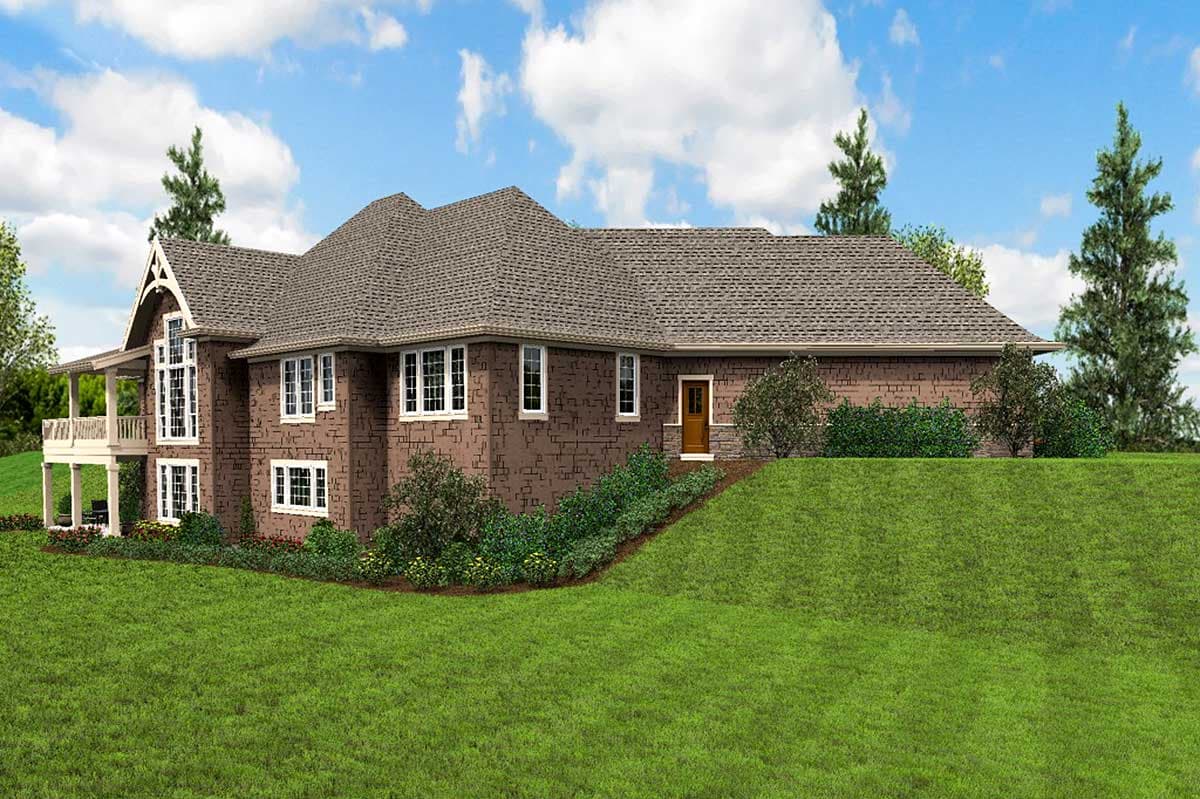

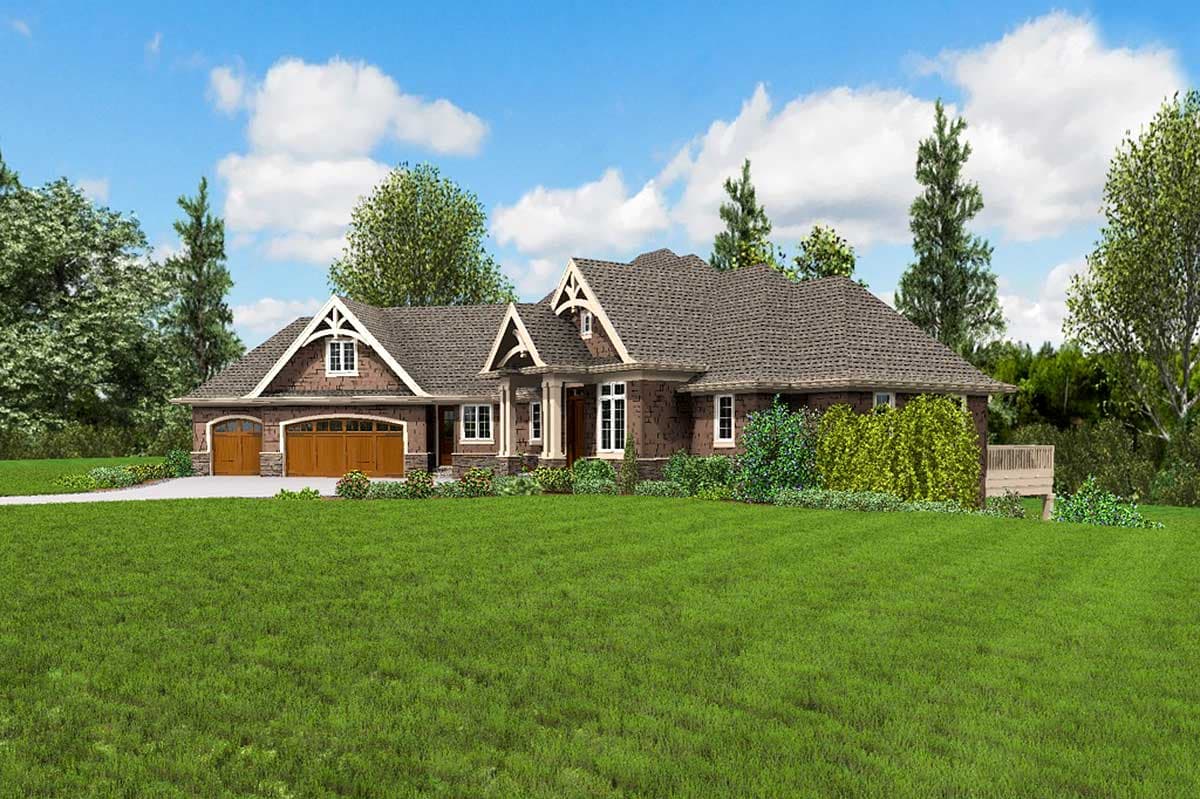

The 3-car garage is set at an angle to help the home fit on narrower lots. The lower level has access to the back yard making this a great choice for down-sloping lots.
The home has two entrances: a formal entry into the foyer and an informal entry into the mud room. The foyer takes you directly to the large, open great room and kitchen-dining area. From the great room, you'll have an excellent view of both the backyard and the main level's deck. The dining area has an alcove for a hutch. At the opposite end of the dining area, doors open onto a large.
The master suite has a picture window giving you a bird's eye view of the back yard. The bathroom features a spa tub, private toilet stall, a tiled shower and his-and-her sinks with an enormous counter. To either side of the sinks are entries into a walk-in closet.
By the family entrance you'll find your laundry. It is adjacent to the mud room where you have access to the garage, a utility sink and a large closet with plenty of storage solutions.

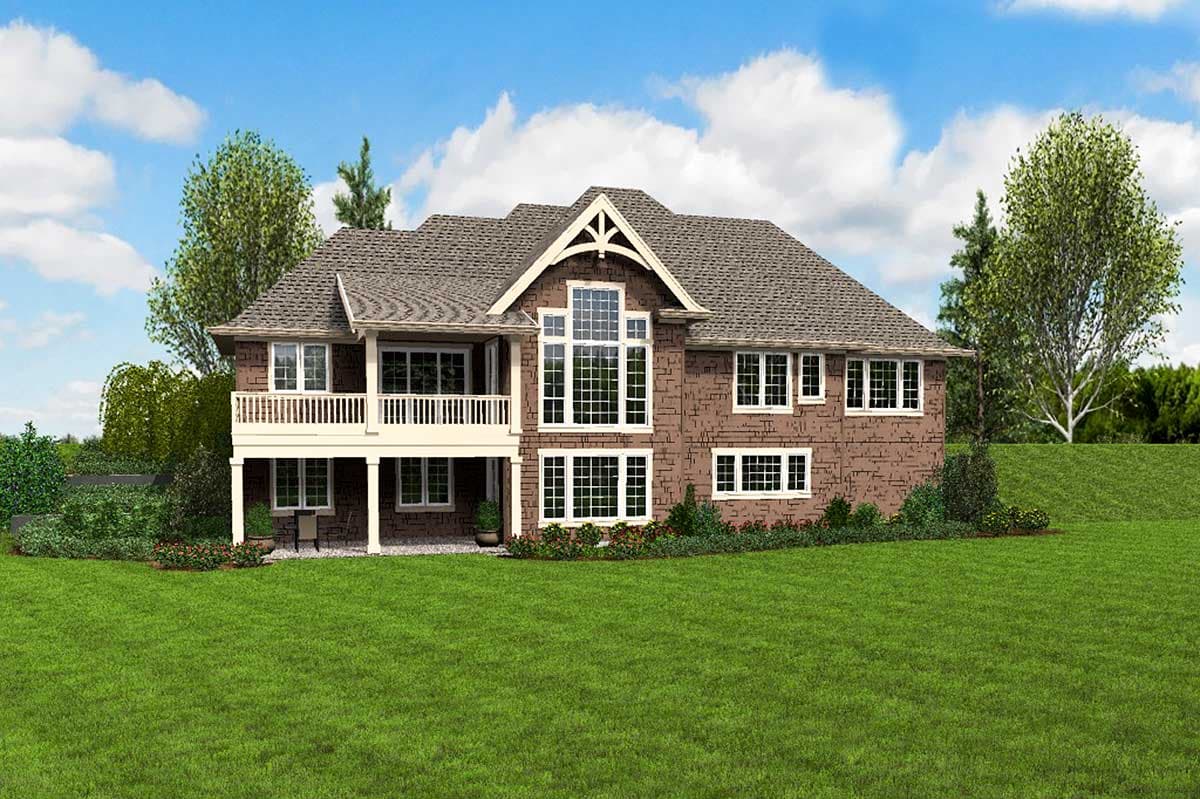

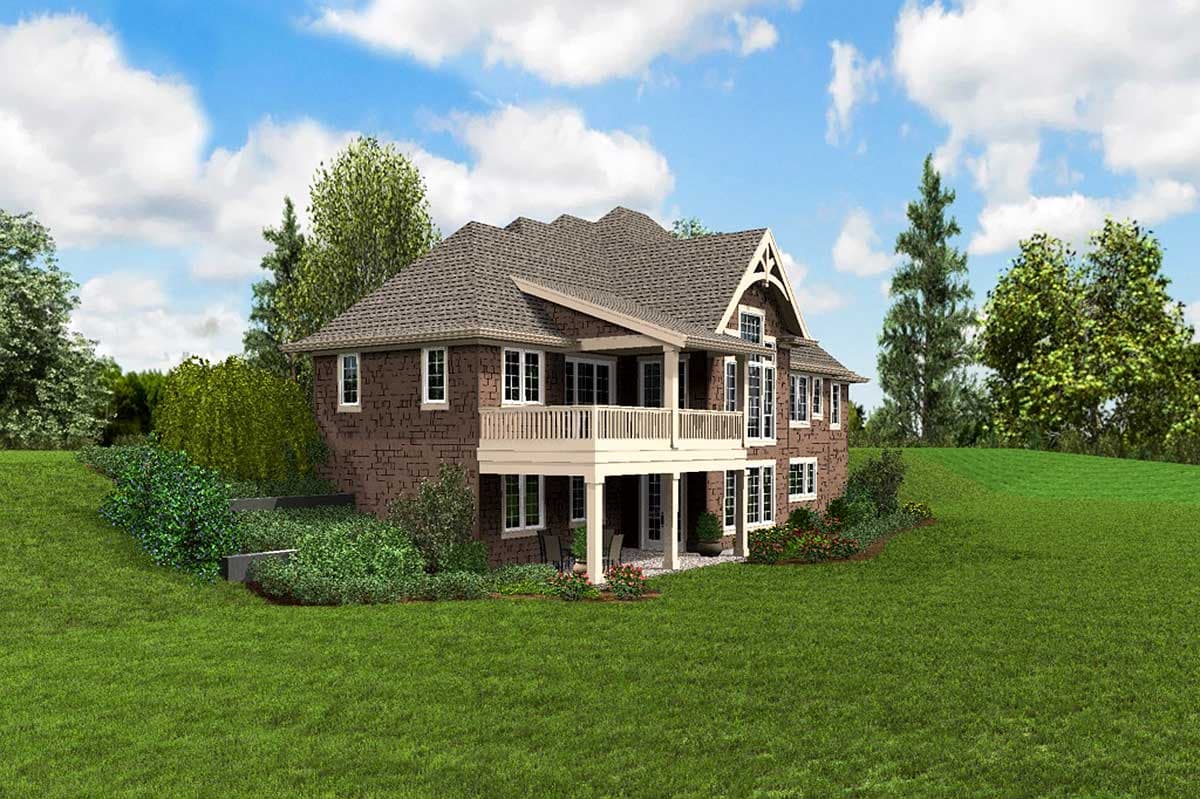

The lower level gives you a large rec room that opens on to the lower patio. To the left is a media room. It also features two bedrooms, a full bath and a large storage area that gives you direct access to the utility area.

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
