Plan 400022FTY

Exclusive

3-Bed Barndominium Home Plan with Wrap Around Porch and Playroom - 2423 Sq Ft

Heated S.F.

2,423

Beds

3

Baths

3

Stories

1

Cars

6

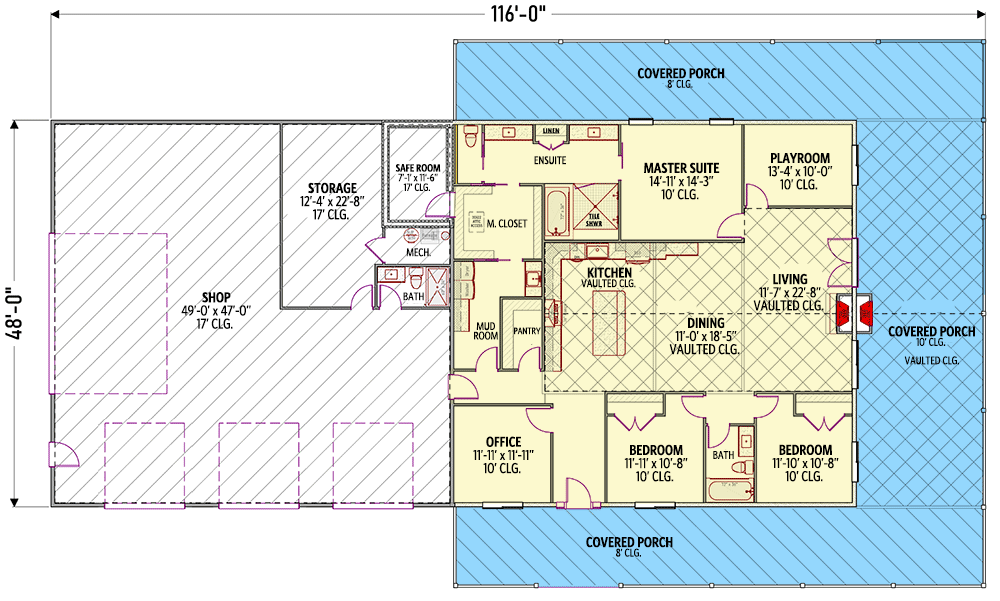

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This 3 bed, 3 bath barndominium house plan gives you 2,423 square feet of heated living and 6 car front and side load garage (2376 square feet). Also gives you 2,098 square feet of outdoor living.
This plan is designed with conventional wood framing - with 2x6 exterior walls.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Building elevations
Detailed floorplan
Window and Door schedules
Roof plan
Electrical Plan
Standard and typical details
General notes and specifications
Foundation Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,423 sq. ft.

1st Floor

2,423 sq. ft.

Porch, Combined

2,098 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Post/Beam

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 0"

Depth

48' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

2376 sq. ft.

Count

6 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

Garage

16' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Wrap Around Porch
