Plan 135282GRA

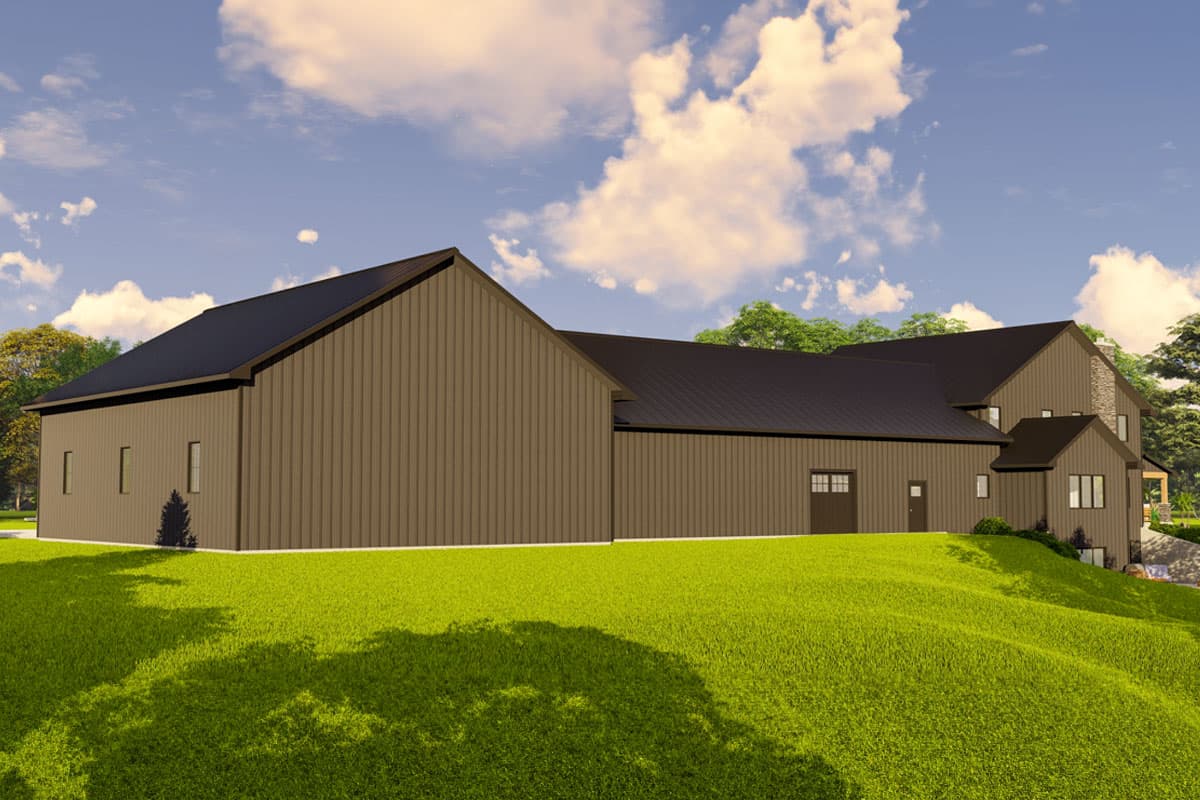

3-Bed Barndominium with Oversized 6-Car Garage and Workshop - 3,473 Sq Ft
Heated S.F.
3,473
Beds
3 - 4
Baths
2.5+
Stories
2
Cars
6
Floor Plan

Plan 135282GRA

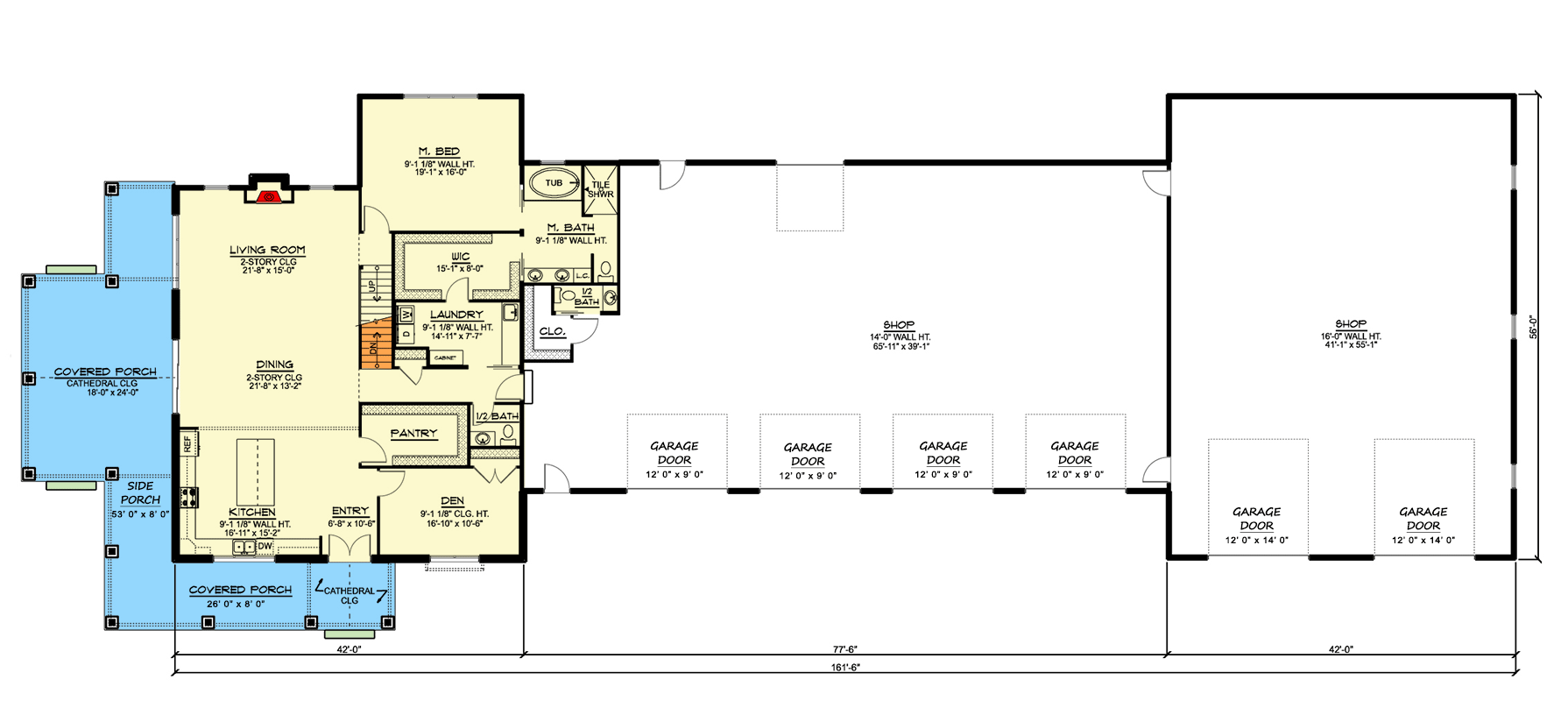

Main Level
slide image 0

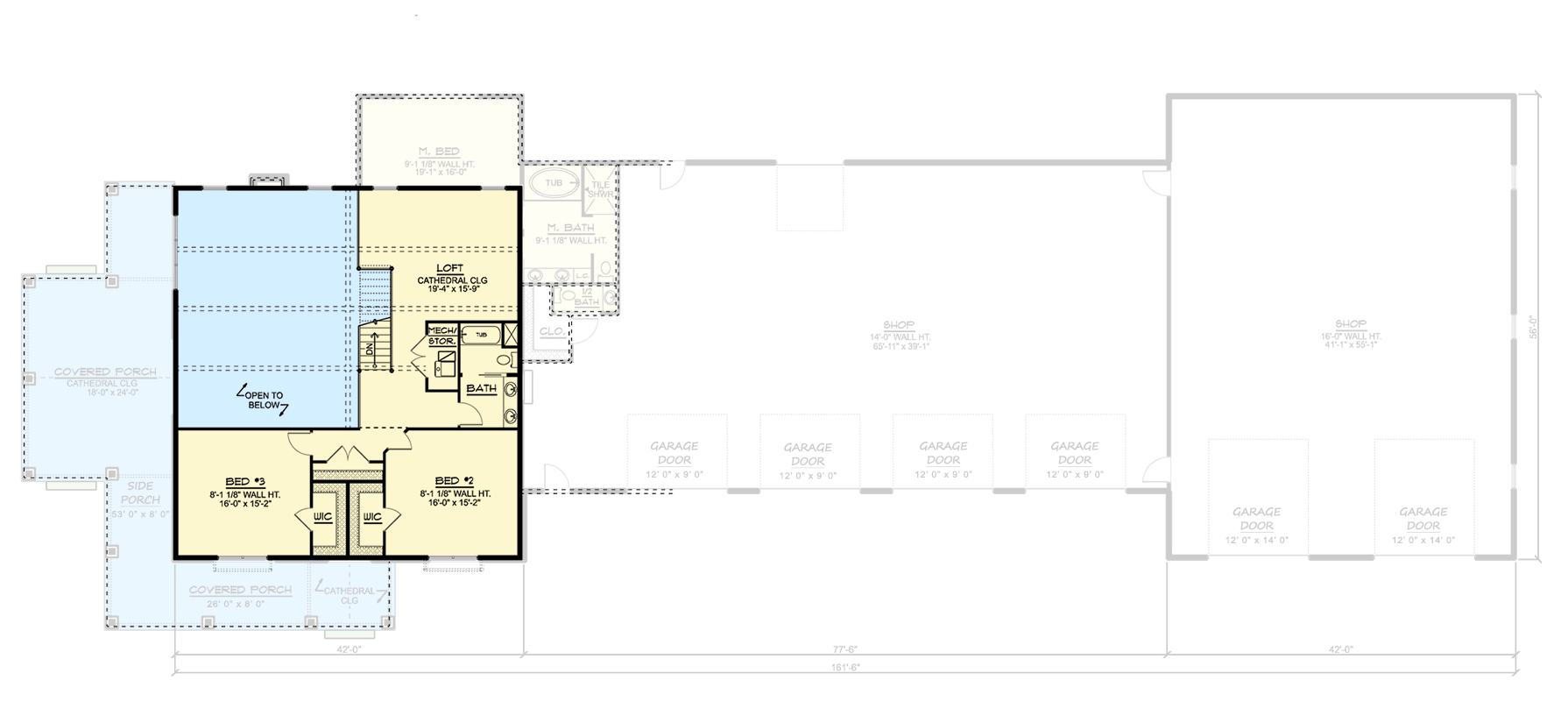

2nd Floor
slide image 1

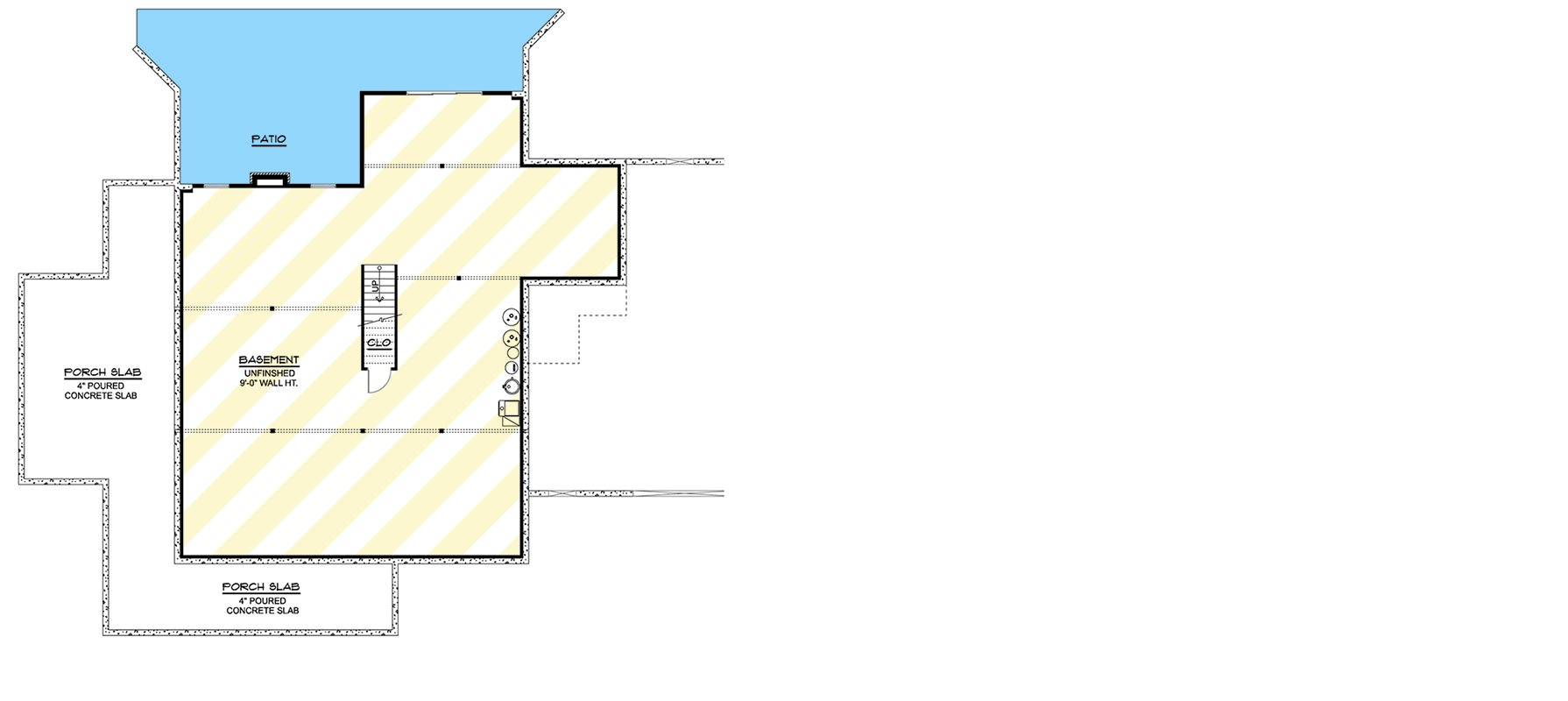

Optionally Finished Lower Level
slide image 2

Plan 135282GRA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • This barndominium house plan offers you 3,473 square feet of heated living space with 3-4 beds, 2 full baths, 2 half baths and an optionally finished lower level. This plan also includes a 5,286 square foot, oversized 6-car garage and workshop.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate house plan with 135288GRA (2,781 sq. ft.).
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,473 sq. ft.

1st Floor

2,276 sq. ft.

2nd Floor

1,197 sq. ft.

Basement Unfinished

2,268 sq. ft.

Porch, Combined

872 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

161' 6"

Depth

56' 0"

Max Ridge Height

30' 11"

Garage

Type

Attached, RV Garage

Area

5286 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Craftsman

Special Features

Butler Walk-in Pantry

Den

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Workshop

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

3,473 sq. ft.

1st Floor

2,276 sq. ft.

2nd Floor

1,197 sq. ft.

Basement Unfinished

2,268 sq. ft.

Porch, Combined

872 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

161' 6"

Depth

56' 0"

Max Ridge Height

30' 11"

Garage

Type

Attached, RV Garage

Area

5286 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Craftsman

Special Features

Butler Walk-in Pantry

Den

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Workshop

Wrap Around Porch
