Plan 52252WM

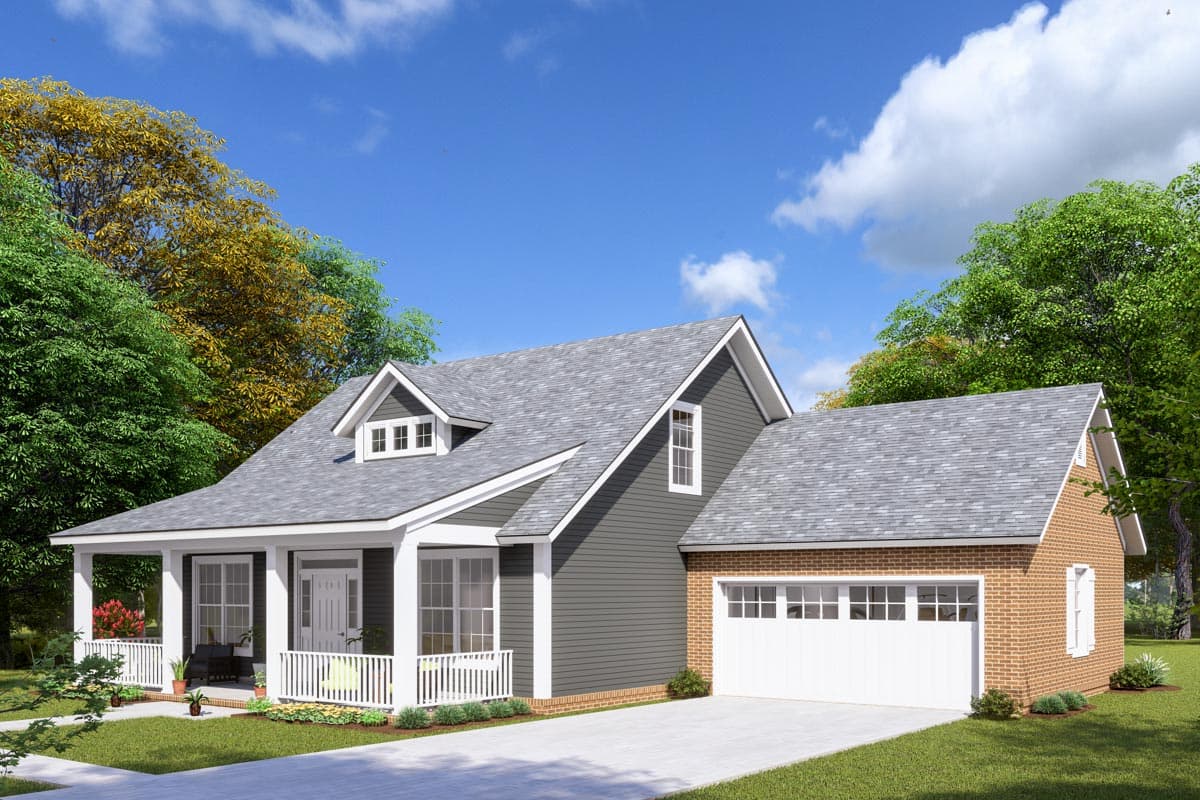

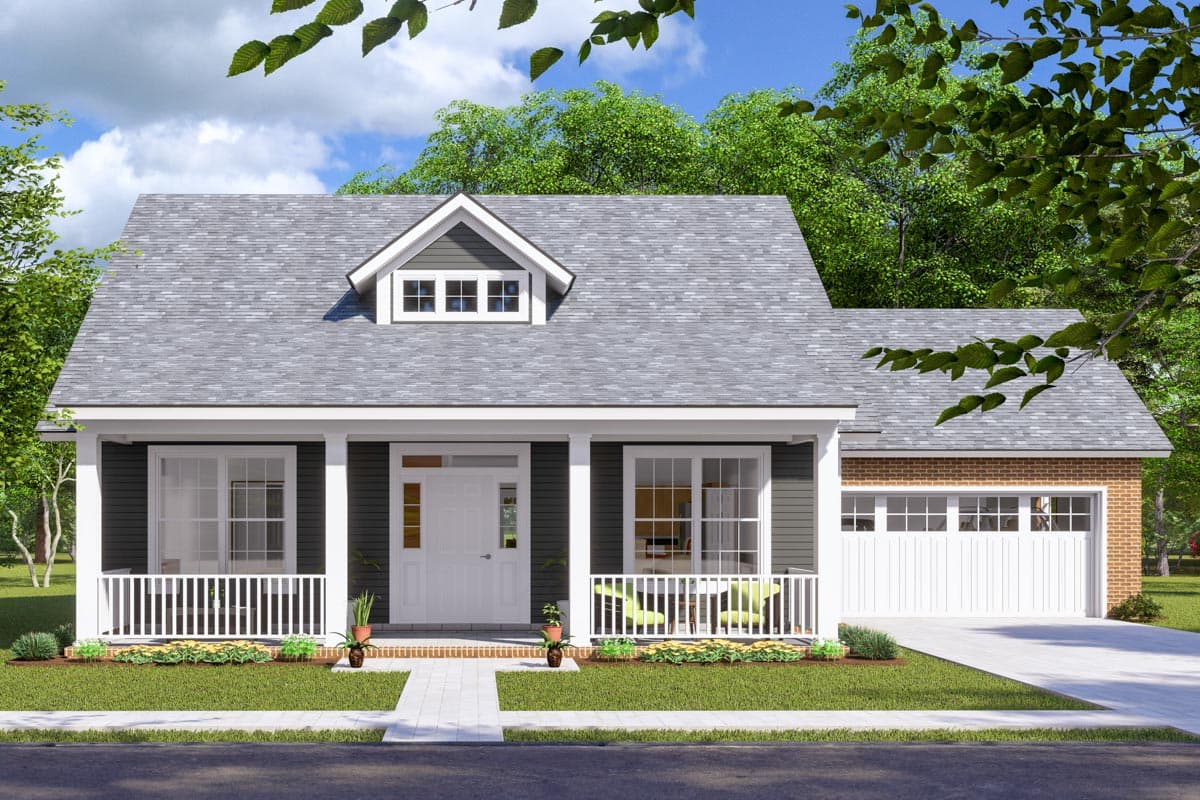

3 Bed Bungalow with Attached 2-Car Garage - 1717 Sq Ft
Heated S.F.
1,717
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 52252WM

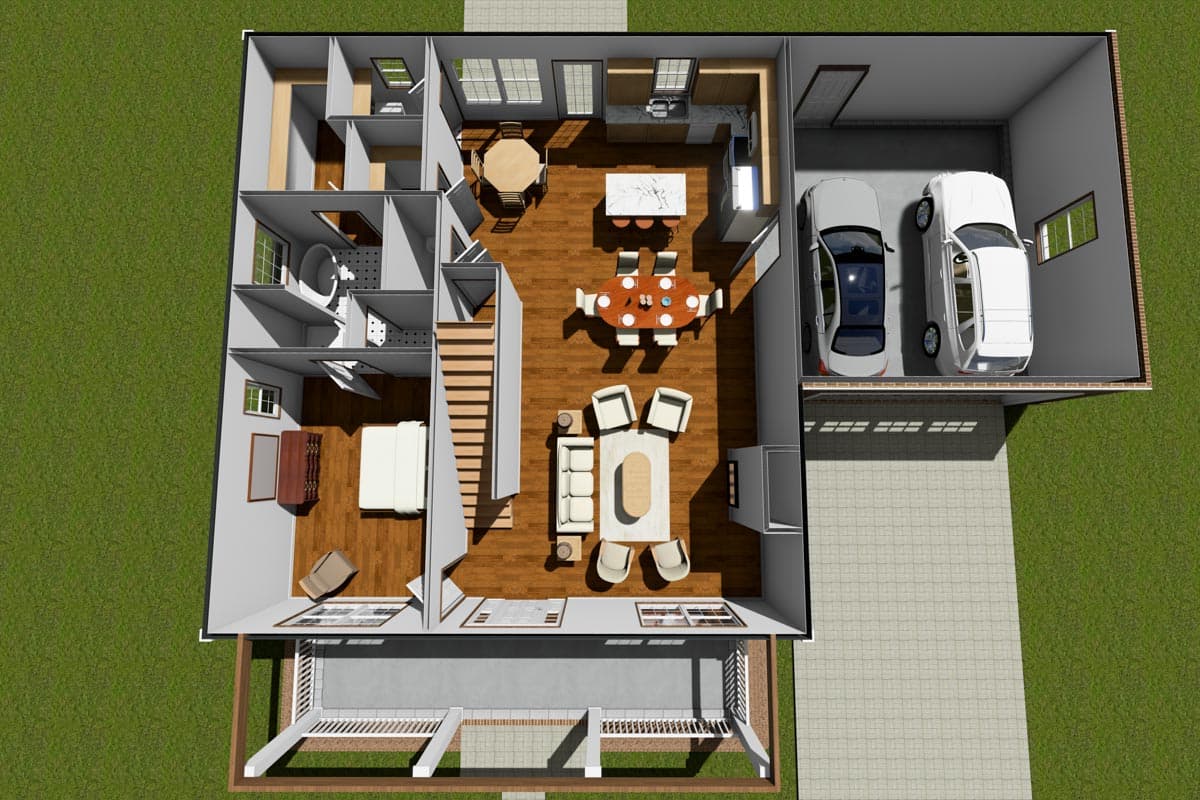

Main Level
slide image 0
2nd Floor
slide image 1

Plan 52252WM

1-800-854-7852

1-262-521-4596

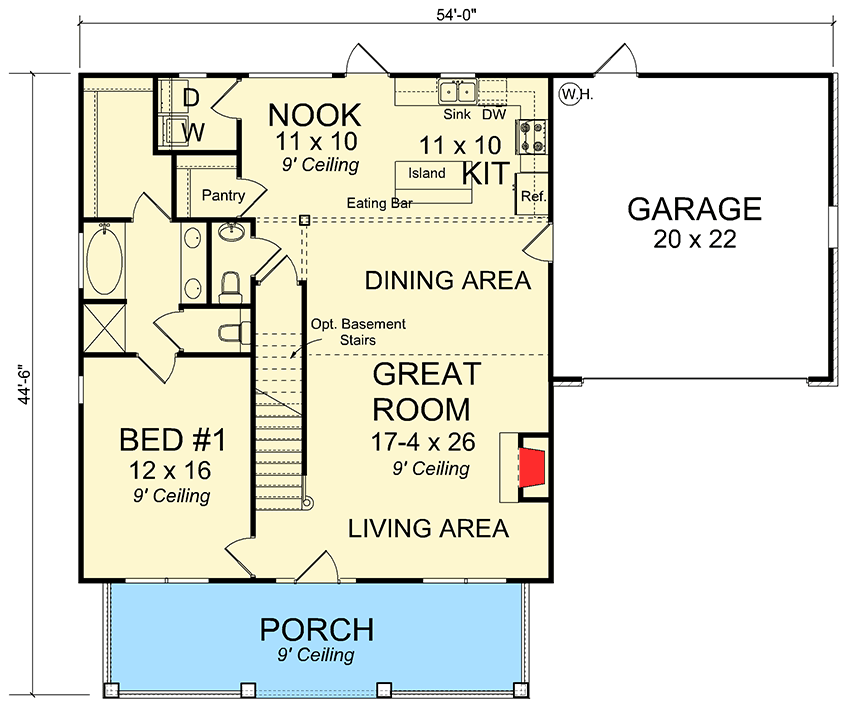

Main Level
floor plan image Main Level

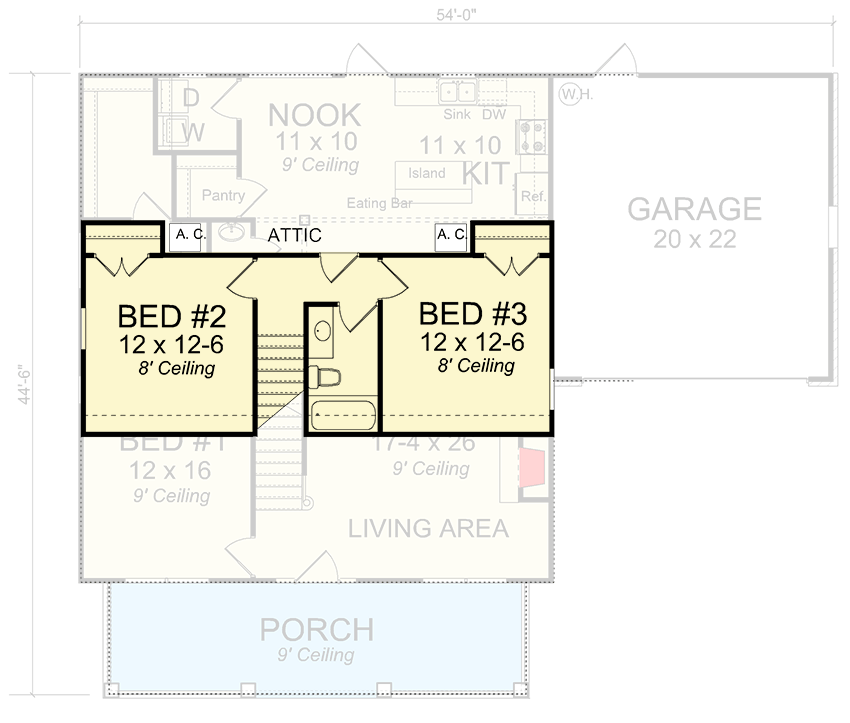

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A first floor master suite and large open living space are key design elements in this 3 bed bungalow house plan.
  • The great room is open to the dining room and that space in turn is open to the kitchen and nook. The island in the kitchen has seating and there is a walk-in pantry for storage.
  • Homeowners won't have far to go at night with the first floor suite close at hand complete with walk-in closet and five fixture bath.

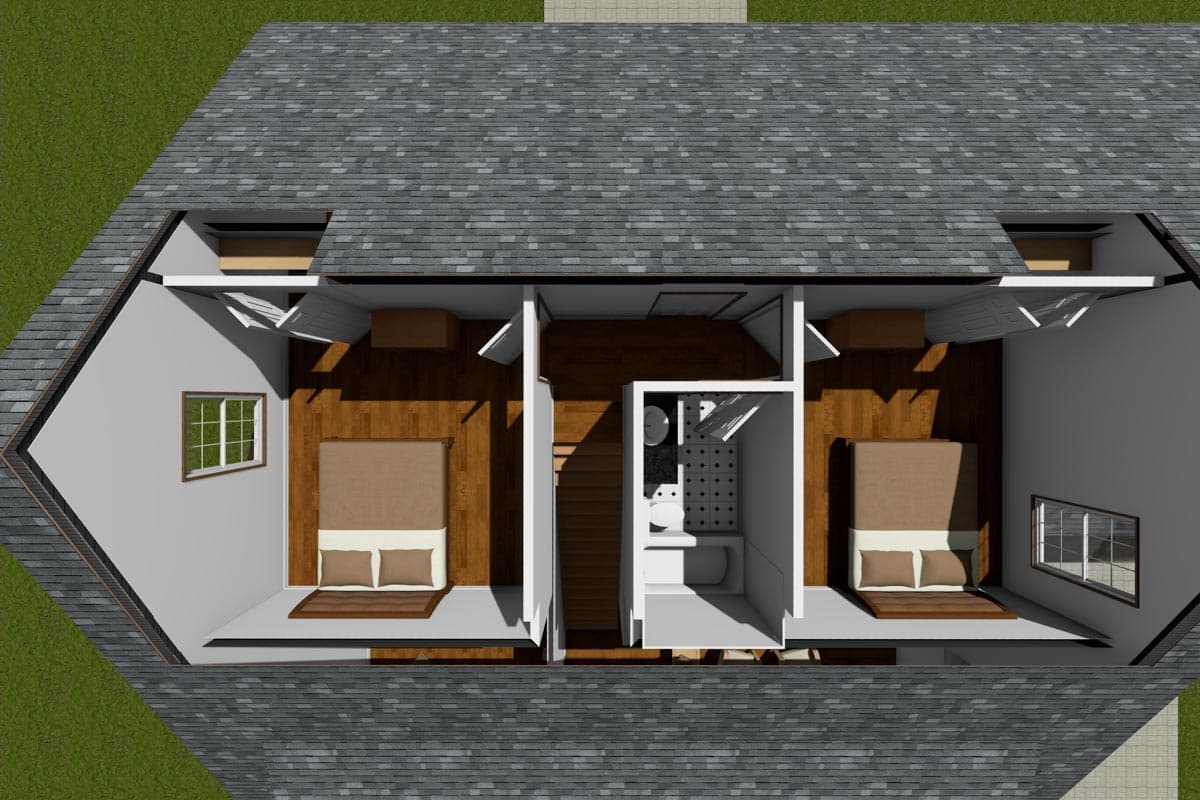

  • On the second floor, two good-sized bedrooms share a bathroom.
  • The stick framed roof has a 9:12 pitch.
  • Related Plans: Remove the garage with house plan 52254WM. And get more room with house plan 52248WM (1,871 sq. ft.).
What's Included
  • Front elevation and construction notes

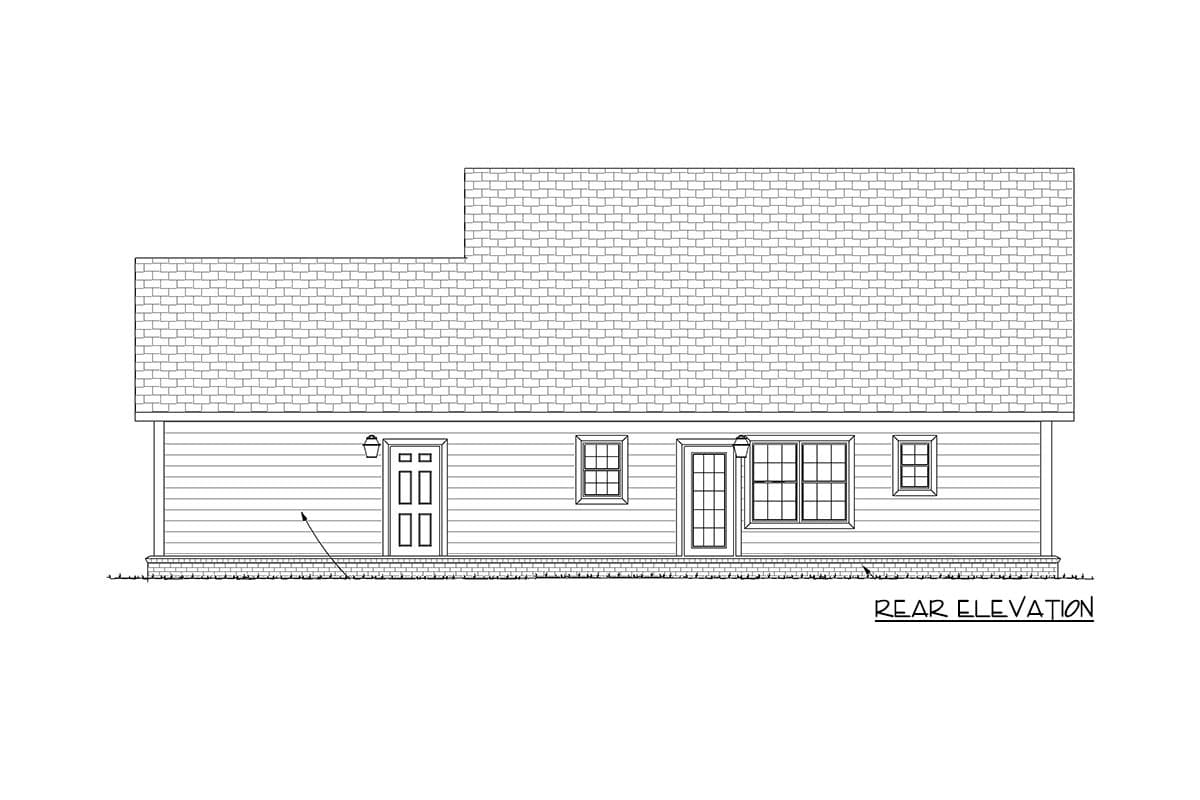

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,717 sq. ft.

1st Floor

1,241 sq. ft.

2nd Floor

476 sq. ft.

Porch, Front

240 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

44' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Country

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
