Plan 59123ND

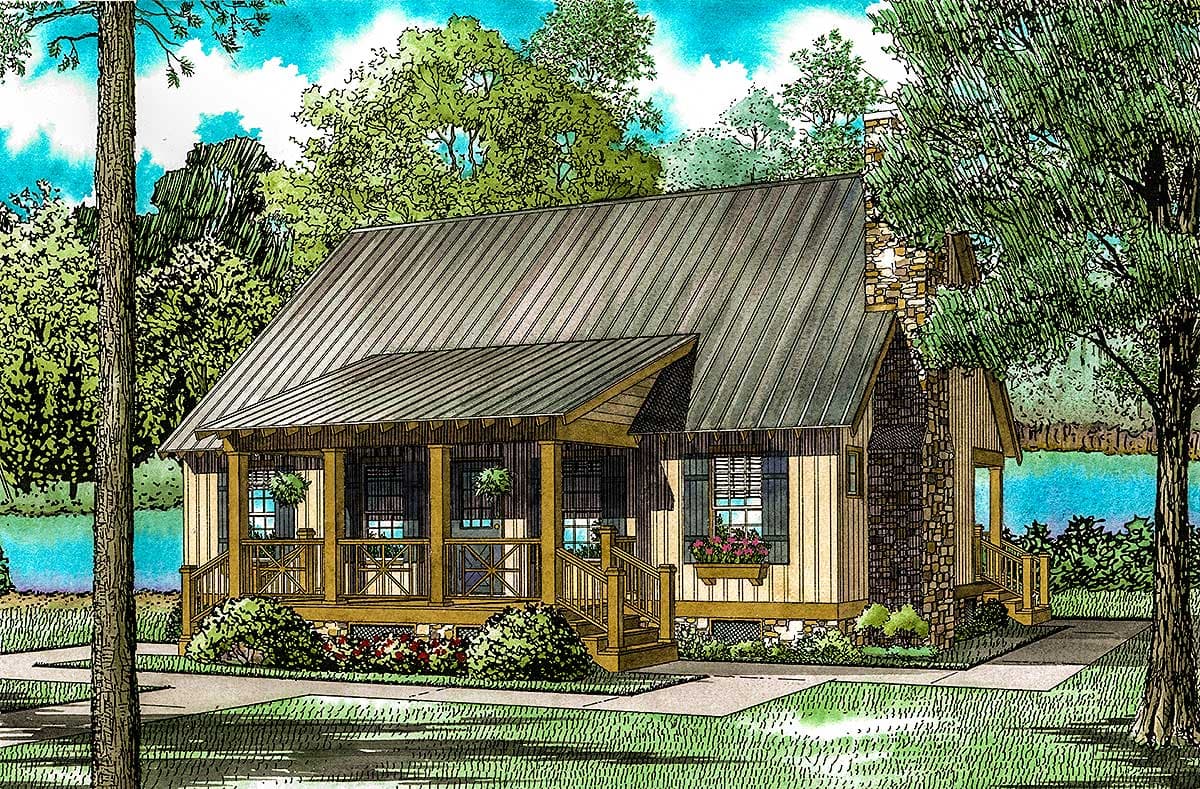

3-Bed Cabin Cottage Under 1400 Square Feet

Heated S.F.

1,374

Beds

3

Baths

2

Stories

2

Floor Plan

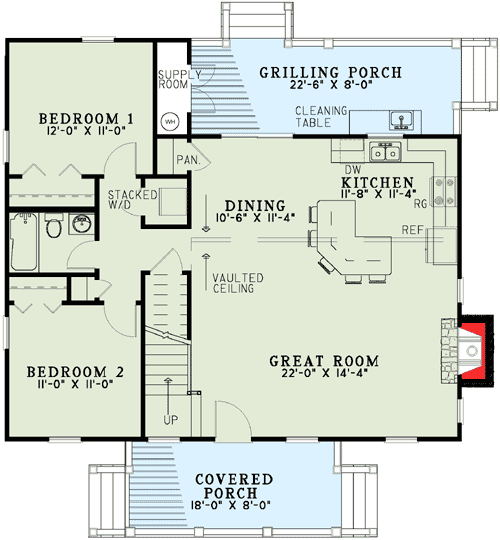

Main Level

floor plan image Main Level

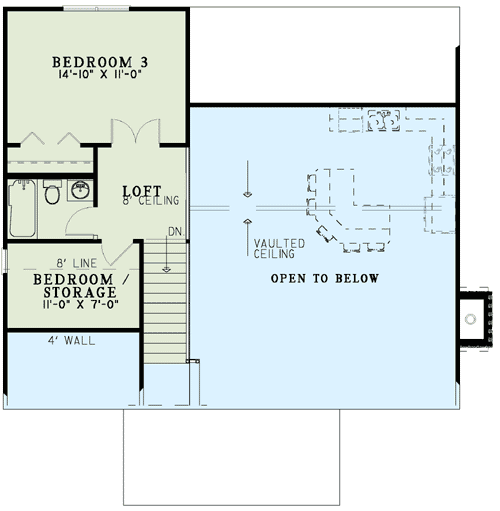

2nd Floor

floor plan image 2nd Floor

Plan Details

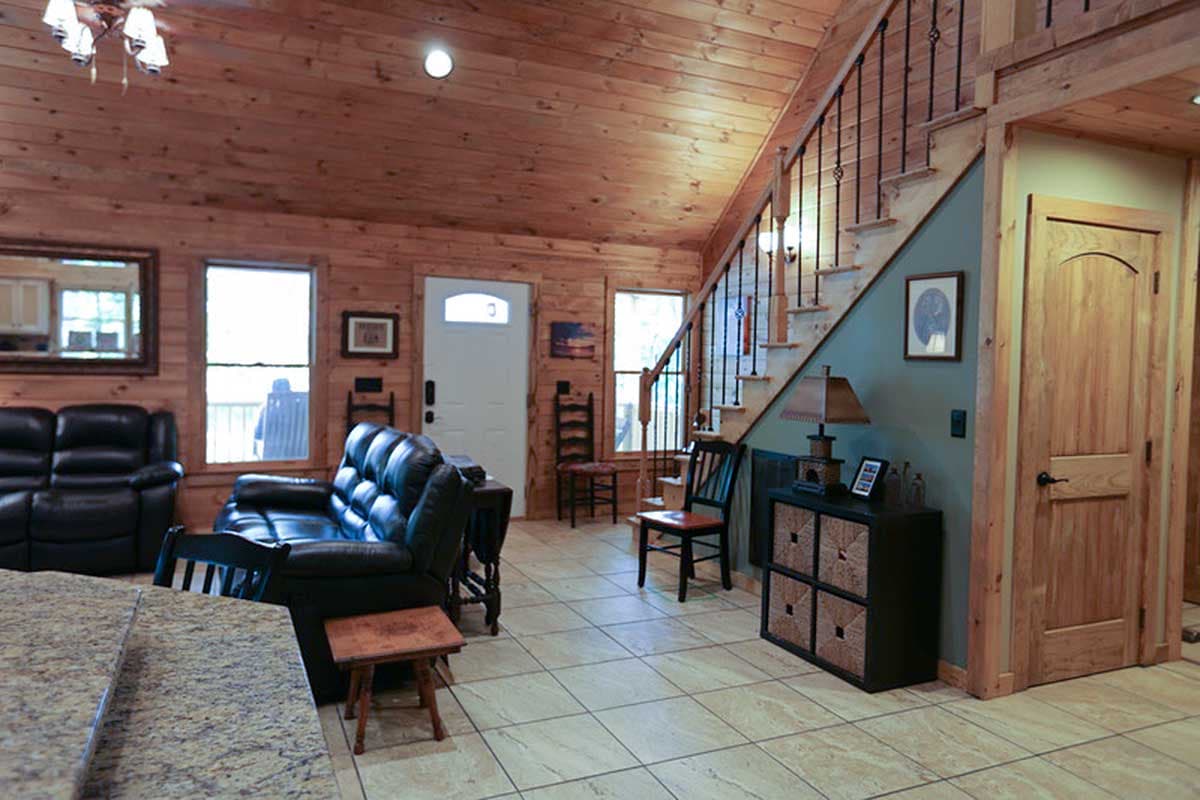

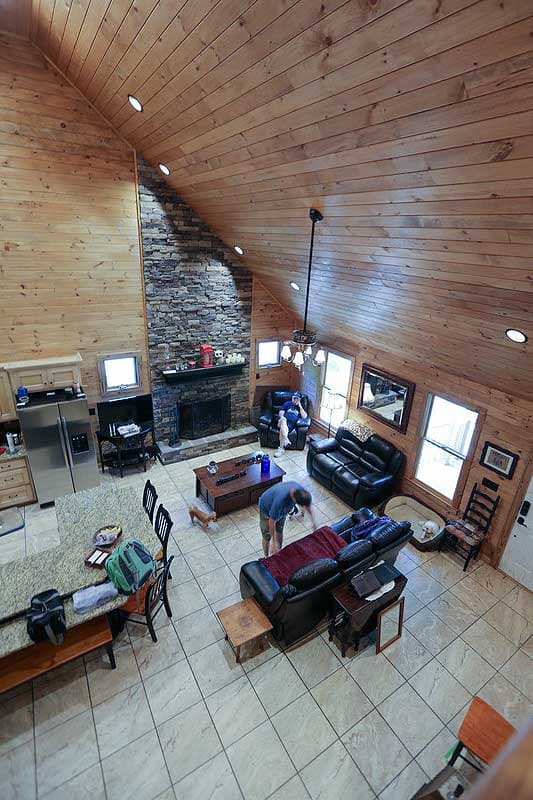

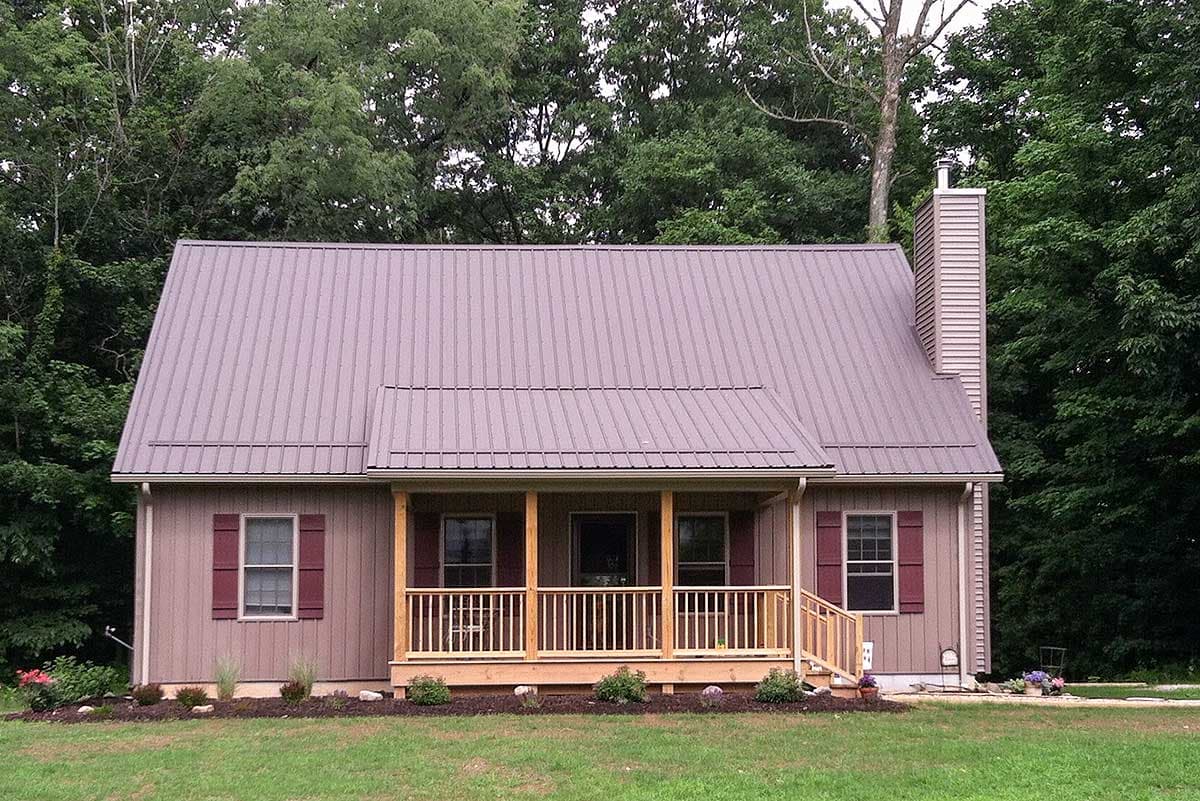

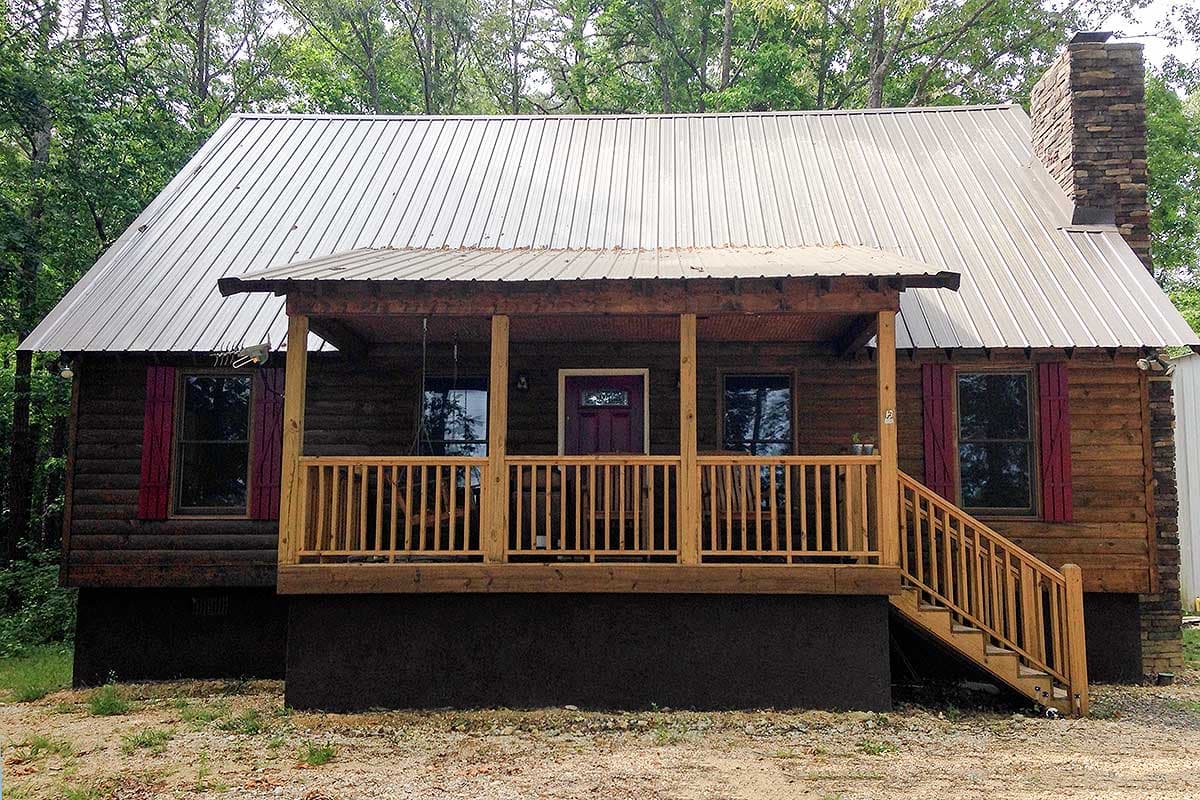

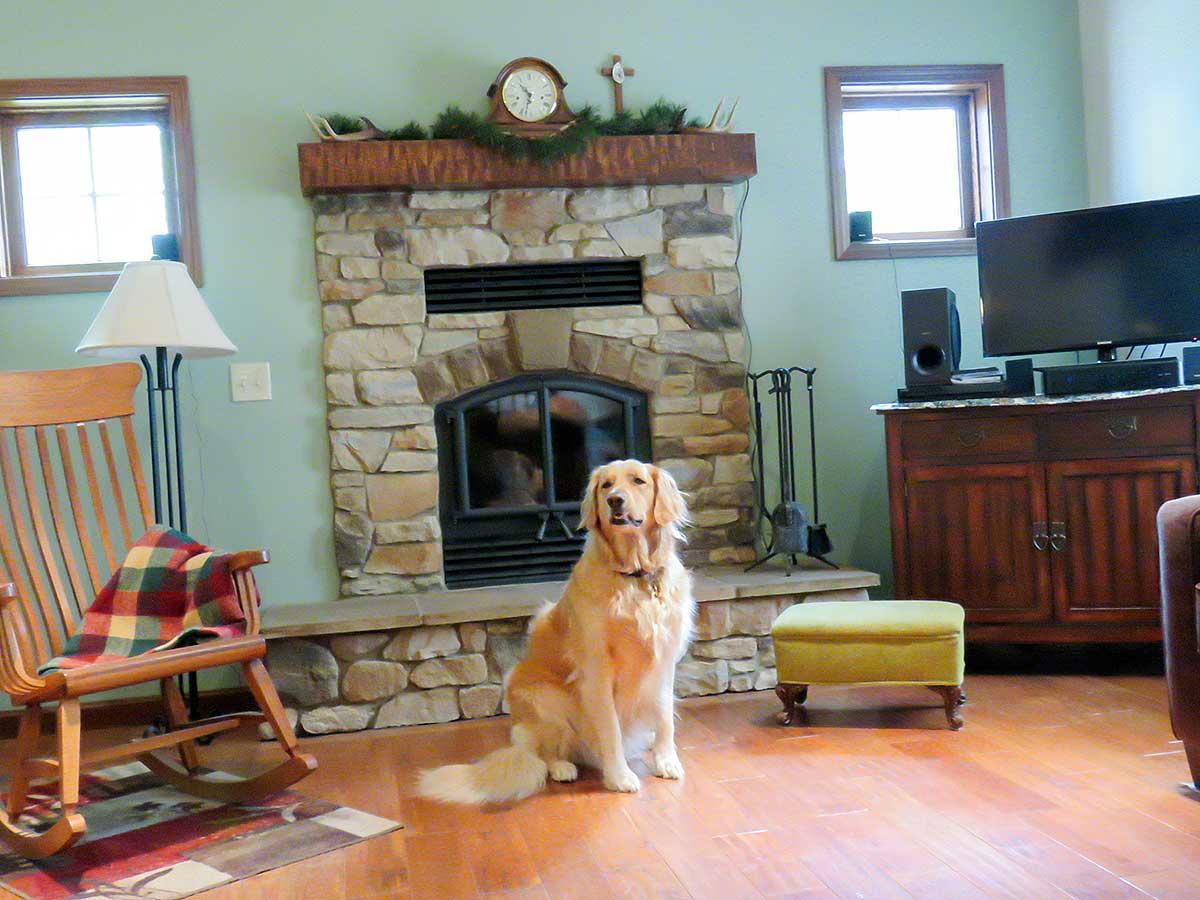

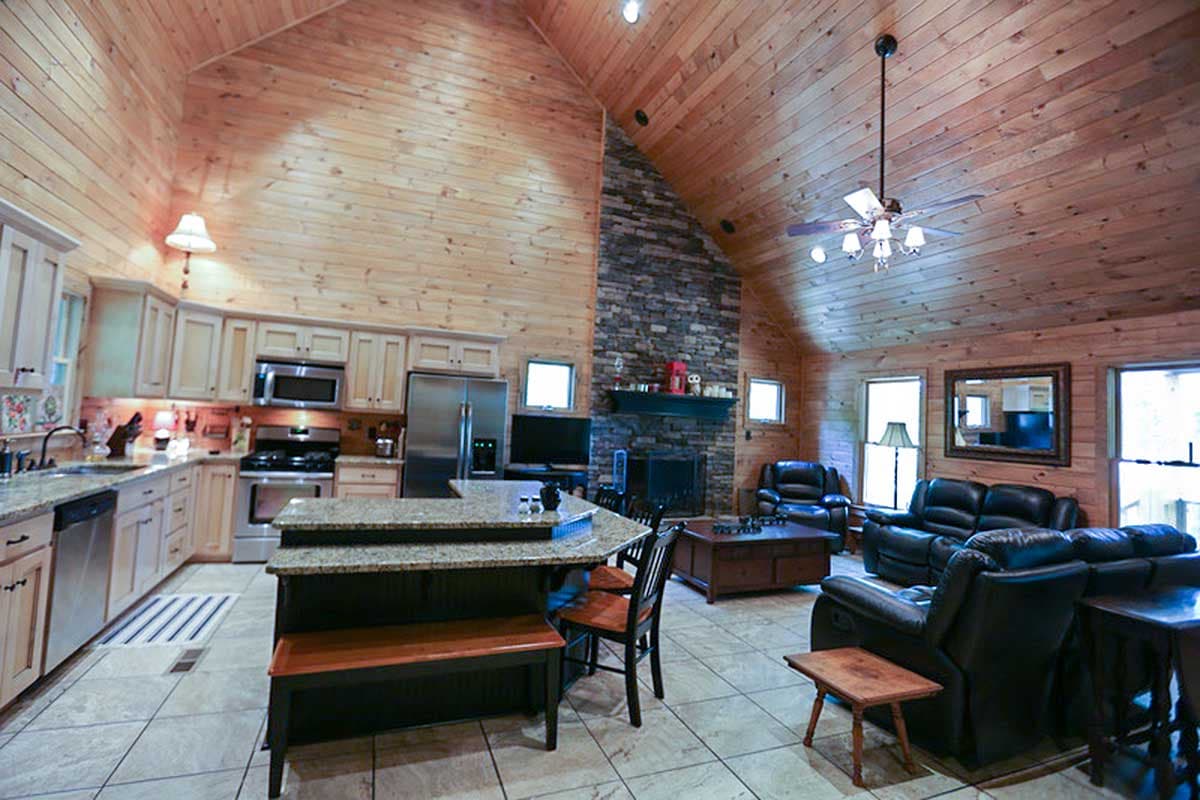

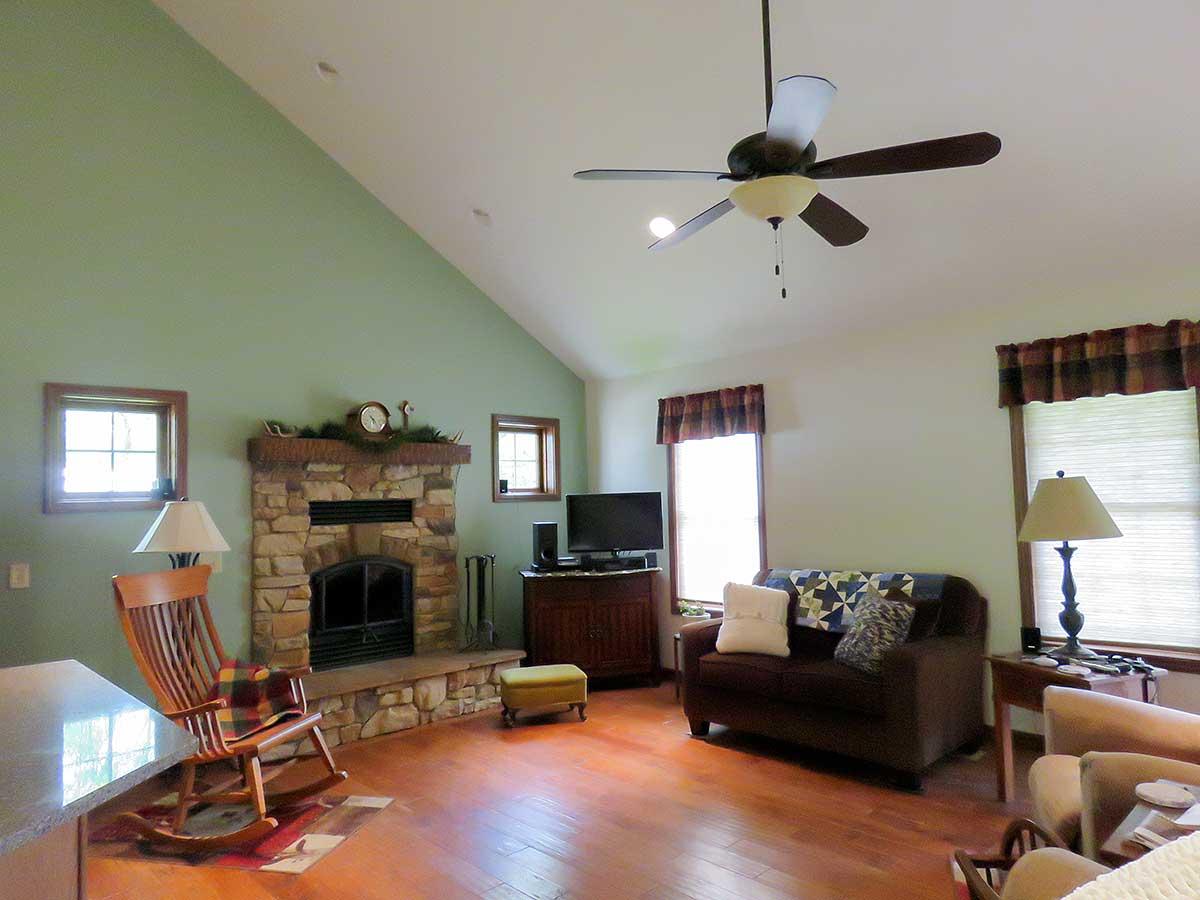

This cabin welcomes you with an eight foot entry porch which opens to the Great room with fireplace and vaulted ceiling.

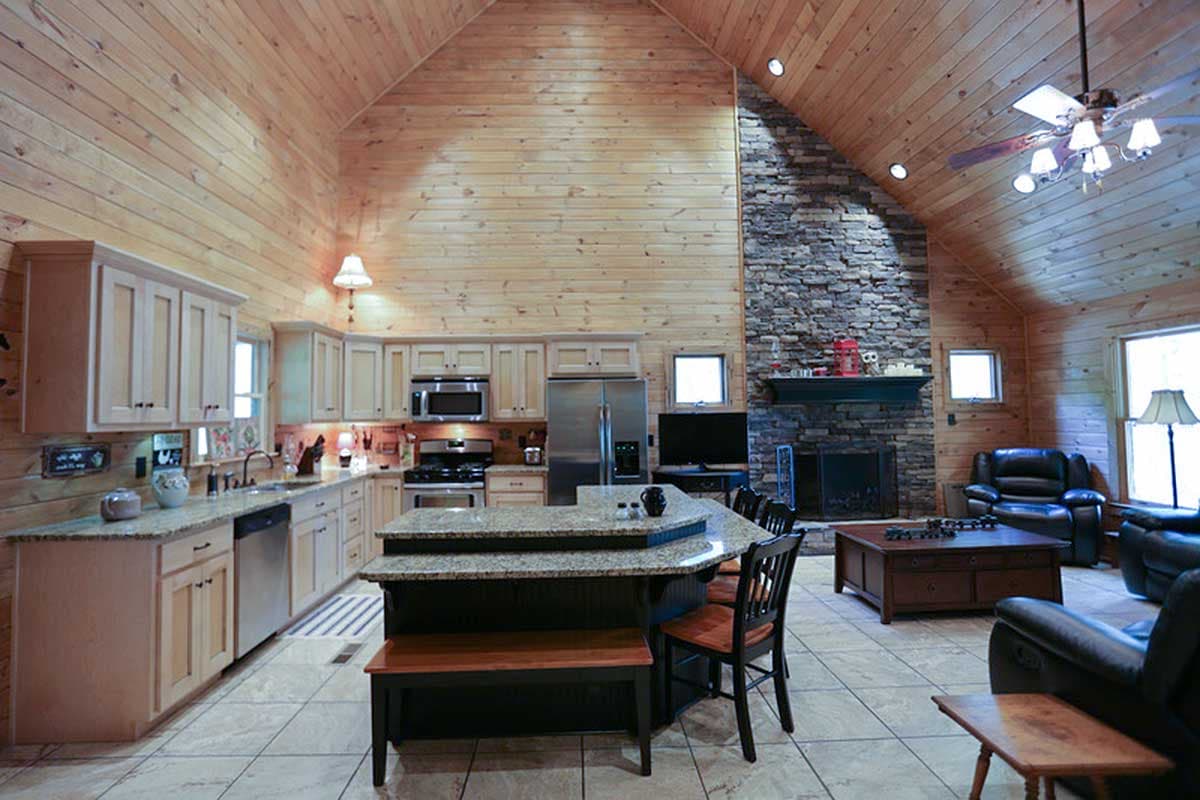

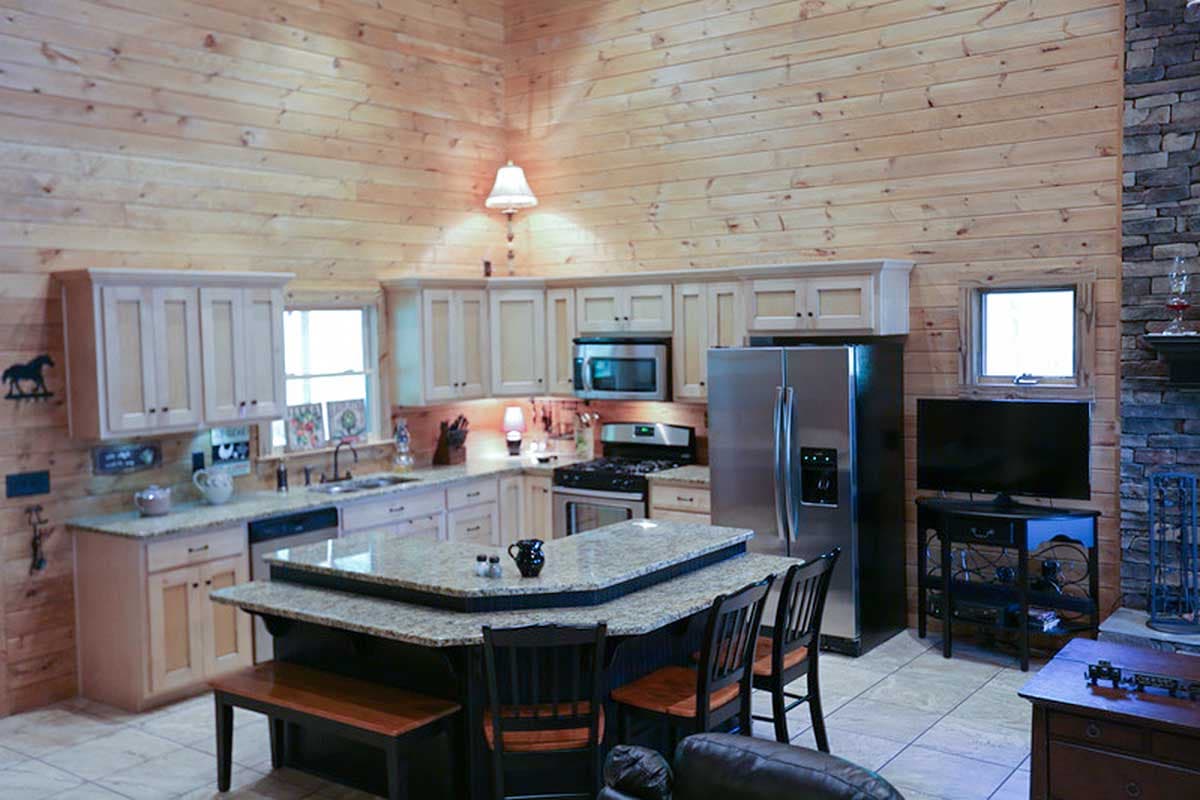

The functional kitchen features a convenient island bar.
You don't have to rough it with a stacked washer/dryer.

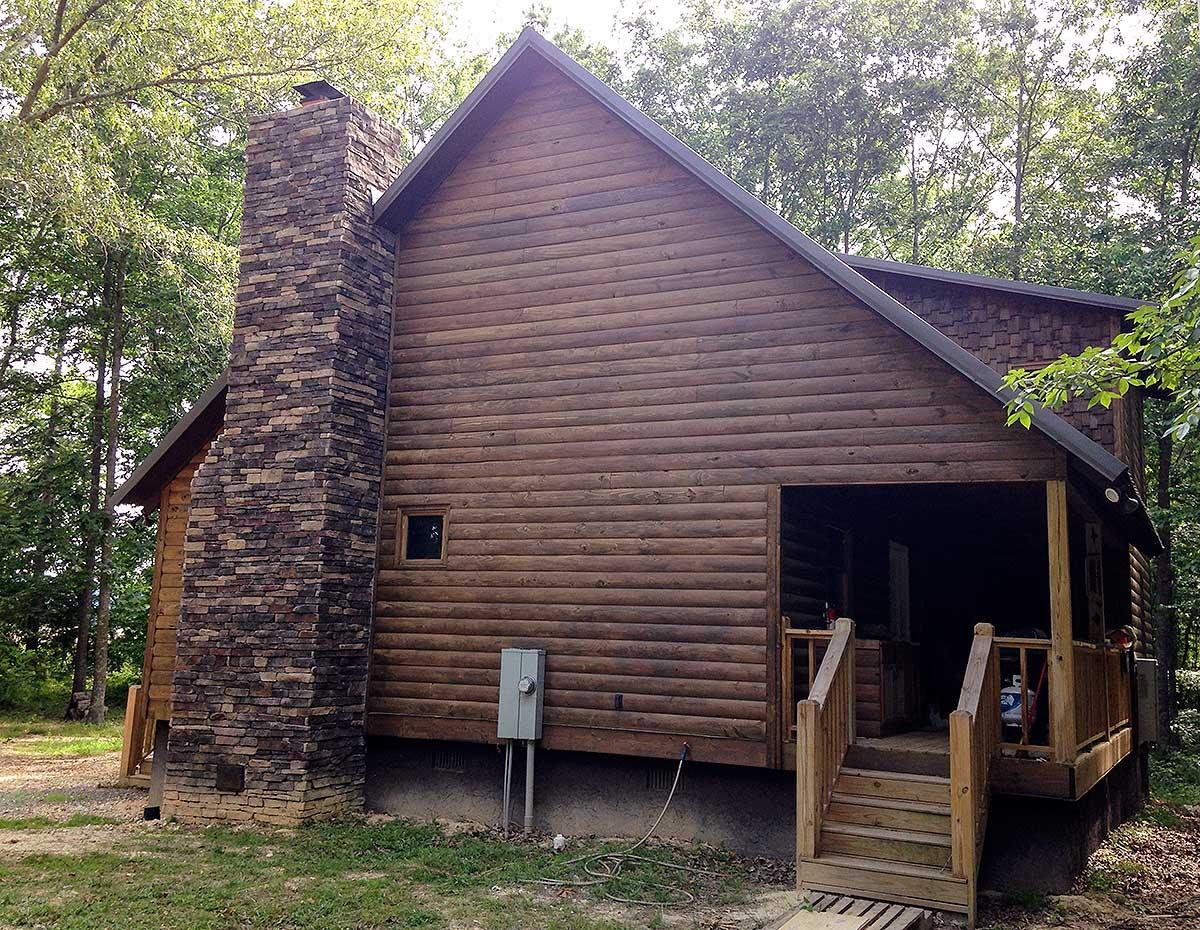

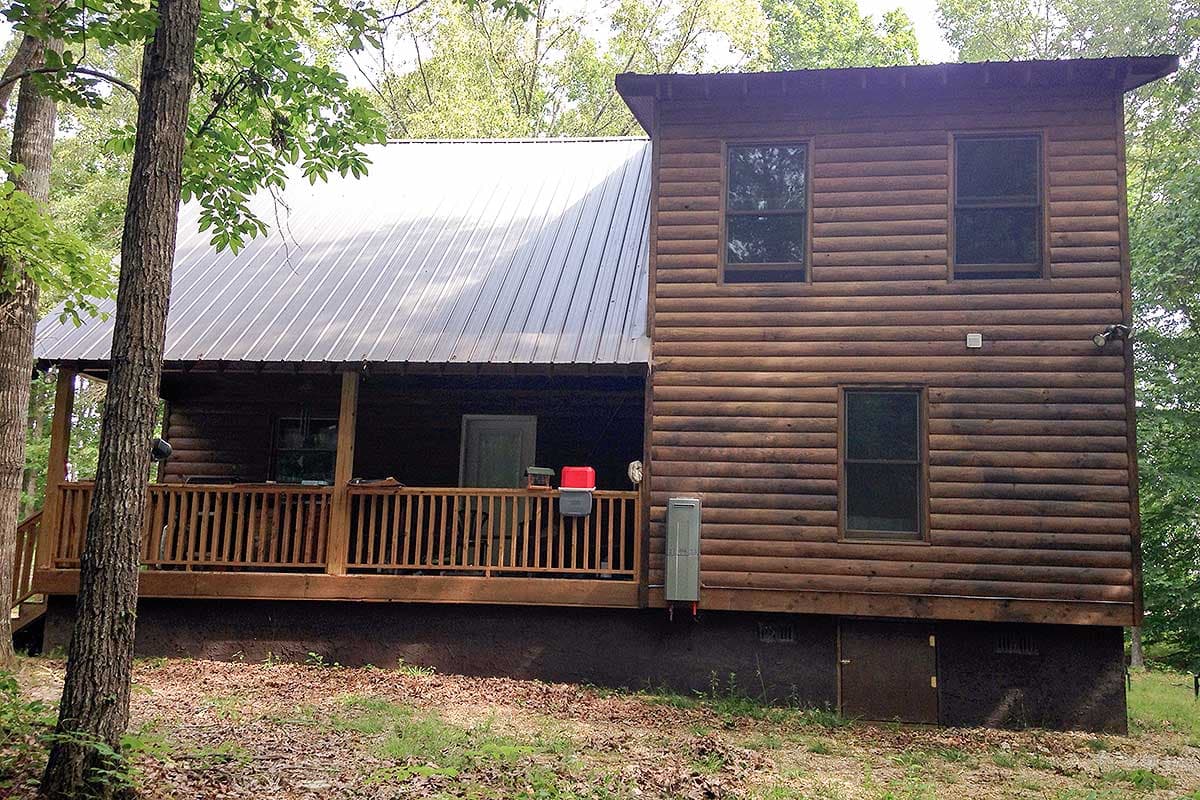

Enjoy the rear grilling porch with cleaning sink for game and fish and supply tackle room.

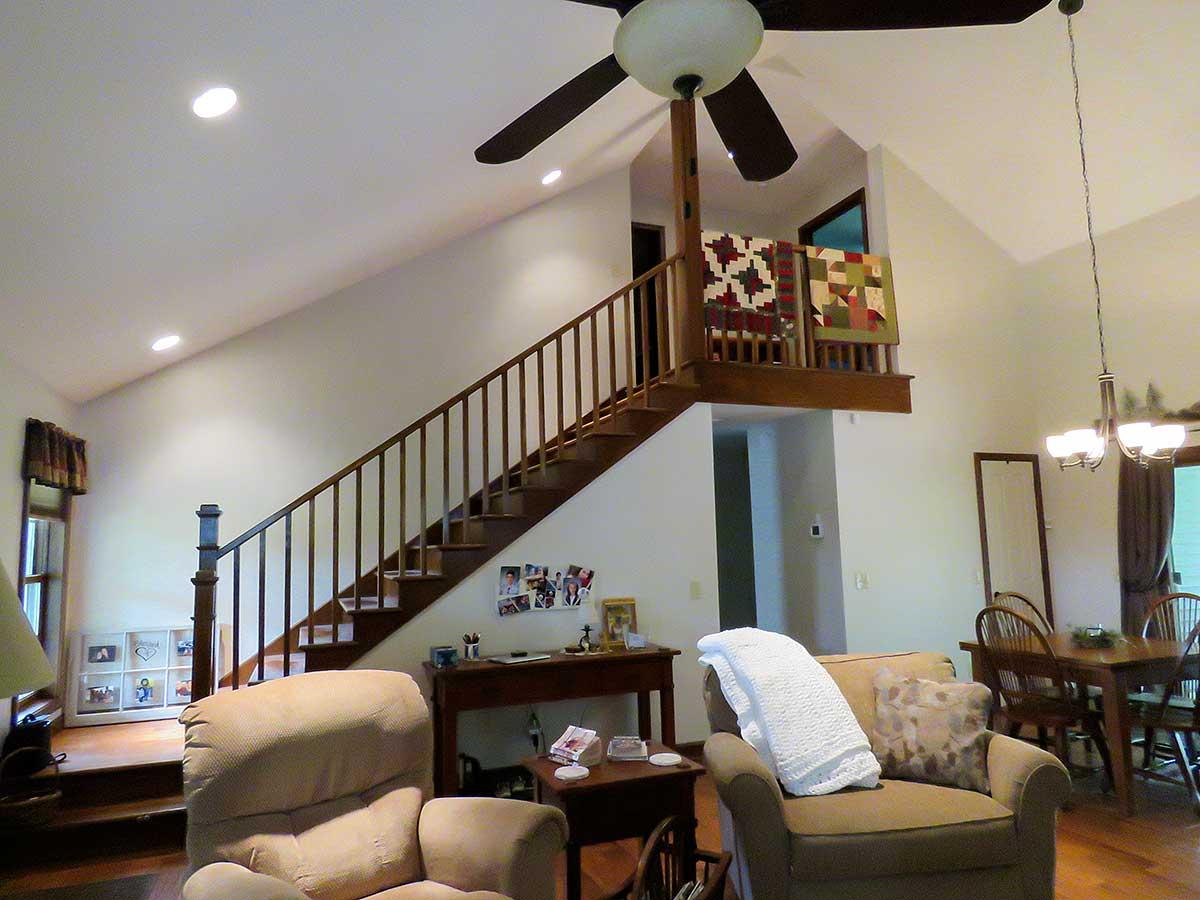

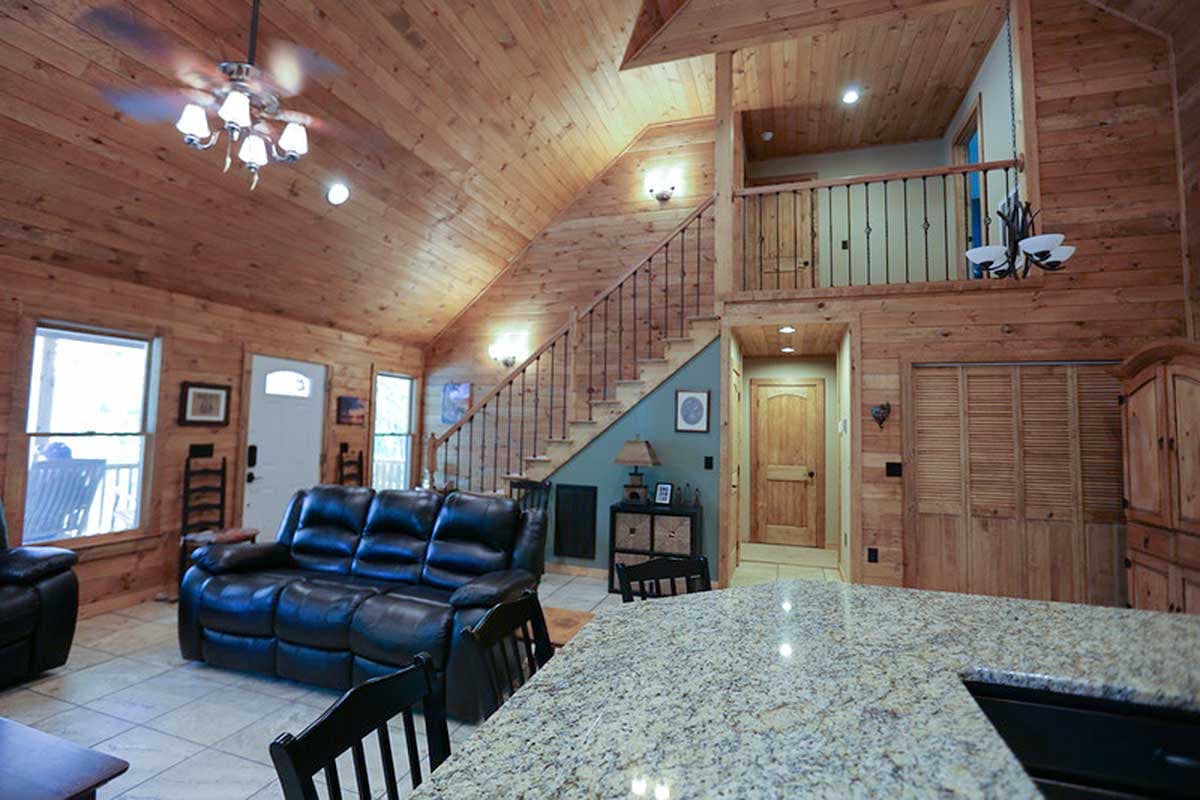

A loft with ample storage rounds out the upper level.
Related Plans: Get an alternate version with house plans 59953ND and 70825MK.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)

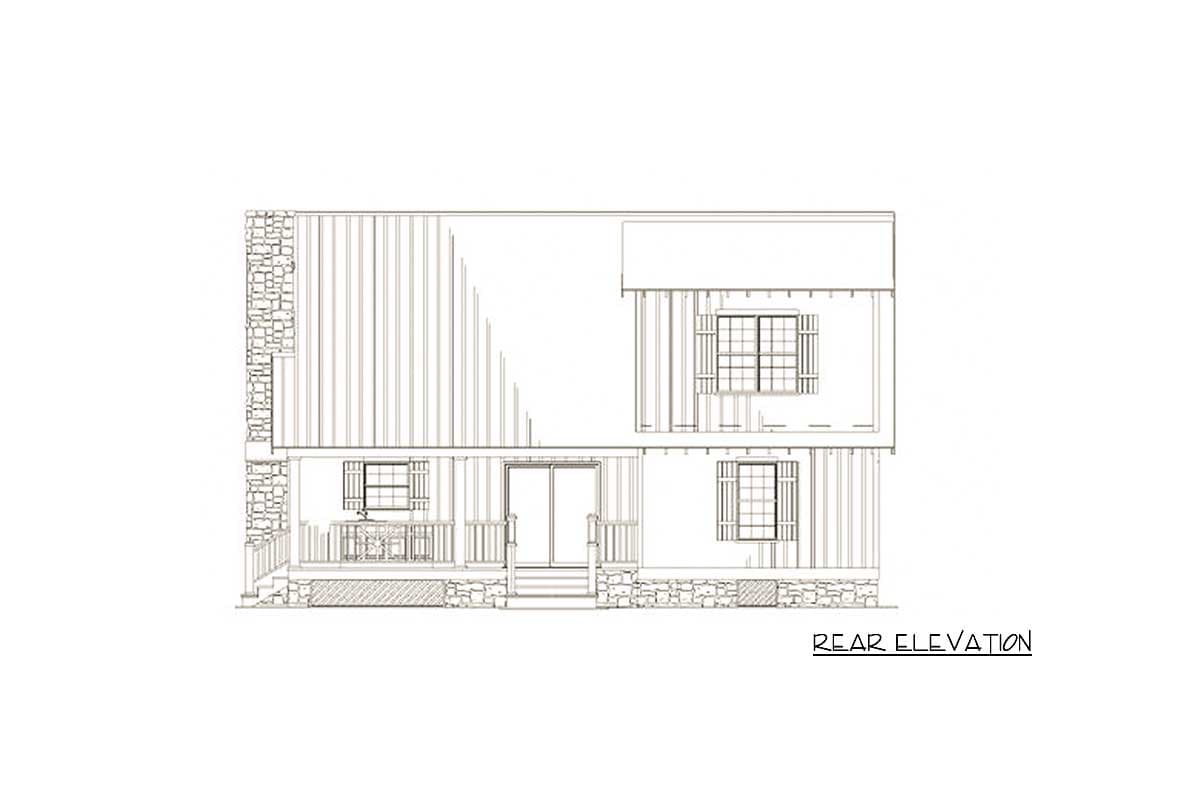

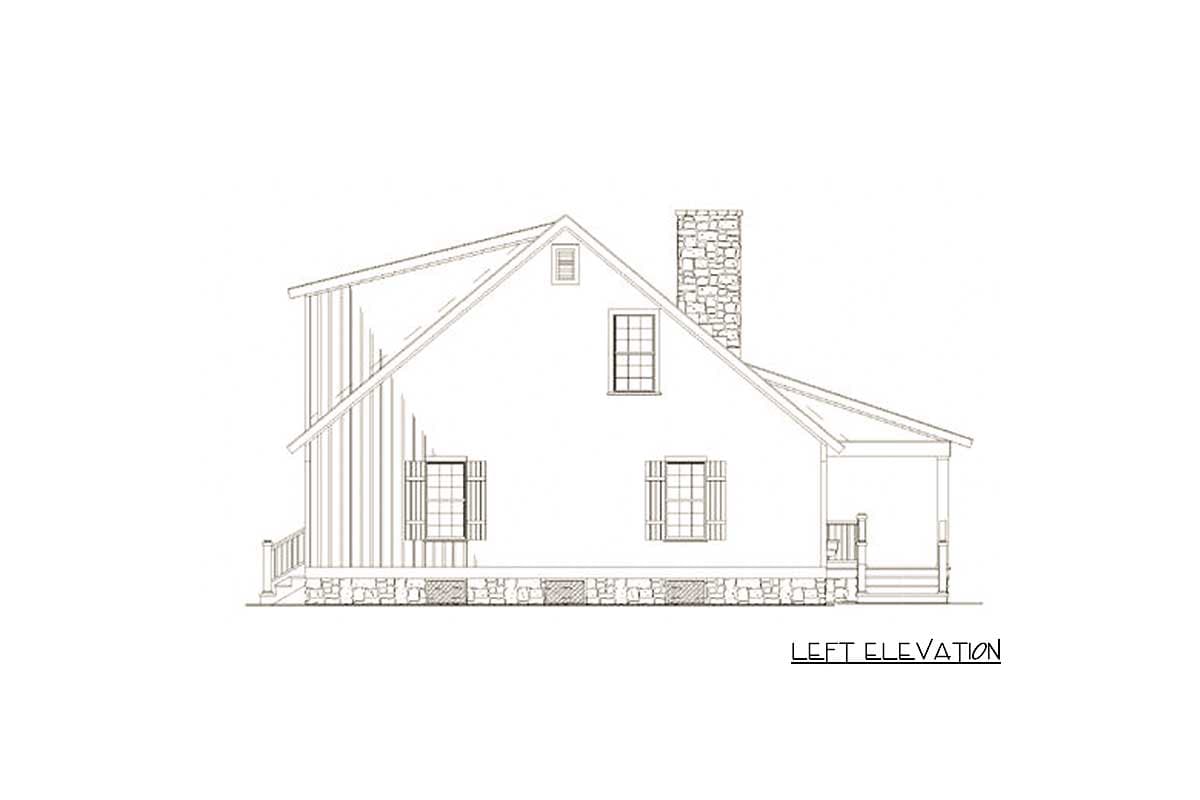

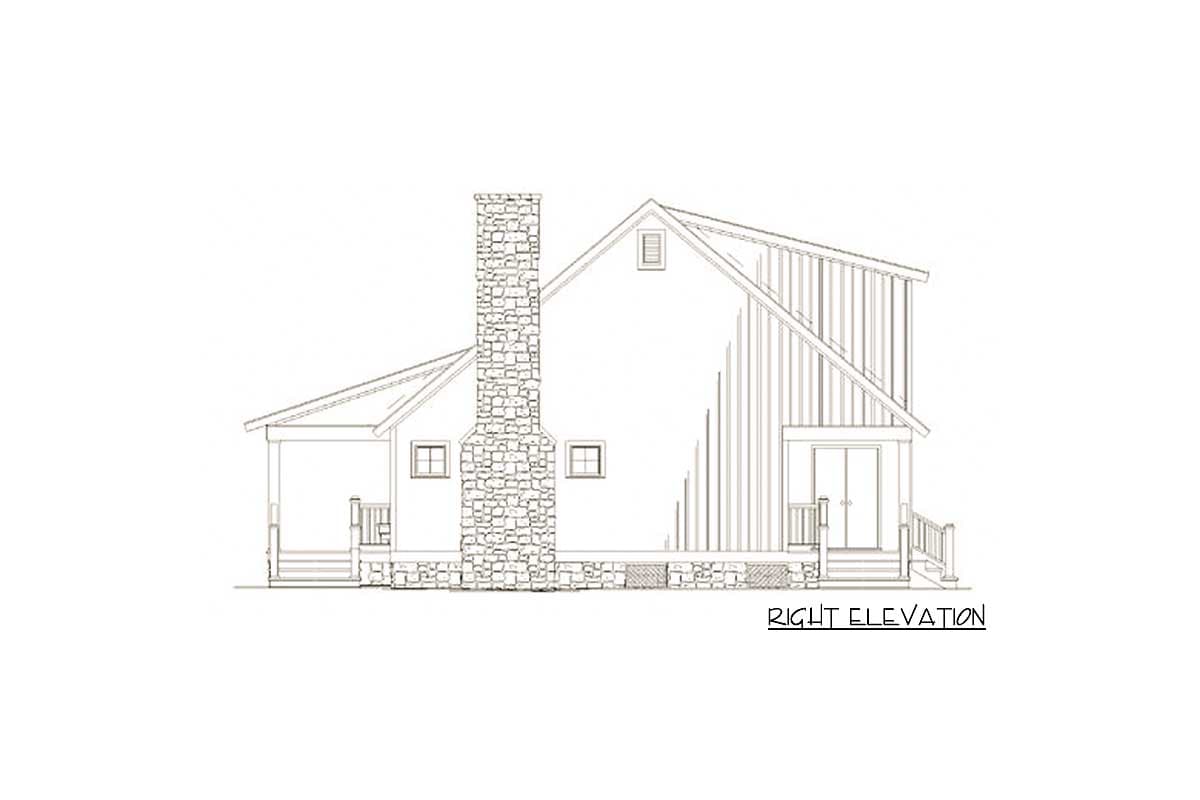

Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,374 sq. ft.

1st Floor

1,070 sq. ft.

2nd Floor

304 sq. ft.

Porch, Front

147 sq. ft.

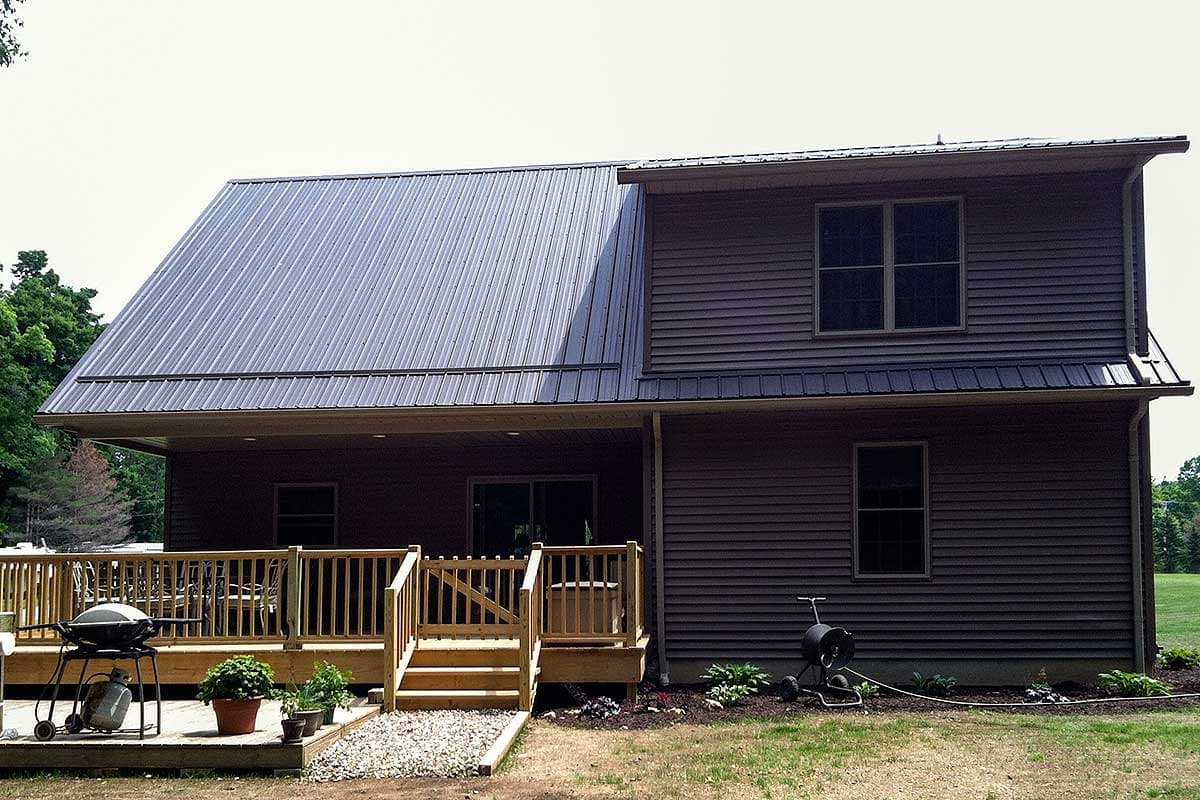

Porch, Rear

200 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 4"

Depth

41' 6"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Two Story Great Room
