3-Bed Cabin House Plan with Vaulted Great Room - 1900 Sq Ft

Heated S.F.

1,900

Beds

Baths

2.5

Stories

Floor Plan

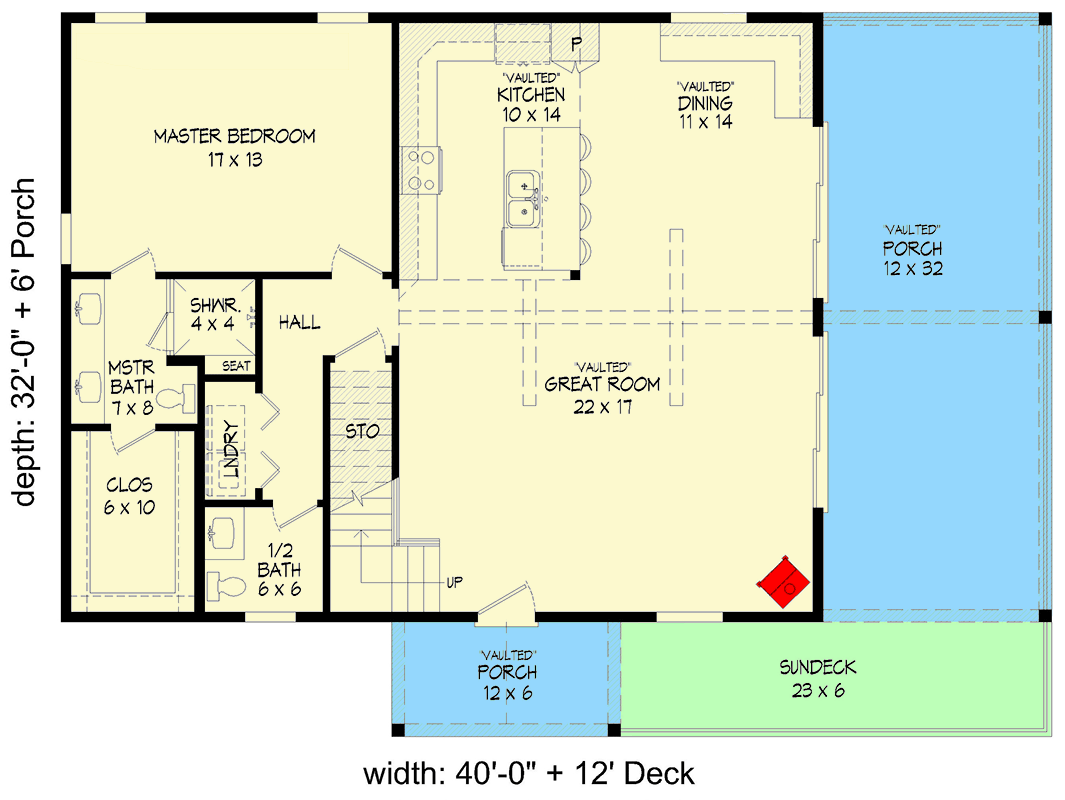

Main Level

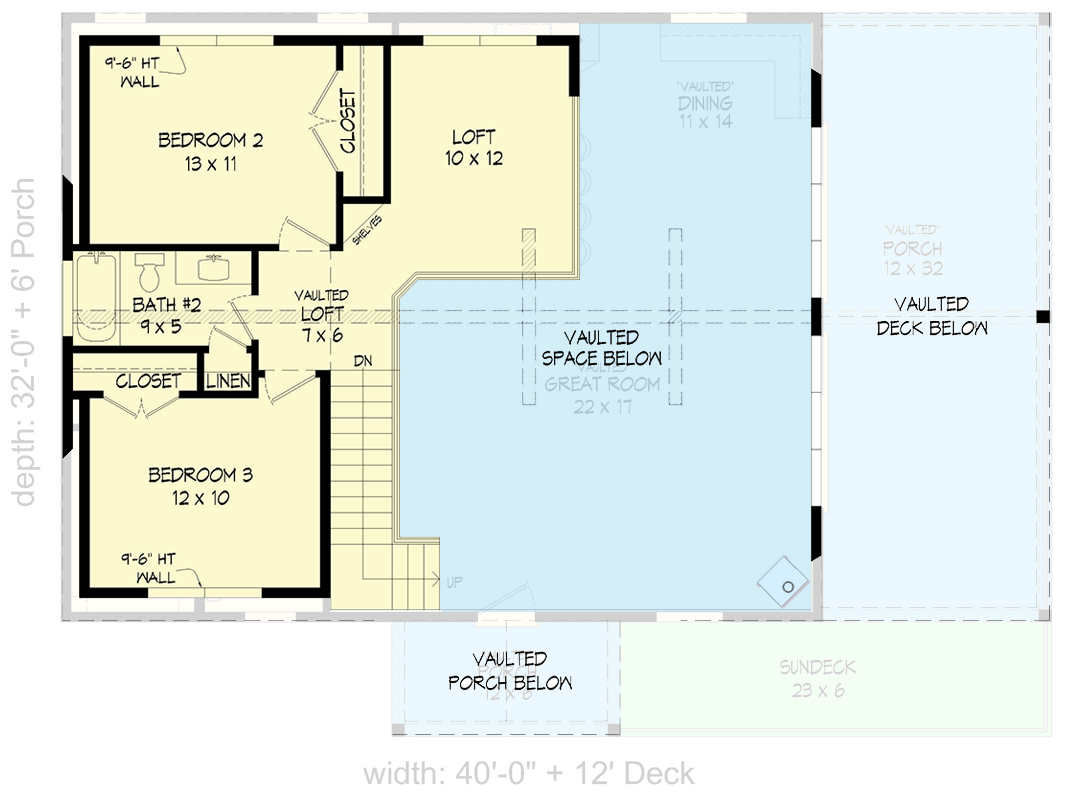

2nd Floor

Plan Details

The timber-frame truss lends character to the front porch of this two-story, lake house plan, complete with a wrap-around porch to a vaulted side porch to enjoy the surrounding views.
Inside, the sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and sliding door access to the vaulted porch.
The master bedroom is located on the main level, and features a 4-fixture bathroom and a generous walk-in closet. Laundry and a half bath are located off of the adjacent hallway.
Two bedrooms share a bath on the second floor, with a shared loft space overlooking the great room below.
Related Plan: Get an alternate version with house plan 68856VR.

What's Included

Floor Plans: House plan drawings indicating dimensions for construction
Roof Plan: Drawings indicating roof slopes and unique conditions
Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
Building Sections: Drawings cut through important locations in the structure
Construction Details: Drawings showing specific construction of building elements at a large scale
Kitchen and bath elevations (excluded on garage plans)
Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
Building license: A single-use license for construction at one location only

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
