Plan 33276ZR
3-Bed Coastal Contemporary House Plan with Master Suite Sitting Area - 3409 Sq Ft
Heated S.F.
3,409
Beds
3
Baths
3.5
Stories
2
Cars
4
Floor Plan

Plan 33276ZR

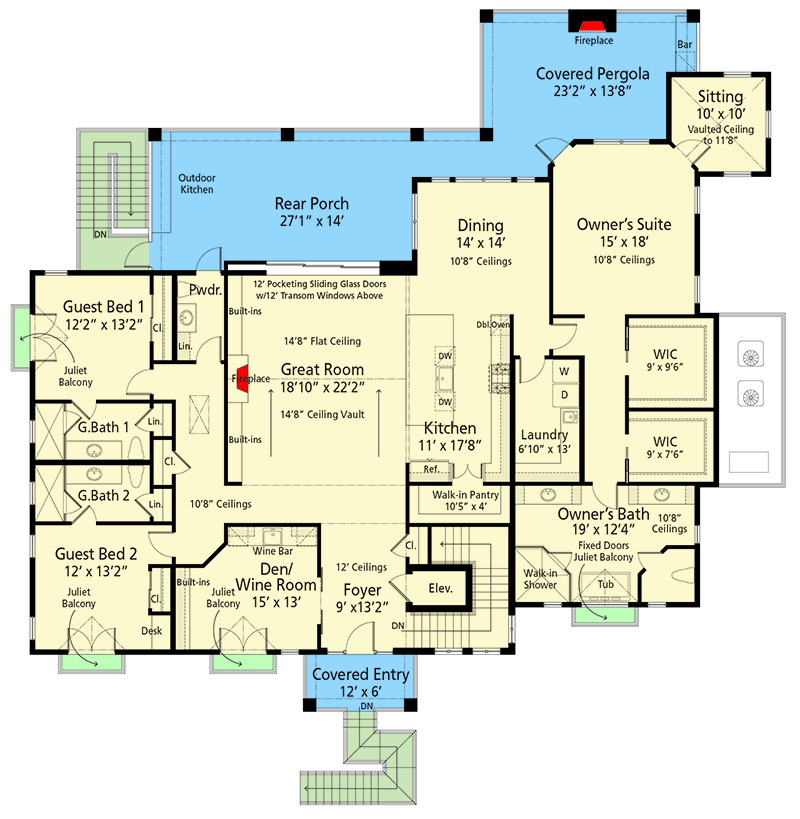

Main Level
slide image 0

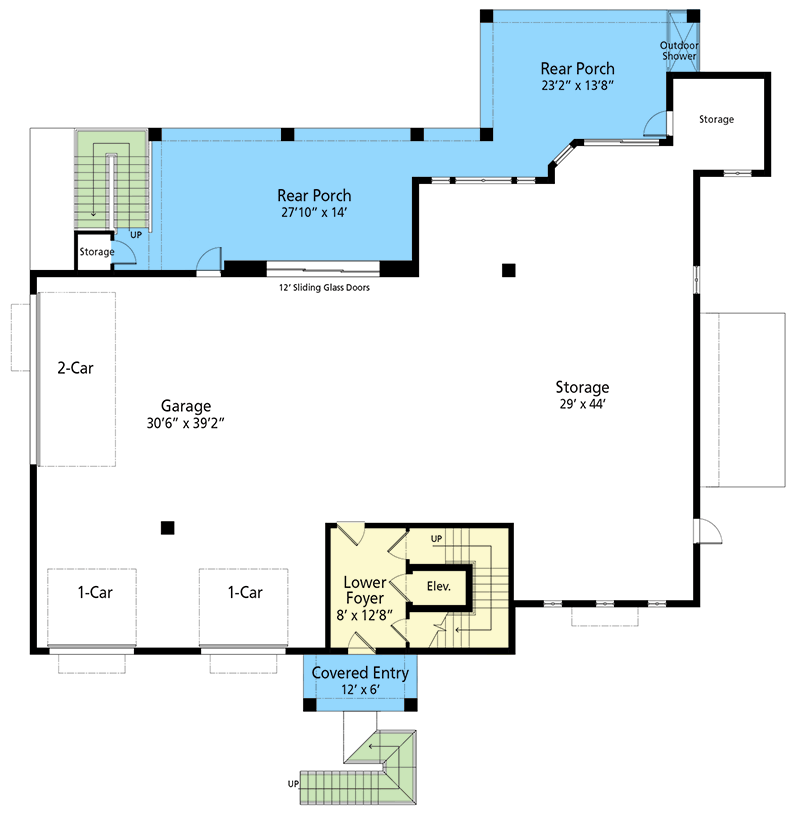

Ground Level
slide image 1

Plan 33276ZR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Ground Level
floor plan image Ground Level
Plan Details
  • This coastal contemporary house plan offers you 3,409 square feet of heated living space with 3 beds, 3.5 baths and a 2,970 square foot 4-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

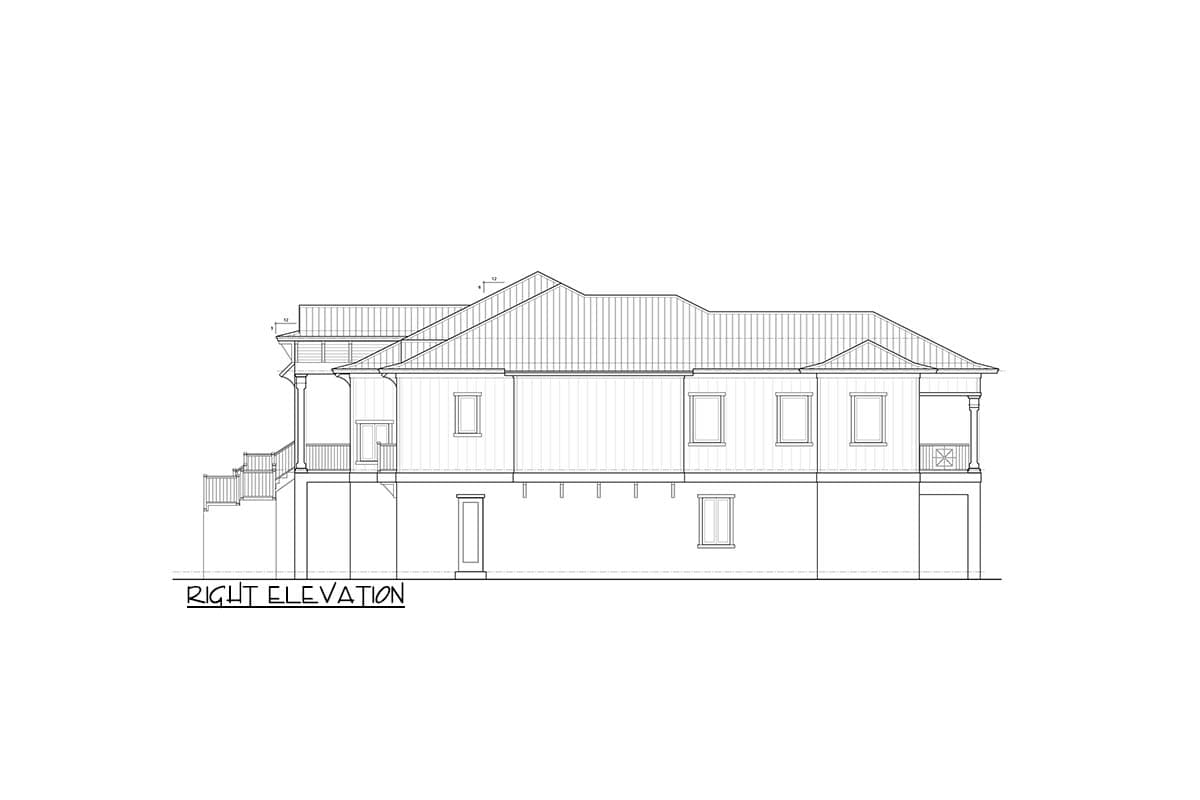

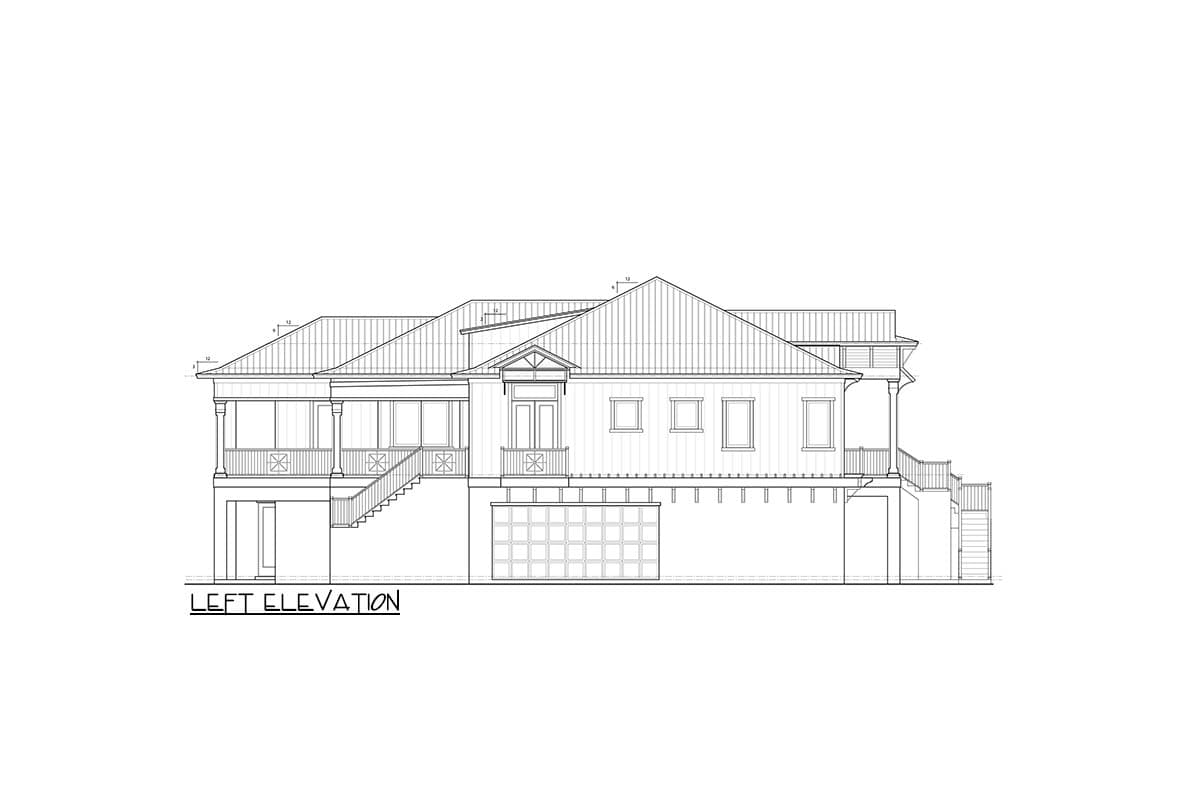

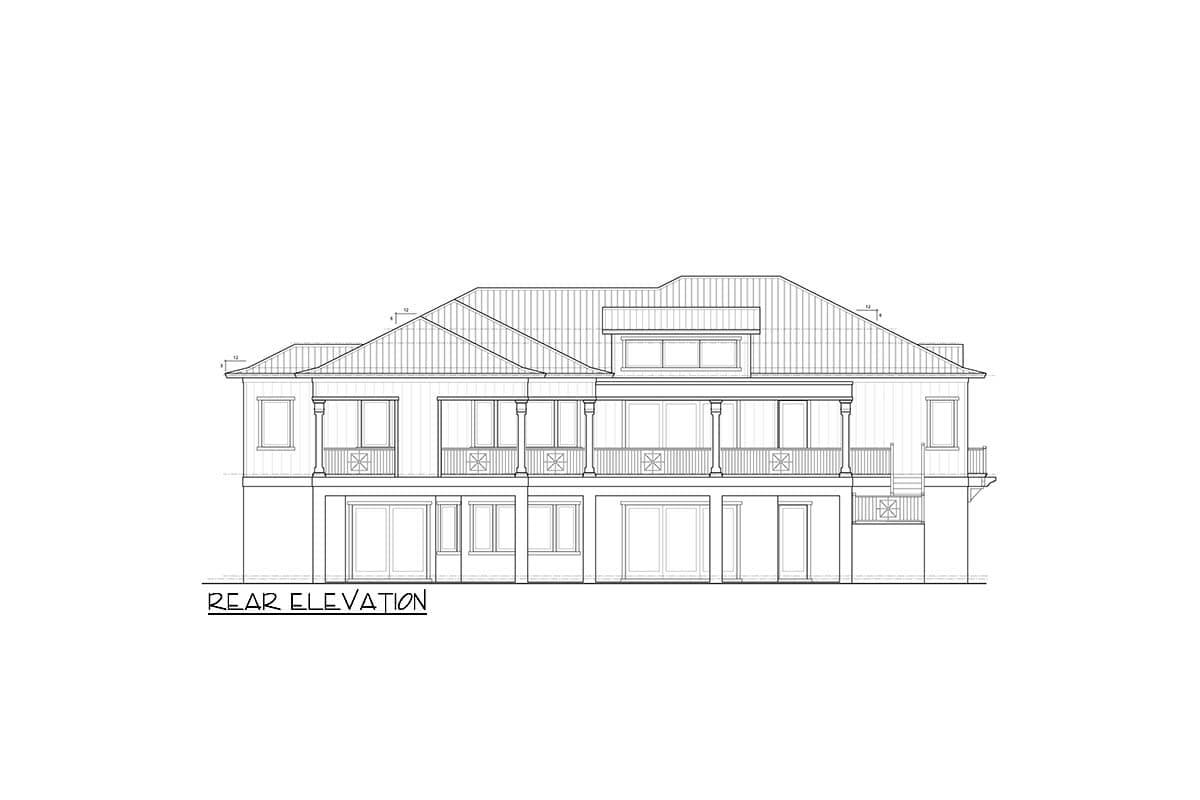

  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,409 sq. ft.

Lower Level

123 sq. ft.

1st Floor

3,286 sq. ft.

Porch, Rear

759 sq. ft.

Entry

72 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

83' 10"

Depth

81' 8"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

2970 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Beach

Coastal

Coastal Contemporary

Florida

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Elevator

Flex Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Wet Bar

Wine Room

Workshop

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

3,409 sq. ft.

Lower Level

123 sq. ft.

1st Floor

3,286 sq. ft.

Porch, Rear

759 sq. ft.

Entry

72 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

83' 10"

Depth

81' 8"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

2970 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Beach

Coastal

Coastal Contemporary

Florida

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Elevator

Flex Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Wet Bar

Wine Room

Workshop

Wrap Around Porch
