Plan 680356VR
3-Bed Coastal Craftsman with Vaulted Great Room and Stacked Porches - 2924 Sq Ft
Heated S.F.
2,924
Beds
3
Baths
2.5
Stories
1
Floor Plan

Plan 680356VR

Main Level
slide image 0
Lower Level
slide image 1

Plan 680356VR

1-800-854-7852

1-262-521-4596

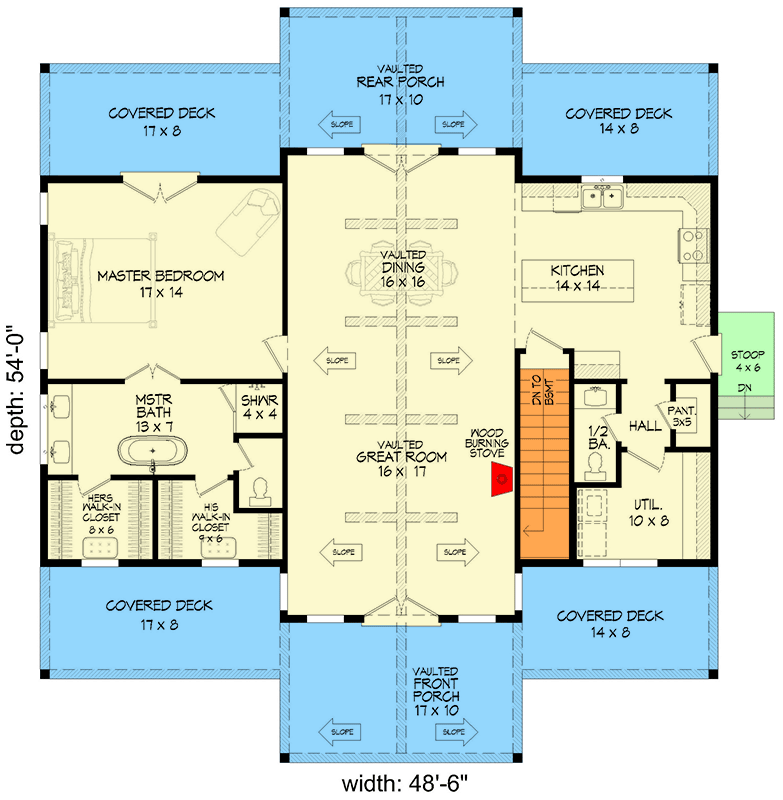

Main Level
floor plan image Main Level

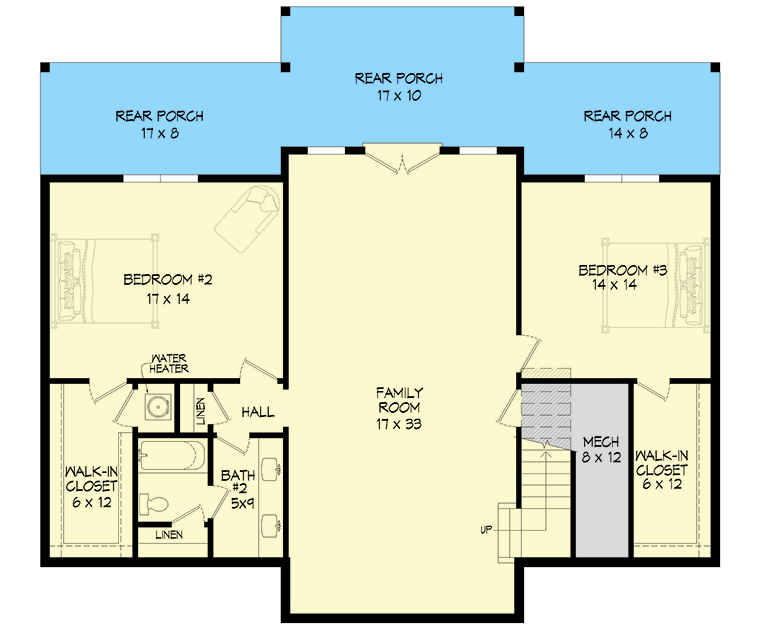

Lower Level
floor plan image Lower Level
Plan Details
  • This 3 bed, 2 bath coastal lake house plan gives you 2,924 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate layout with house plan 680332VR (1,735 sq ft)
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,924 sq. ft.

Lower Level

1,462 sq. ft.

1st Floor

1,462 sq. ft.

Porch, Front

423 sq. ft.

Porch, Rear

423 sq. ft.

Deck

423 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 6"

Depth

54' 0"

Max Ridge Height

19' 1"

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Coastal

Craftsman

Lake House

Vacation

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Stacked Porches

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,924 sq. ft.

Lower Level

1,462 sq. ft.

1st Floor

1,462 sq. ft.

Porch, Front

423 sq. ft.

Porch, Rear

423 sq. ft.

Deck

423 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 6"

Depth

54' 0"

Max Ridge Height

19' 1"

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Coastal

Craftsman

Lake House

Vacation

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Stacked Porches

Two Story Great Room
