Plan 28158J
3-Bed Contemporary House Plan with 2-Car Garage - 2082 Sq Ft
Heated S.F.
2,082
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28158J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28158J

1-800-854-7852

1-262-521-4596

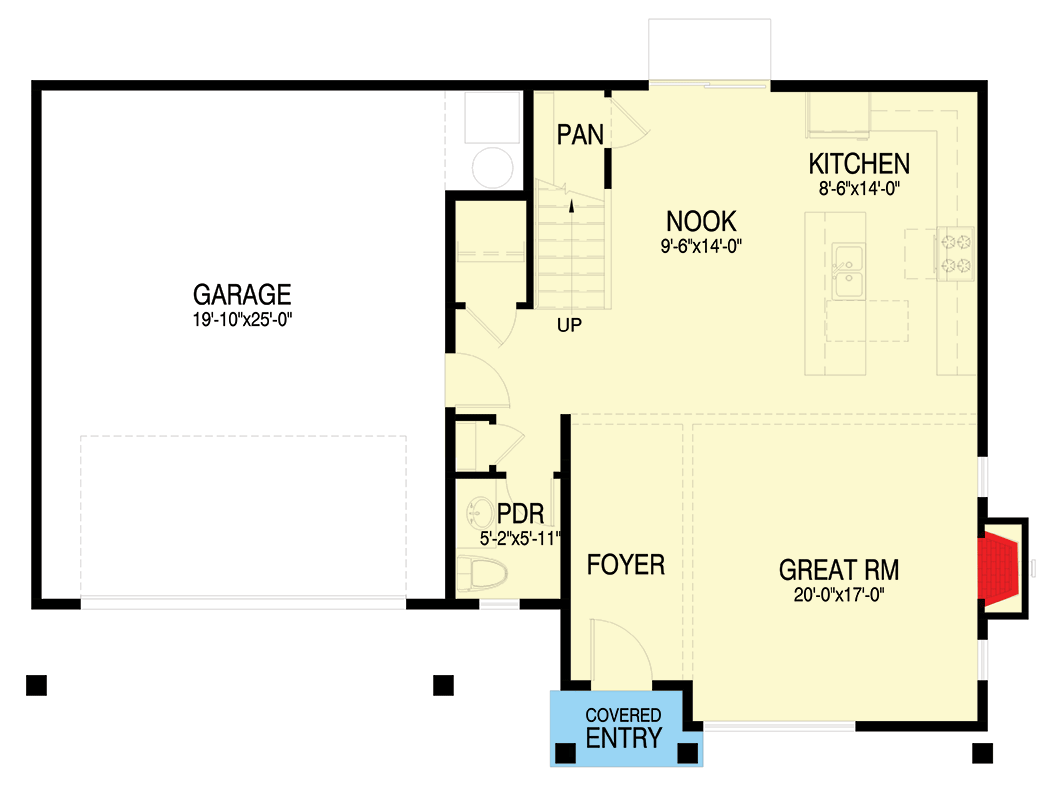

Main Level
floor plan image Main Level

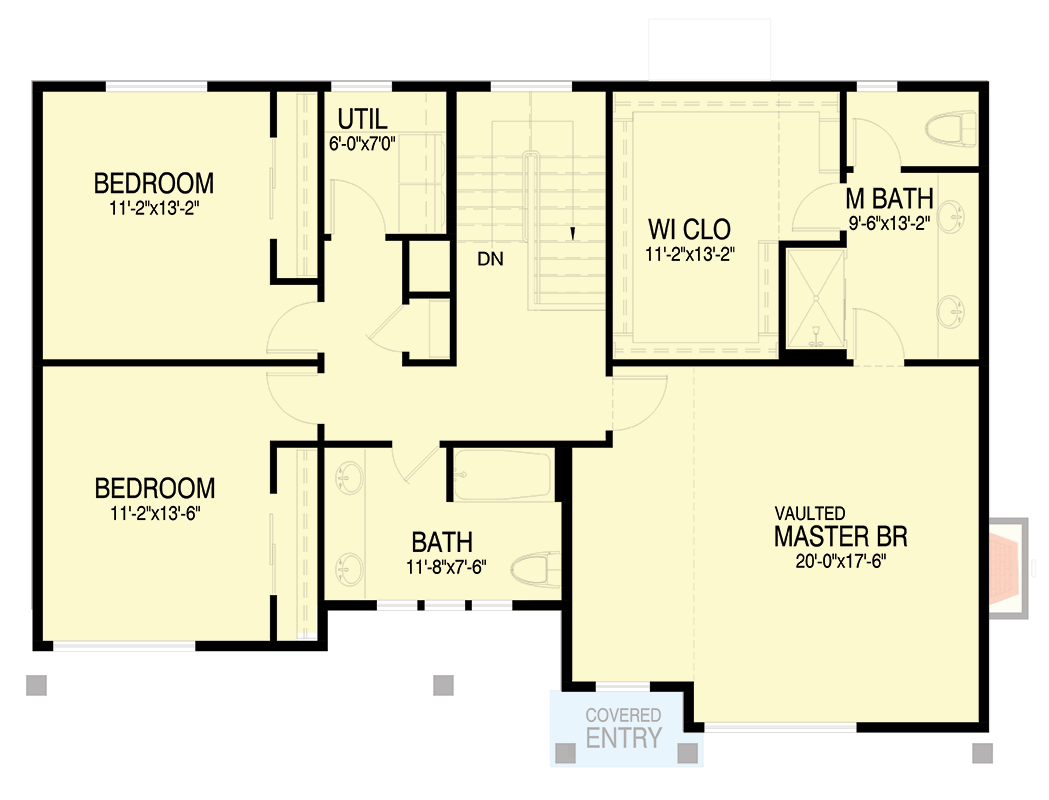

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This contemporary house plan offers you 2,082 square feet of heated living space with 3 beds, 2.5 baths and a 547 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

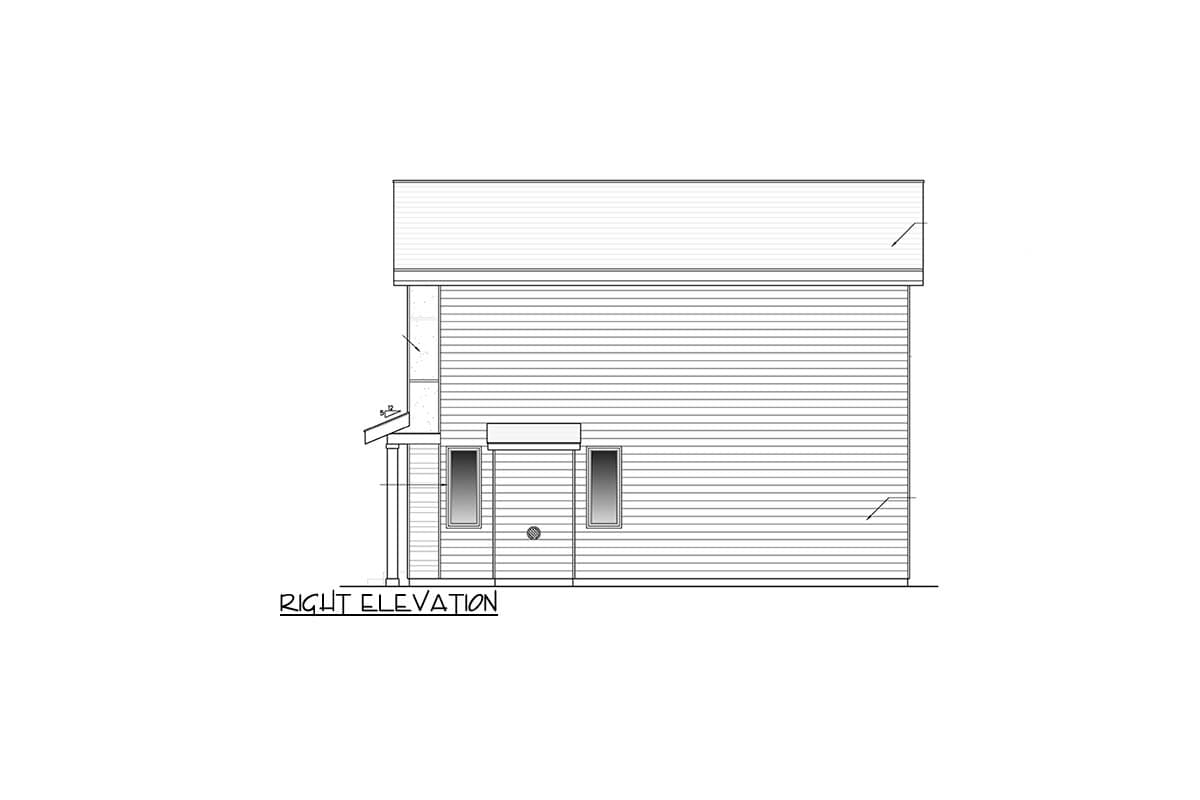

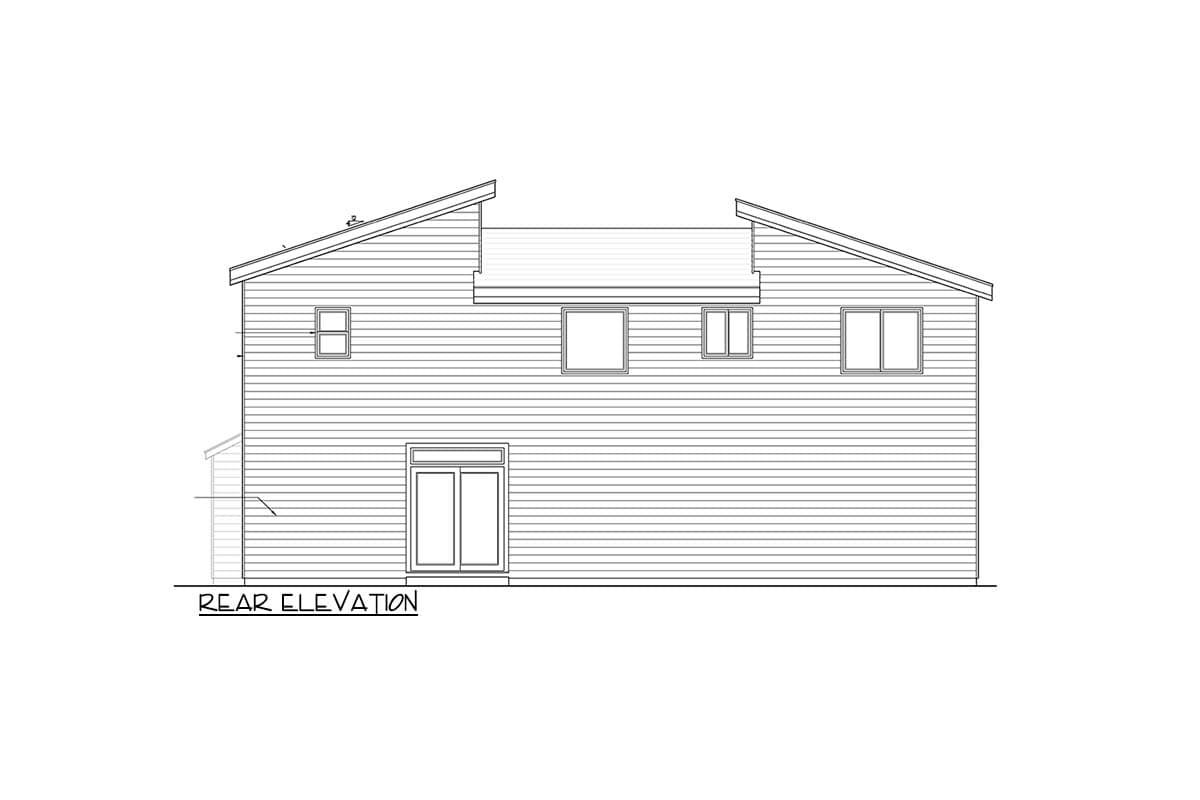

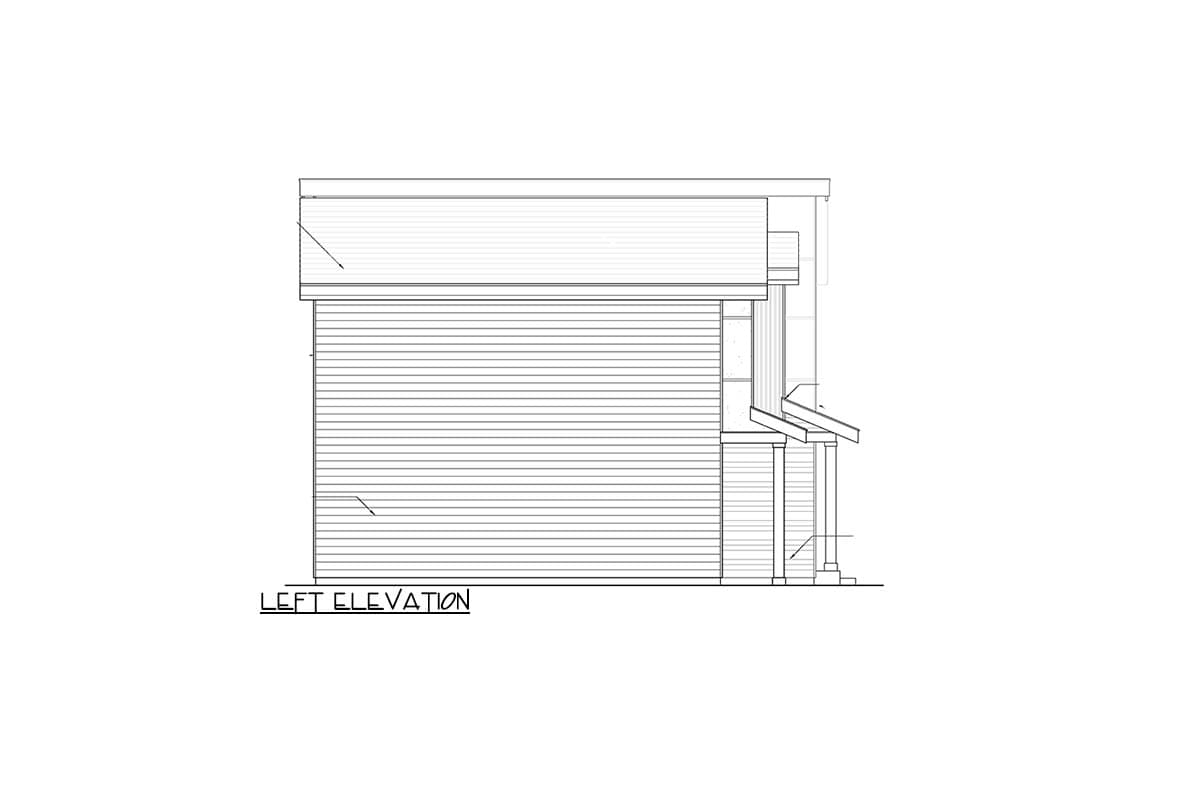

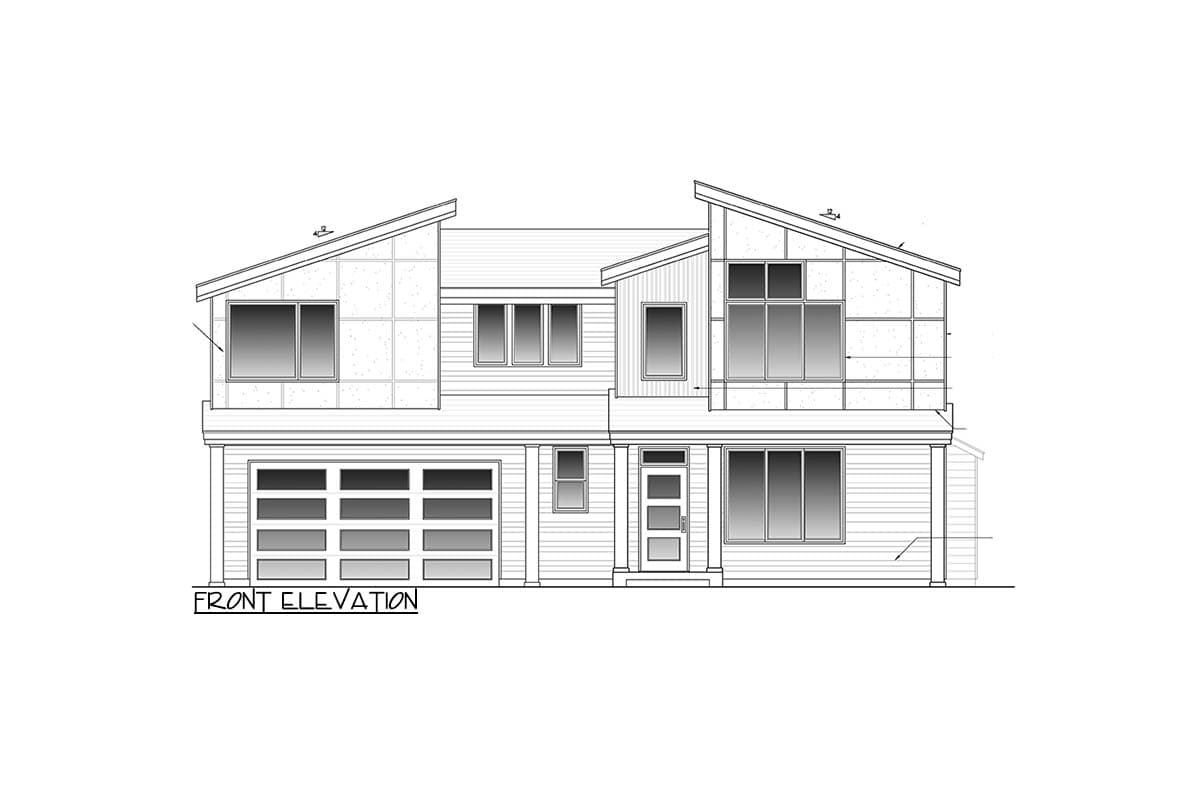

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,082 sq. ft.

1st Floor

787 sq. ft.

2nd Floor

1,295 sq. ft.

Porch, Front

21 sq. ft.

Entry

21 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Post/Beam

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

32' 0"

Max Ridge Height

25' 1"

Garage

Type

Attached

Area

547 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Slope

8' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Mudroom
