3-Bed Contemporary House Plan with Oversized Kitchen Island
Heated S.F.
1,414
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 80927PM

Main Level
slide image 0

Plan 80927PM

1-800-854-7852

1-262-521-4596

Main Level

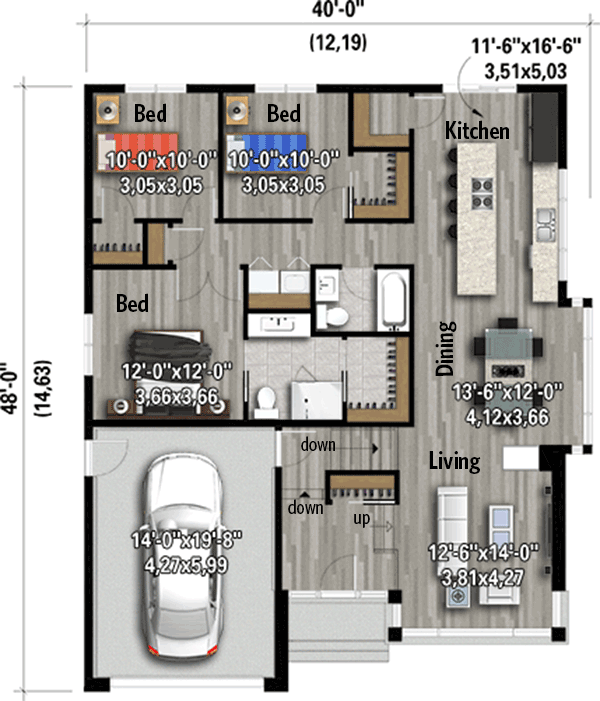

floor plan image Main Level
Plan Details
  • Stone accents add texture to the front elevation of this 3-bedroom Contemporary house plan, complete with tall, transom windows that offer a light and airy interior.
  • The living room flows into the dining area, which connects to the elongated kitchen. The cooktop island provides four seats at the eating bar and a walk-in pantry maximizes storage space.
  • The primary bedroom includes a 3/4 bathroom behind a pocket-door and a walk-in closet.
  • Bedrooms 2 and 3 sit across the hall from a full bathroom and laundry closet with bi-fold doors.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,414 sq. ft.

1st Floor

1,414 sq. ft.

Basement Unfinished

1,299 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths
