Plan 70635MK
3-Bed Contemporary Ranch Home with Grilling Porch - 1438 Sq Ft
Heated S.F.
1,438
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 70635MK

Main Level
slide image 0

Plan 70635MK

1-800-854-7852

1-262-521-4596

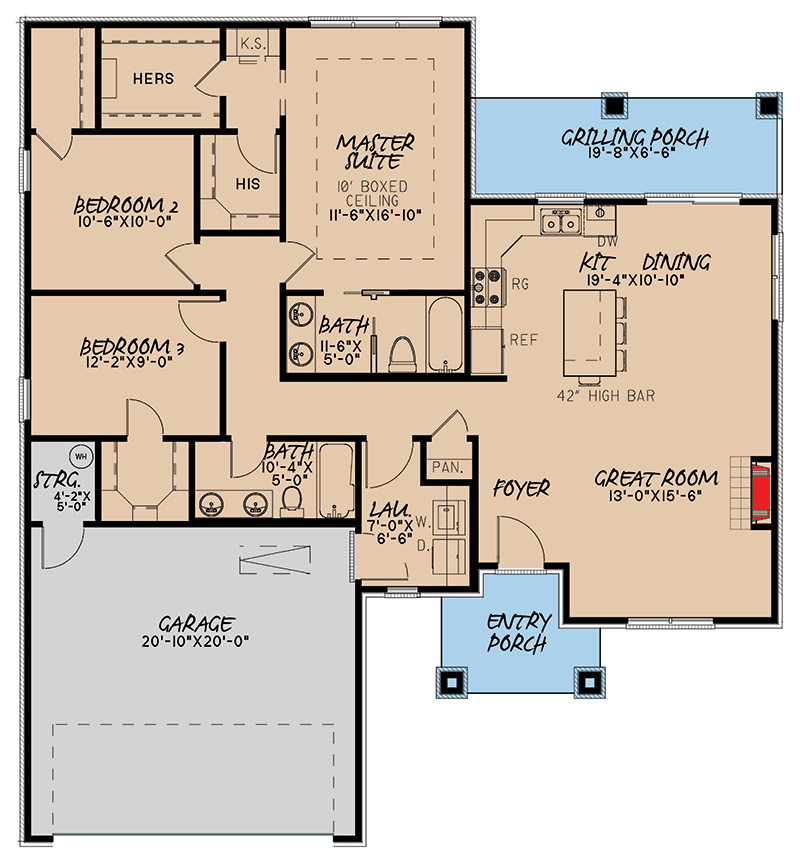

Main Level
floor plan image Main Level
Plan Details

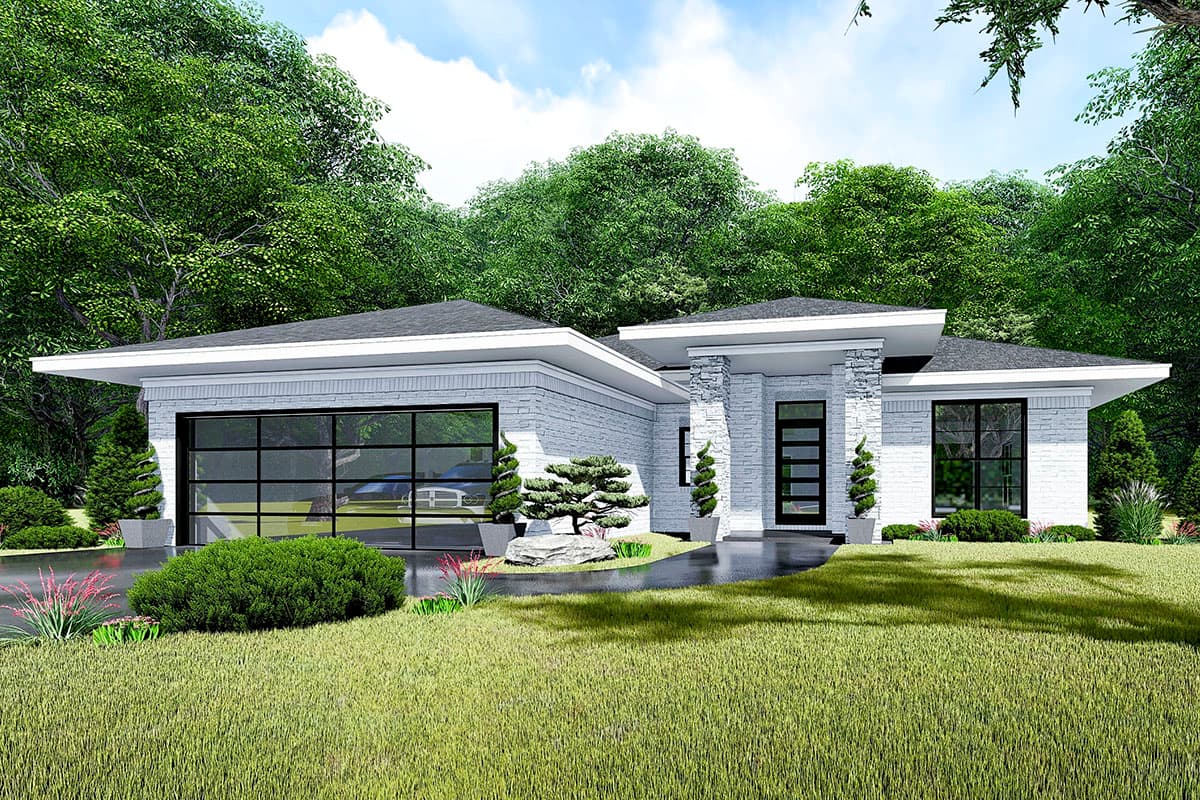

  • A low-pitched roof, with deep overhanging eaves, rests above this 3-bedroom, contemporary ranch plan. Dark window sashes and a modern garage door add to the sleek, contemporary vibe.
  • Once inside, the combined great room, kitchen, and dining room greet you. A prep island in the kitchen includes high-bar seating, and a sliding door leads the way to a grilling porch.
  • A boxed ceiling in the master suite adds an elegant touch, and dual closets lend plenty of space for the homeowner's wardrobe.
  • Bedrooms 2 and 3 reside across the hall and share a 4-fixture bath.
  • The double garage includes a storage room, and opens into the laundry room.
  • Related Plan: Get an alternate exterior with house plan 70716MK.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,438 sq. ft.

1st Floor

1,438 sq. ft.

Porch, Combined

198 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 2"

Depth

52' 6"

Max Ridge Height

17' 0"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Prairie

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
