Plan 310005GLH
3-Bed Contemporary Ranch House Plan with Home Office - 2223 Sq Ft
Heated S.F.
2,223
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 310005GLH

Main Level
slide image 0
Basement Stairs Location
slide image 1

Plan 310005GLH

1-800-854-7852

1-262-521-4596

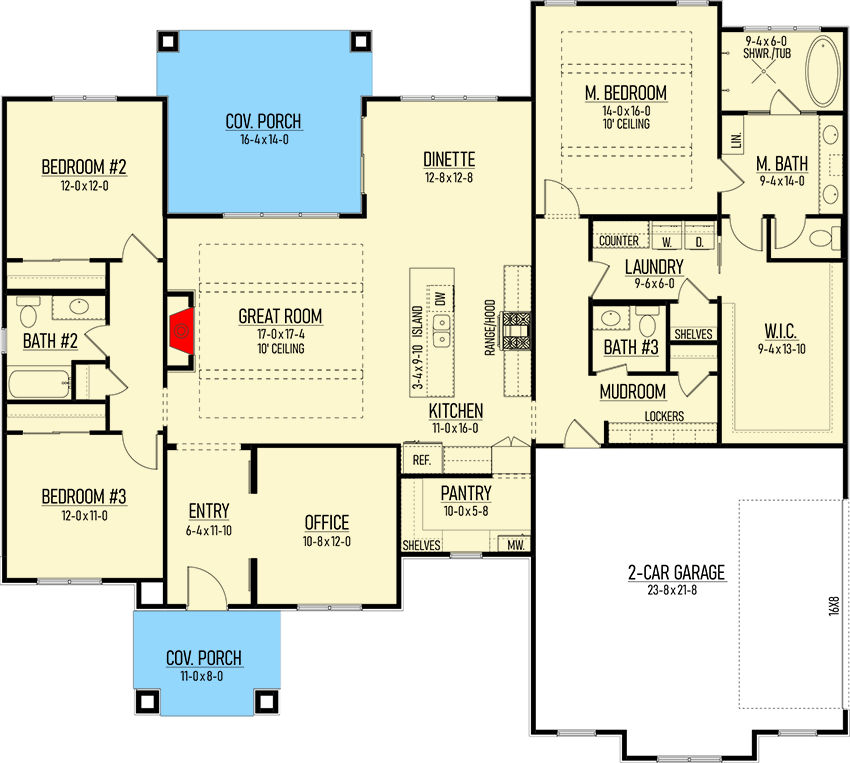

Main Level
floor plan image Main Level

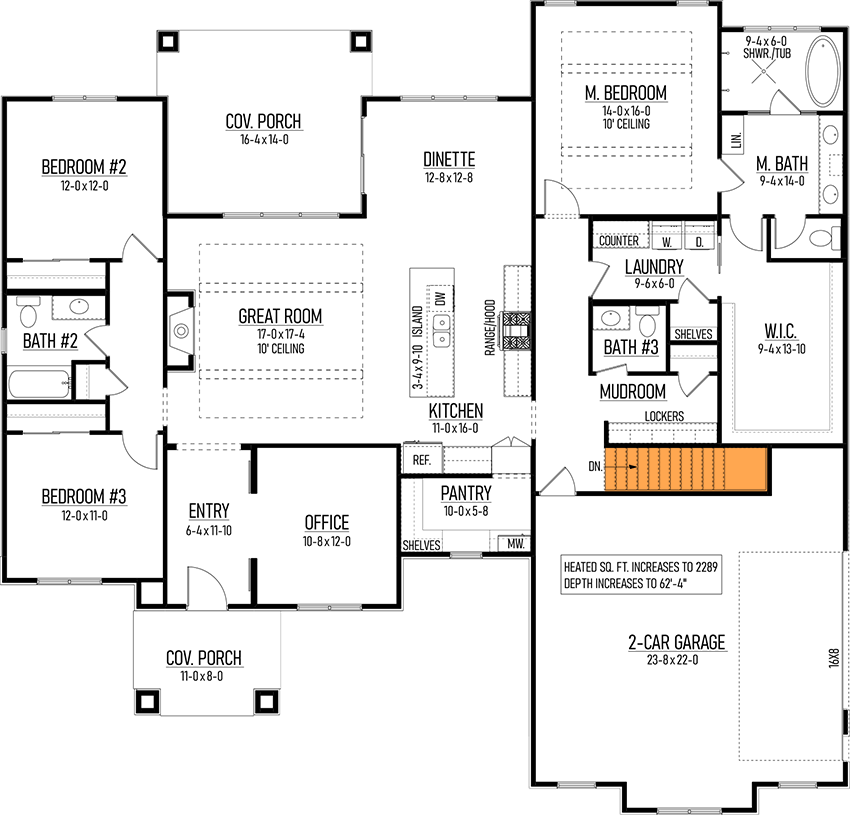

Basement Stairs Location
floor plan image Basement Stairs Location
Plan Details
  • This ranch house plan offers you 2,223 square feet of heated living space with 3 beds, 2.5 baths and a 553 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet with General Plan Notes
  • Rear & Front Elevations
  • Left & Right Elevations
  • Foundation Plan
  • Floorplan (s)
  • Roof Plan
  • Cross Section
  • Typical Wall Section
  • Suggested Electrical Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,223 sq. ft.

1st Floor

2,223 sq. ft.

Porch, Front

87 sq. ft.

Porch, Rear

217 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

58' 4"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

553 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,223 sq. ft.

1st Floor

2,223 sq. ft.

Porch, Front

87 sq. ft.

Porch, Rear

217 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

58' 4"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

553 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
