Plan 420097WNT

Exclusive

3-Bed Contemporary Ranch with Open Living Space Front to Back - 1728 Sq Ft
Heated S.F.
1,728
Beds
3
Baths
2
Stories
1
Cars
2

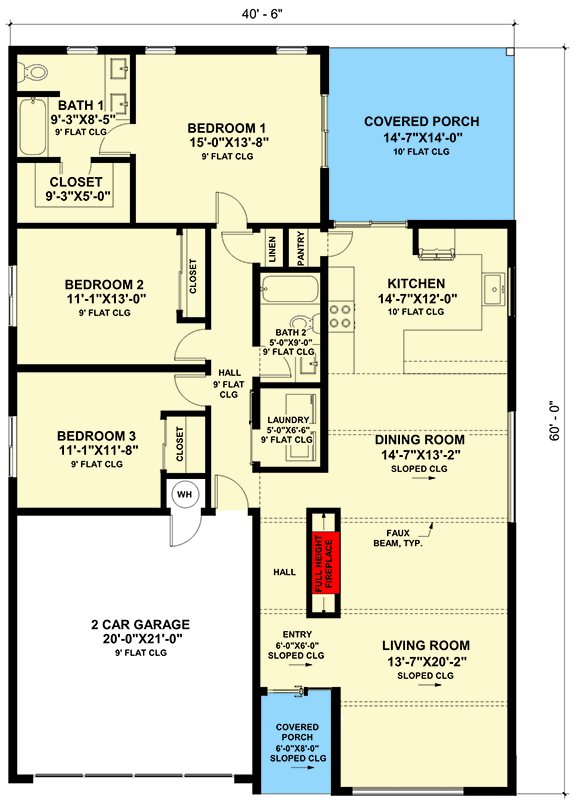

Floor Plan

Plan 420097WNT

Main Level
slide image 0

Plan 420097WNT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

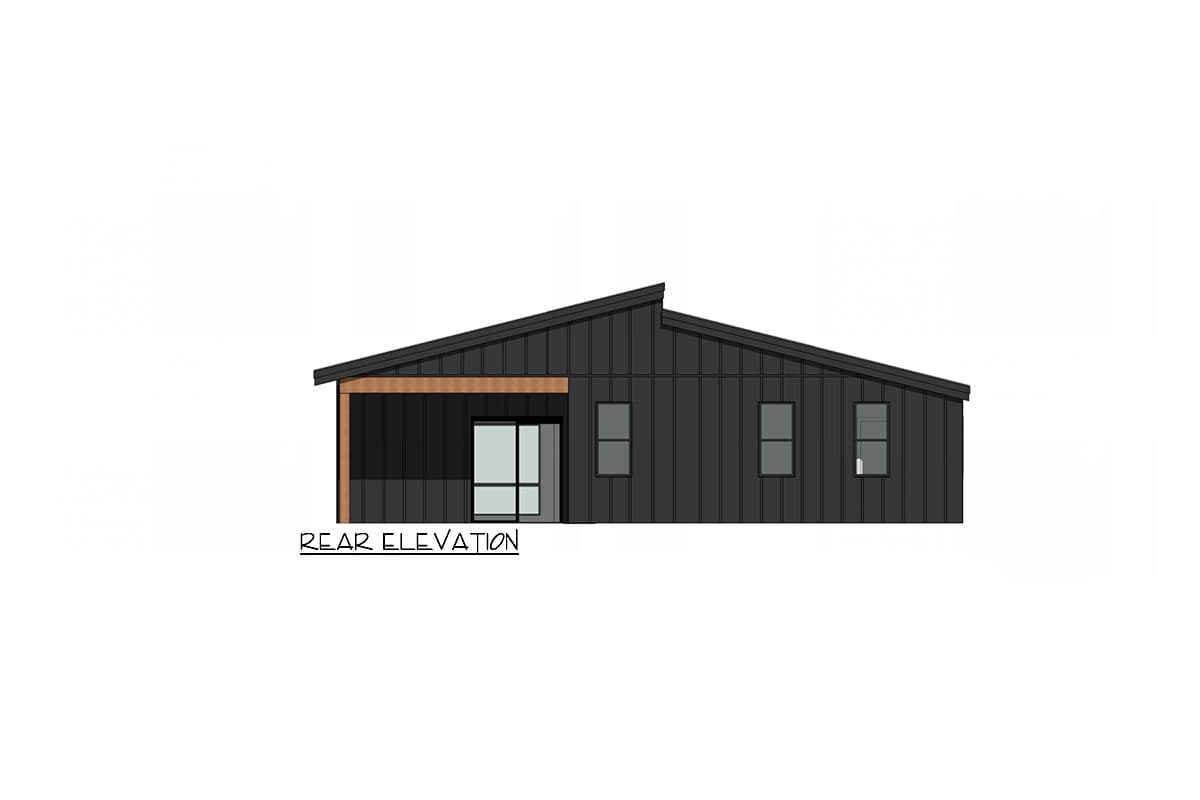

  • The shed-style roof and siding materials present a modern appeal to this one-level home plan.
  • The living space is open front to back with an oversized window filling the interior with natural lighting. Faux beams add interest overhead and a covered porch is accessible from the kitchen.
  • The bedrooms line the left side of the design with the primary bedroom towards the rear and offering access to the rear porch. The primary bedroom includes an ensuite bath is an efficient 4-fixture configuration with access to the generous walk-in closet.
  • Enter from the forward-facing, double garage to find a laundry room and full bathroom nearby.
  • The compact design and rectangular shape of this stunning design helps keep budget a priority.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,728 sq. ft.

1st Floor

1,728 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

210 sq. ft.

Porch, Combined

257 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 6"

Depth

60' 0"

Max Ridge Height

15' 9"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Slope

10' 0''

Dining Room

Slope

10' 0''

Kitchen

Flat

10' 0''

Front Porch

Slope

13' 0''

Rear Porch

Flat

10' 0''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,728 sq. ft.

1st Floor

1,728 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

210 sq. ft.

Porch, Combined

257 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 6"

Depth

60' 0"

Max Ridge Height

15' 9"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Slope

10' 0''

Dining Room

Slope

10' 0''

Kitchen

Flat

10' 0''

Front Porch

Slope

13' 0''

Rear Porch

Flat

10' 0''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
