Plan 51789HZ
3-Bed Cottage with Loft Overlook
Heated S.F.
1,969
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 51789HZ

Main Level
slide image 0
2nd Floor
slide image 1
Optional Carport
slide image 2

Plan 51789HZ

1-800-854-7852

1-262-521-4596

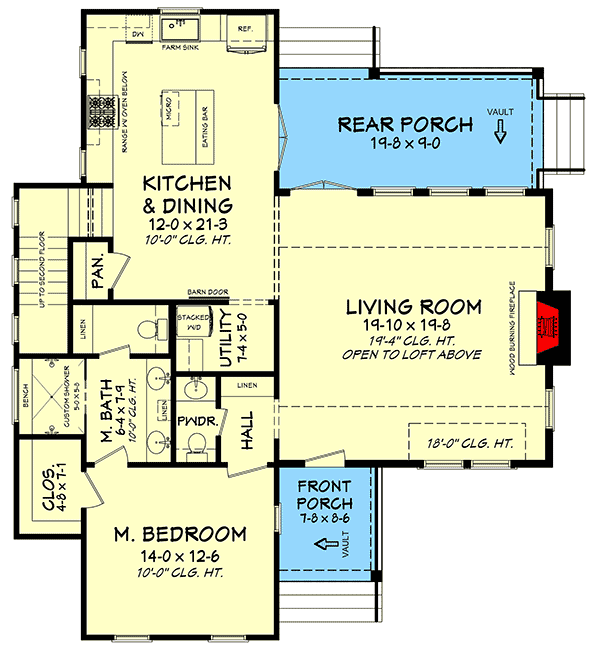

Main Level
floor plan image Main Level

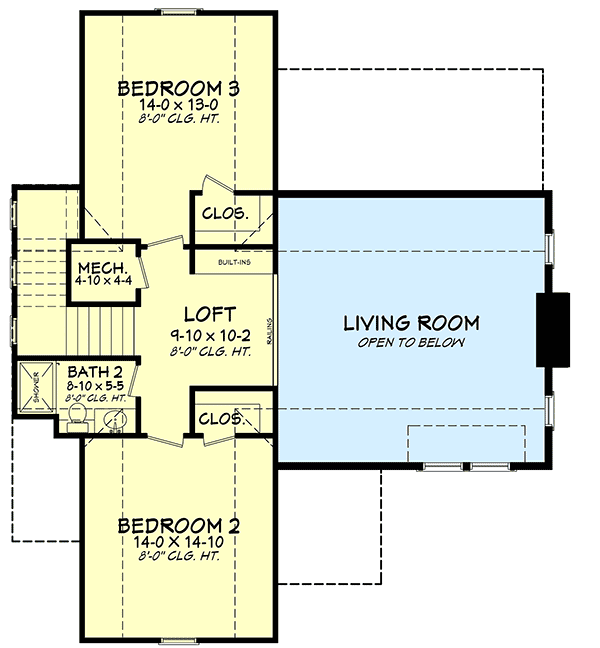

2nd Floor
floor plan image 2nd Floor

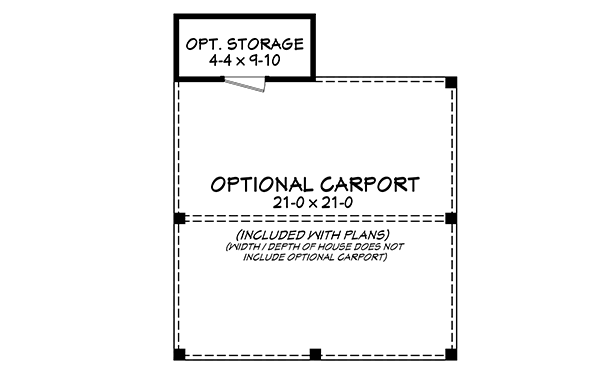

Optional Carport
floor plan image Optional Carport
Plan Details
  • This efficient 3 bedroom house plan is perfect for a site with views.
  • The living room has an airy feel 19'4" ceilings that open up to the upstairs loft. French doors open to the rear porch and the room flows into the kitchen and dining area.
  • French doors in the kitchen take you to the rear porch and an island gives you work space and room for casual seating.
  • Your first floor master bedroom features a walk-in closet and bathroom with custom shower.
  • Upstairs, two large bedrooms flank the loft that overlooks the living room below.
  • As an added bonus, the plans come with a 2-car detached carport with optional storage area attached.
  • Related Plan: Get a simpler upstairs with house plan 51786HZ.

What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

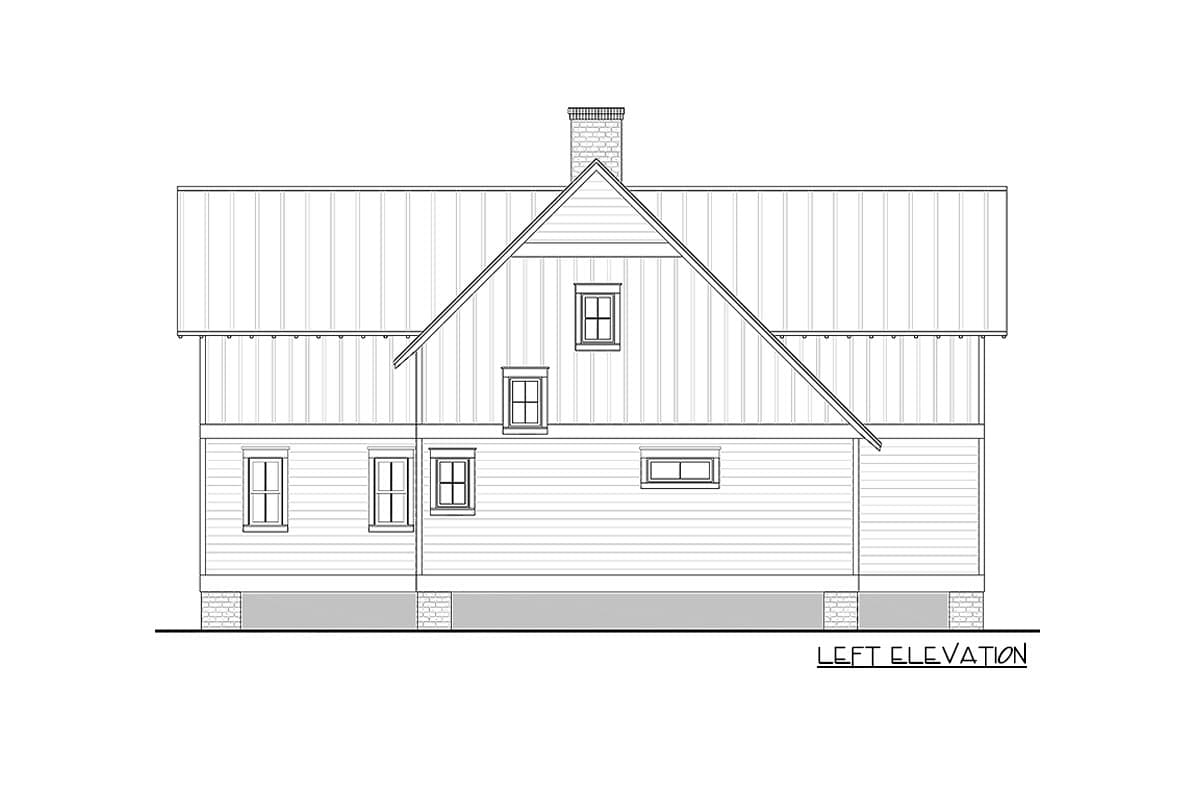

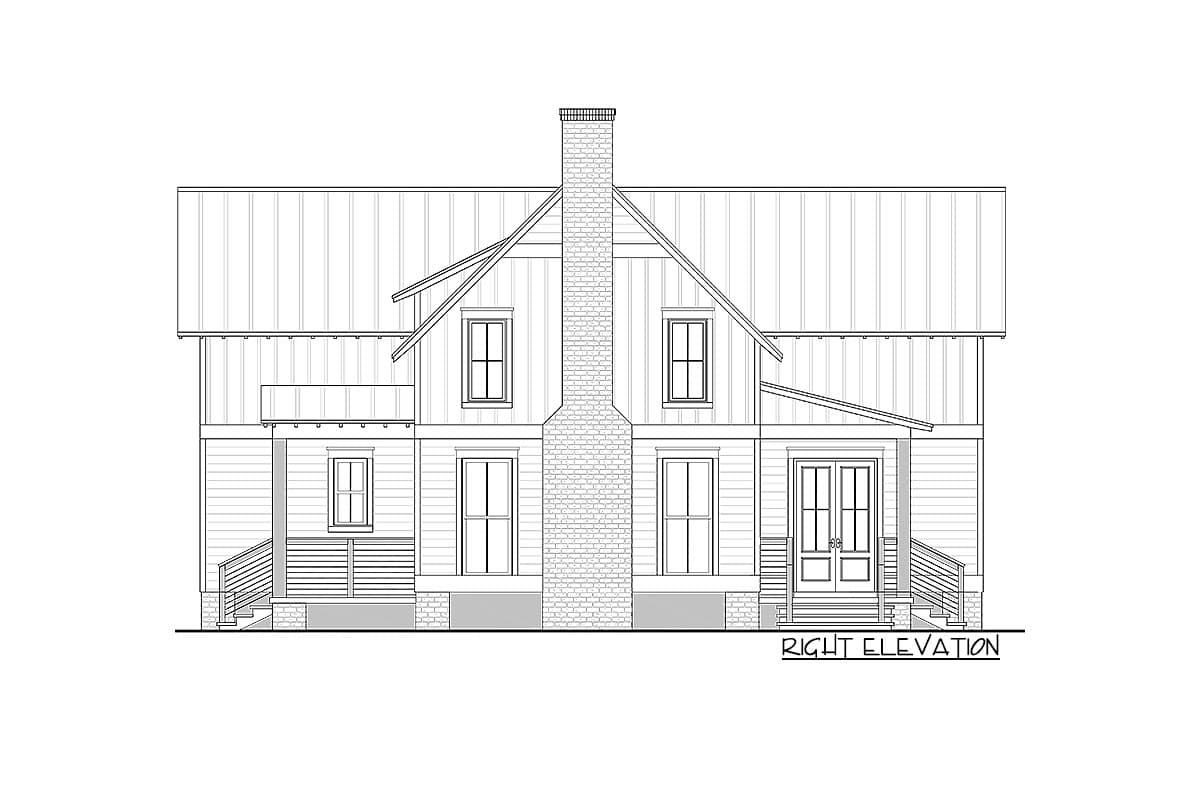

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,969 sq. ft.

1st Floor

1,247 sq. ft.

2nd Floor

722 sq. ft.

Carport

441 sq. ft.

Porch, Front

65 sq. ft.

Porch, Rear

177 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 4"

Depth

46' 10"

Garage

Type

Detached, Carport

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Vaulted

19' 4''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,969 sq. ft.

1st Floor

1,247 sq. ft.

2nd Floor

722 sq. ft.

Carport

441 sq. ft.

Porch, Front

65 sq. ft.

Porch, Rear

177 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 4"

Depth

46' 10"

Garage

Type

Detached, Carport

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Vaulted

19' 4''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

USDA Approved
