Plan 83633CRW
3-Bed Cottage with Single Garage Bay - 1656 Sq Ft
Heated S.F.
1,656
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 83633CRW

Main Level
slide image 0

Plan 83633CRW

1-800-854-7852

1-262-521-4596

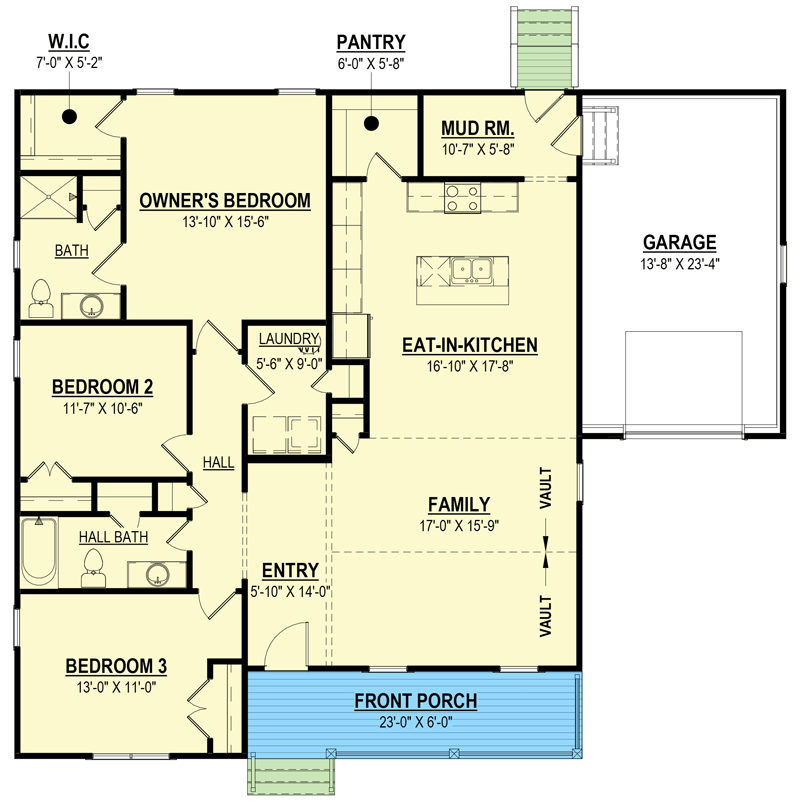

Main Level
floor plan image Main Level
Plan Details
  • Gambrel roof lines combine with a charming front porch on the exterior of this 3-bedroom 1,657 square foot Cottage House Plan.
  • The vaulted family room flows into the eat-in kitchen where an island provides a casual eating bar and a walk-in pantry lends plenty of storage.
  • Three bedrooms line the left side of the design with the largest reserved for the homeowner and paired with a walk-in closet and attached bath.
  • The laundry room is centrally located and conveniently next door to the owner's bedroom.
  • Enter from the single garage bay to find a mudroom with an exterior door that leads to the back yard.
  • Related Plan: Get an alternate exterior with house plan 83653CRW and 83652CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

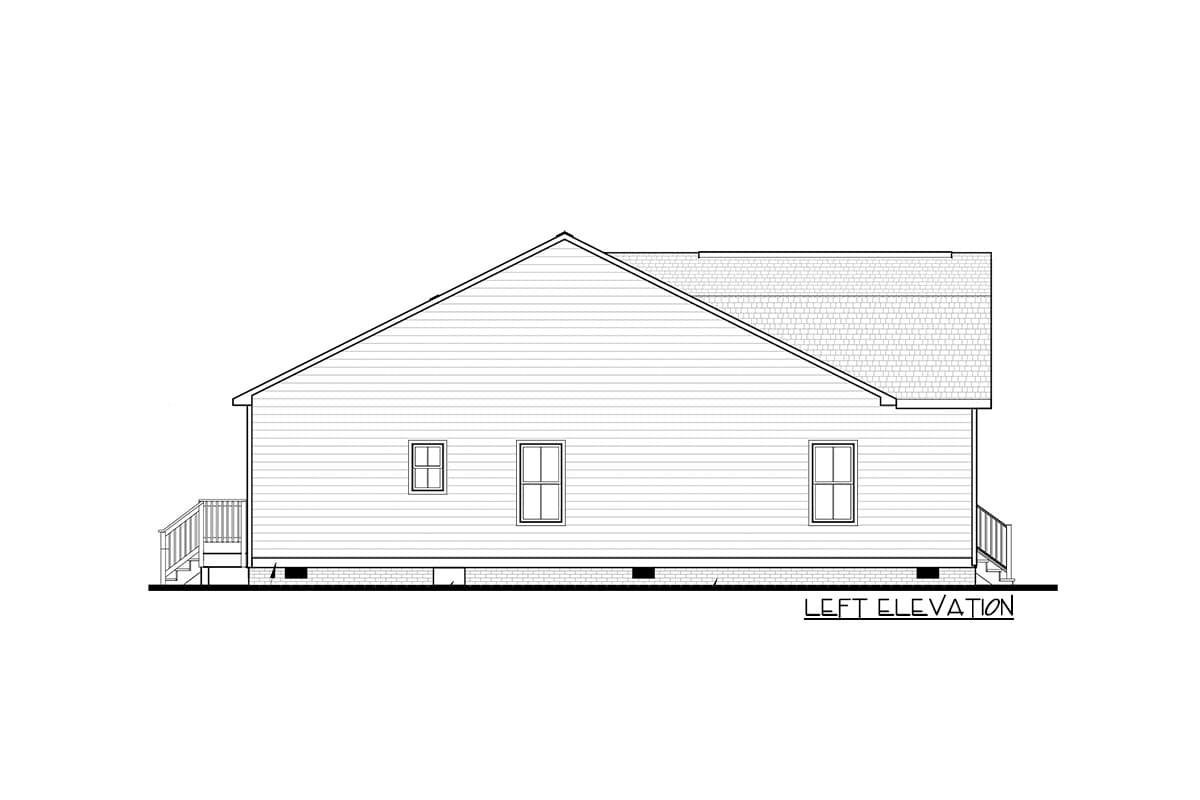

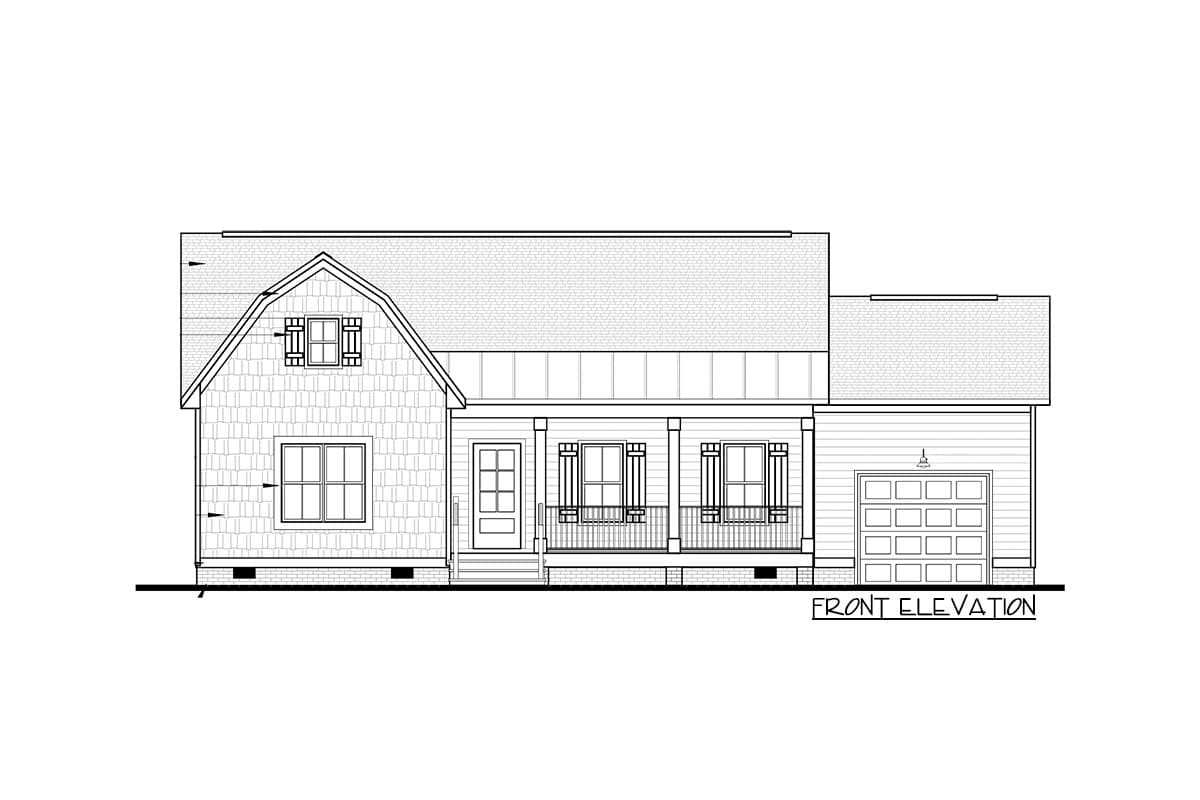

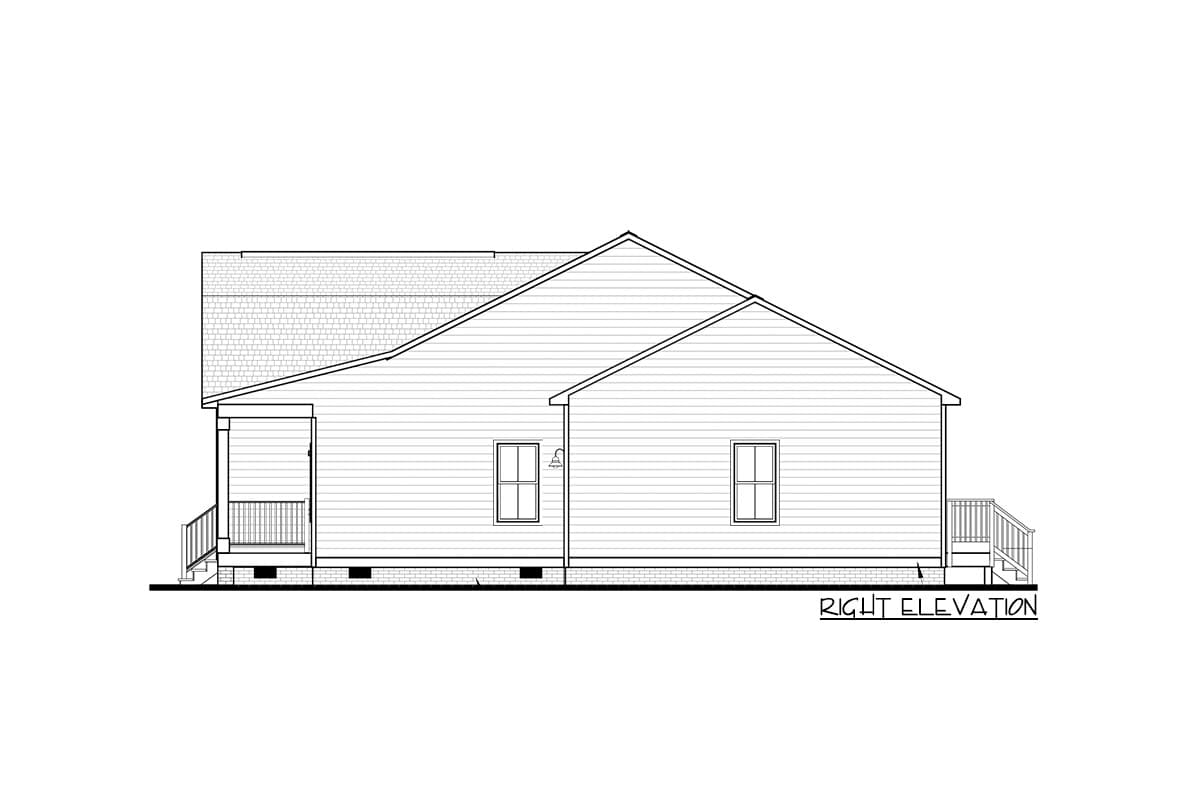

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,656 sq. ft.

1st Floor

1,656 sq. ft.

Porch, Front

138 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

46' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

336 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Farmhouse

Ranch

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,656 sq. ft.

1st Floor

1,656 sq. ft.

Porch, Front

138 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

46' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

336 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Farmhouse

Ranch

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
