Plan 135266GRA
3-Bed Country Cape House Plan with Master on Main Level - 1750 Sq Ft
Heated S.F.
1,750
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 135266GRA

Main Level
slide image 0
2nd Floor
slide image 1
Optionally Finished Lower Level
slide image 2

Plan 135266GRA

1-800-854-7852

1-262-521-4596

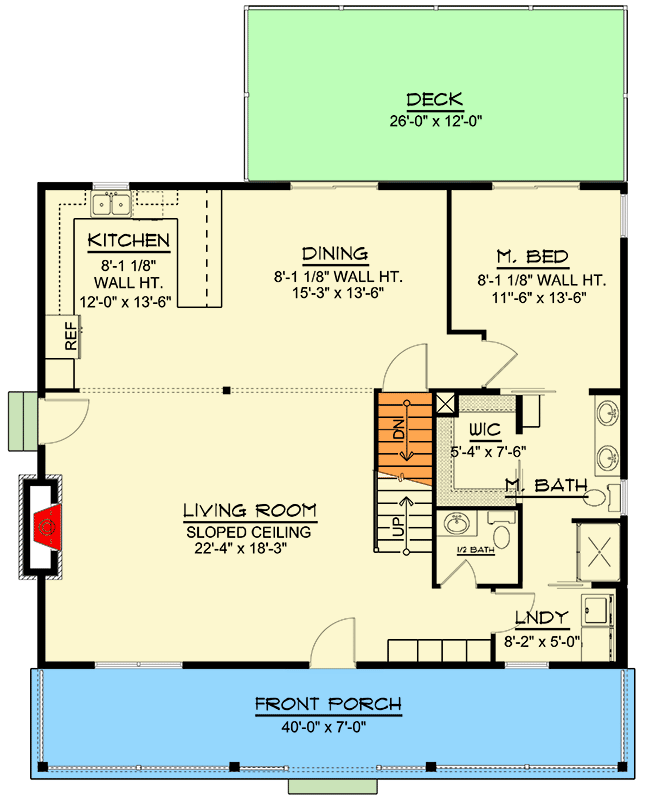

Main Level
floor plan image Main Level

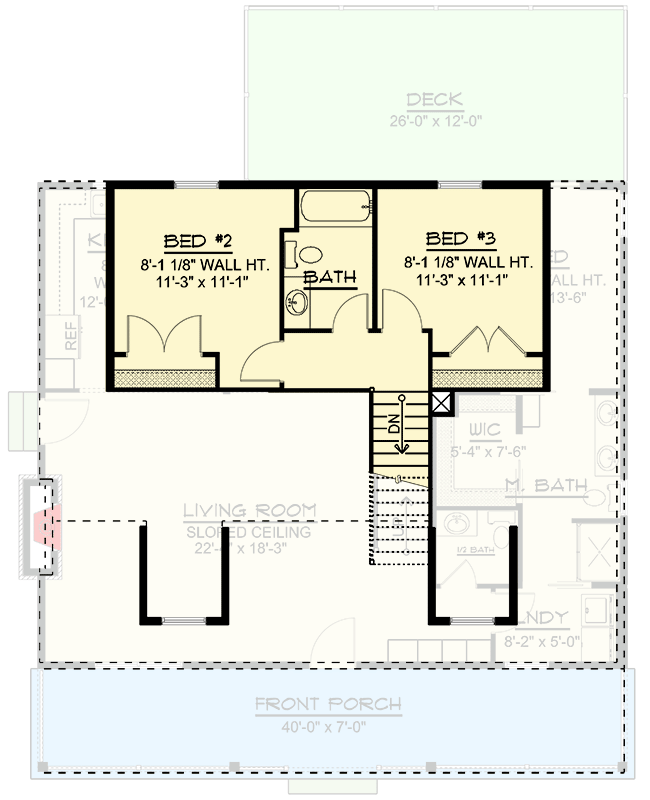

2nd Floor
floor plan image 2nd Floor

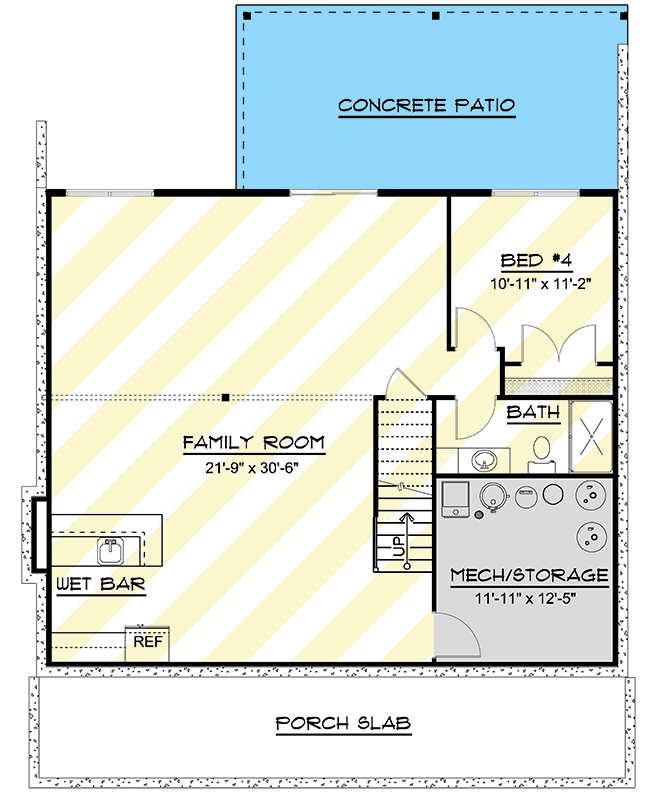

Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • This country cape house plan offers curb appeal and classic charm, and is the perfect starter home with 3-bedrooms and 2.5 baths in 1,750 square feet.
  • The main level features an open concept floor plan, to the right of the entry you're welcomed with a landing zone and access to the laundry and a powder room.
  • To the left of the entry you'll find a vaulted ceiling living room opening to the U-shaped kitchen and generous dining room.
  • The master suite, located on the main level, features glass door access to the rear porch, a walk-in closet and 4-fixture bath with double sink vanity. Convenient access to the laundry from the master bath is hidden behind a pocket door.
  • Upstairs you'll find the two secondary bedrooms and a full bath in the hallway.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,750 sq. ft.

1st Floor

1,327 sq. ft.

2nd Floor

423 sq. ft.

Basement Unfinished

1,327 sq. ft.

Porch, Combined

308 sq. ft.

Deck

311 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

23' 11"

Ceiling Heights

Lower Level

9'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

11 on 12

Secondary Pitch

4 on 12

Framing Type

Architectural Style

Cape Cod

Country

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,750 sq. ft.

1st Floor

1,327 sq. ft.

2nd Floor

423 sq. ft.

Basement Unfinished

1,327 sq. ft.

Porch, Combined

308 sq. ft.

Deck

311 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

23' 11"

Ceiling Heights

Lower Level

9'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

11 on 12

Secondary Pitch

4 on 12

Framing Type

Architectural Style

Cape Cod

Country

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
