Plan 911050JVD
3-Bed Country Craftsman Ranch with Open-Concept Floor Plan - 2233 Sq Ft
Heated S.F.
2,233
Beds
3
Baths
2.5
Stories
1
Cars
3
Tour
Floor Plan

Plan 911050JVD

Main Level
slide image 0

Plan 911050JVD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This one-story country craftsman house plan provides 2,233 square feet of heated living space with 3-bedrooms, 2.5-baths, and an oversized side-entry 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details

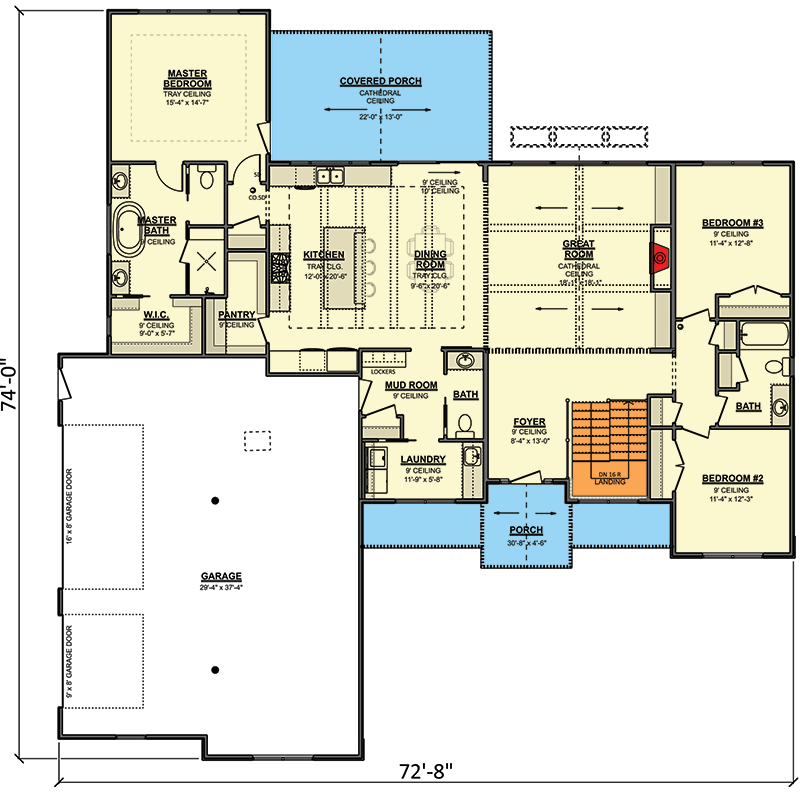

  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

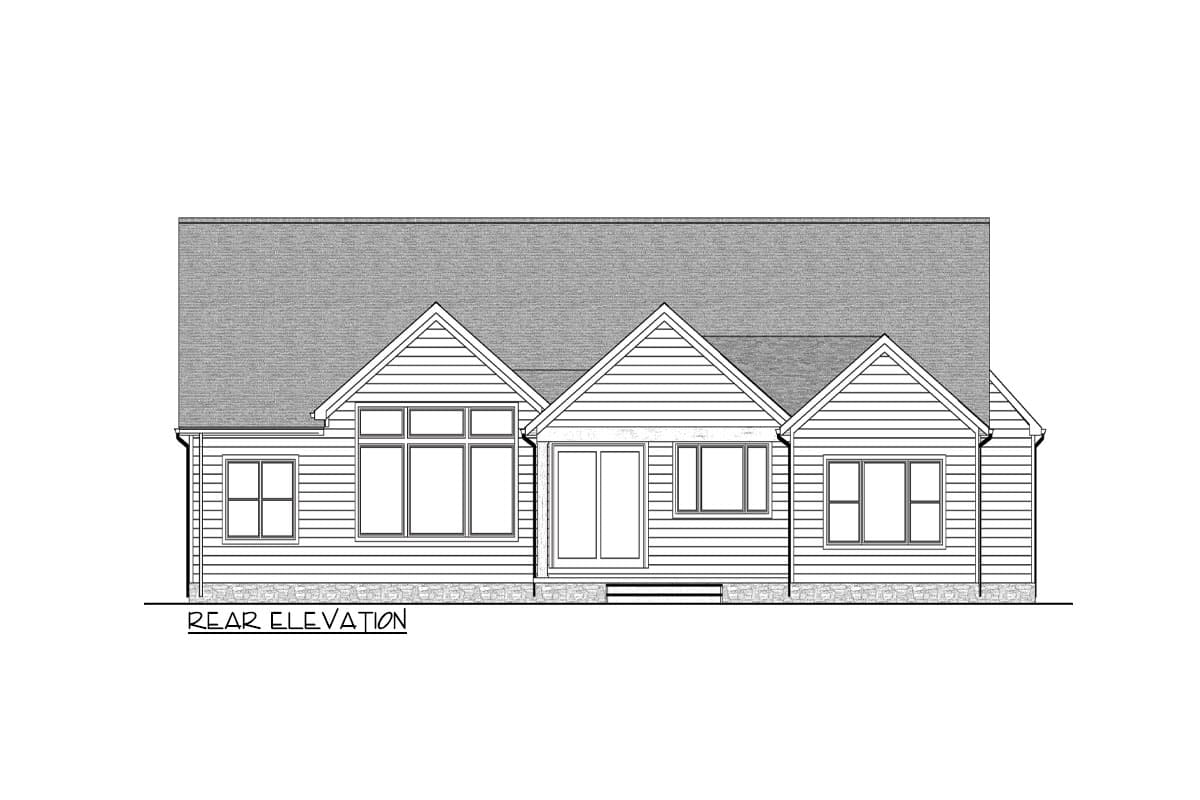

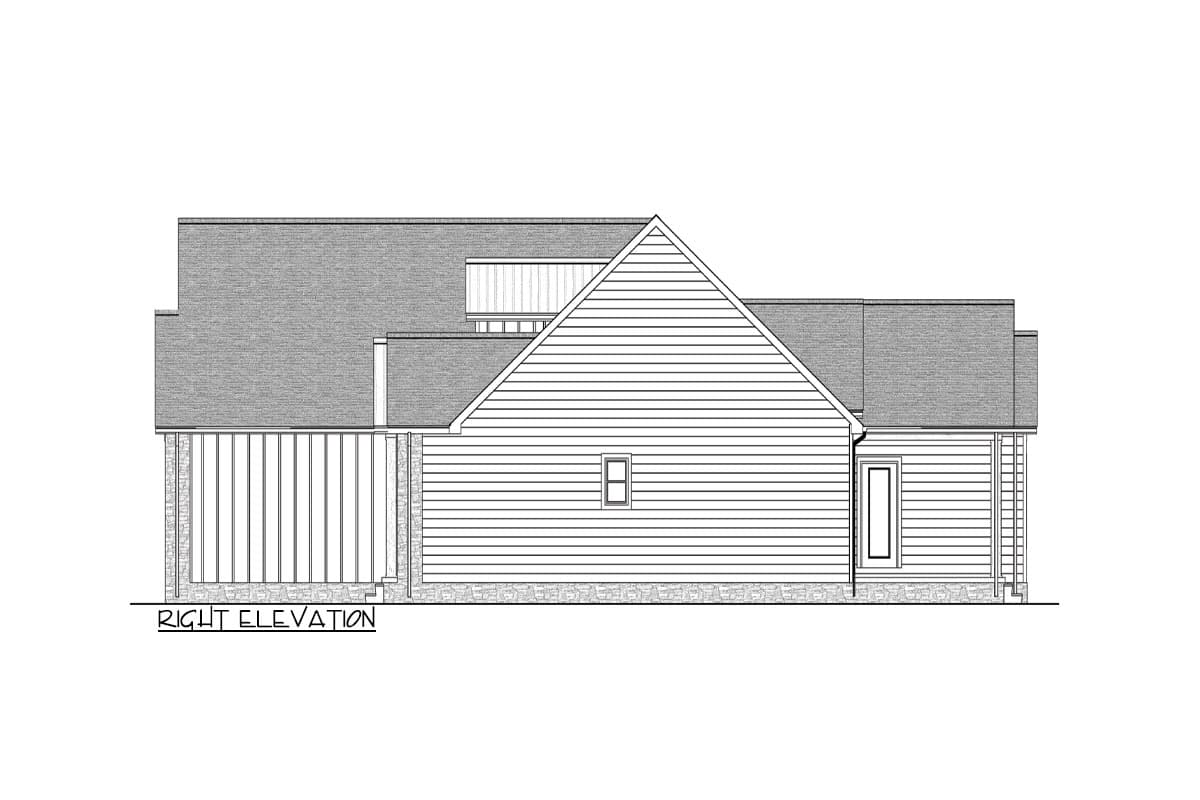

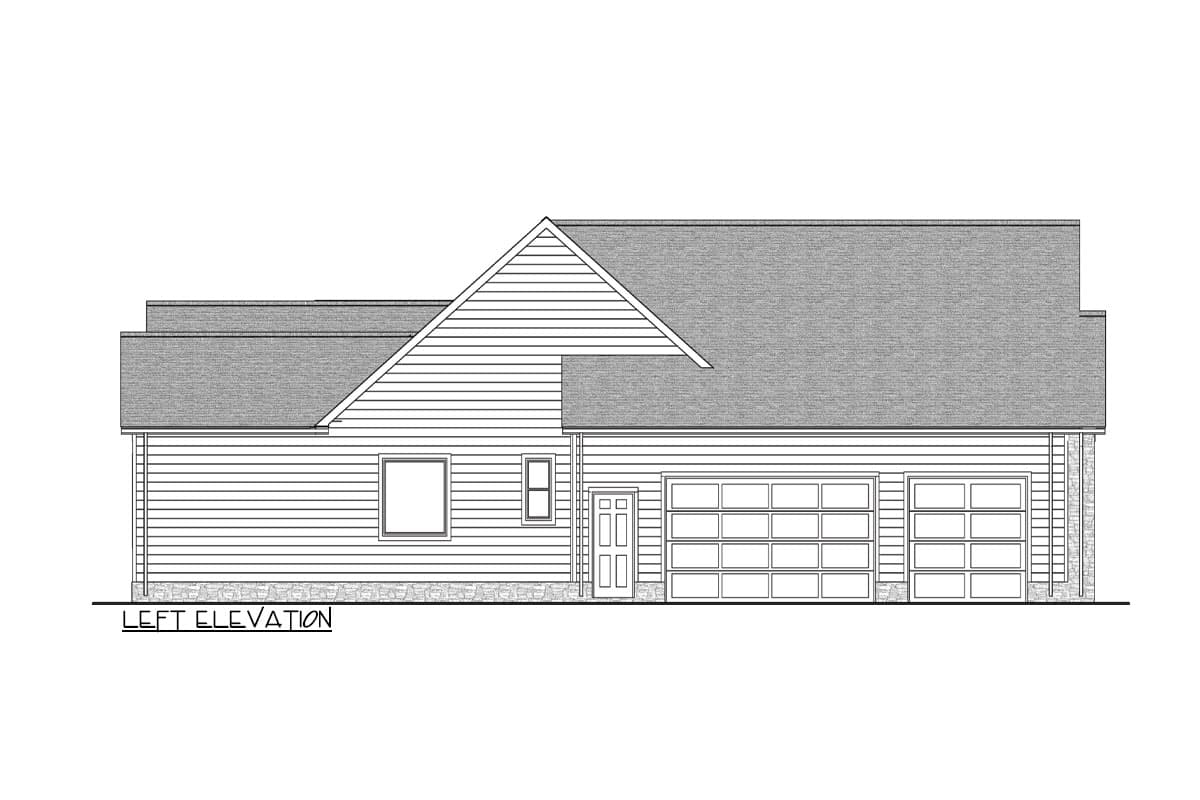

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,233 sq. ft.

1st Floor

2,233 sq. ft.

Basement Unfinished

2,088 sq. ft.

Porch, Front

172 sq. ft.

Porch, Rear

299 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

74' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

1142 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,233 sq. ft.

1st Floor

2,233 sq. ft.

Basement Unfinished

2,088 sq. ft.

Porch, Front

172 sq. ft.

Porch, Rear

299 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

74' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

1142 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
