Plan 493000GNT
3-Bed Farmhouse Plan Under 2500 Square Feet with Vaulted Interior - 2441 Sq Ft
Heated S.F.
2,441
Beds
3
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 493000GNT

Main Level
slide image 0
Optional Lower Level
slide image 1
Main Level - Basement Stairs Location
slide image 2

Plan 493000GNT

1-800-854-7852

1-262-521-4596

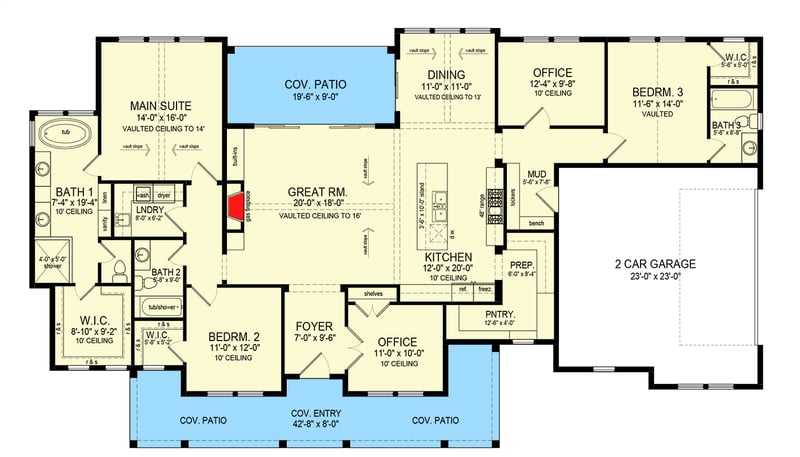

Main Level
floor plan image Main Level

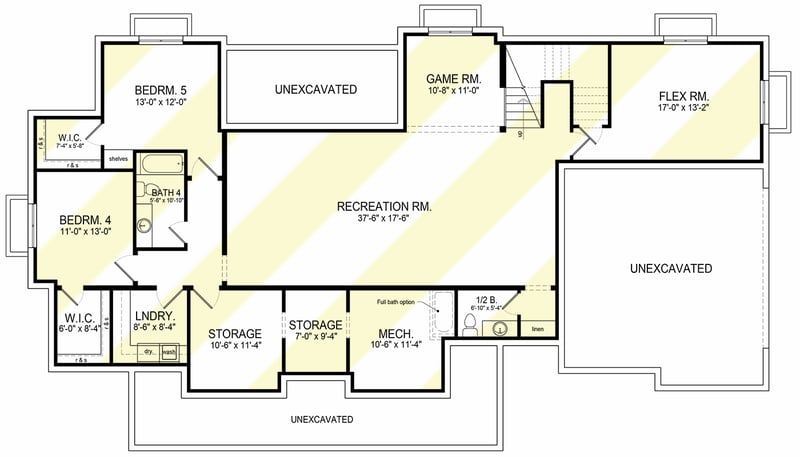

Optional Lower Level
floor plan image Optional Lower Level

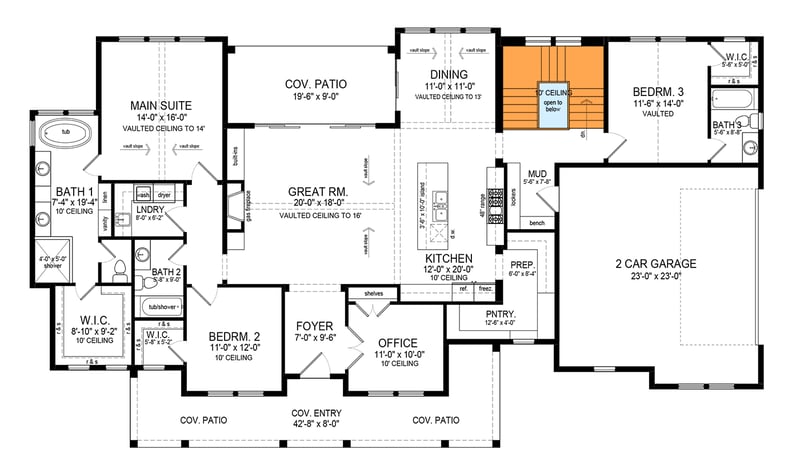

Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location
Plan Details
  • An 8'-deep front porch with three dormers above give this farmhouse plan great curb appeal.
  • Inside, a pair of French doors off the foyer open to your work-from-home office with closet to store things out of the way.
  • Ahead, a vaulted great room with fireplace opens up to the covered patio giving you great indoor/outdoor living. The space opens to the kitchen with a large (3'6" by 10') island with double sink, casual seating and work space. Check out the prep area and large pantry as well.
  • The dining room has a vaulted ceiling and enjoys access to the rear patio.
  • A vaulted ceiling in the master suite has a large walk-in closet, a five-fixture bath and is conveniently located near the laundry (as is Bed 2). Across the home, Bed 3 has a vaulted ceiling and its own bathroom and makes a great guest suite.
  • Choose the basement option and get two more bedrooms, storage, a second laundry room and lots of rec and game space to enjoy.
  • Related Plans: Get an alternate exterior with house plans 493001GNT and 493002GNT.
What's Included
  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,441 sq. ft.

Lower Level

2,284 sq. ft.

1st Floor

2,441 sq. ft.

Optional Lower Level

2,284 sq. ft.

Porch, Front

323 sq. ft.

Porch, Rear

175 sq. ft.

Porch, Combined

498 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 6"

Depth

48' 4"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

580 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

0' 9"

First Floor

0' 10"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Country

Farmhouse

Modern Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

2,441 sq. ft.

Lower Level

2,284 sq. ft.

1st Floor

2,441 sq. ft.

Optional Lower Level

2,284 sq. ft.

Porch, Front

323 sq. ft.

Porch, Rear

175 sq. ft.

Porch, Combined

498 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 6"

Depth

48' 4"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

580 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

0' 9"

First Floor

0' 10"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Country

Farmhouse

Modern Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wrap Around Porch
