Plan 16927WG

3-Bed Country Home Plan with Attached Carport and 2-Car Detached Garage - 1657 Sq Ft

Heated S.F.

1,657

Beds

Baths

Stories

Cars

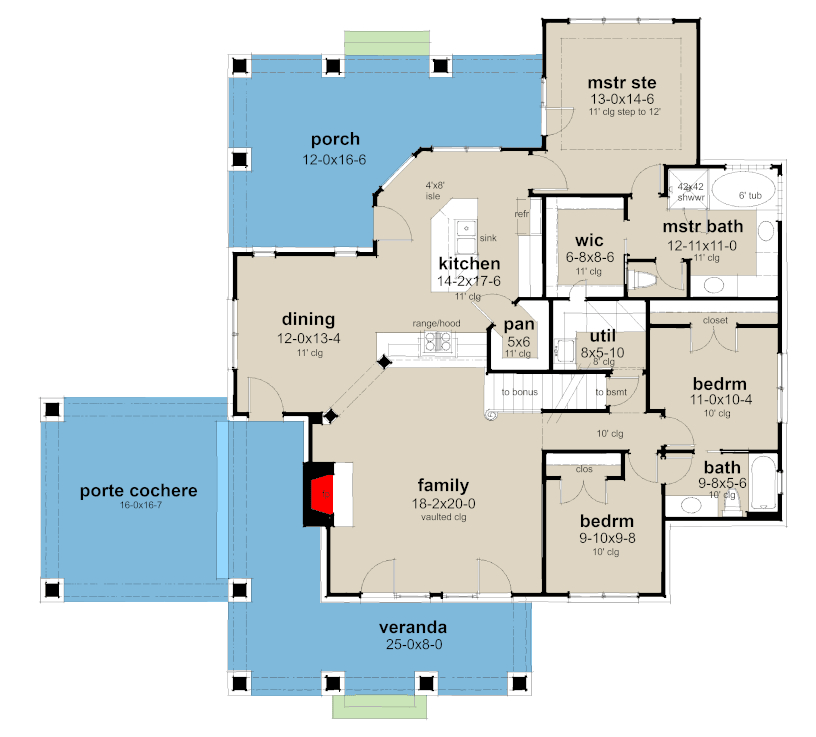

Floor Plan

Main Level

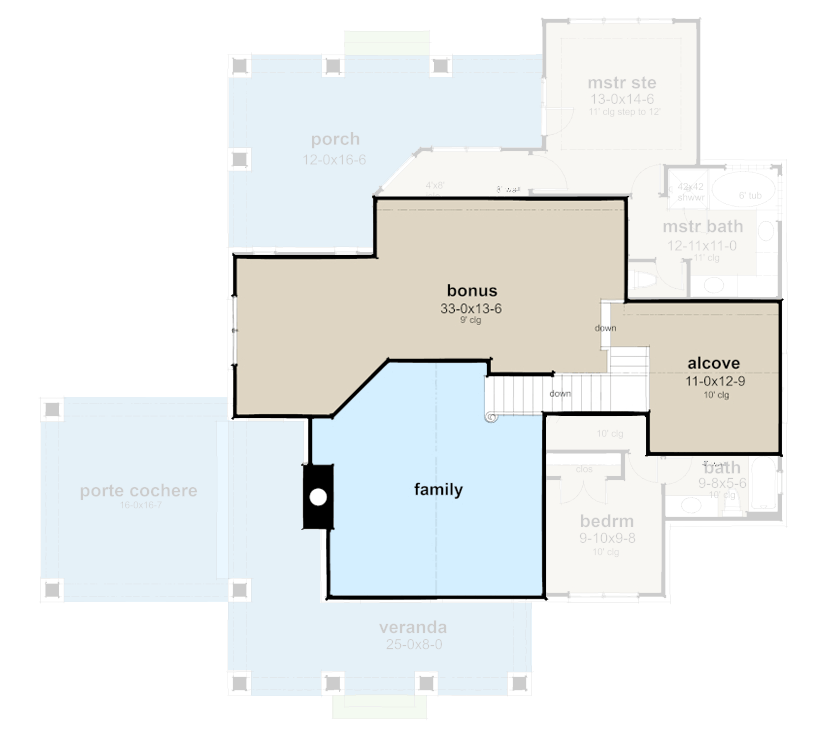

2nd Floor

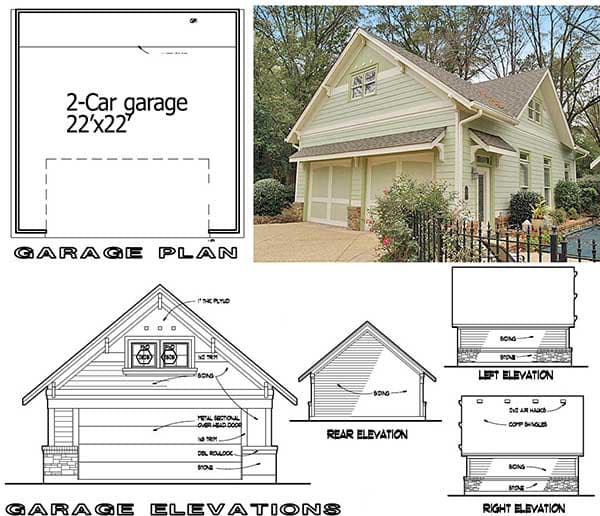

Detached Garage

Plan Details

This 3 bed, 2 bath country home plan gives you 1,657 square feet of heated living and has a 267 square foot carport and 624 square foot of porch combined front and rear porch space to enjoy. This home design also includes a 2-car detached garage plan.
Two doors on the front porch open to the family room (a third door opens to the dining room) with vaulted ceiling and a fireplace.
The kitchen has an island (4' by 8') with two sinks and casuals eating and is open to the dining room which has access to the back porch.
In back the master bedroom has a 12' tray ceiling and enjoys access to the back porch. The bathroom has two vanities, a walk-in shower, tub and private toilet and the walk-in closet has direct laundry access. Two more bedrooms share a Jack and Jill bath.
Stairs take you to 641 square feet of bonus expansion.
Related Plan: Get an alternate version with house plan 16855WG.

What's Included

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
