Plan 180013VNW
3-Bed Craftsman Cottage House Plan with Rear Garage - 1063 Sq Ft
Heated S.F.
1,063
Beds
2 - 3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 180013VNW

Main Level
slide image 0

Plan 180013VNW

1-800-854-7852

1-262-521-4596

Main Level

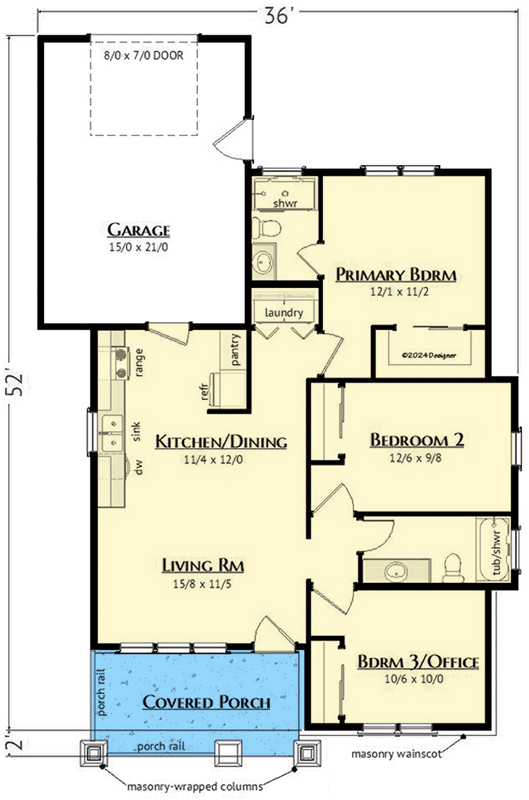

floor plan image Main Level
Plan Details

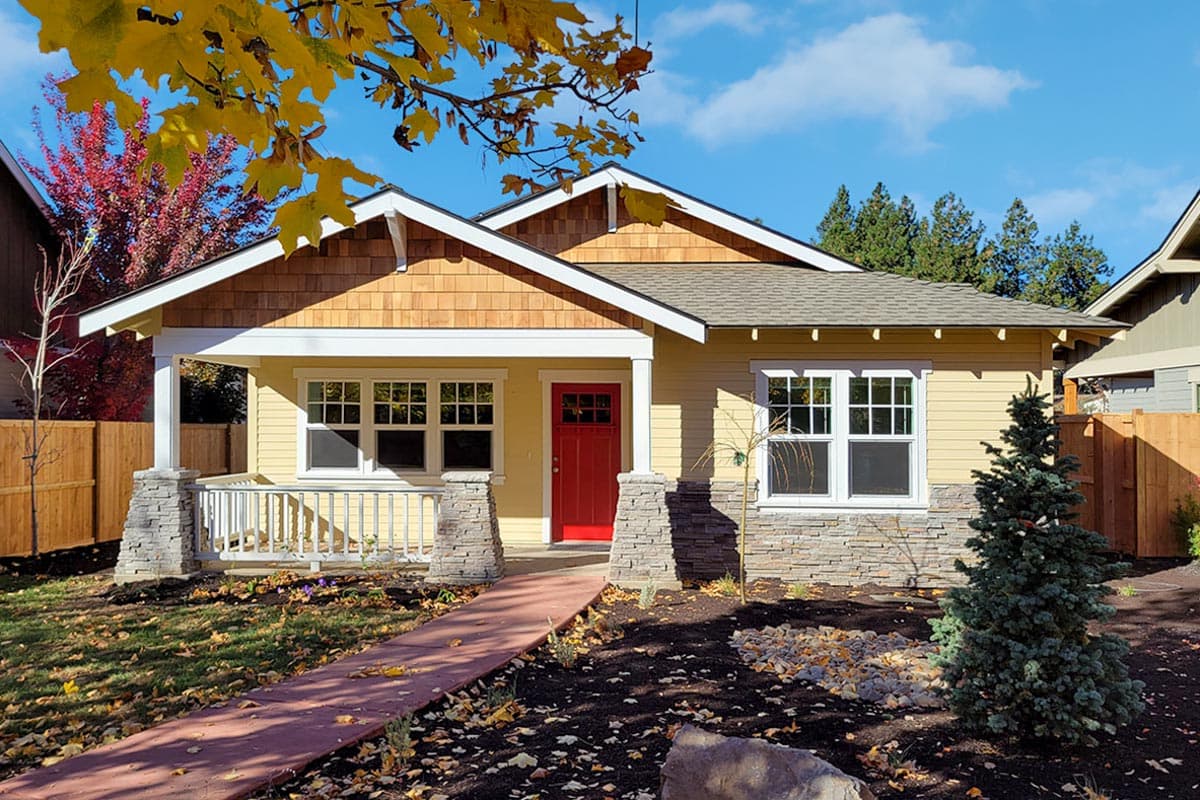

  • Attention to detail gives this cottage its Craftsman charm. Tapered columns on stone bases frame a generous front porch with a picket railing. Stone continues with a wainscot that wraps around the front bedroom.
  • Most of the house has horizontal lap siding, but board and batten siding at the garage and around the right side extension add visual interest. Gable end walls are accented with shingles and millwork brackets.
  • Window and door casings with lintels, and prominent trim bands complete the Craftsman look. Careful space planning allows this house to live large in its 1063 sq. ft.
  • There are three bedrooms and two baths along with a nicely appointed galley kitchen and dining area and a comfortable living room.
  • A separate laundry closet and a kitchen pantry are important to daily living. A single car garage opens to a rear alley.


What's Included
  • Cover Sheet
  • Exterior Elevations
  • Floor Plan(s)
  • Foundation Plan
  • Wall Framing and Floor Framing Plans
  • Roof Plans
  • Building Sections
  • Electrical Layout Plans
  • Misc. Construction Details, Information and Notes
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,063 sq. ft.

1st Floor

1,063 sq. ft.

Porch, Front

124 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

54' 0"

Max Ridge Height

17' 2"

Garage

Type

Attached

Area

341 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

8' 0''

Kitchen

8' 0''

Master Bedroom

8' 0''

Bedroom 2

8' 0''

Bedroom 3

8' 0''

Master Bath

8' 0''

Bath 2

8' 0''

Garage

8' 4''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,063 sq. ft.

1st Floor

1,063 sq. ft.

Porch, Front

124 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

54' 0"

Max Ridge Height

17' 2"

Garage

Type

Attached

Area

341 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

8' 0''

Kitchen

8' 0''

Master Bedroom

8' 0''

Bedroom 2

8' 0''

Bedroom 3

8' 0''

Master Bath

8' 0''

Bath 2

8' 0''

Garage

8' 4''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
