Plan 51173MM
3 Bed Craftsman Cottage with Options
Heated S.F.
1,801
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 51173MM

Main Level
slide image 0

Plan 51173MM

1-800-854-7852

1-262-521-4596

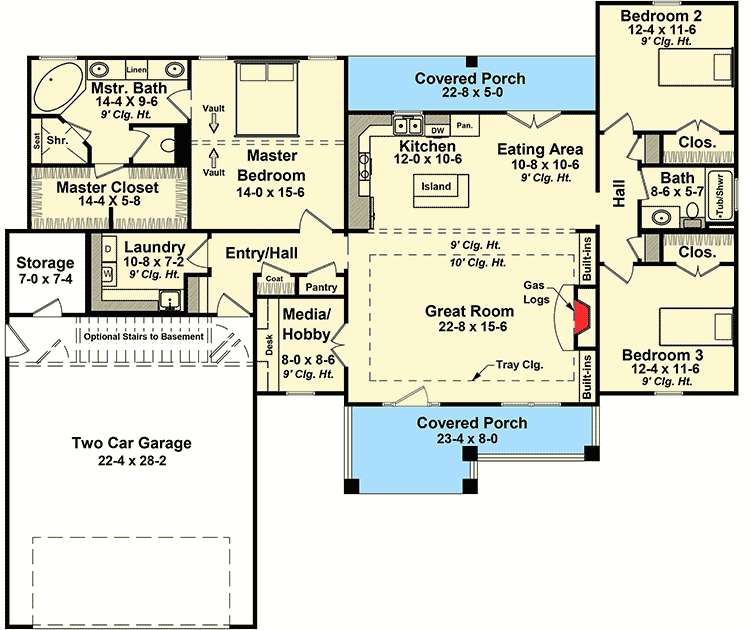

Main Level
floor plan image Main Level
Plan Details
  • The exterior of this home is full of Craftsman charm and has porches front and rear giving you space to enjoy the views.
  • Walk in off the front porch and your guests are greeted by the great room with a trayed ceiling and a gas log fireplace. It is also open to the kitchen and eating area.
  • A media/hobby room is conveniently located off the great room.
  • A private hall leads you to the master suite with vaulted ceiling and a large walk-in closet and master bath with separate vanities.
  • This home features a split-bedroom layout maximizing your privacy.
  • Related Plans: Downsize with house plans 51159MM (1,627 sq. ft.), 51131MM (1,604 sq. ft.) and 51040MM (1,509 sq. ft.). Get more room including a bonus room over the garage with house plans 51165MM (1,902 sq. ft.) and 51116MM (2,199 sq. ft.).
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

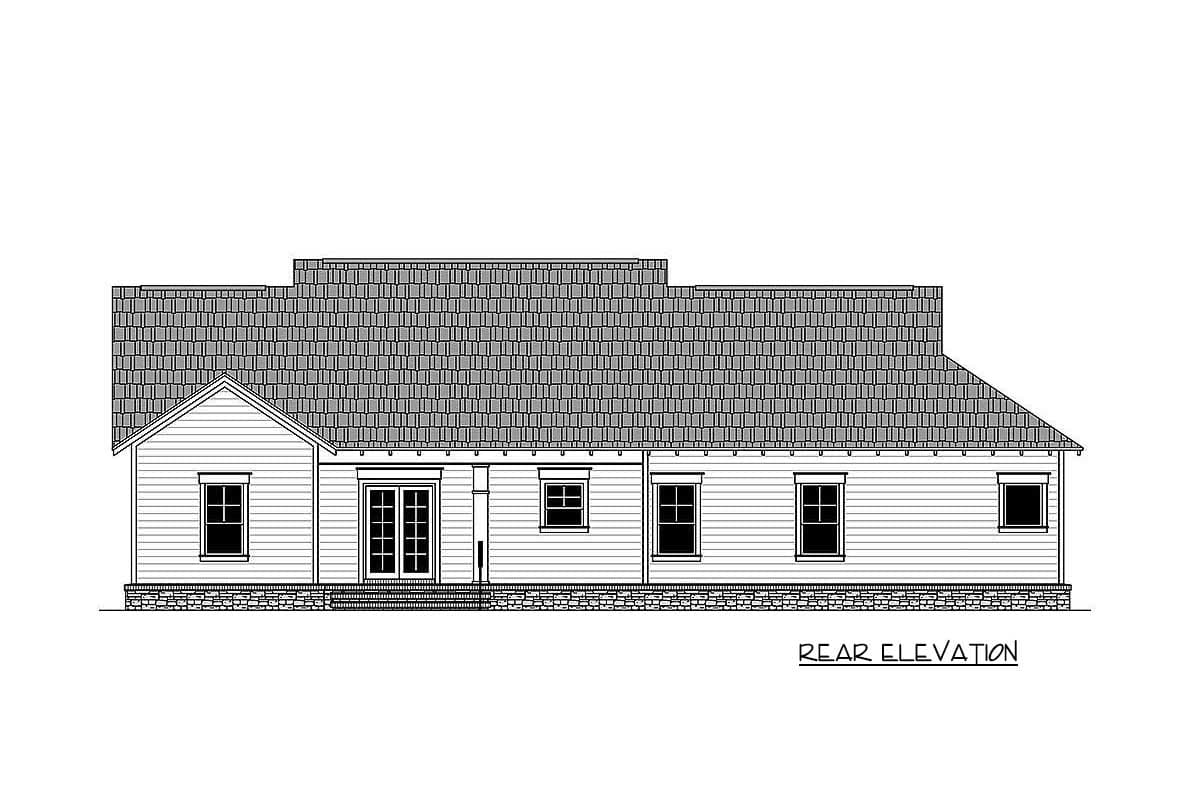

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Porch, Front

153 sq. ft.

Porch, Rear

113 sq. ft.

Storage

57 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 0"

Depth

57' 4"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

653 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Bonus Room

Master Suite - 1st Floor

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Porch, Front

153 sq. ft.

Porch, Rear

113 sq. ft.

Storage

57 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 0"

Depth

57' 4"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

653 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Bonus Room

Master Suite - 1st Floor

Plan Collections

USDA Approved
