Plan 28043J
3-Bed Craftsman Home Plan with Bonus Room and Covered Patio
Heated S.F.
2,408
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28043J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28043J

1-800-854-7852

1-262-521-4596

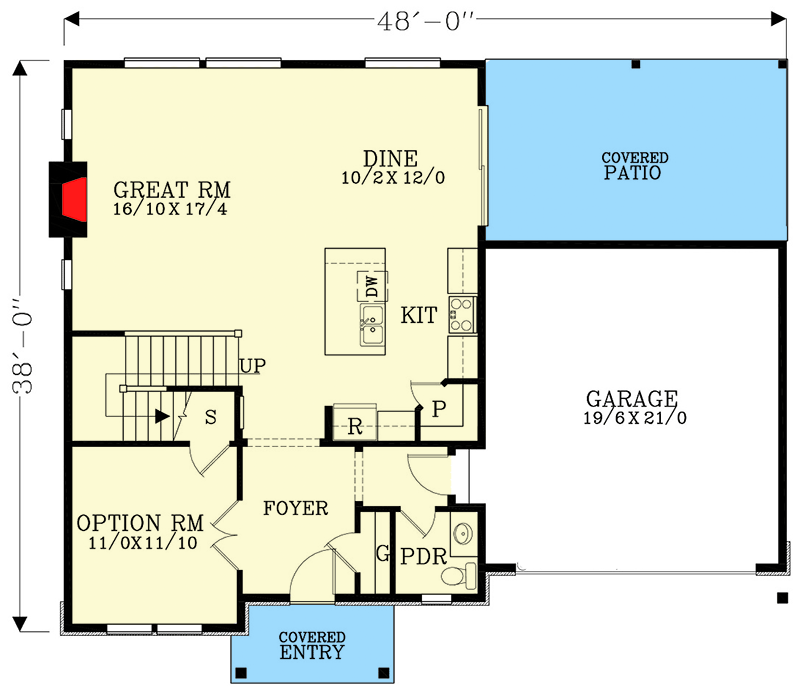

Main Level
floor plan image Main Level

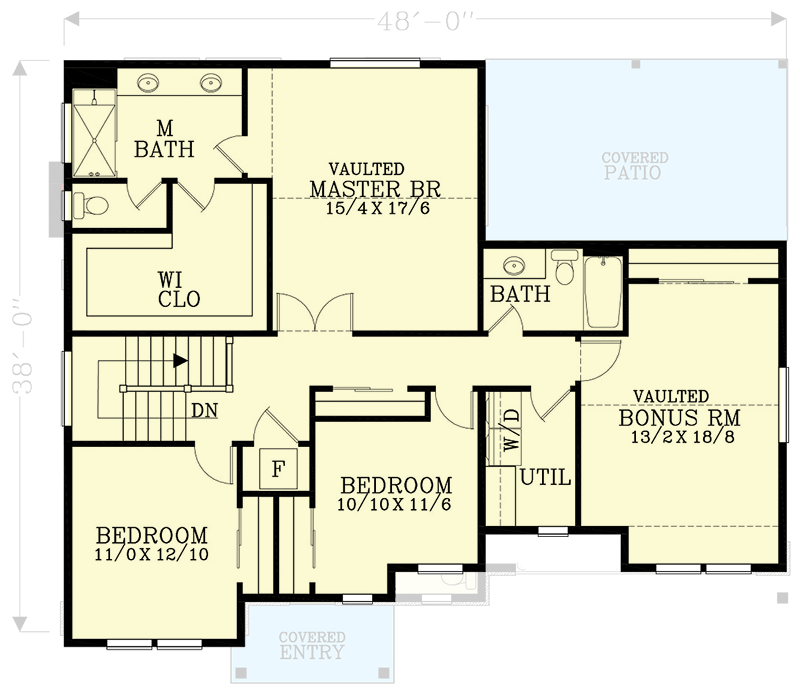

2nd Floor
floor plan image 2nd Floor
Plan Details

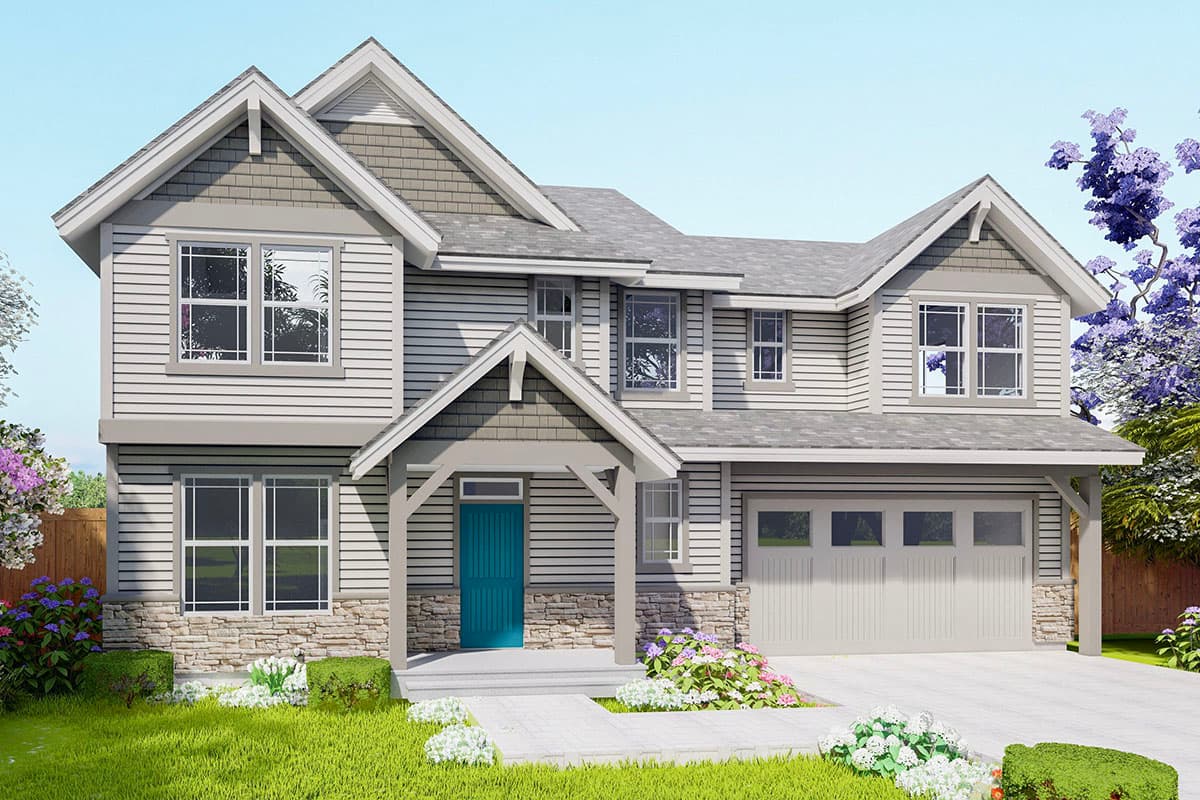

  • Stone and shake accents add texture to the exterior of this 3-Bedroom Craftsman home plan that gives you over 2,400 square feet of living space.
  • The forward-facing garage is considerate of smaller lot lines and opens into the foyer with easy access to a powder bath.
  • Minimal walls allow you move easily between the kitchen, dining area, and great room, where three oversized windows allow natural light to fill the communal living spaces.
  • A covered porch behind the garage provides the perfect spot to grill and dine outdoors, and a quiet den behind french doors can double as a guest bedroom.
  • Three bedrooms and the laundry room are located upstairs, including the vaulted master bedroom with a 5-fixture bathroom. A 245 sq ft bonus room lends versatility to the second level.
  • Related Plans: Get an alternate version with house plans 28043J and 28045J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,408 sq. ft.

1st Floor

1,024 sq. ft.

2nd Floor

1,384 sq. ft.

Bonus

245 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

38' 0"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

410 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Den

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections
