Plan 600005PDZ

Exclusive

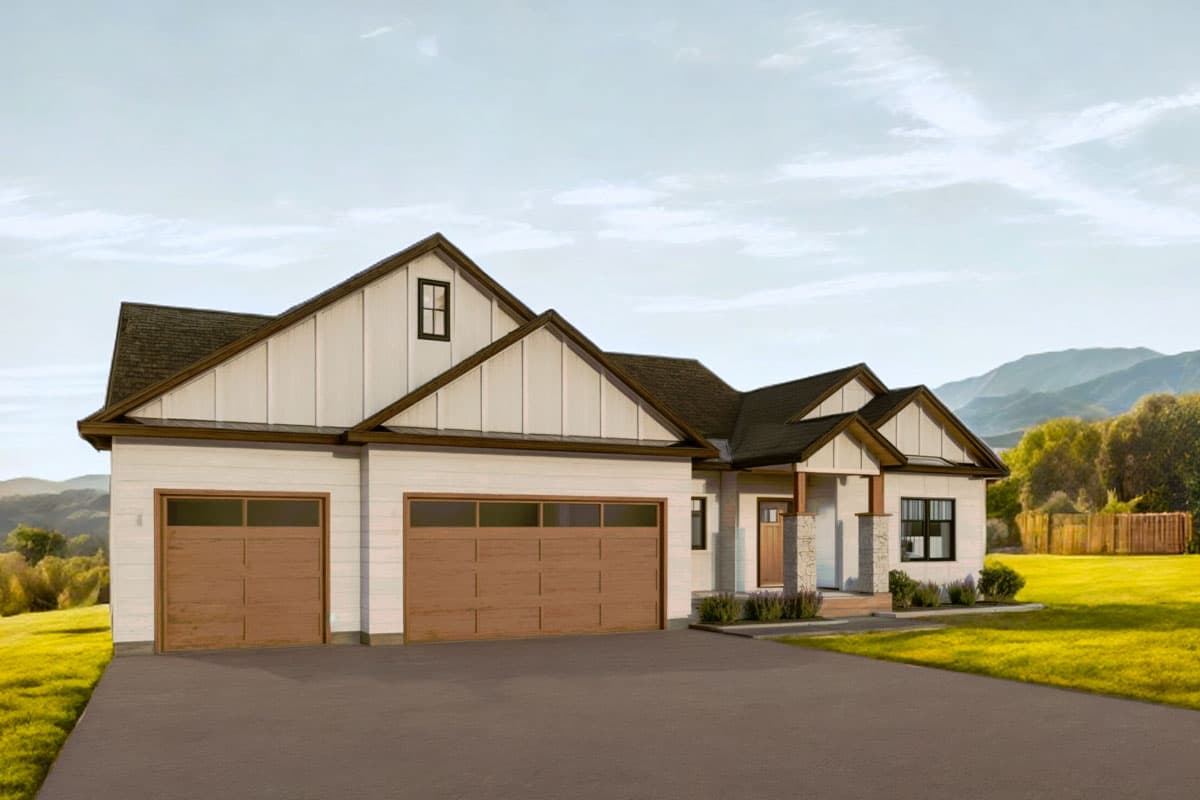

3-Bed Craftsman House Plan with Optionally Finished Lower Level - 2134 Sq Ft
Heated S.F.
2,134
Beds
3 - 5
Baths
2 - 3
Stories
1
Cars
3
Tour
Floor Plan

Plan 600005PDZ

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 600005PDZ

1-800-854-7852

1-262-521-4596

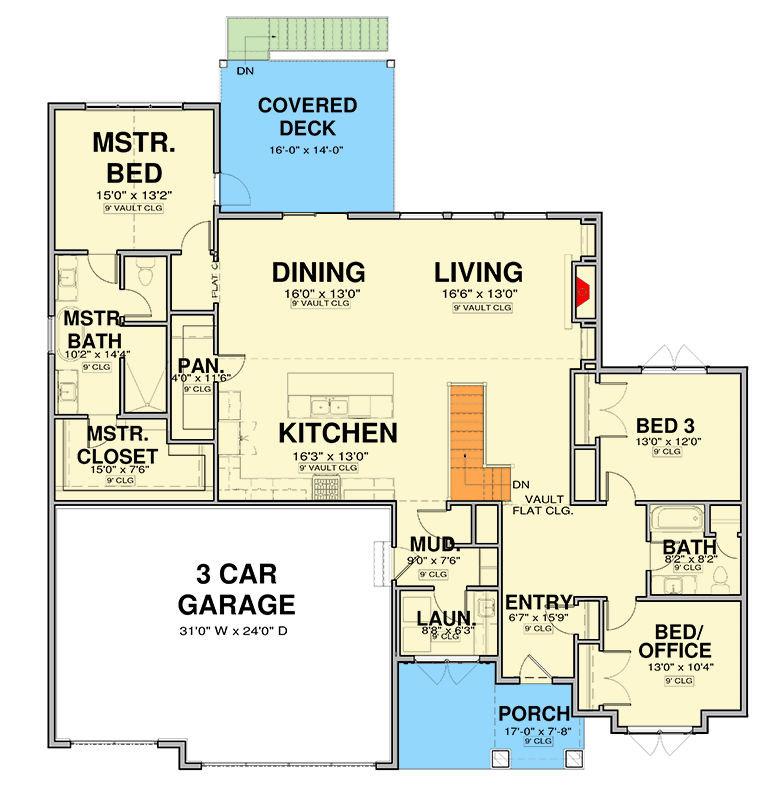

Main Level
floor plan image Main Level

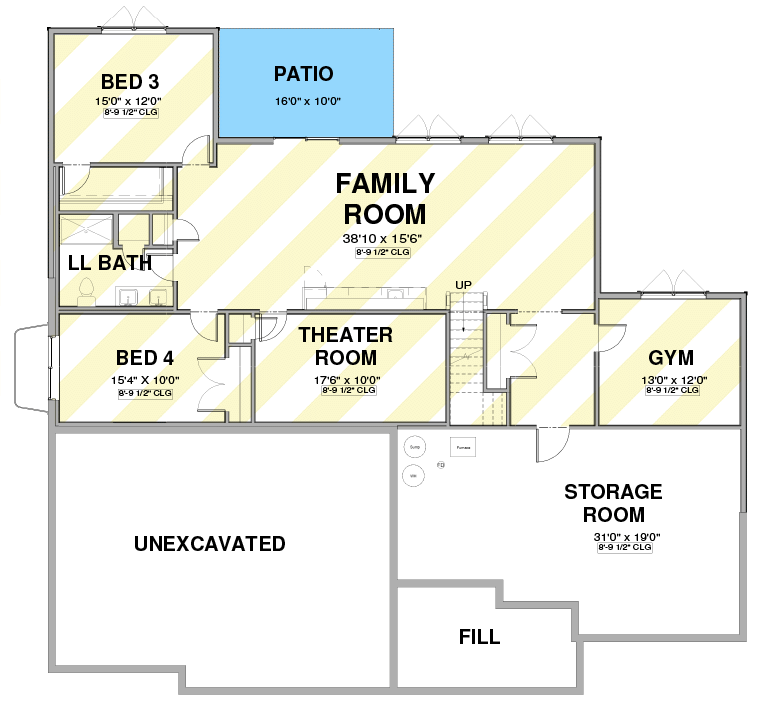

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This craftsman house plan offers you 2,134 square feet of heated living space, 2 or 3 beds and 2 full baths, and a 726 square foot 3-car garage.
  • The lower level is optionally finished, offering an additional 1,606 square feet of living space with two additional bedrooms and bathroom, a theater room, home gym and a family room with wet-bar.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Page
  • Concrete/Foundation Plan
  • Lower Level Framing Plan (If applicable)
  • Main Level Framing Plan
  • Second Level Framing Plan (If applicable)
  • Roof Plan
  • Front & Rear Exterior Elevations
  • Left & Right Exterior Elevations
  • Stair Plan
  • Deck Plan (If applicable)
  • Enlarged Kitchen Plans & Elevations
  • Enlarged Plans & Elevations
  • Framing Details
  • Floor Finish Plans
  • Isometric Views
  • Electrical Plans
What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,134 sq. ft.

1st Floor

2,134 sq. ft.

Basement Unfinished

530 sq. ft.

Optional Lower Level

1,606 sq. ft.

Porch, Front

148 sq. ft.

Deck

222 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

61' 0"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

726 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Wet Bar

Plan Collections

Exclusive
