Plan 780005KYD

3-Bed Craftsman Ranch House Plan with Flexible Study or Home Office - 2434 Sq Ft

Heated S.F.

2,434

Beds

3

Baths

2.5

Stories

1

Cars

2

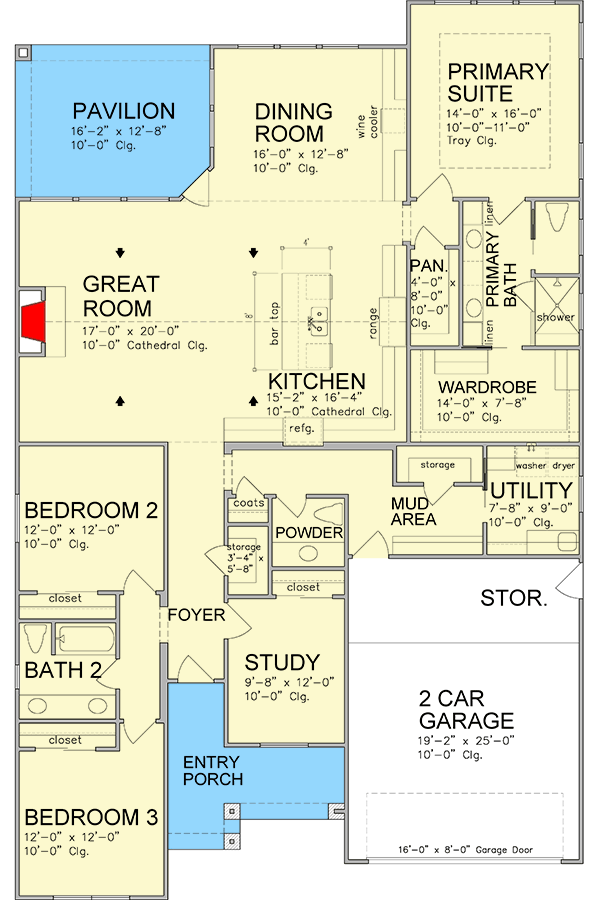

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This one-story craftsman house plan design combines comfort and style with an open-concept design featuring a cathedral ceiling that spans the great room and kitchen.
The kitchen includes a large island for meal prep and casual dining, a dining area with built-in cabinetry and a wine cooler, and a walk-in pantry for storage.
The primary suite offers a walk-in closet, double sinks, and a luxurious shower, while two additional bedrooms share a bathroom with double sinks.
Outdoor living spaces include a cozy front porch and a rear pavilion.
Additional highlights include an oversized two-car garage, a mud area with storage, and a study with a closet, providing a practical and stylish home for modern living.

What's Included

Cover Sheet
Floor Plan (s)
Exterior Elevations
Electrical Plan and Interior Elevations
Cross Section and Ceiling Framing Plan
Roof Plan and Foundation plan
Detail

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,434 sq. ft.

1st Floor

2,434 sq. ft.

Porch, Front

128 sq. ft.

Porch, Rear

201 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 2"

Depth

78' 8"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Cathedral

14' 0''

Kitchen

Cathedral

14' 0''

Primary Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,434 sq. ft.

1st Floor

2,434 sq. ft.

Porch, Front

128 sq. ft.

Porch, Rear

201 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 2"

Depth

78' 8"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Cathedral

14' 0''

Kitchen

Cathedral

14' 0''

Primary Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
