Plan 14629RK
3 Bed Craftsman with Gabled Front Porch and Upstairs Laundry - 2361 Sq Ft
Heated S.F.
2,361
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 14629RK

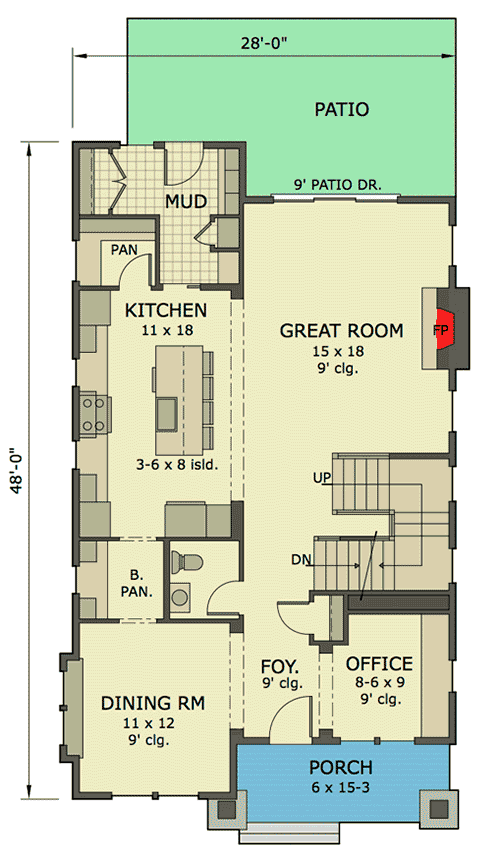

Main Level
slide image 0

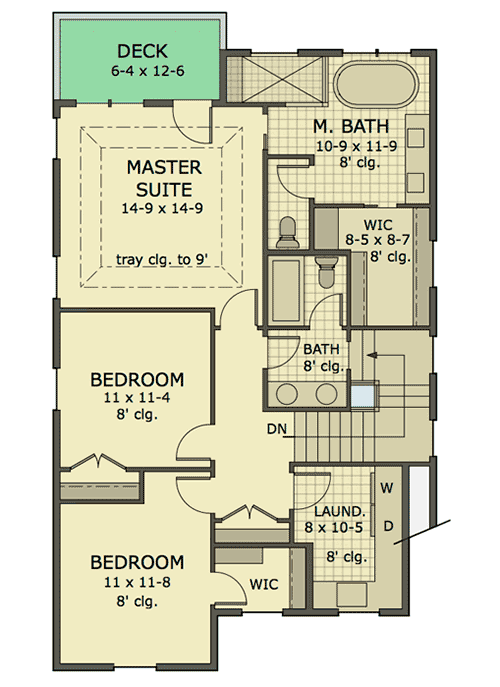

2nd Floor
slide image 1

Plan 14629RK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

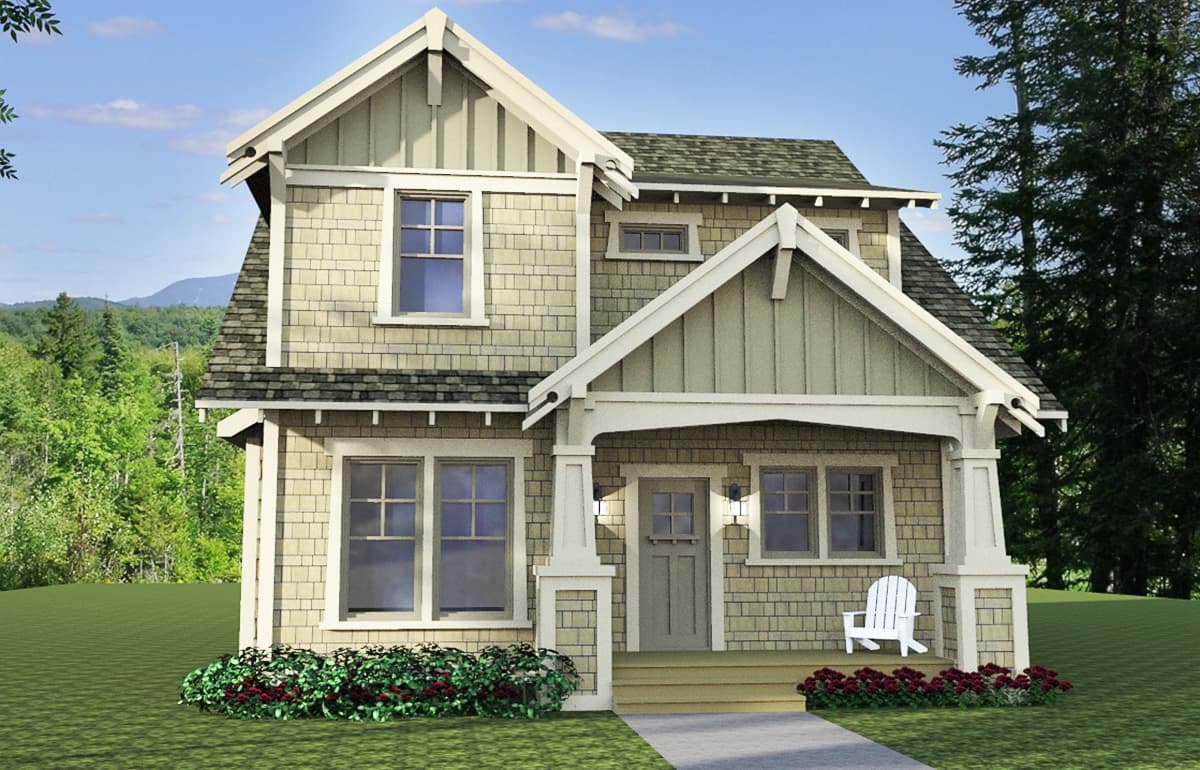

  • A gabled front porch, supported by two columns on square bases, greets you to this 3 bed Craftsman house plan. The exterior is a tasteful blend of shakes and board and batten siding.
  • An office is off the foyer and a formal dining room is across the foyer. It is perfect for serving dinner with access to the kitchen through the walk through butler's pantry.
  • The great room has a fireplace and is open to the kitchen. An island has seating for four plus great work space and a sink and a walk-in pantry gives you great storage.
  • Sliding doors off the great room lead to an open air patio.
  • All the bedrooms are upstairs, including the master with its own private deck. Laundry is also upstairs for your convenience.
  • The roof has a 9:12 pitch.
What's Included
  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,361 sq. ft.

1st Floor

1,232 sq. ft.

2nd Floor

1,129 sq. ft.

Basement Unfinished

1,232 sq. ft.

Porch, Front

92 sq. ft.

Deck

188 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

48' 0"

Max Ridge Height

29' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Plan Collections

Home Office
