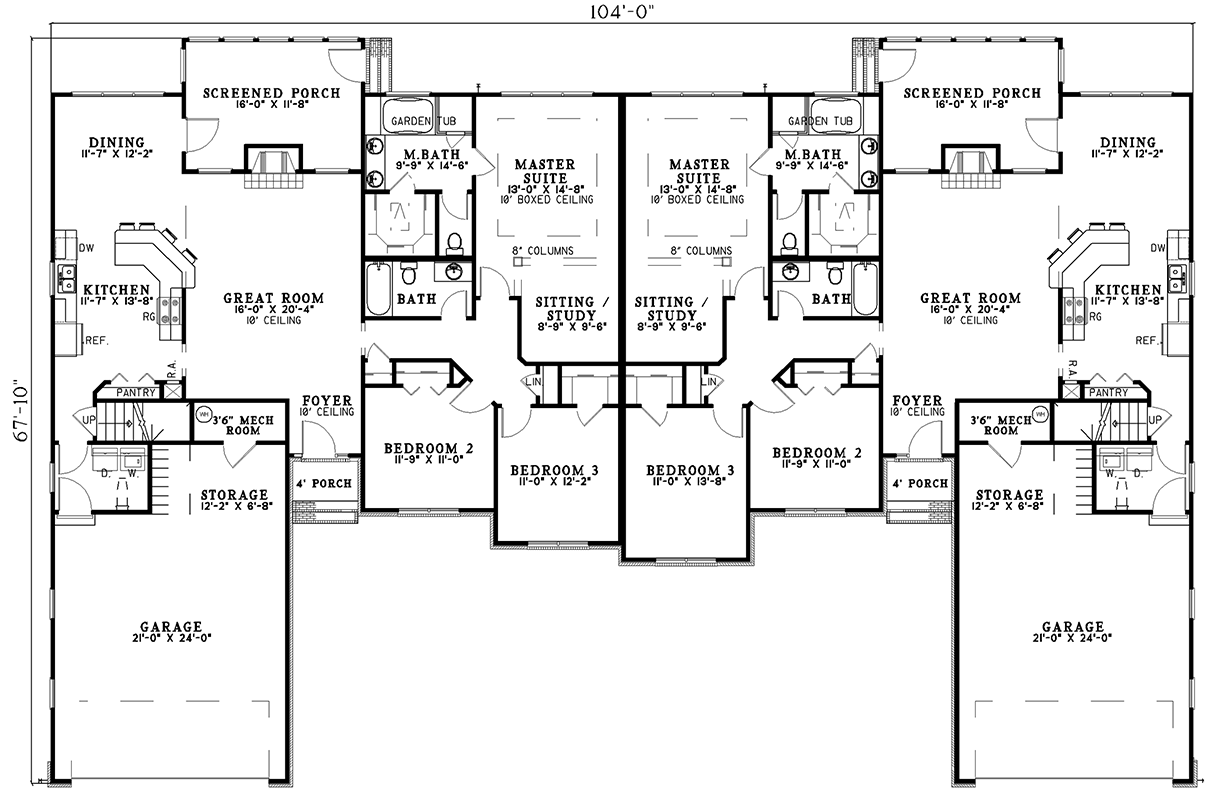

Main Level
floor plan image Main Level

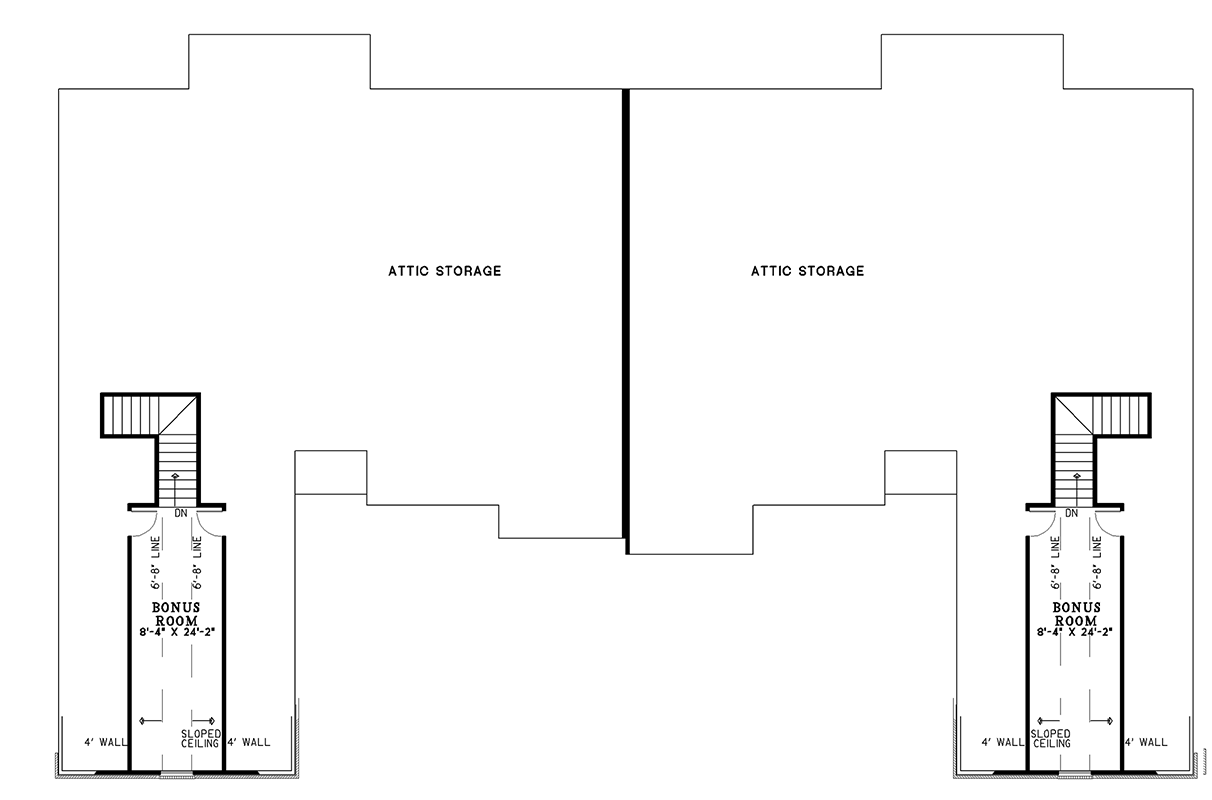

Bonus
floor plan image Bonus
Plan Details
  • This one-story duplex house plan gives you side-by-side 3 bed, 2.5 bath units each with 1780 square feet of heated living and a 642 square foot 2-car garage
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our vast collection of multi-family home plans, encompasses various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
Unit A
1,780Sq. Ft.
1780 Sq. Ft.
1st Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
642 Sq. Ft.
52'width
67' 10"depth
25'height
Unit B
1,780Sq. Ft.
1780 Sq. Ft.
1st Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
642 Sq. Ft.
52'width
67' 10"depth
25'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,076 sq. ft.

1st Floor

3,572 sq. ft.

Bonus

498 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

374 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 0"

Depth

67' 10"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

1284 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

4,076 sq. ft.

1st Floor

3,572 sq. ft.

Bonus

498 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

374 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 0"

Depth

67' 10"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

1284 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
