Plan 25057DH
3-Bed Farmhouse Ranch with Private Primary Bedroom - 2096 Sq Ft
Heated S.F.
2,096
Beds
3
Baths
2
Stories
1
Cars
2

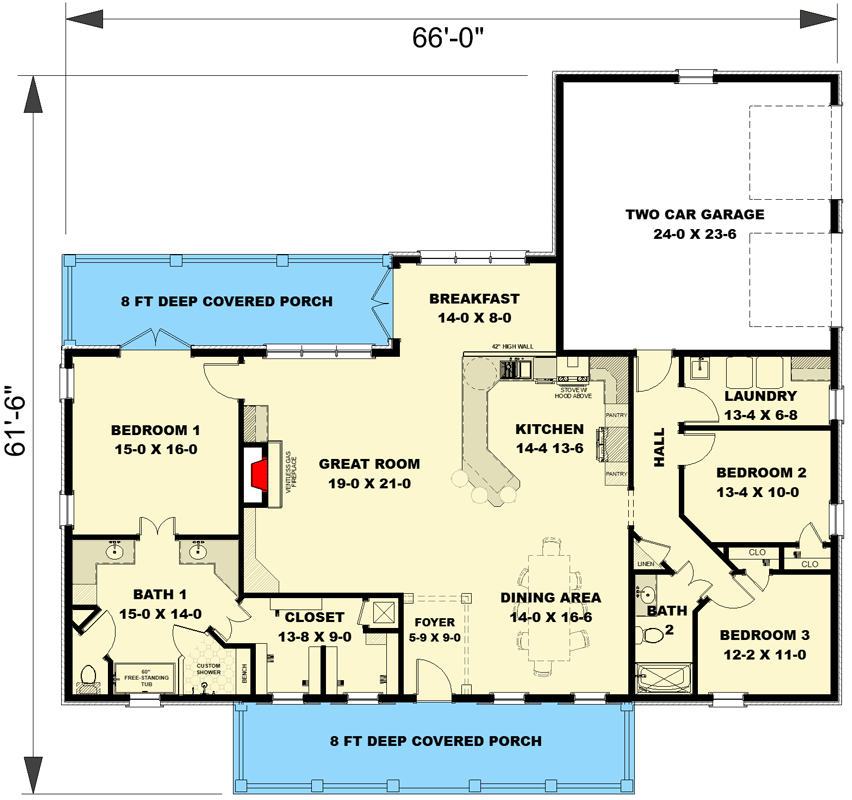

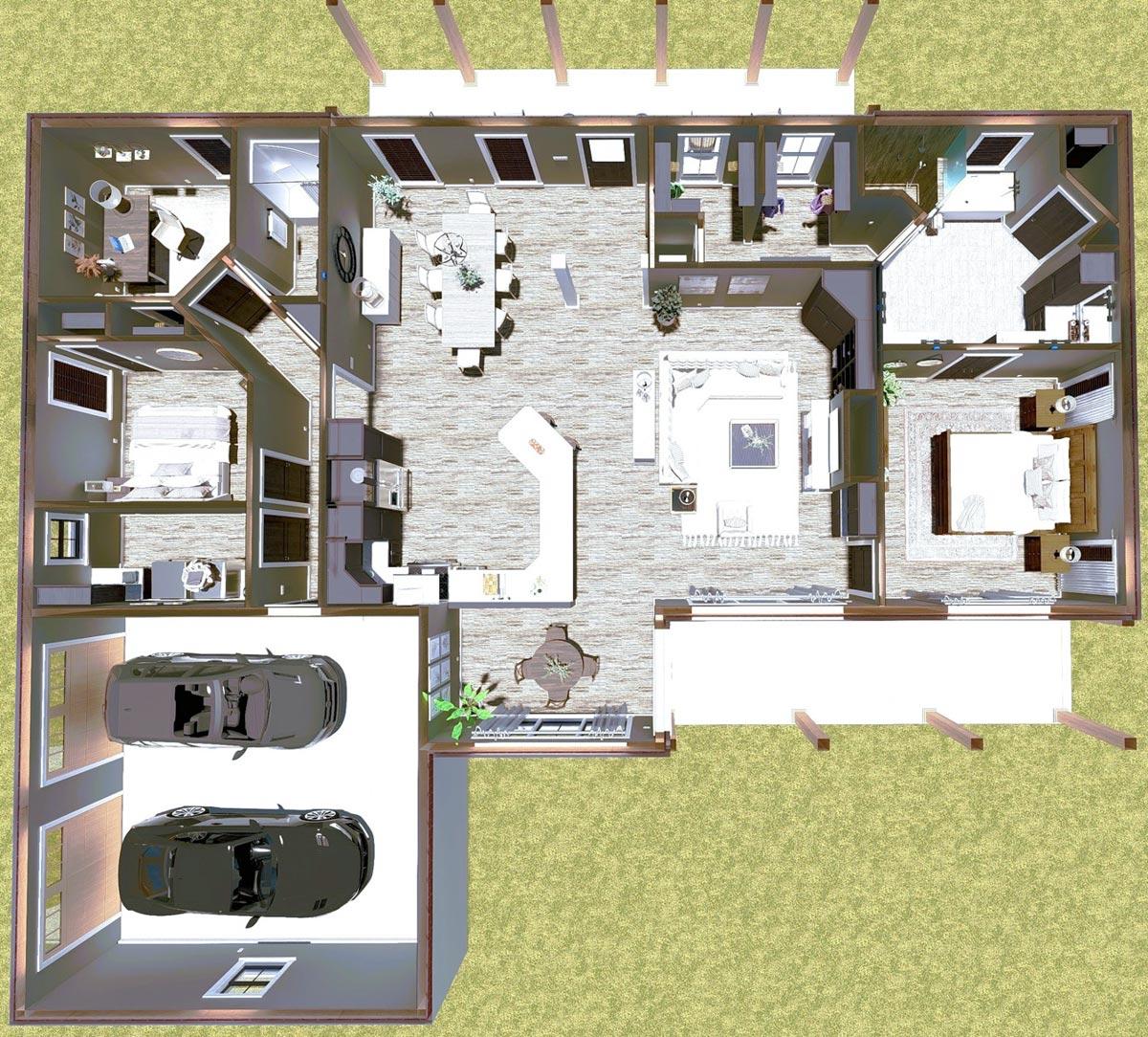

Floor Plan

Plan 25057DH

Main Level
slide image 0

Plan 25057DH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This cute farmhouse ranch house plan features three bedrooms, two bathrooms, a large kitchen, and an open-concept design with a split bedroom layout – all within 2,096 square feet.

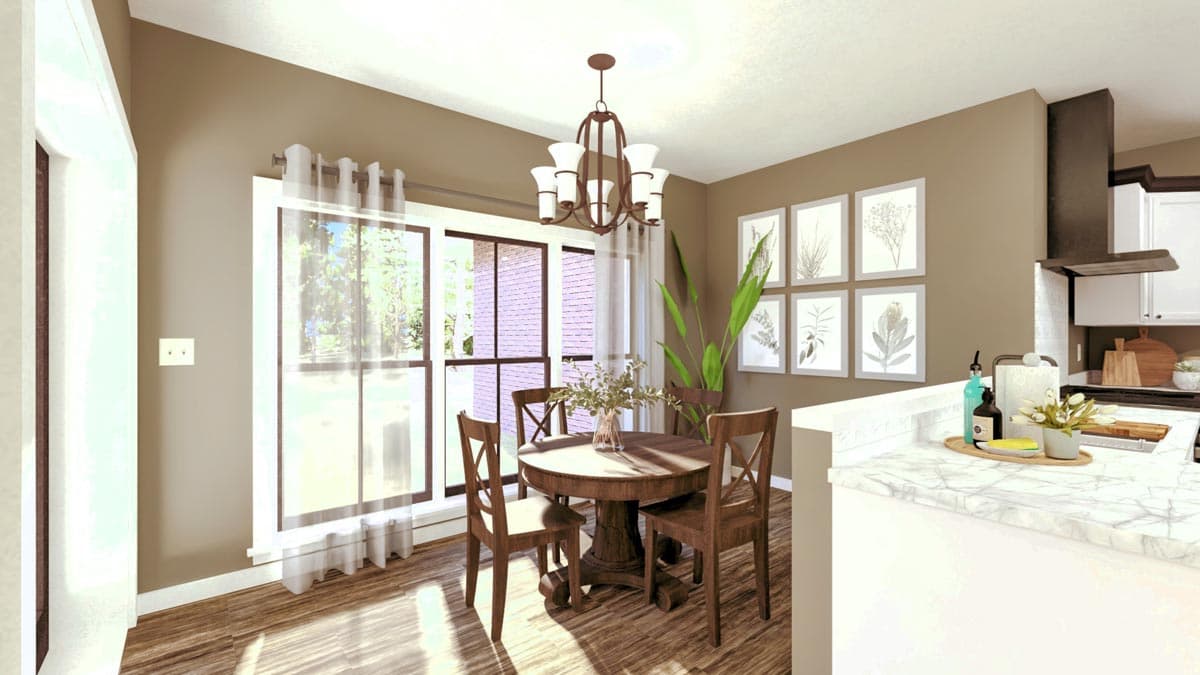

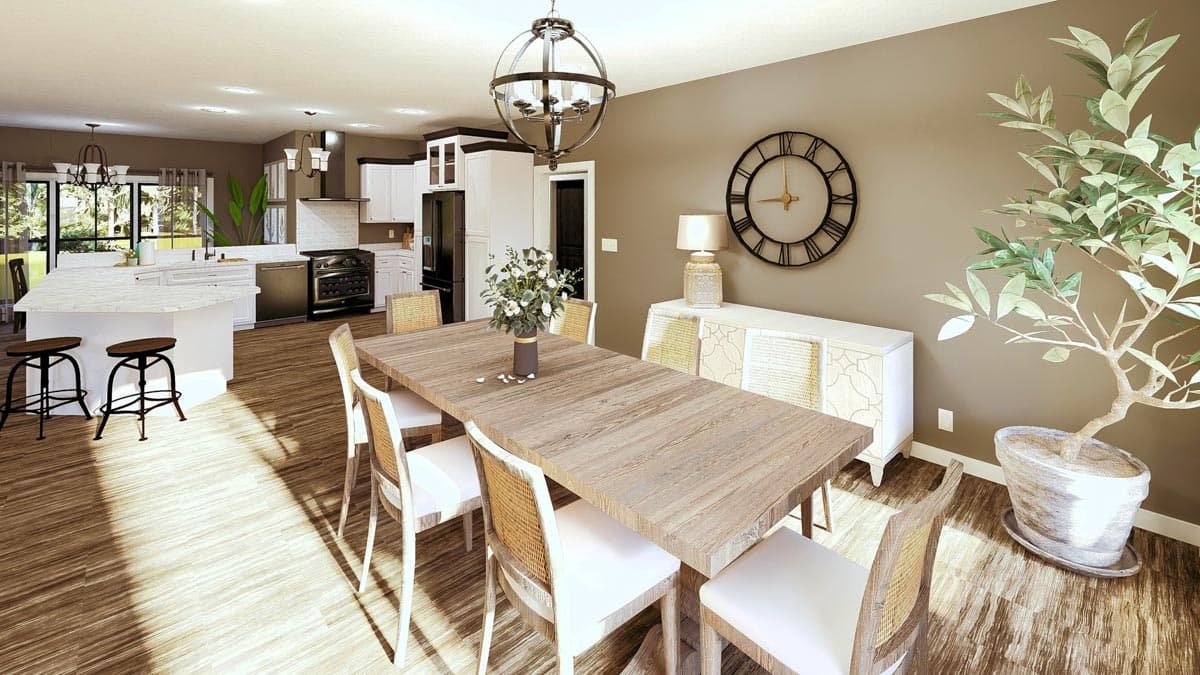

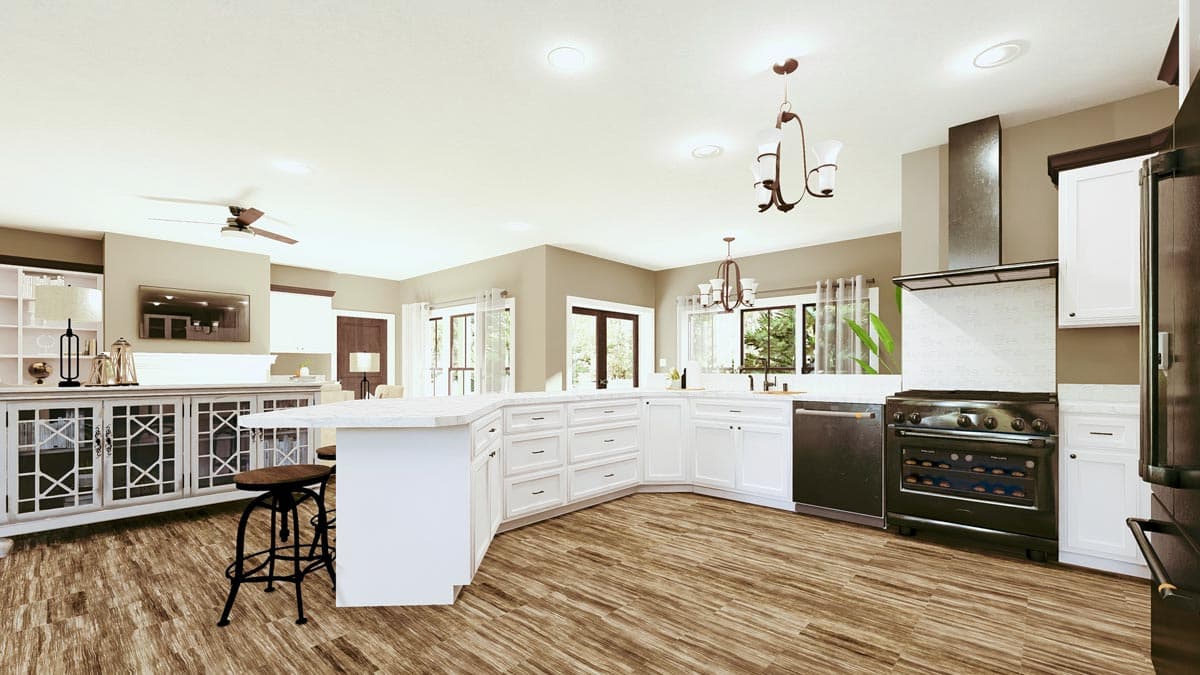

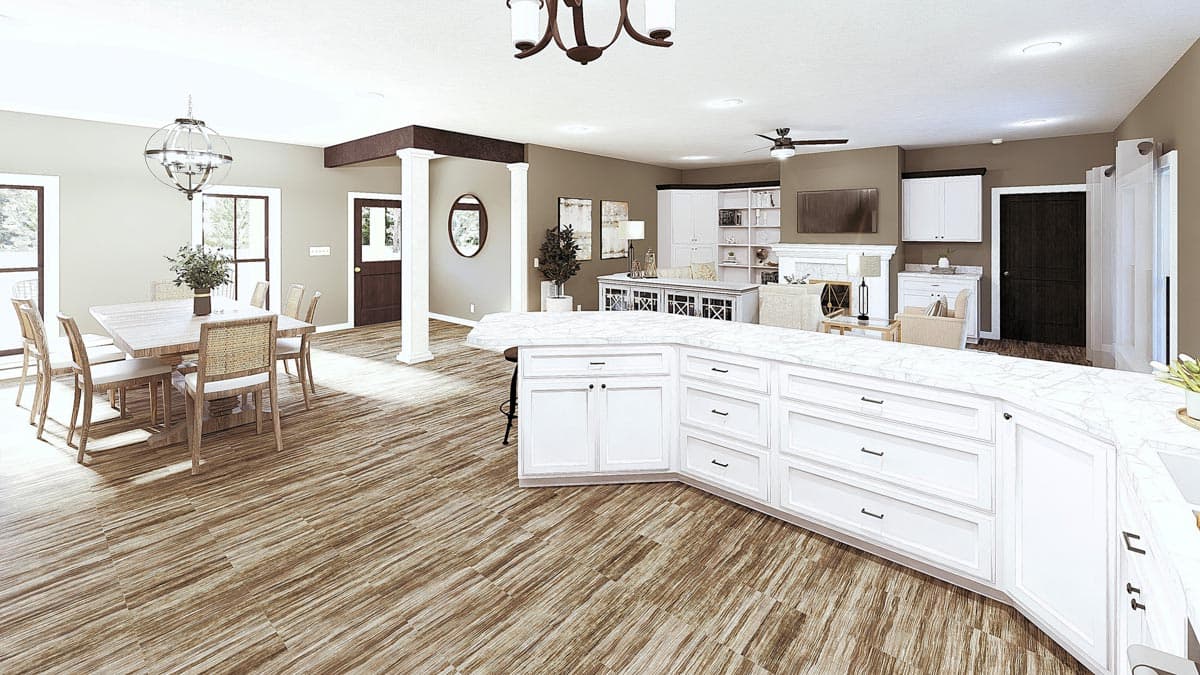

  • An open kitchen with peninsula island includes a counter-high snack bar; pantry cabinets flank the refrigerator with a view out the rear Breakfast Area.

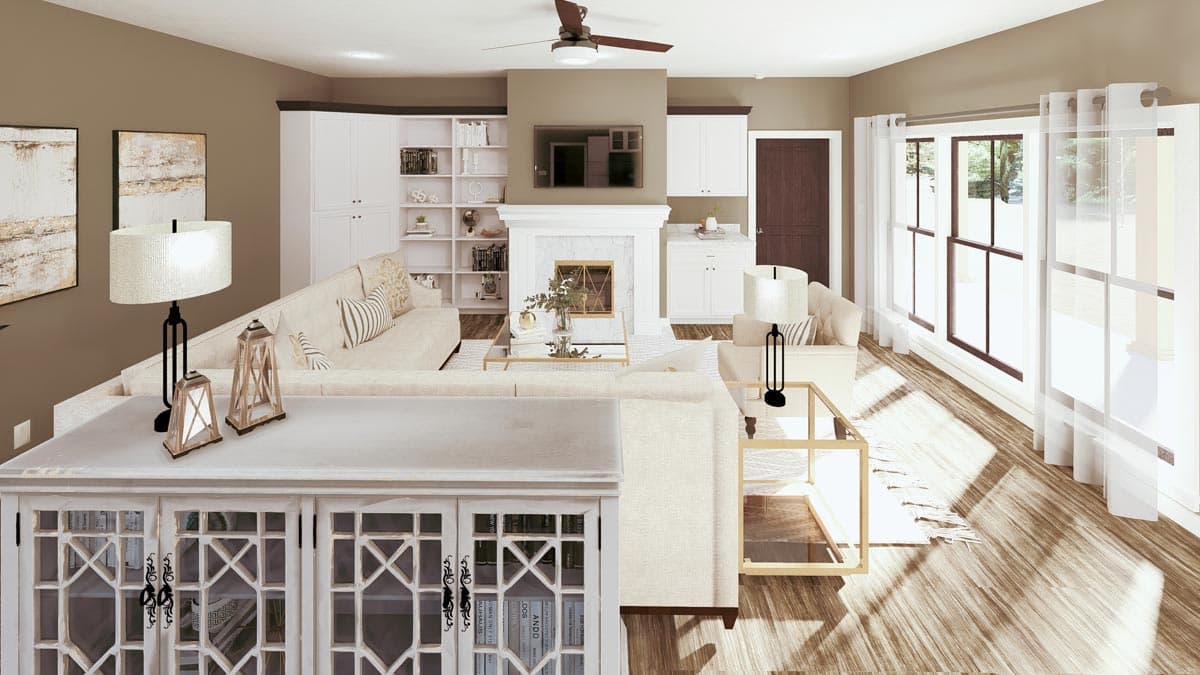

  • In the Great Room, a gas fireplace stands surrounded by custom-built cabinets, providing extra storage.

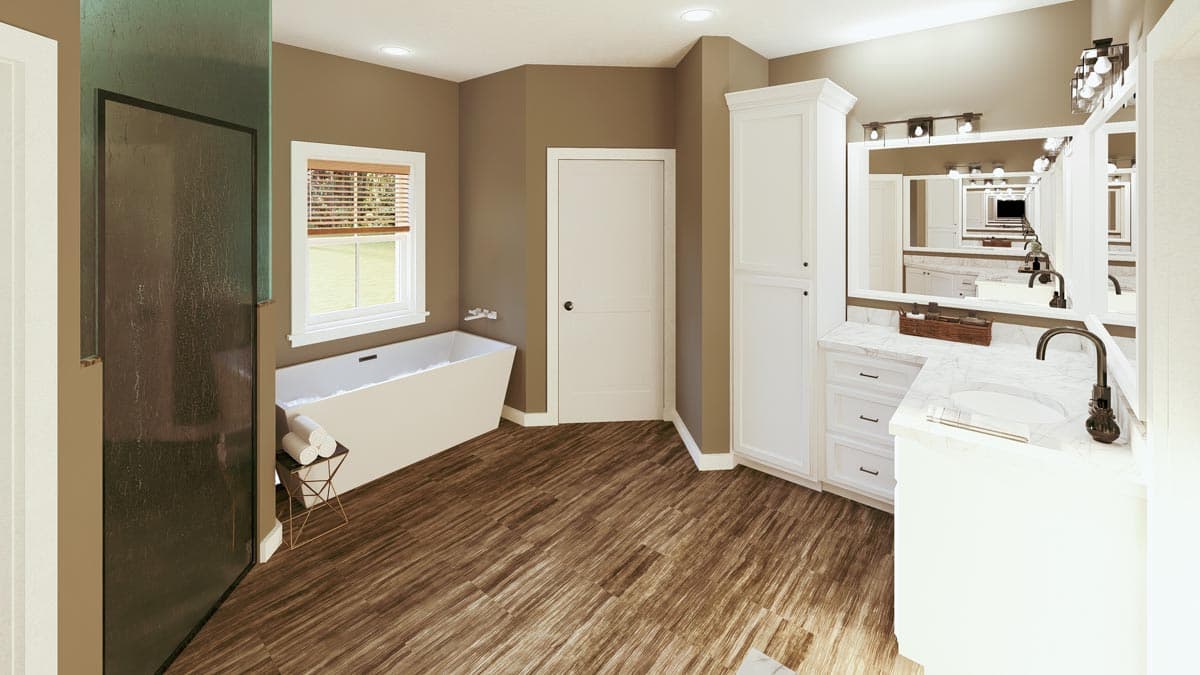

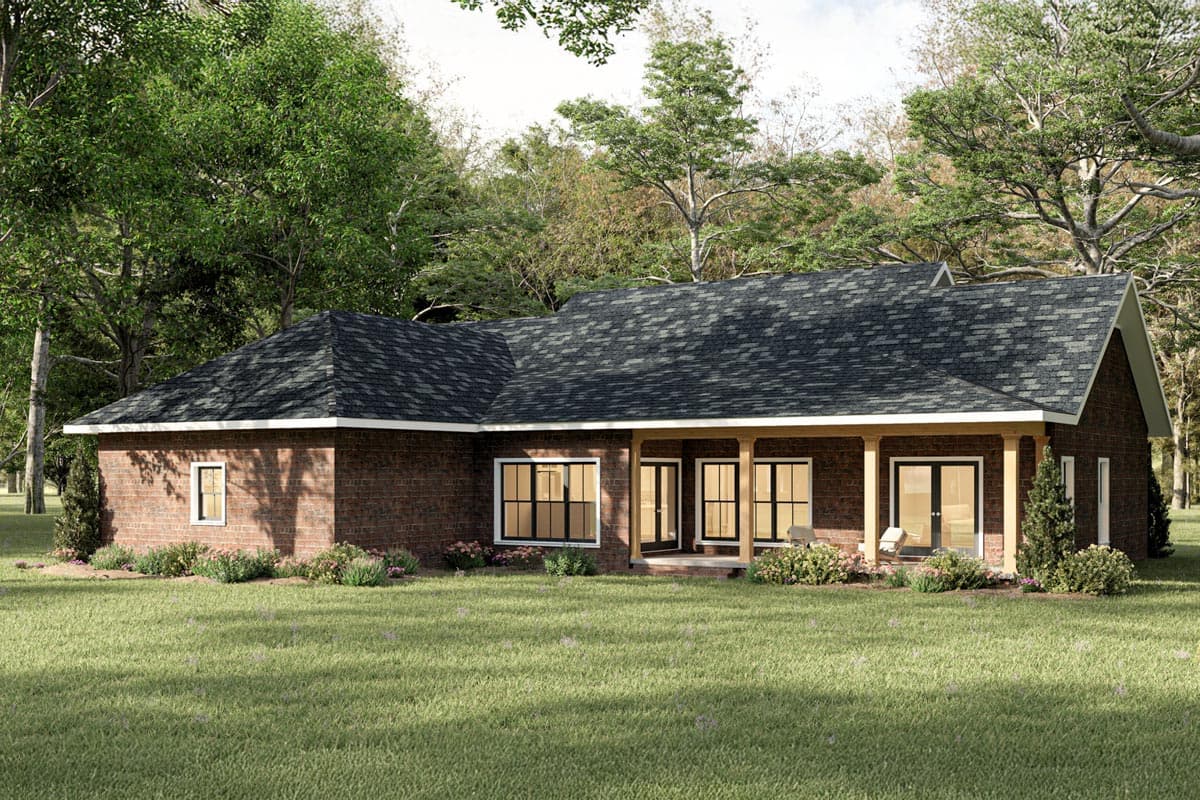

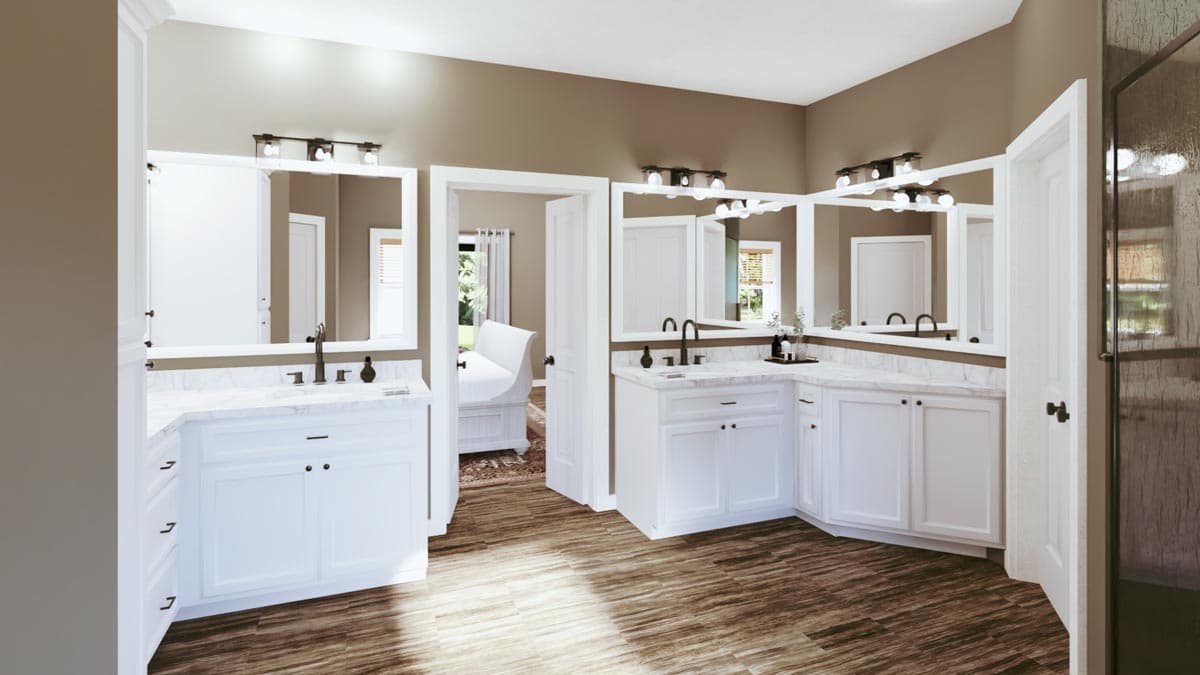

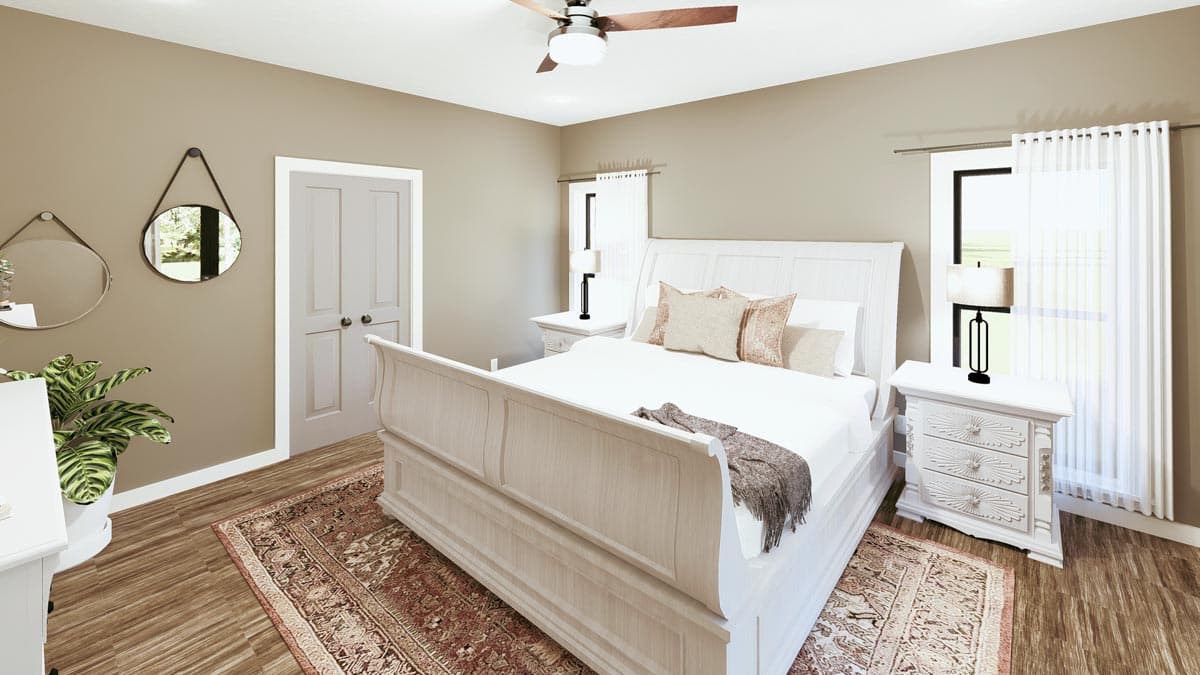

  • The primary bedroom is a very nice size and includes french doors that lead onto the covered 8ft deep rear porch. This primary bathroom features a large his-and-her closet, dual sinks with extra storage, and a freestanding bathtub next to the custom shower.

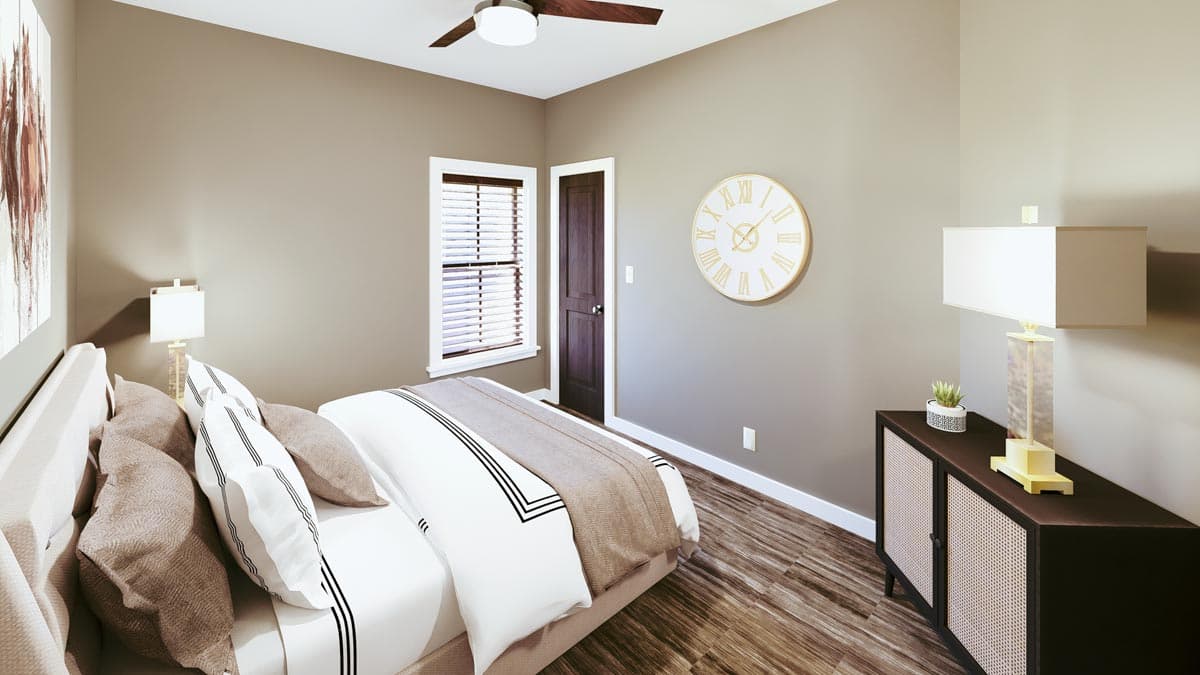

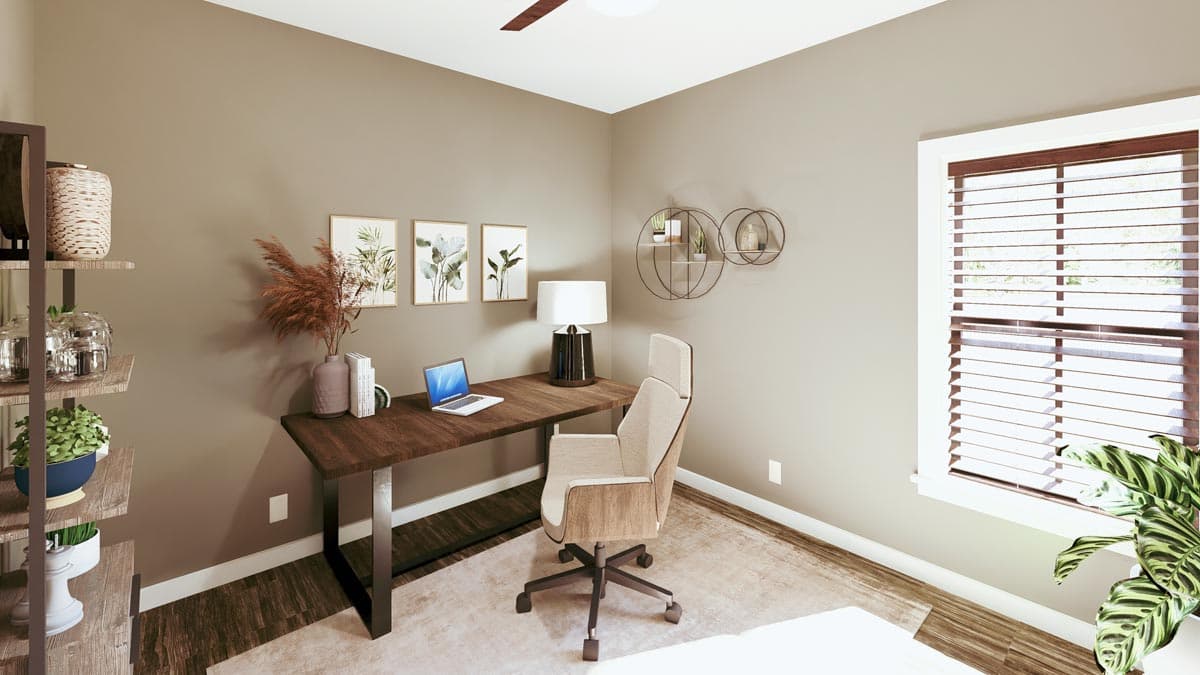

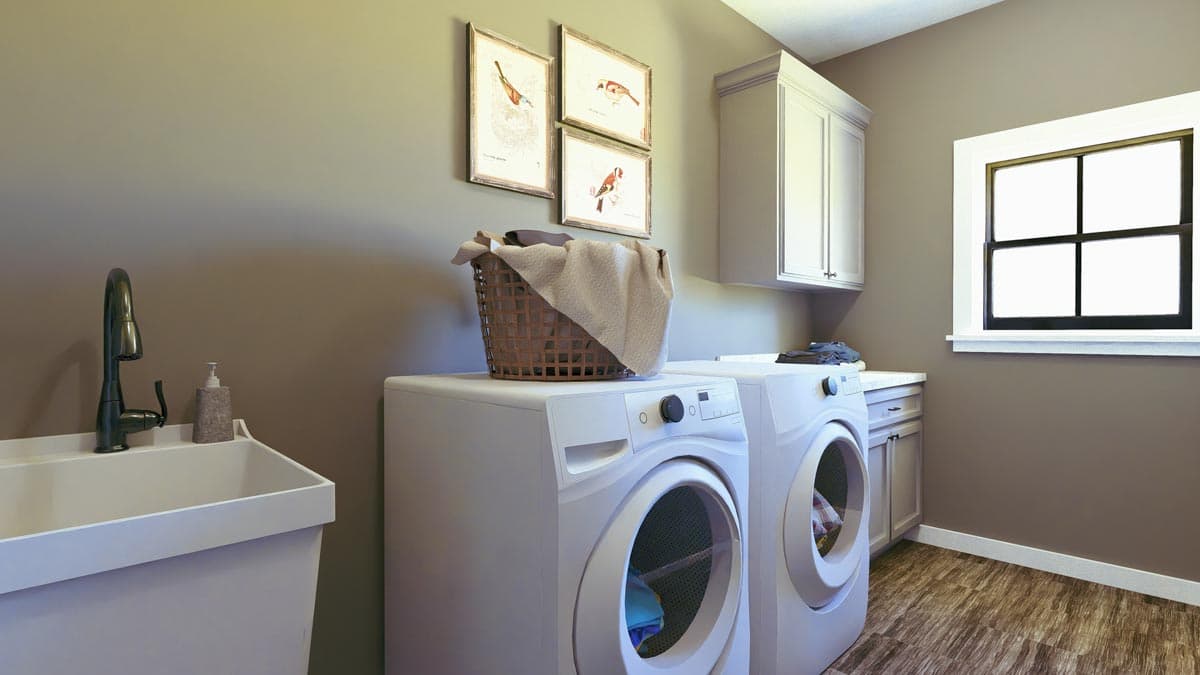

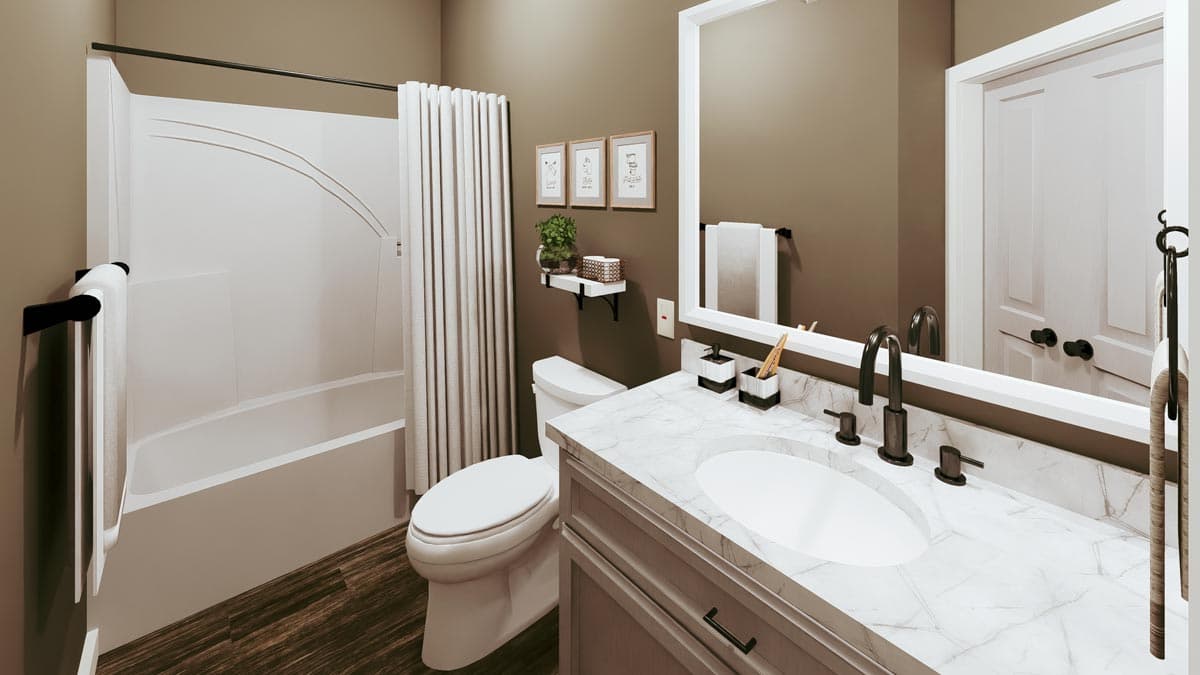

  • Bedrooms 2 and 3 share a hall bath and are steps away from the Laundry room.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.
  • Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.
  • Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.
  • Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.
  • Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections, Details and Typical Specifications Sheets
  • Some plans can be ordered with a materials list for an extra change. Please check availability for this option.
  • Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,096 sq. ft.

1st Floor

2,096 sq. ft.

Porch, Combined

499 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

61' 6"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Ranch

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,096 sq. ft.

1st Floor

2,096 sq. ft.

Porch, Combined

499 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

61' 6"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Ranch

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
