Plan 62162V
3 Bed Farmhouse with Front and Rear Porches - 1834 Sq Ft
Heated S.F.
1,834
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 62162V

Main Level
slide image 0

Plan 62162V

1-800-854-7852

1-262-521-4596

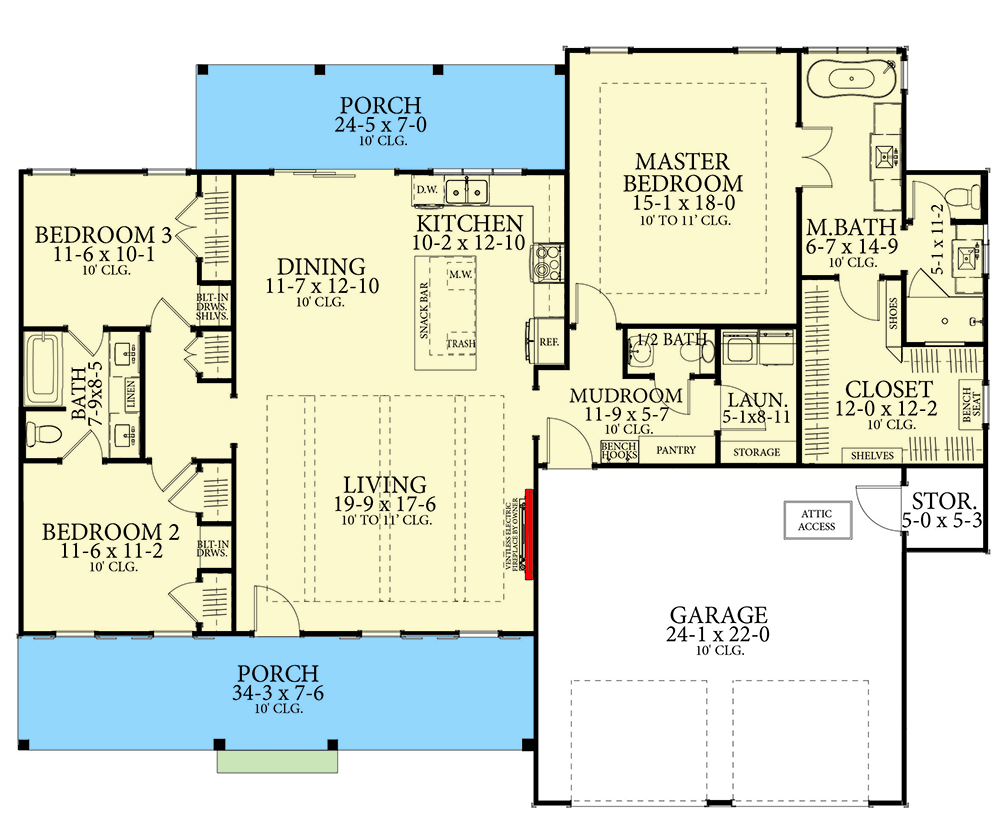

Main Level
floor plan image Main Level
Plan Details
  • This 3 bed, 2.5 bath farmhouse plan gives you 1834 square feet of heated living and a 2-car 561 square foot garage. A front porch (263 sq. ft.) and rear porch (171 sq. ft.) give you two great fresh air spaces to enjoy.
  • A split bed layout - Beds 2 and 3 are on the left with a Jack and Jill bath; the master suite is on the right - leaves the center of the home open front to back and ready for entertaining.
  • The living room has a ventless electric fireplace and a beamed 11' tray ceiling.
  • The dining room has sliding door access to the back porch and is adjacent to the island kitchen with a double sink set below windows looking out back.
What's Included
  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,834 sq. ft.

1st Floor

1,834 sq. ft.

Porch, Front

263 sq. ft.

Porch, Rear

171 sq. ft.

Storage

32 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 5"

Depth

50' 4"

Garage

Type

Attached

Area

561 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

Room

Ceiling Type

Height

Bedroom 1

Boxed

10' 0''

Great Room

Boxed

10' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
