Plan 510116WDY

Exclusive

3-Bed French Country House Plan with Bonus Room above Garage - 2546 Sq Ft
Heated S.F.
2,546
Beds
3
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 510116WDY

Main Level
slide image 0
Bonus Level
slide image 1

Plan 510116WDY

1-800-854-7852

1-262-521-4596

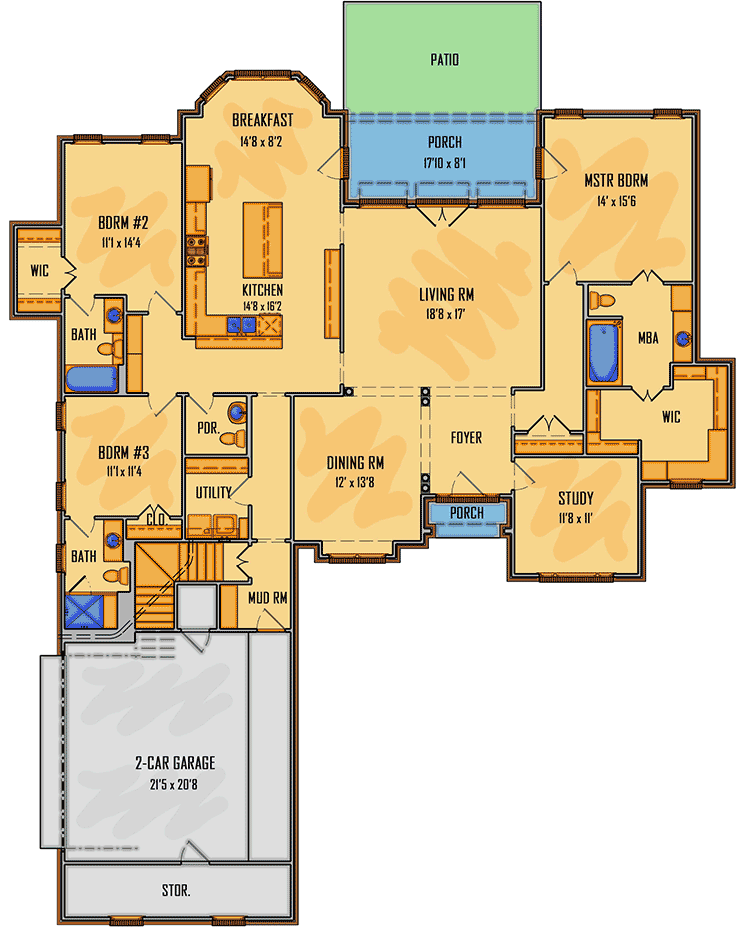

Main Level
floor plan image Main Level

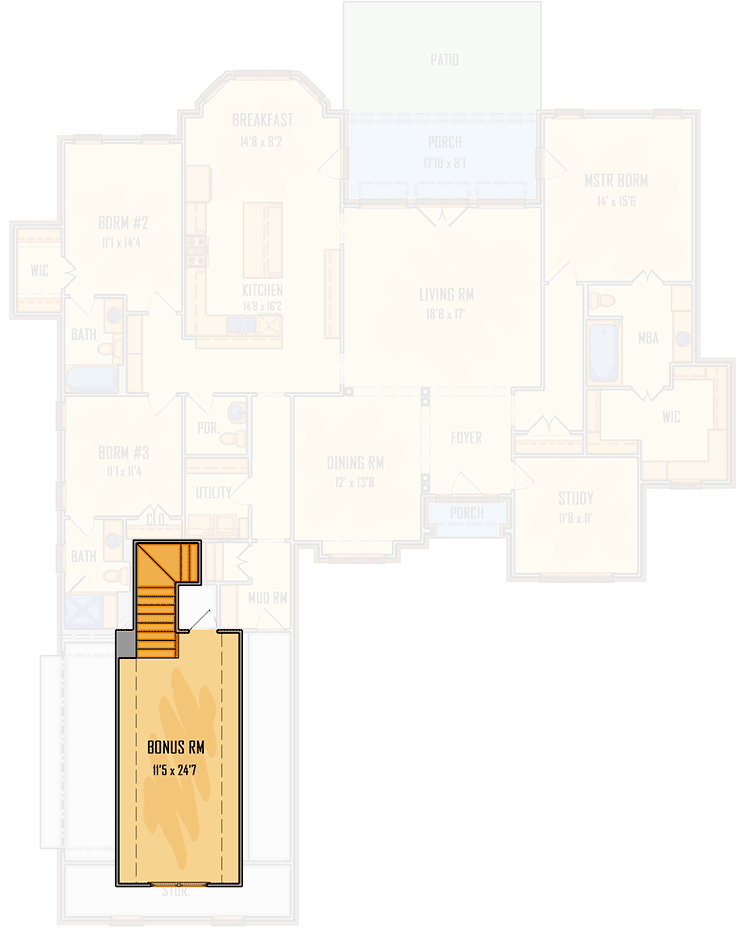

Bonus Level
floor plan image Bonus Level
Plan Details
  • This 3-bedroom, French country house plan oozes old-world charm inside and out, with a thoughtful interior designed for today's modern family. NOTE: The chimney is there for aesthetics only. There is no fireplace in the home.
  • Step inside and discover a formal dining room nestled near the foyer, and a sprawling living room straight ahead. French doors grant access to the back porch, which extends to a patio, for outdoor enjoyment.
  • L-shaped cabinets surround a large island in the kitchen, and the adjoining breakfast nook, situated inside a bay window, provides a light-filled space for casual meals.
  • The secluded, master bedroom occupies the right side of the home, and includes a 3-fixture bath and roomy, walk-in closet. Bedrooms 2 and 3, each with their own full bath, are located on the opposite side of the home.
  • A storage room in the 2-car garage reduces the chance of clutter, while the above bonus room provides a fun space for a media or playroom.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

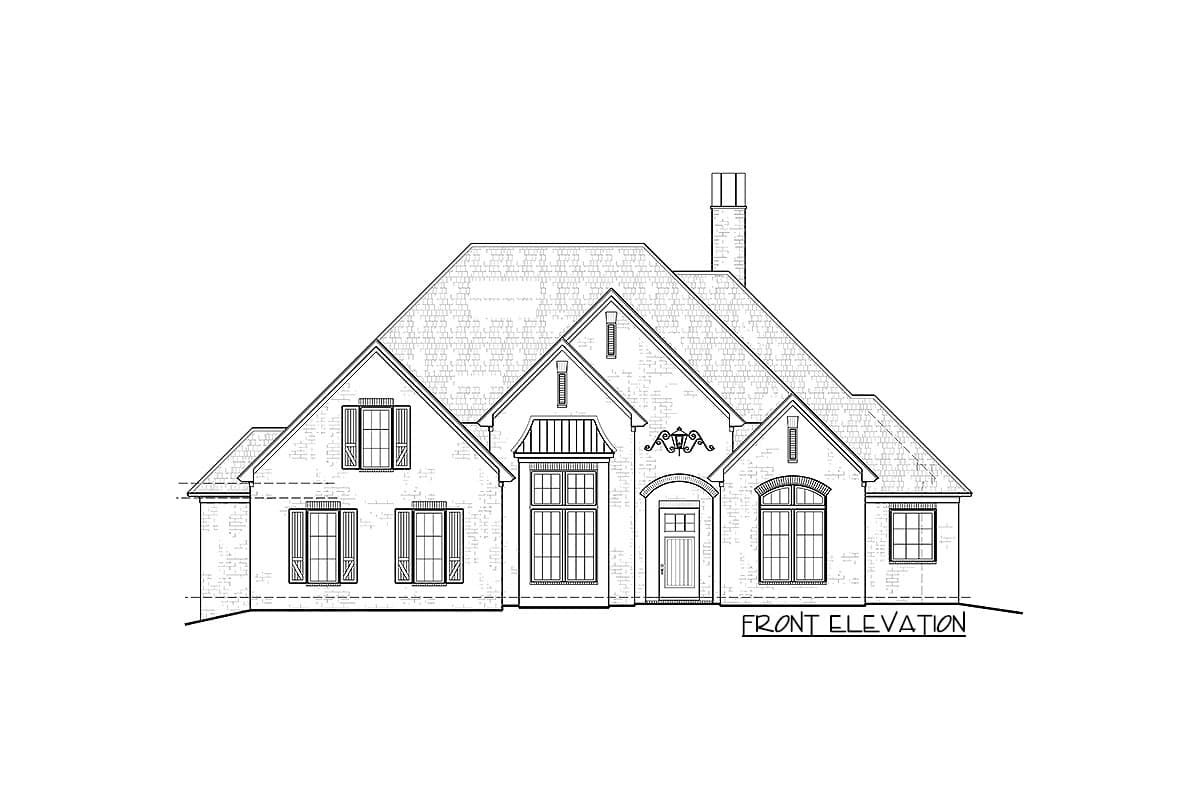

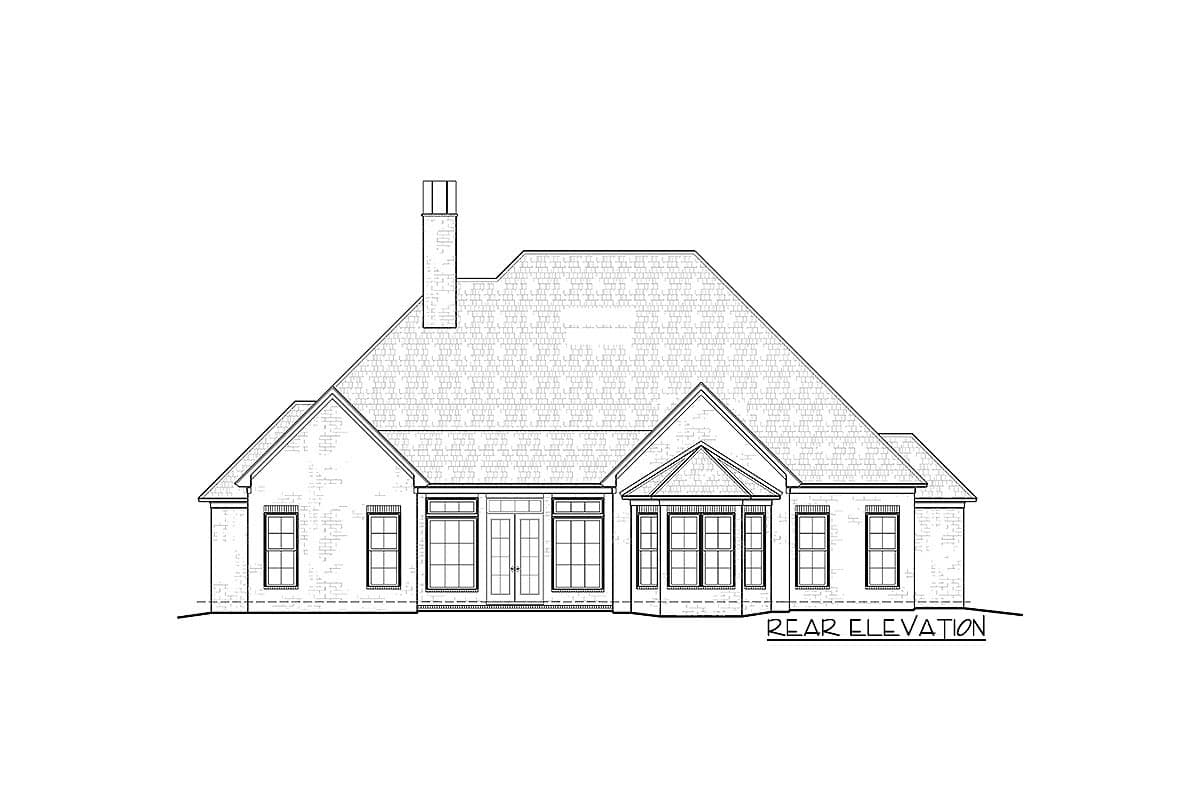

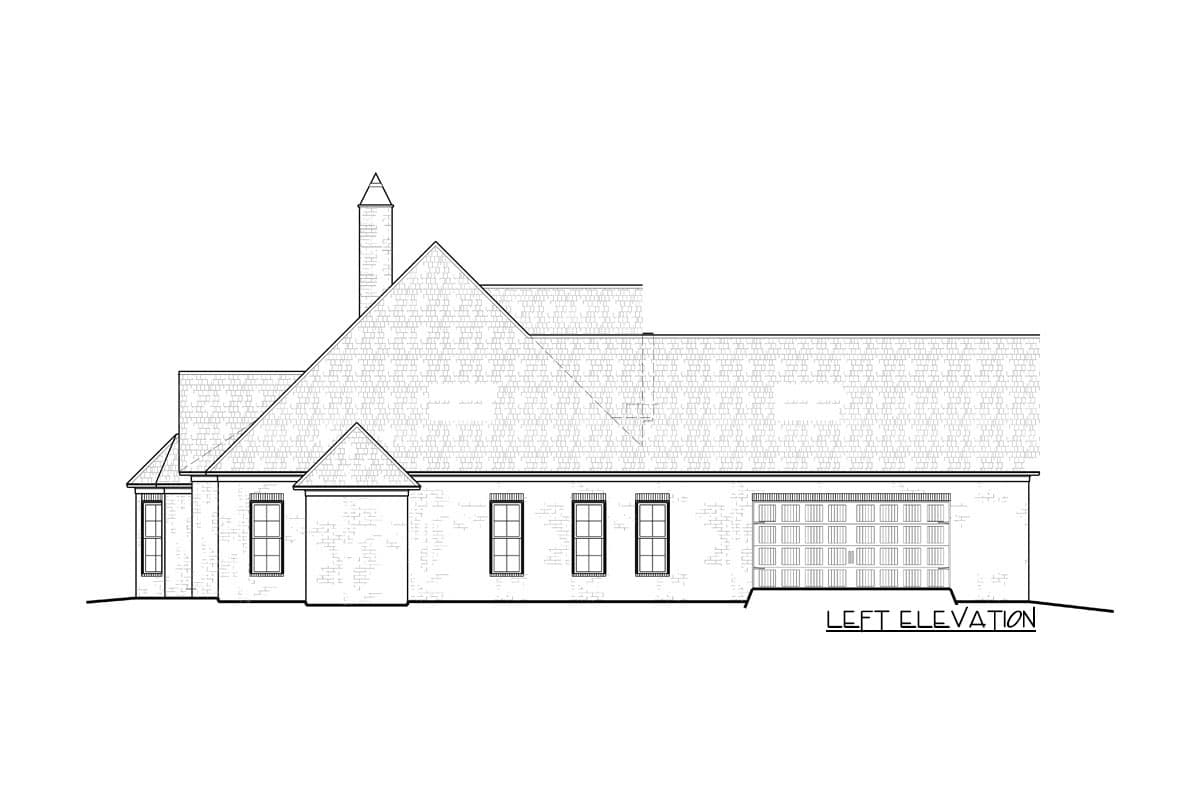

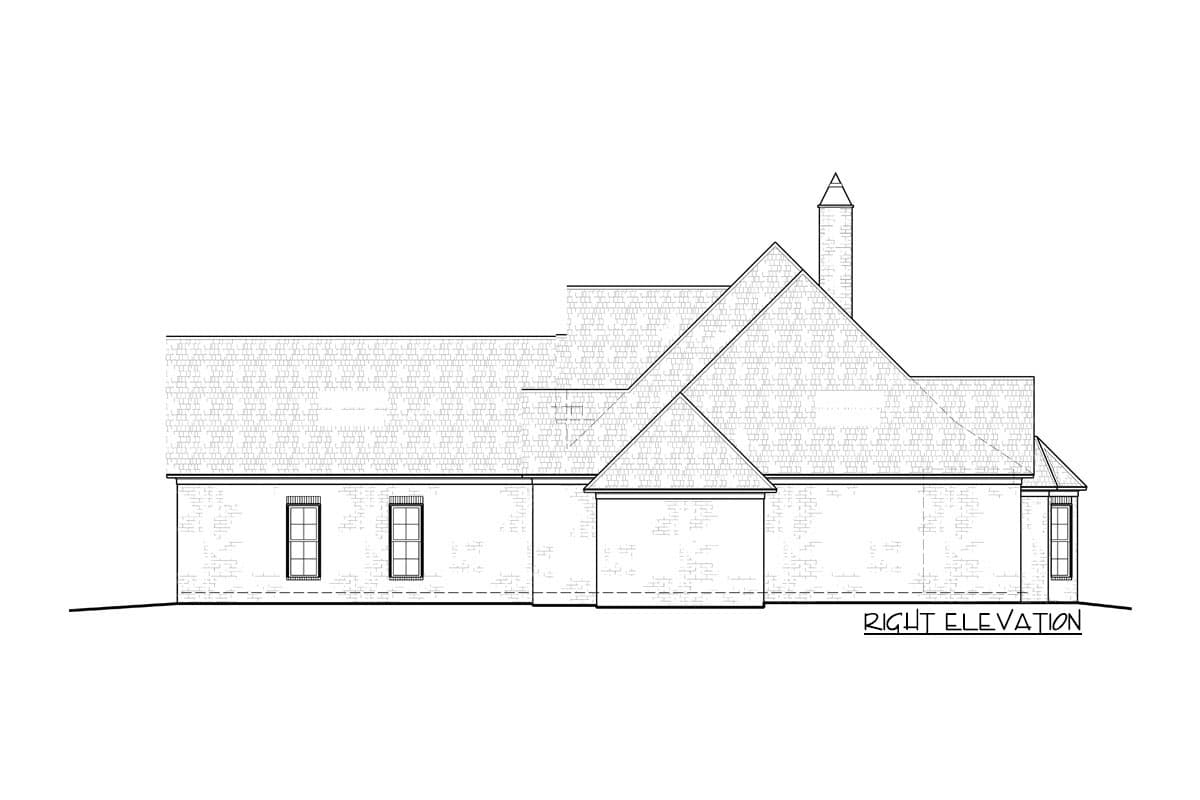

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,546 sq. ft.

1st Floor

2,546 sq. ft.

Bonus

334 sq. ft.

Porch, Combined

178 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 8"

Depth

80' 9"

Garage

Type

Attached

Area

635 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Playroom

Plan Collections

Closed Floor Plans

Exclusive

Square Footage Breakdown

Total Heated Area

2,546 sq. ft.

1st Floor

2,546 sq. ft.

Bonus

334 sq. ft.

Porch, Combined

178 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 8"

Depth

80' 9"

Garage

Type

Attached

Area

635 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Playroom

Plan Collections

Closed Floor Plans
