Plan 264117KMD
3-Bed Hill Country House Plan with Private Master Suite on Main Level - 2296 Sq Ft
Heated S.F.
2,296
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 264117KMD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 264117KMD

1-800-854-7852

1-262-521-4596

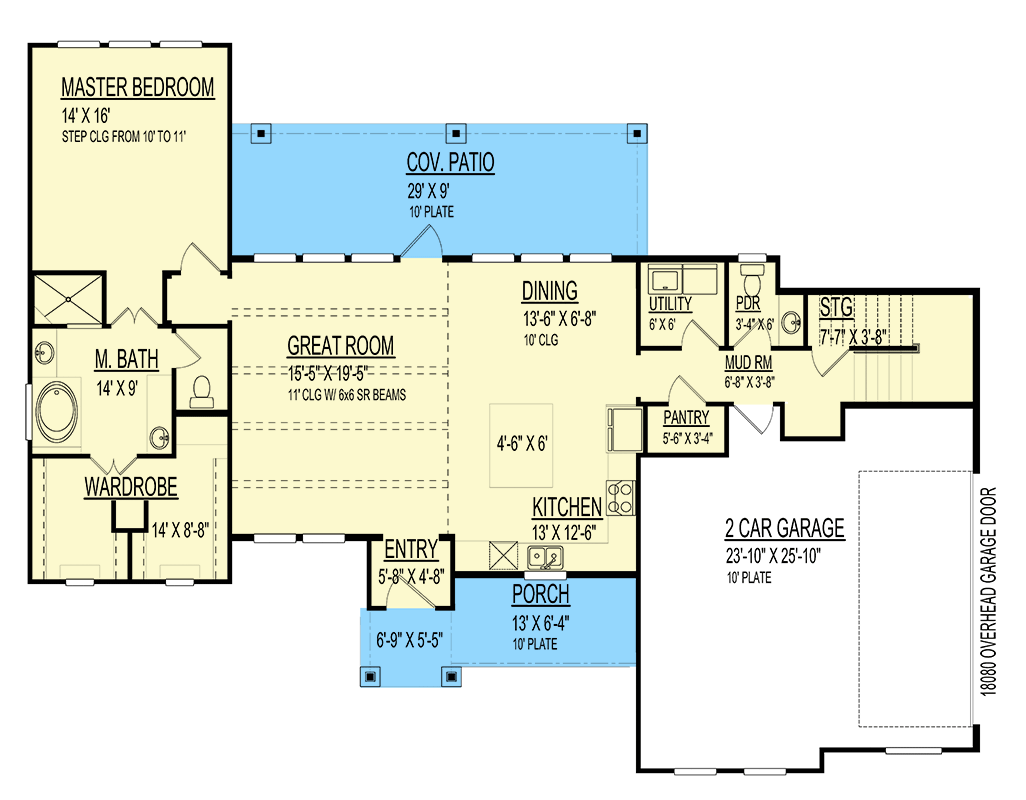

Main Level
floor plan image Main Level

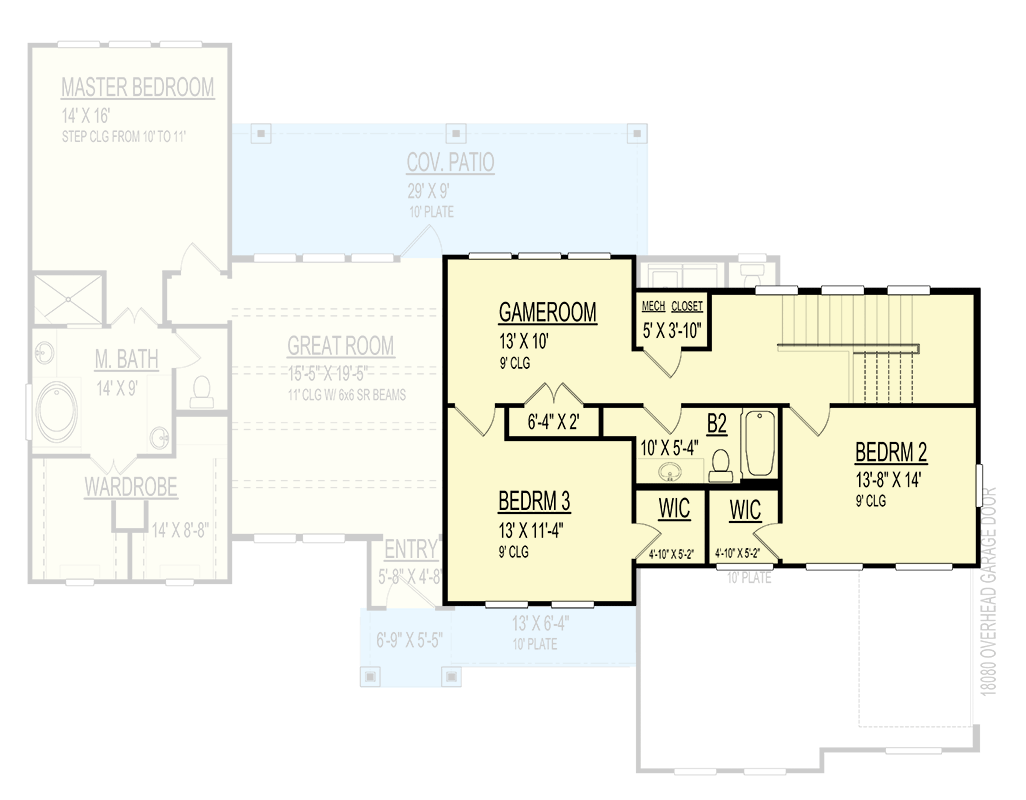

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This charming hill country style house plan features a total of 2,296 square feet of heated living area. The home offers three bedrooms and two and a half baths, providing ample space for a family. The exterior showcases a blend of stone and siding, giving it a rustic yet elegant appearance.
  • Upon entering, you are greeted by the spacious great room with an 11-foot ceiling adorned with 6x6 beams, enhancing the open and airy feel while maintaining the rustic charm inside.
  • The master bedroom is privately located on the left side of the main level, boasting a step ceiling that ranges from 10' to 11' and a luxurious en-suite bath with a sizable walk-in-closet that is split into two areas with a central nook for drawers.
  • The kitchen, complete with a pantry, opens to the dining area, perfect for entertaining guests. Adjacent to the dining area is a covered patio, offering a serene spot for outdoor relaxation.
  • The main level also includes a utility room, mudroom, and a two-car garage, providing practical convenience.
  • Upstairs, you'll find a game room and two additional bedrooms, each with a walk-in closet, along with a shared bathroom. This layout ensures privacy and comfort for all family members.
  • The side-entry garage has space for two cars and offers 572 square feet of space.
  • This house plan combines functional design with stylish elements, making it an ideal choice for those seeking a comfortable and inviting home.
What's Included

  • Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction.  Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

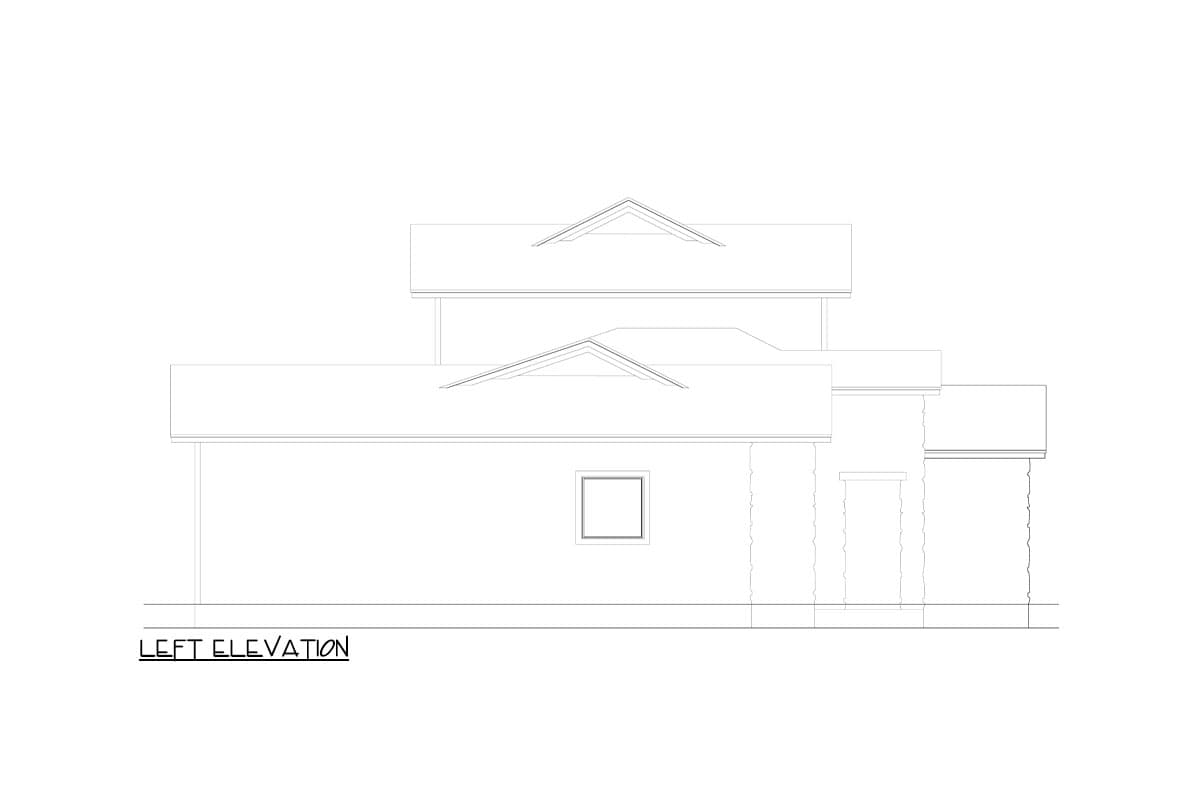

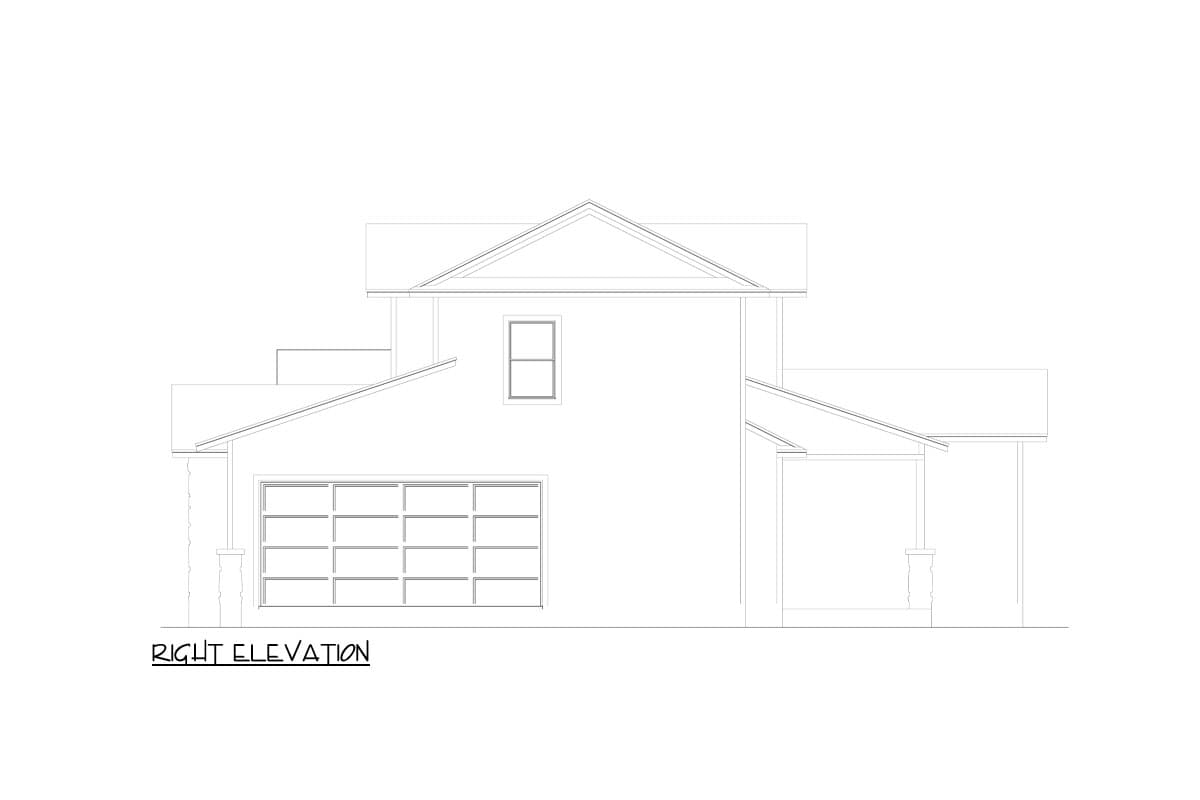

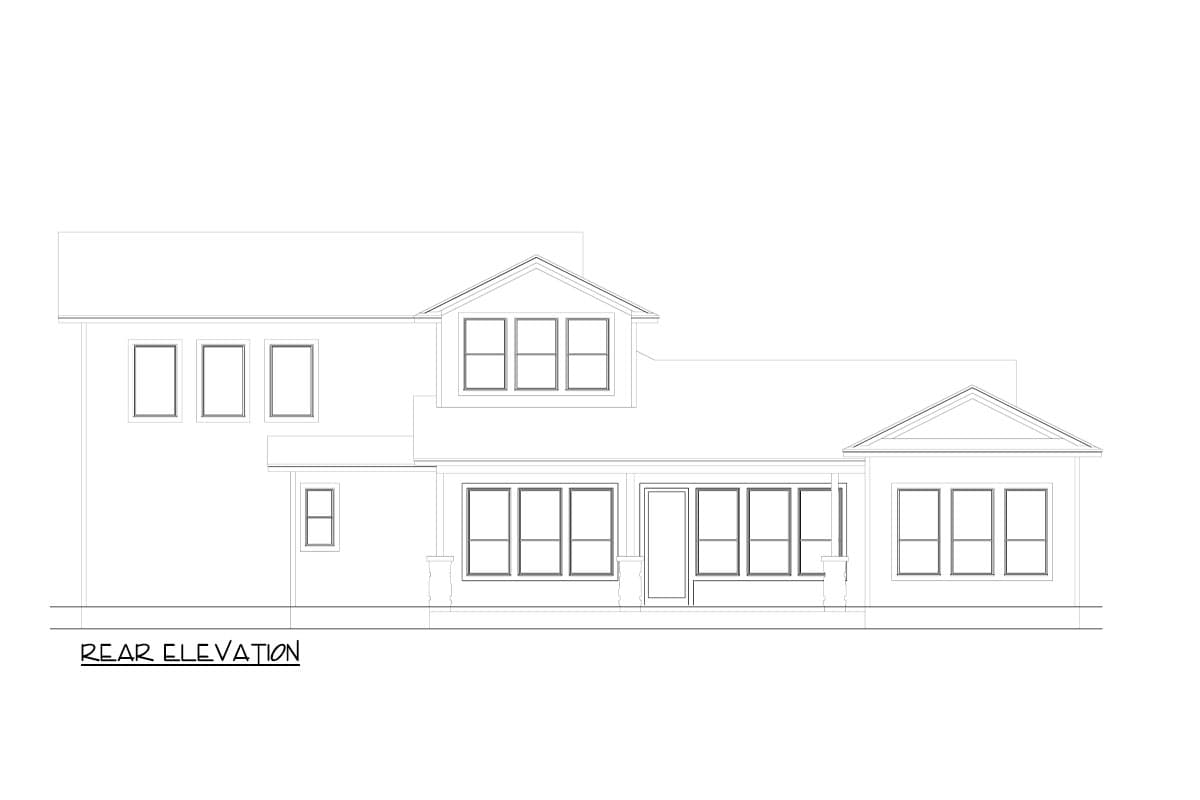

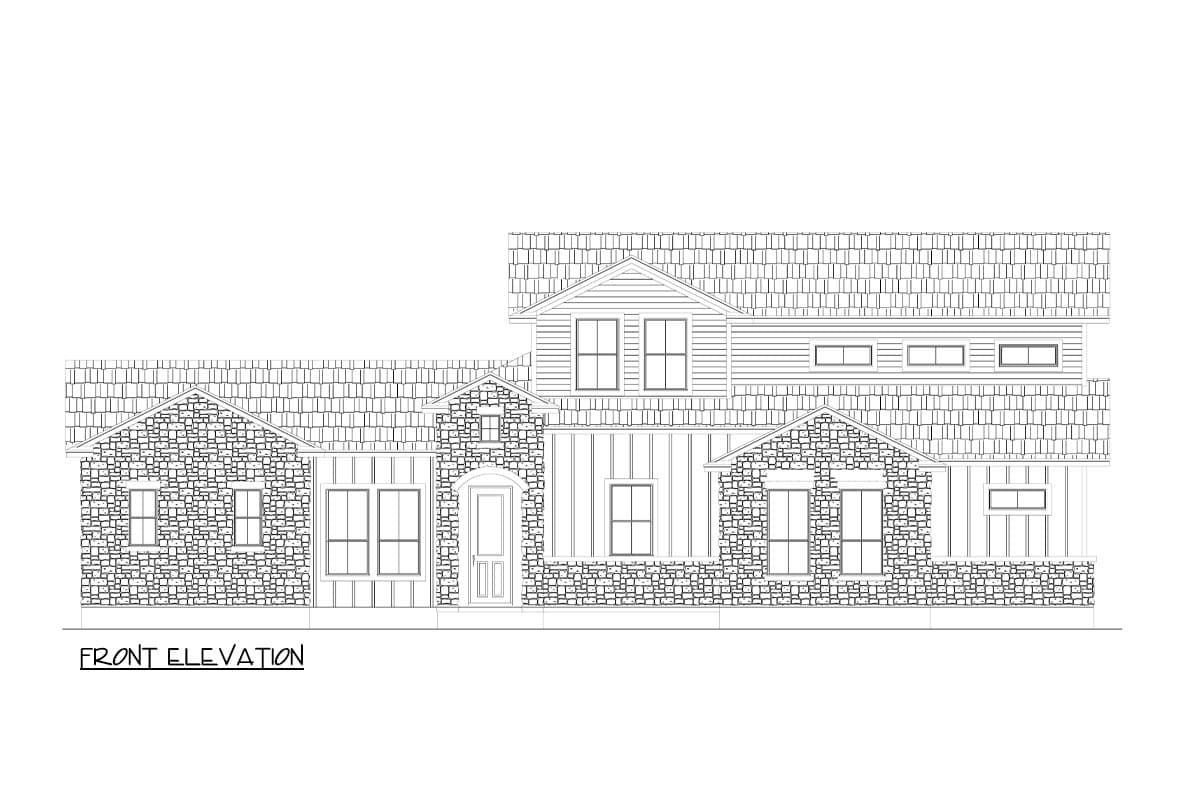

  • Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure.  Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
  • Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
  • Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed.  Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
  • Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
  • Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
  • Sections: Also known as a cut through the entire structure.  This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
  • Electrical Plan: Complete with layout and location of lights, switches and plugs.  When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,505 sq. ft.

2nd Floor

728 sq. ft.

Porch, Front

108 sq. ft.

Covered Patio

277 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 4"

Depth

52' 5"

Max Ridge Height

25' 7"

Garage

Area

572 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Hill Country

Rustic

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,505 sq. ft.

2nd Floor

728 sq. ft.

Porch, Front

108 sq. ft.

Covered Patio

277 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 4"

Depth

52' 5"

Max Ridge Height

25' 7"

Garage

Area

572 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Hill Country

Rustic

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
