Plan 23372JD
3 Bed House Plan For Front Sloping Lot
Heated S.F.
1,702
Beds
3
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 23372JD

Lower Level
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 23372JD

1-800-854-7852

1-262-521-4596

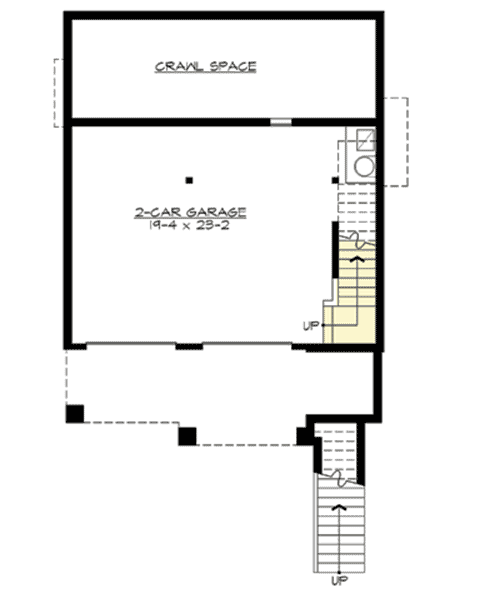

Lower Level
floor plan image Lower Level

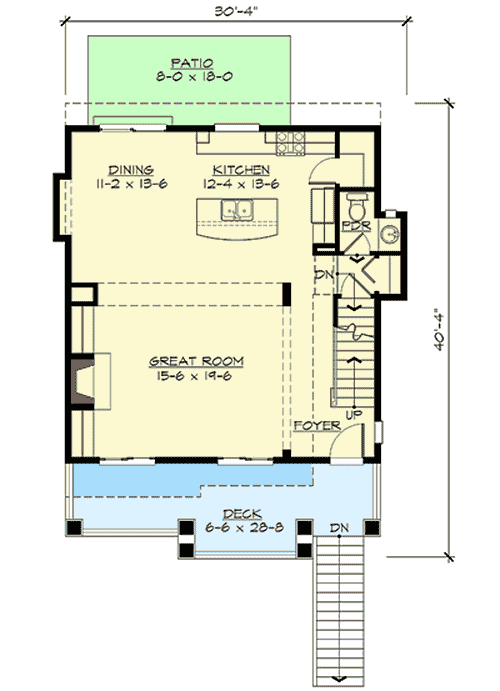

Main Level
floor plan image Main Level

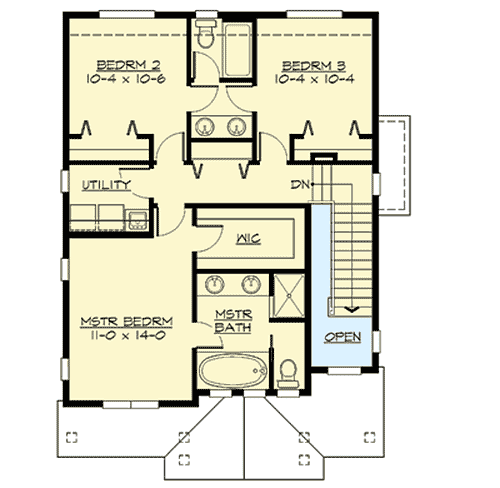

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Strong shingle-style details create a timeless exterior with a rustic flavor in this 3 bedroom house plan designed for a front-sloping lot.
  • From the foyer you get to appreciate the main floor's open floor plan with the great room open to the combined kitchen and dining space in back.
  • A patio on the back is accessible from the dining room and makes a great place to enjoy the fresh air.
  • The upper floor has a vaulted master suite plus two bedrooms and a vaulted bonus room. Laundry is conveniently located making that chore a little bit easier to do.
  • Related Plan: For a larger version, see house plan 2349JD (2,795 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 23372JD comes to life in British Columbia

House Plan 23372JD comes to life in British Columbia

11

Photos

What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

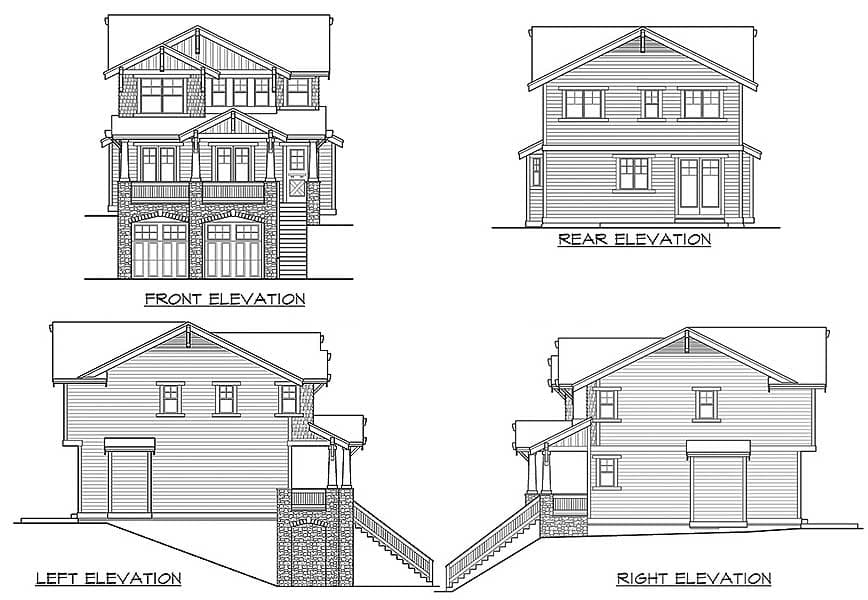

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,702 sq. ft.

1st Floor

864 sq. ft.

2nd Floor

838 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 0"

Depth

41' 0"

Max Ridge Height

37' 0"

Garage

Type

Drive Under

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor
