3-Bed House Plan for the Rear Sloping Lot with Views
Heated S.F.
2,789
Beds
3
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 24378TW

Main Level
slide image 0
Lower Level
slide image 1

Plan 24378TW

1-800-854-7852

1-262-521-4596

Main Level

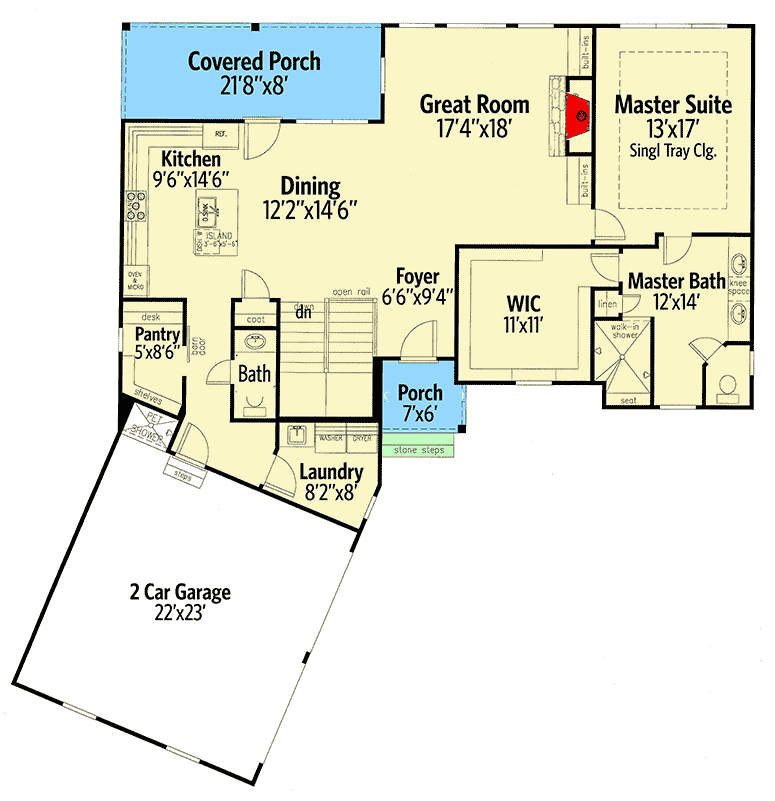

floor plan image Main Level

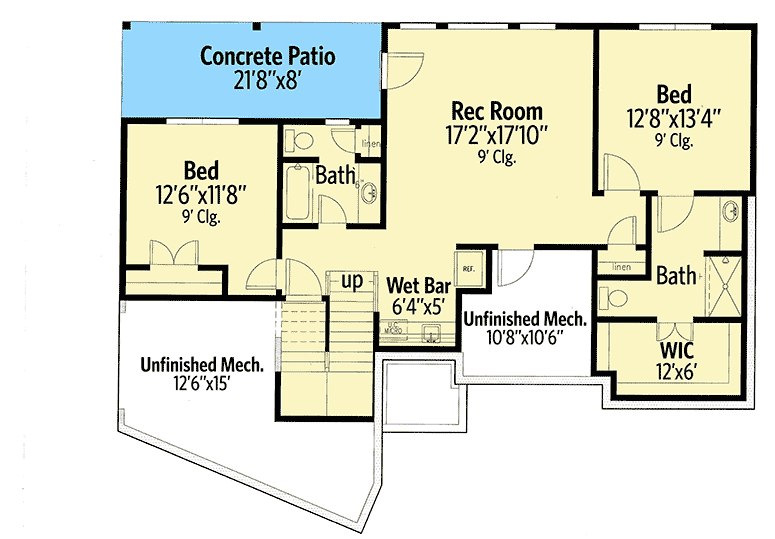

Lower Level
floor plan image Lower Level
Plan Details
  • This 3-bed house plan is designed for a rear-sloping lot and has a walkout lower level. A 2-car angled garage has a pet shower tucked in the back.
  • The great room has views to the back and is open to the kitchen and dining room. A door on the back wall of the dining room takes you to a covered porch.
  • The master suite is the only bedroom on the main floor. Two more bedrooms are in the lower level and there's a rec room with outdoor access.
What's Included

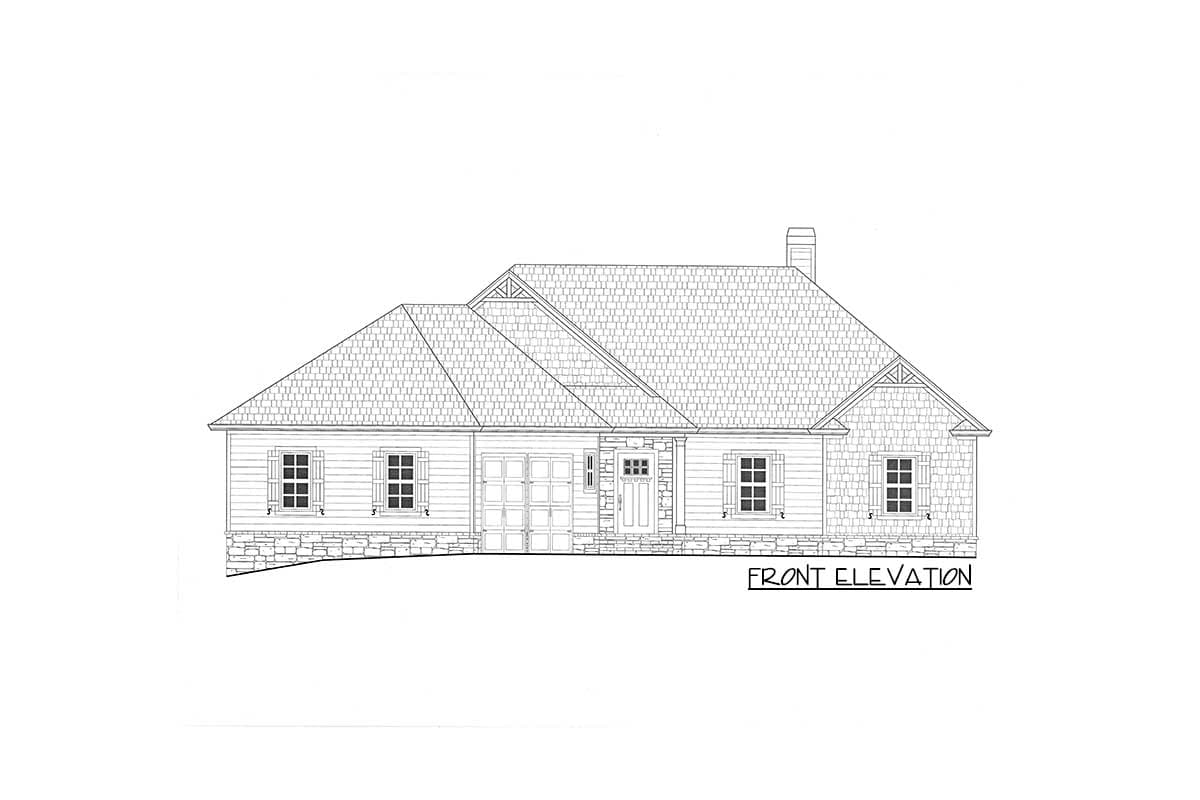

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,789 sq. ft.

Lower Level

1,184 sq. ft.

1st Floor

1,614 sq. ft.

Basement Unfinished

430 sq. ft.

Porch, Front

40 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

61' 8"

Depth

63' 4"

Max Ridge Height

22' 2"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

11'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

Craftsman

Mountain

Northwest

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Game/Rec Room

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,789 sq. ft.

Lower Level

1,184 sq. ft.

1st Floor

1,614 sq. ft.

Basement Unfinished

430 sq. ft.

Porch, Front

40 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

61' 8"

Depth

63' 4"

Max Ridge Height

22' 2"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

11'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

Craftsman

Mountain

Northwest

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Game/Rec Room

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
