Plan 81835AB
3 Bed House Plan with 3-Car Angled Garage and Lower Level Expansion - 2744 Sq Ft
Heated S.F.
2,744
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 81835AB

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 81835AB

1-800-854-7852

1-262-521-4596

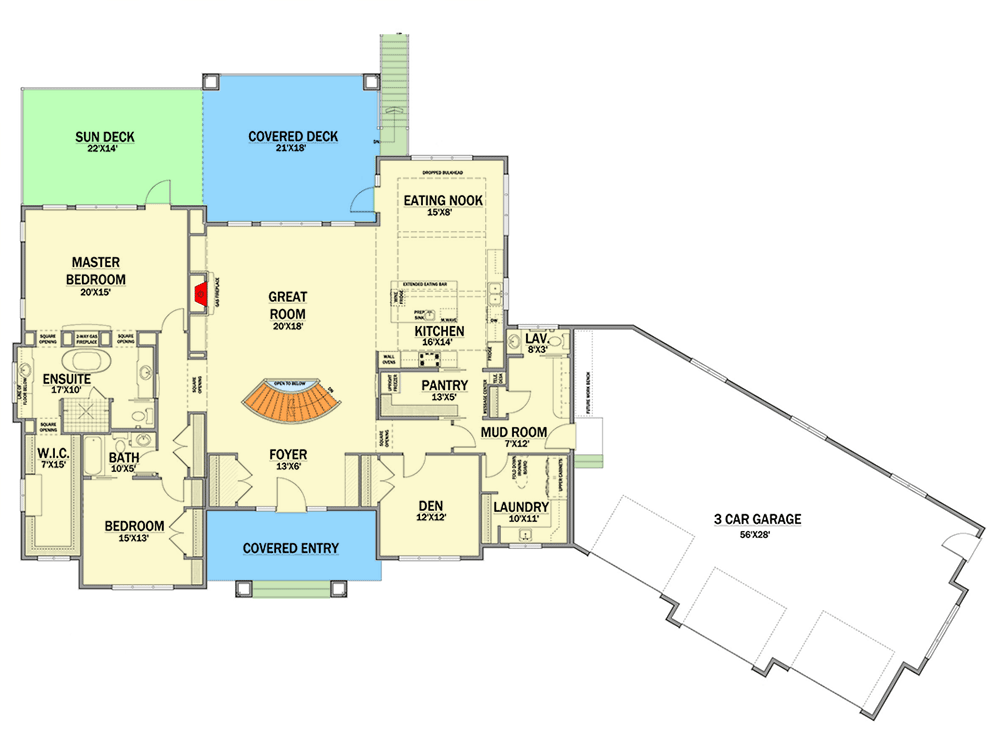

Main Level
floor plan image Main Level

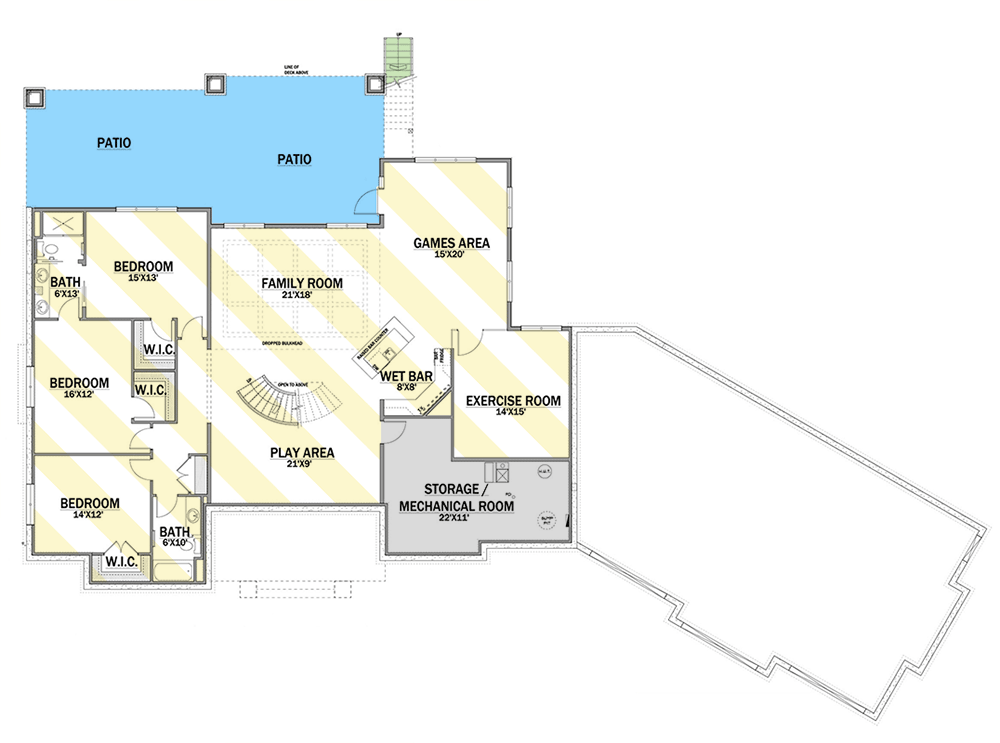

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This 3 bed, 2.5 bath house plan gives you 2,744 square feet of heated living space, lower level expansion and an oversized 3-car 1,381 square foot angled garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

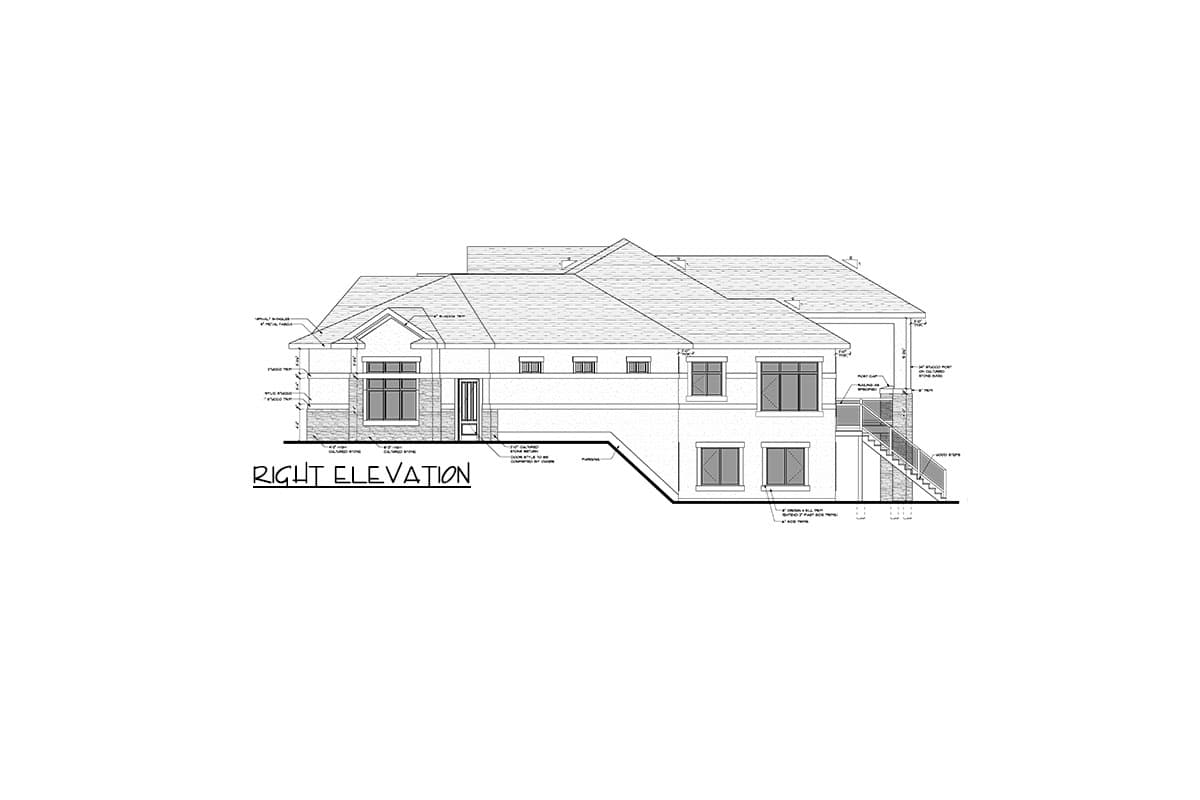

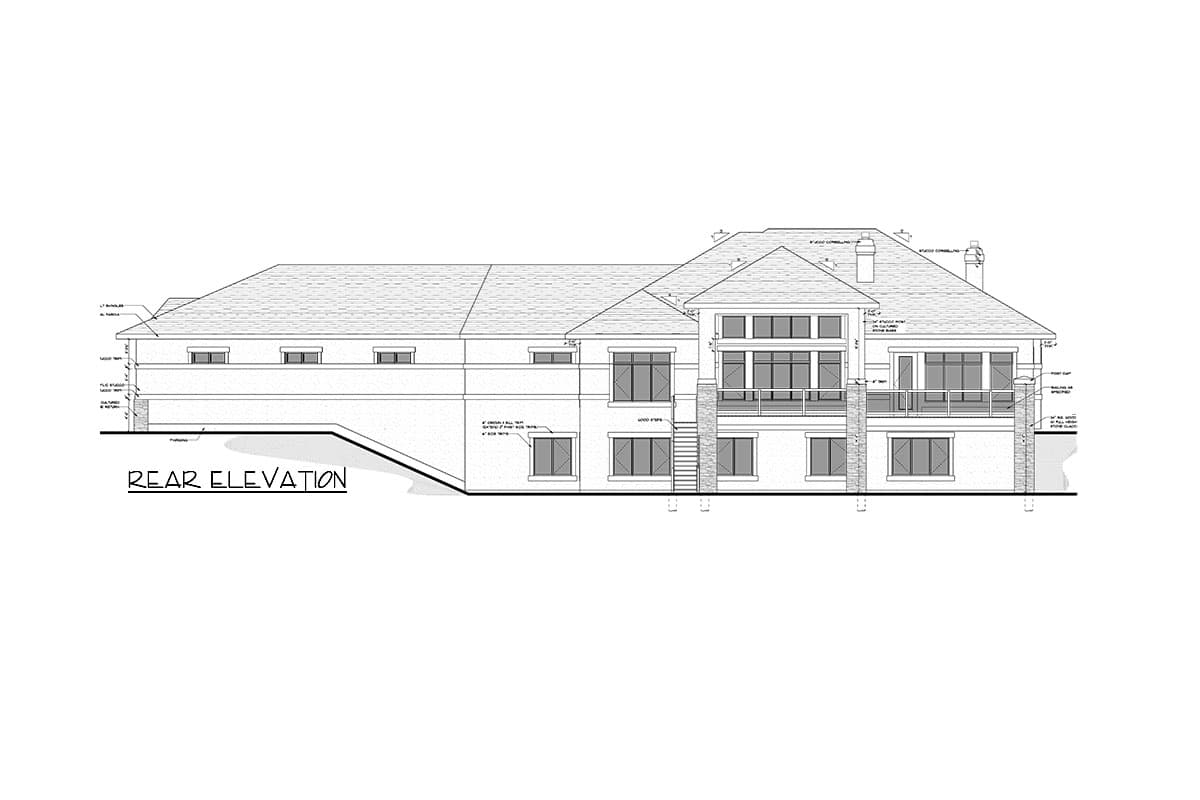

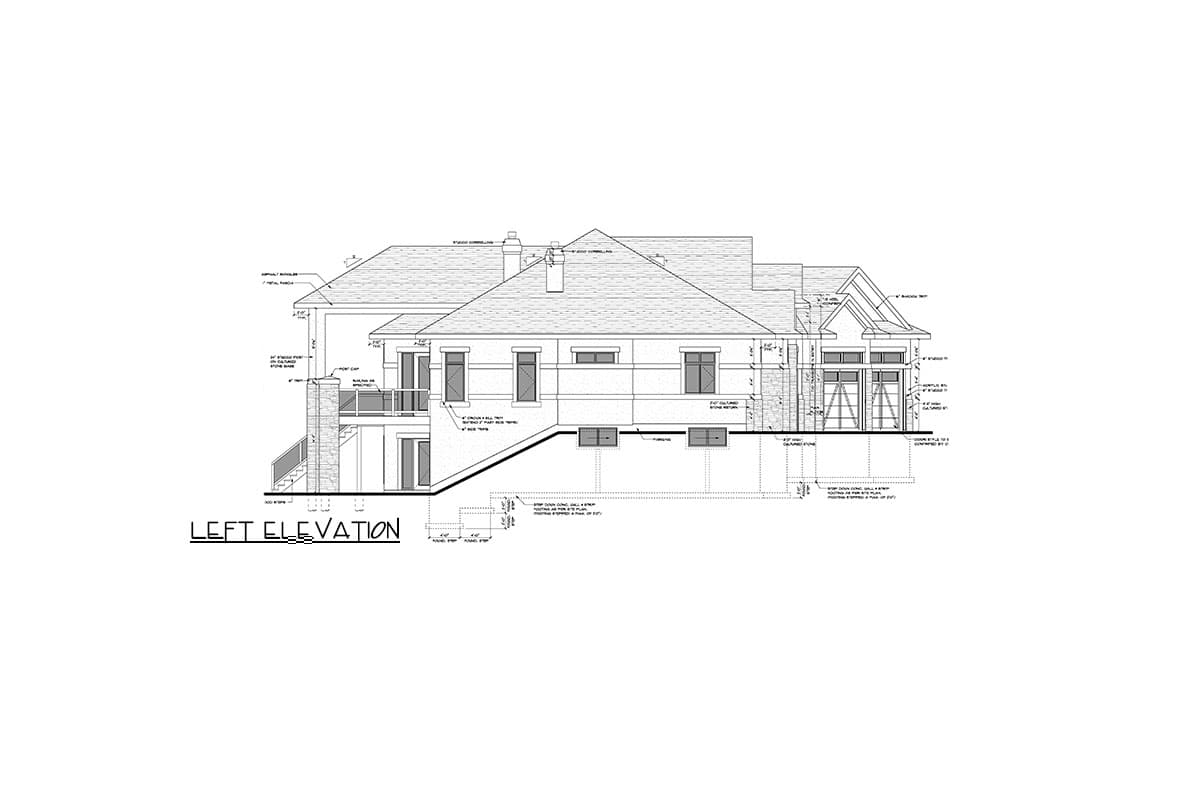

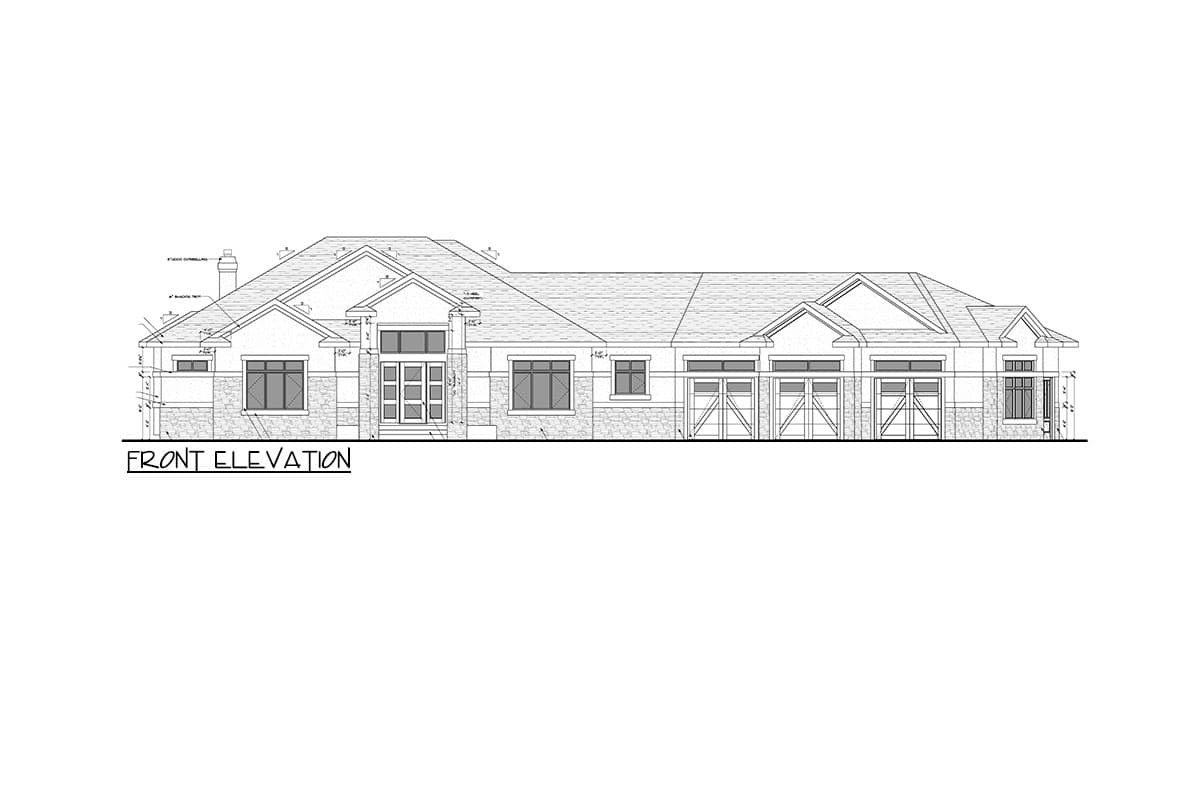

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,744 sq. ft.

1st Floor

2,744 sq. ft.

Optional Lower Level

2,256 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

117' 0"

Depth

69' 0"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

1381 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10' 1"

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Prairie

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Den

Game/Rec Room

Laundry - Main Level

Mudroom

Plan Collections

Canadian House Plans
