3-Bed House Plan with Decorative Gable
Heated S.F.
2,425
Beds
3
Baths
2.5
Stories
1-2
Floor Plan

Plan 370017SEN

Main Level
slide image 0
2nd Floor
slide image 1

Plan 370017SEN

1-800-854-7852

1-262-521-4596

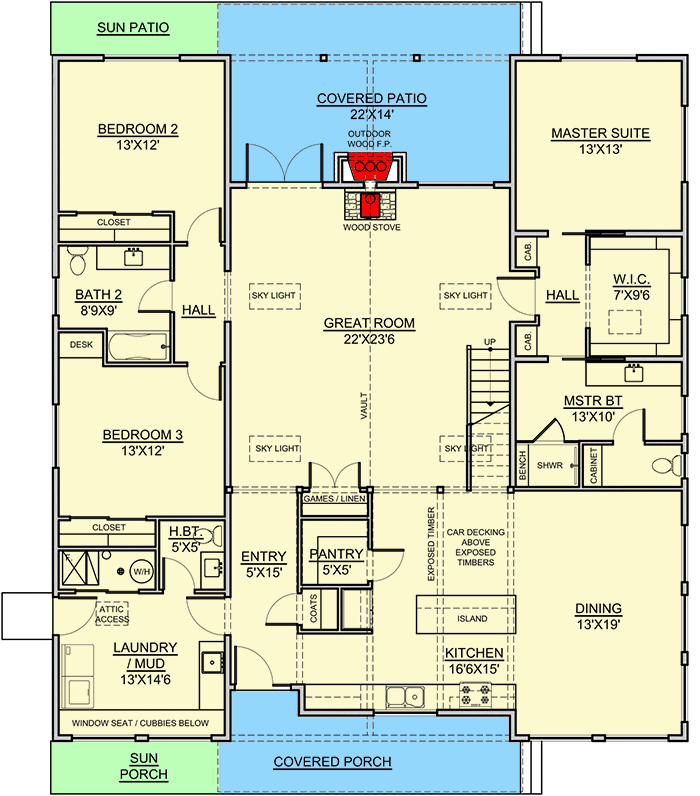

Main Level
floor plan image Main Level

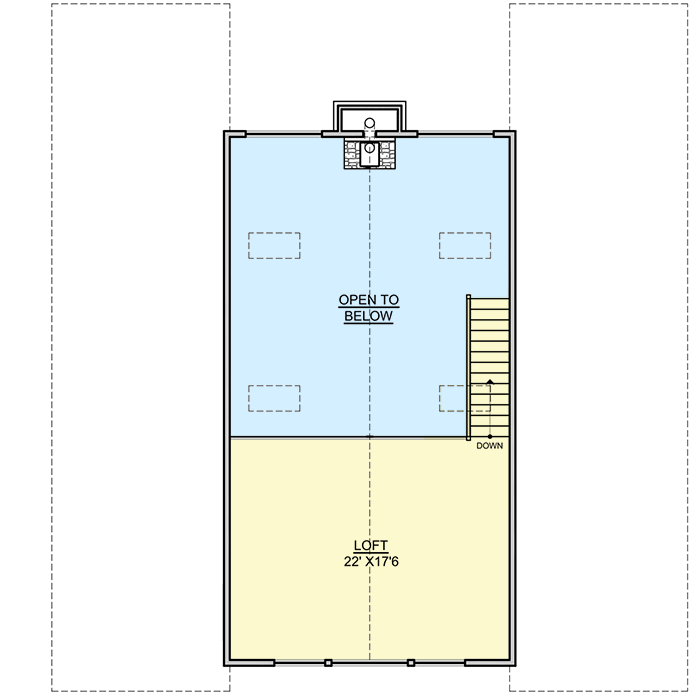

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The gable roof on this 3-bedroom house plan allows for a bonus-level loft that overlooks the great room below.
  • A covered porch welcomes you inside to find the eat-in kitchen to the right and the combined laundry / mudroom to the left of the foyer. The sizable mudroom includes an elongated window seat with cubbies for your footwear.
  • Exposed timbers provide a rustic feature above a sizable island in the kitchen, which opens to a dining room drenched in natural light.
  • Multiple skylights above the great room keep it light and airy, and a double-sided wood stove can also be enjoyed from the covered patio.
  • The master suite is set apart from the other family bedrooms, and includes a walk-in closet and bathroom with three fixtures. Two additional bedrooms are separated by a full bath on the opposite side of the home.
What's Included
  • COVER SHEET
  • GENERAL NOTES
  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
