Name: Plan 710207BTZ: 3-Bed House Plan with Vaulted Dining and Family Rooms
SKU: 710207BTZ
Price: 1995.0 USD
Availability: InStock

Plan 710207BTZ

3-Bed House Plan with Vaulted Dining and Family Rooms

Heated S.F.

1,879

Beds

Baths

2.5

Stories

Cars

Floor Plan

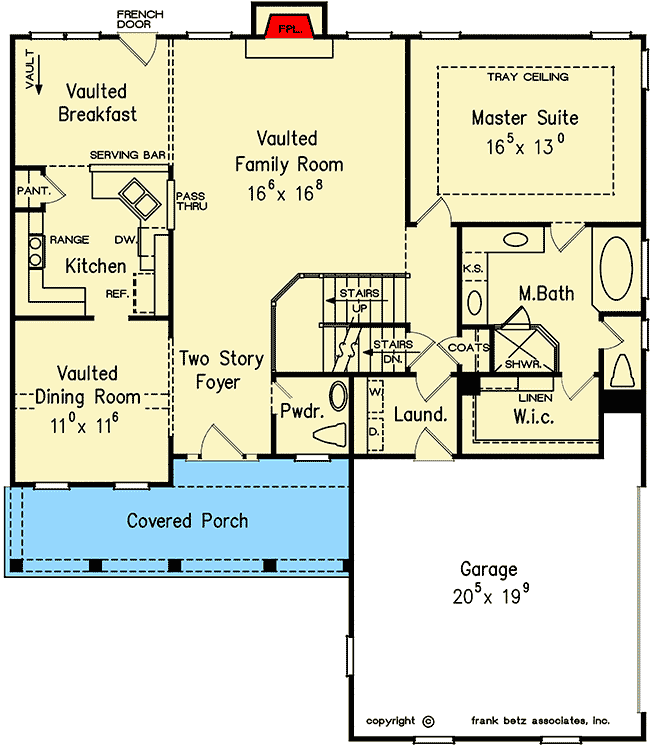

Main Level

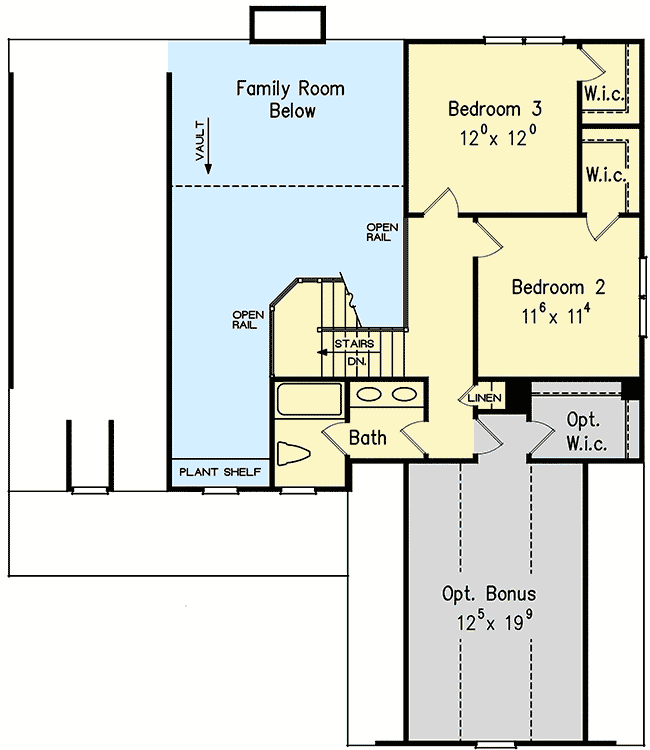

2nd Floor

Plan Details

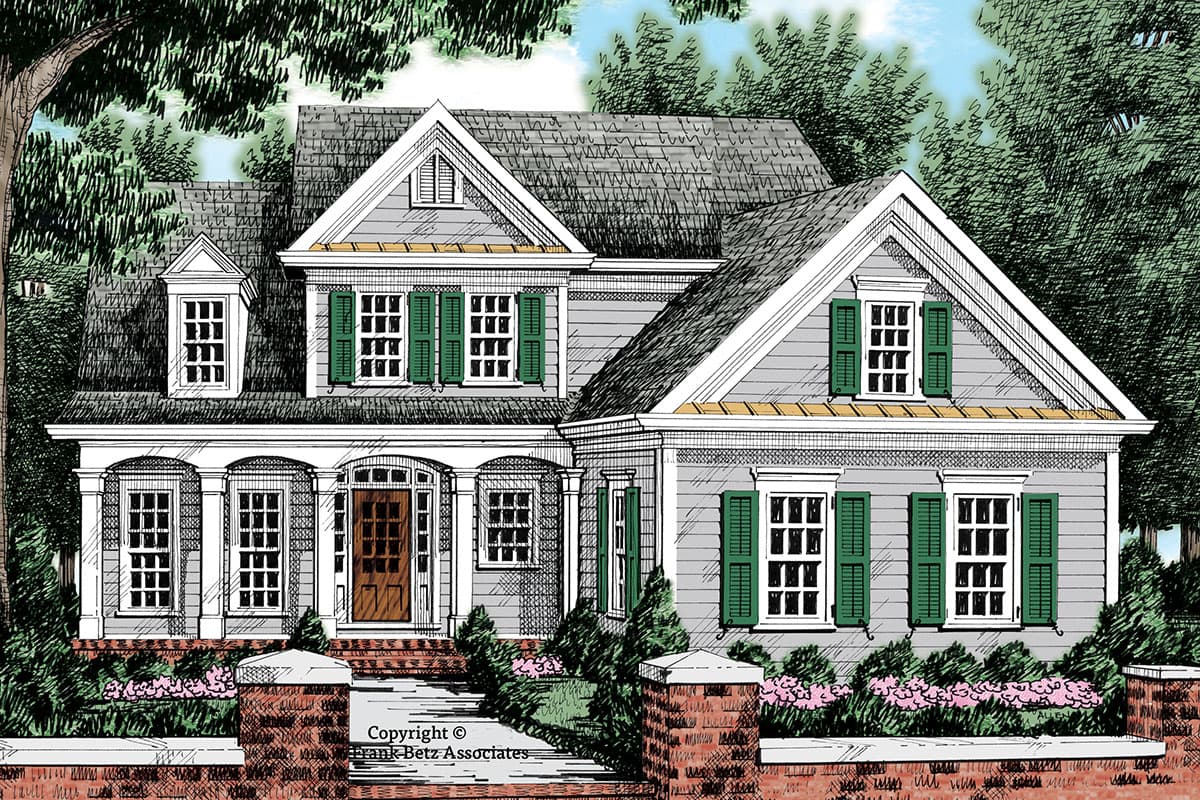

A large covered porch adds interest to the front façade of this 3-bed house plan. Volume makes this home feel larger than it is, with vaulted, tray, and two-story ceilings throughout the main level.
The first level is anchored by the family room and open kitchen. The master suite is also on the first floor for convenience and privacy.
There are two secondary bedrooms and a large bonus room (this could be used as a fourth bedroom if needed) each with their own walk-in-closet rounding out the second floor.
Related Plans: Get alternate versions with house plans 710209BTZ, 710210BTZ and 710211BTZ.

What's Included

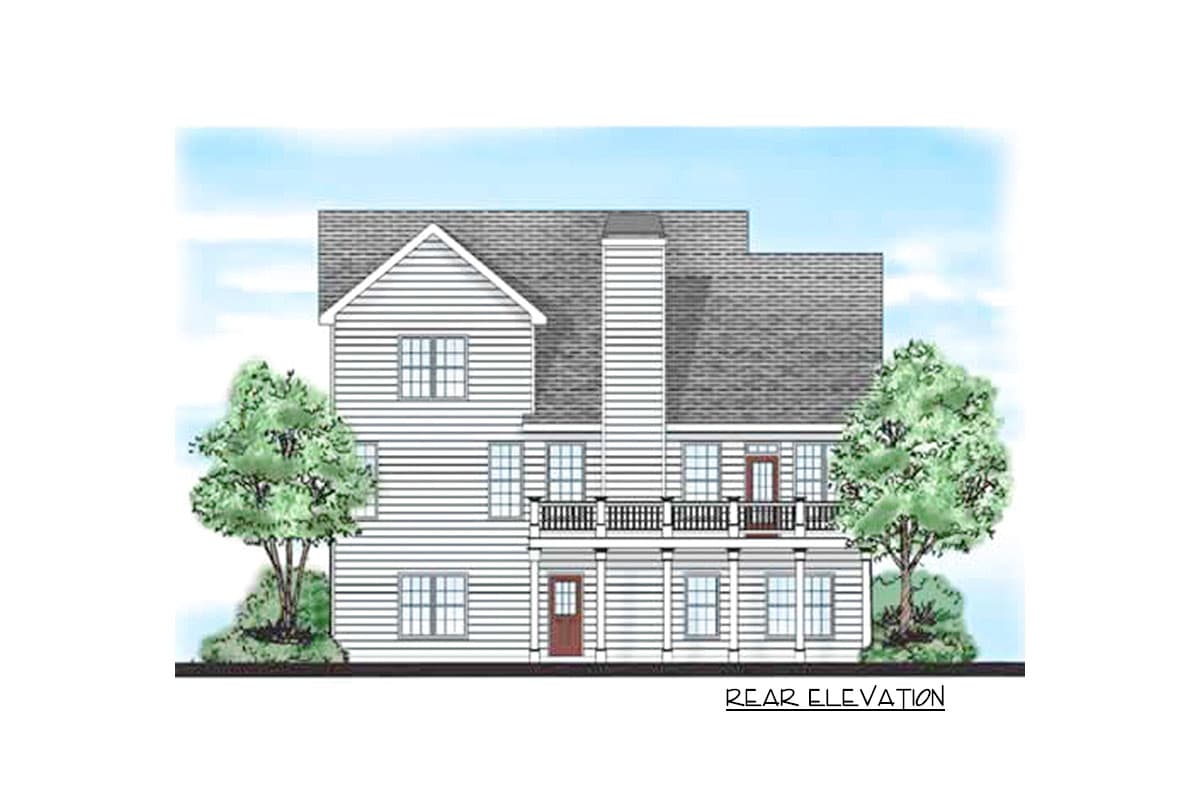

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
