Plan 280014JWD

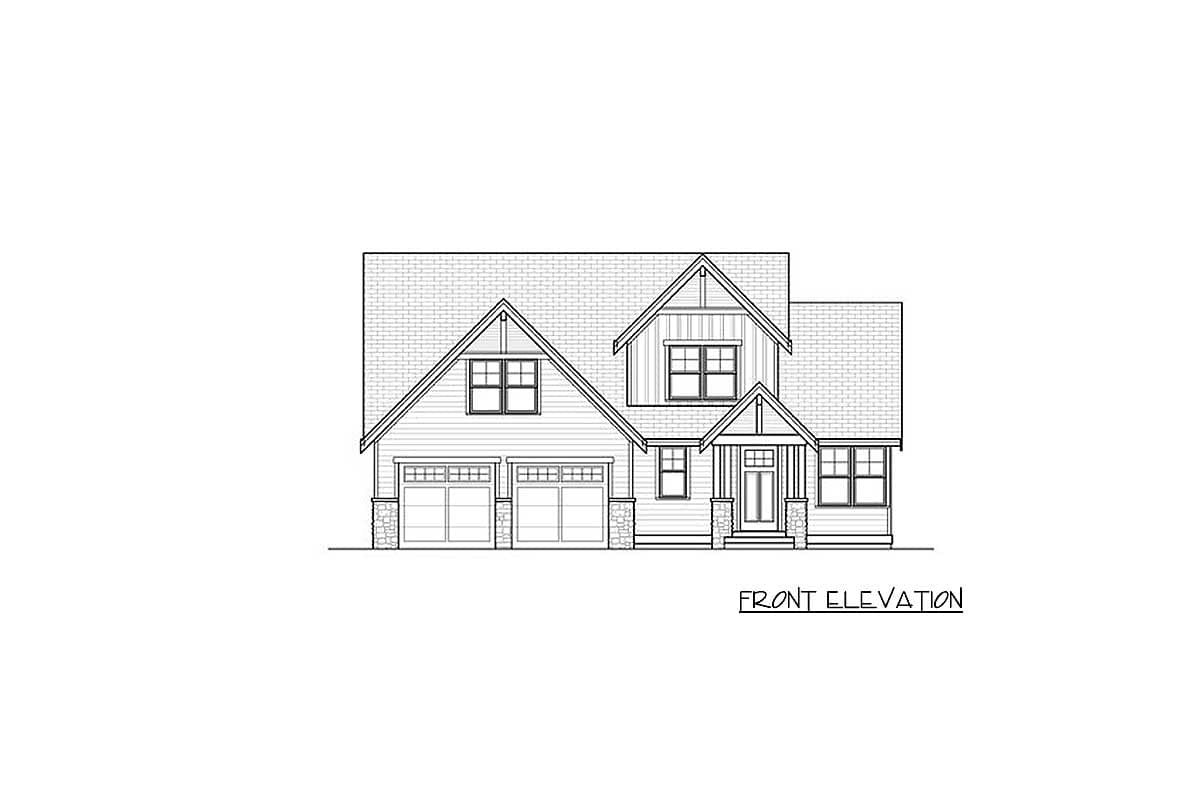

3-Bed House Plan with Vaulted Great Room and Bonus Over Garage
Heated S.F.
2,310
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 280014JWD

Main Level
slide image 0

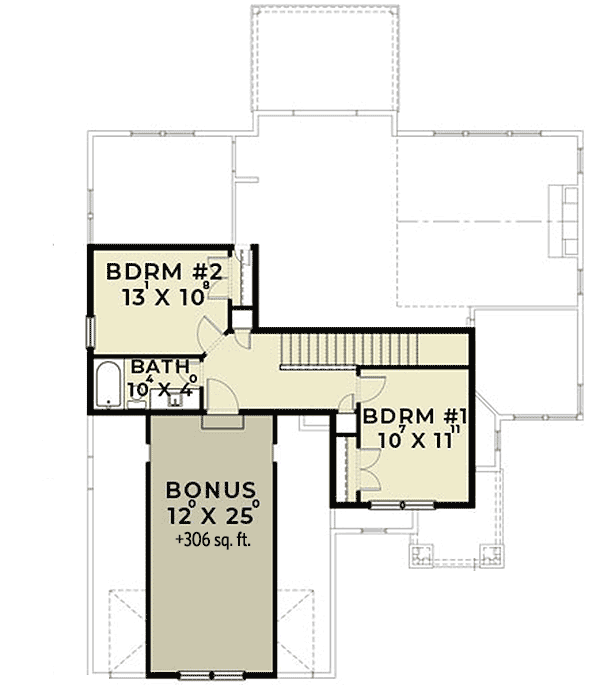

2nd Floor
slide image 1

Plan 280014JWD

1-800-854-7852

1-262-521-4596

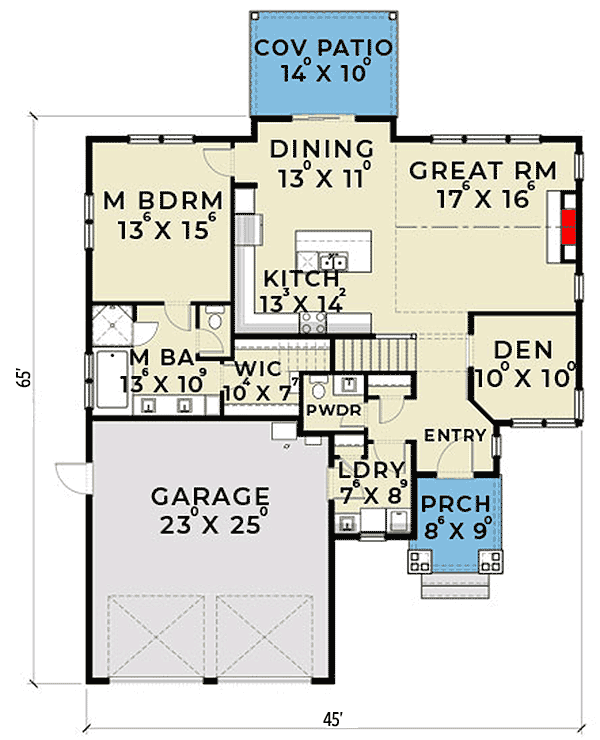

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

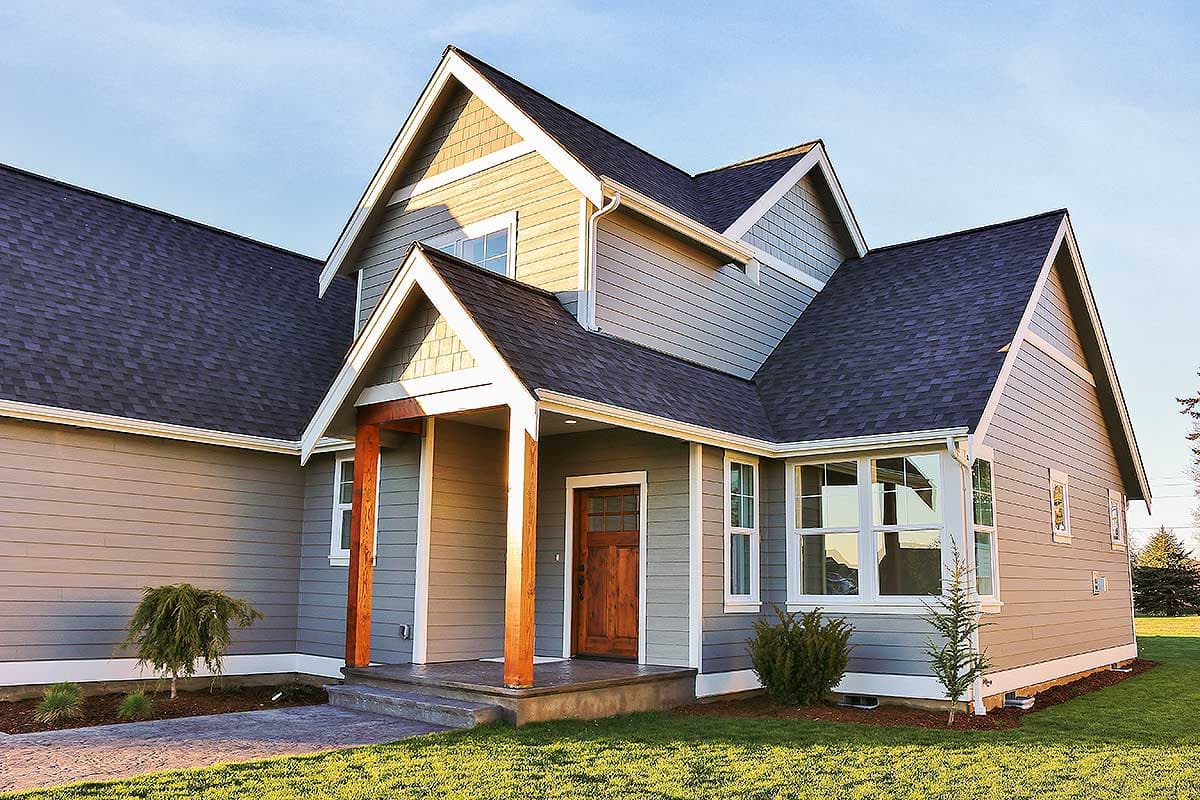

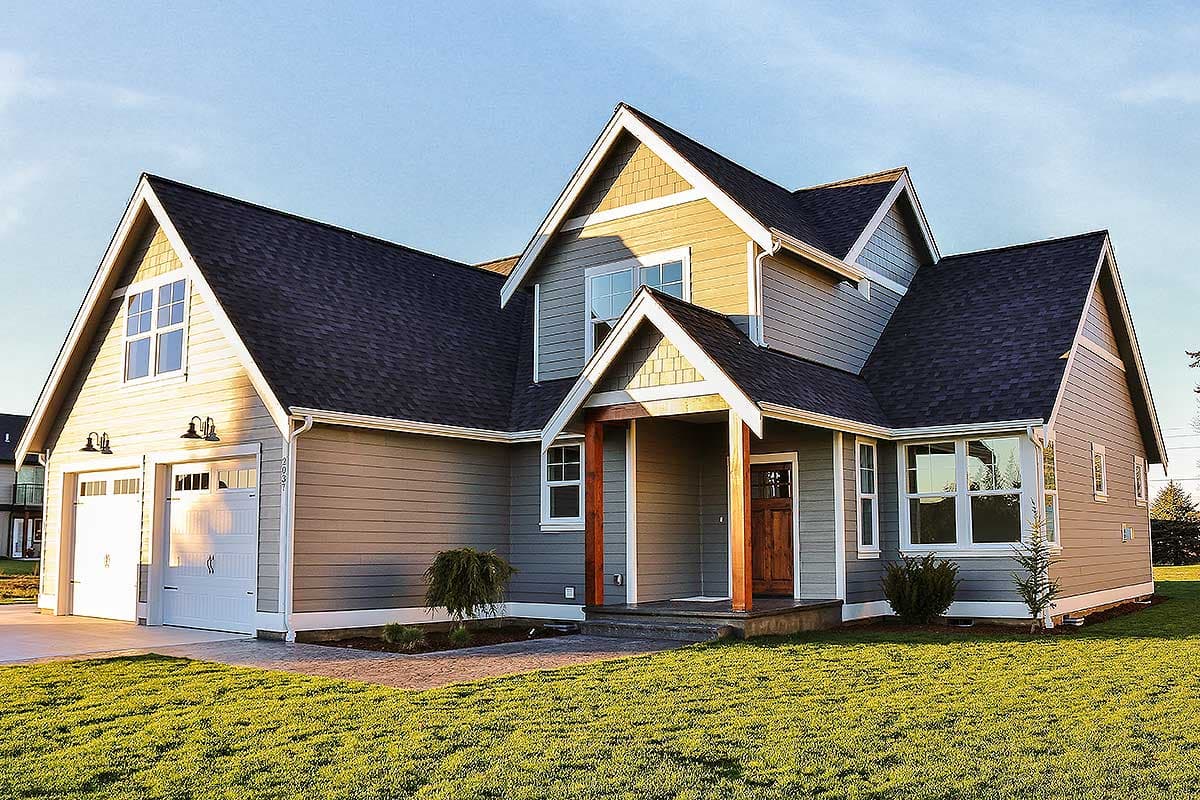

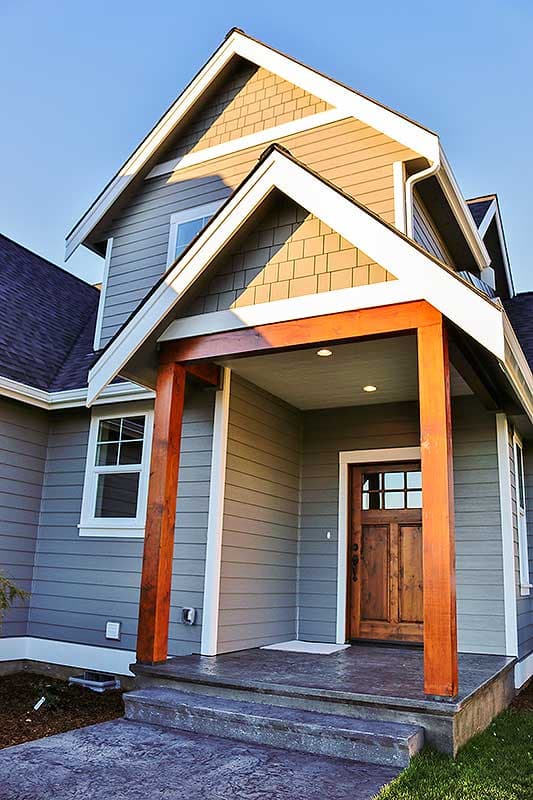

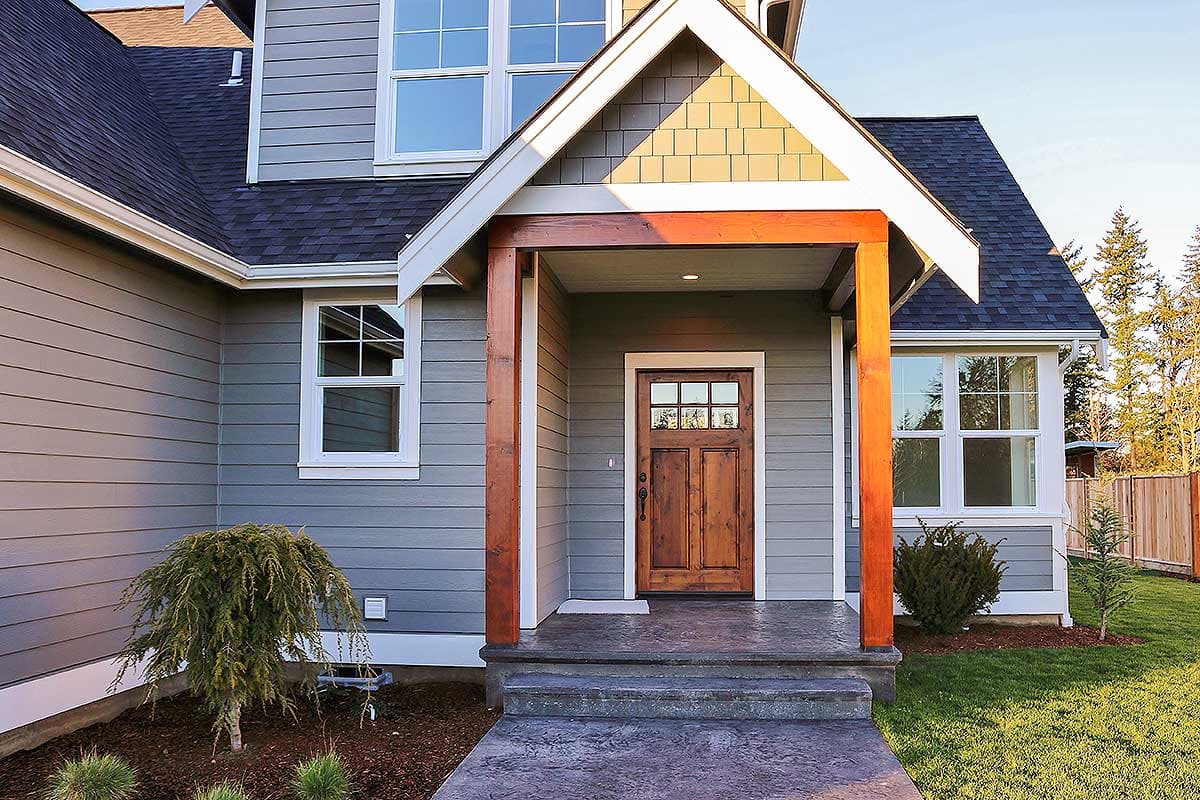

  • A covered entry porch is supported by two timber posts welcoming you to this 3-bed house plan.

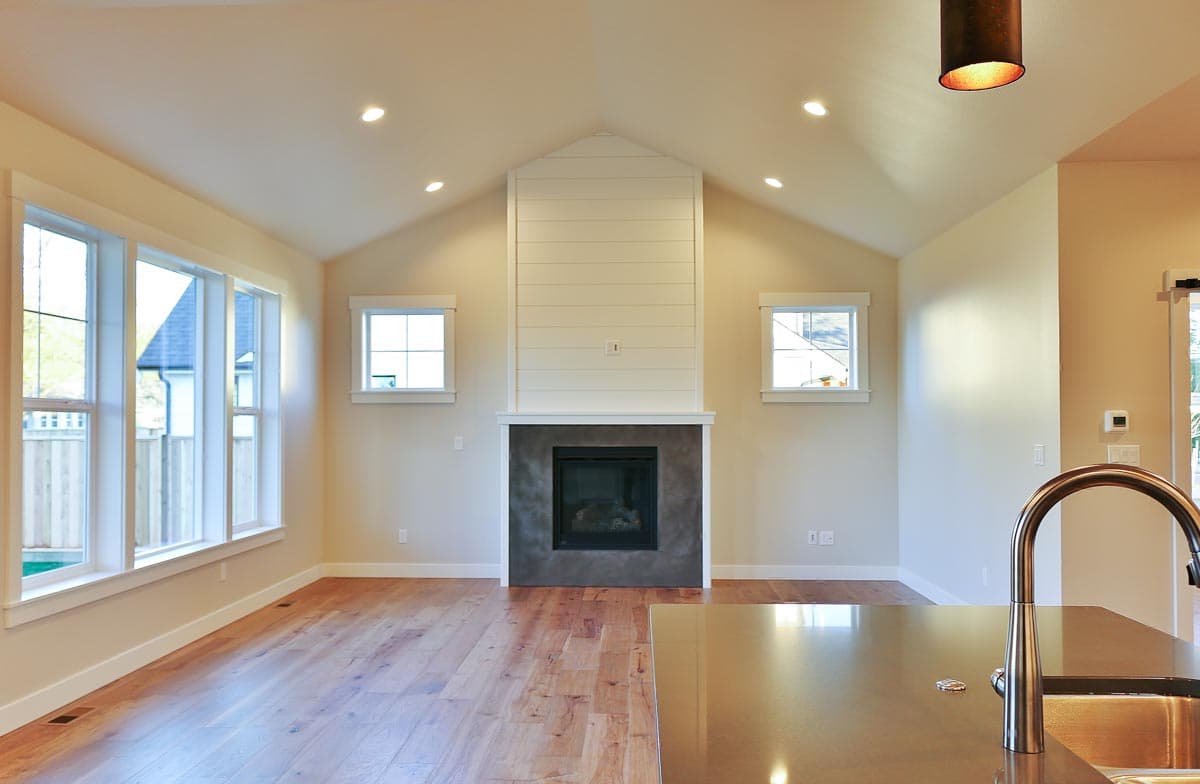

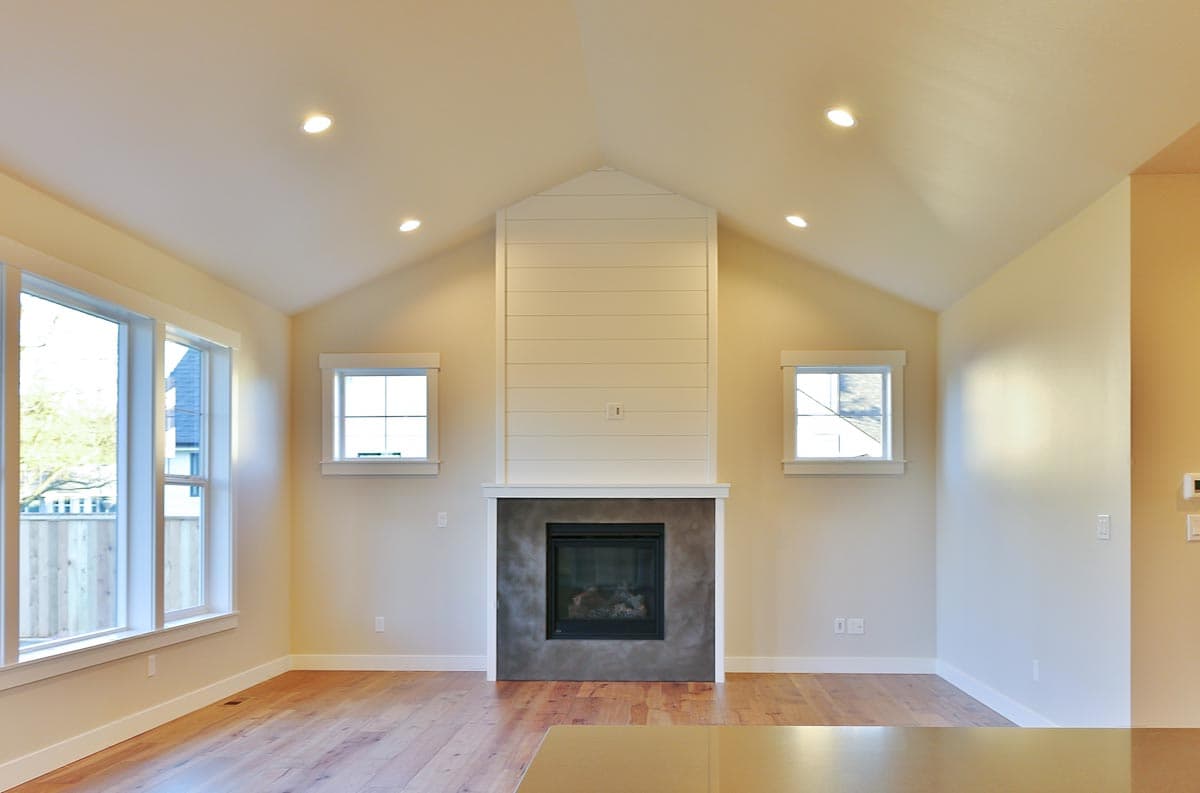

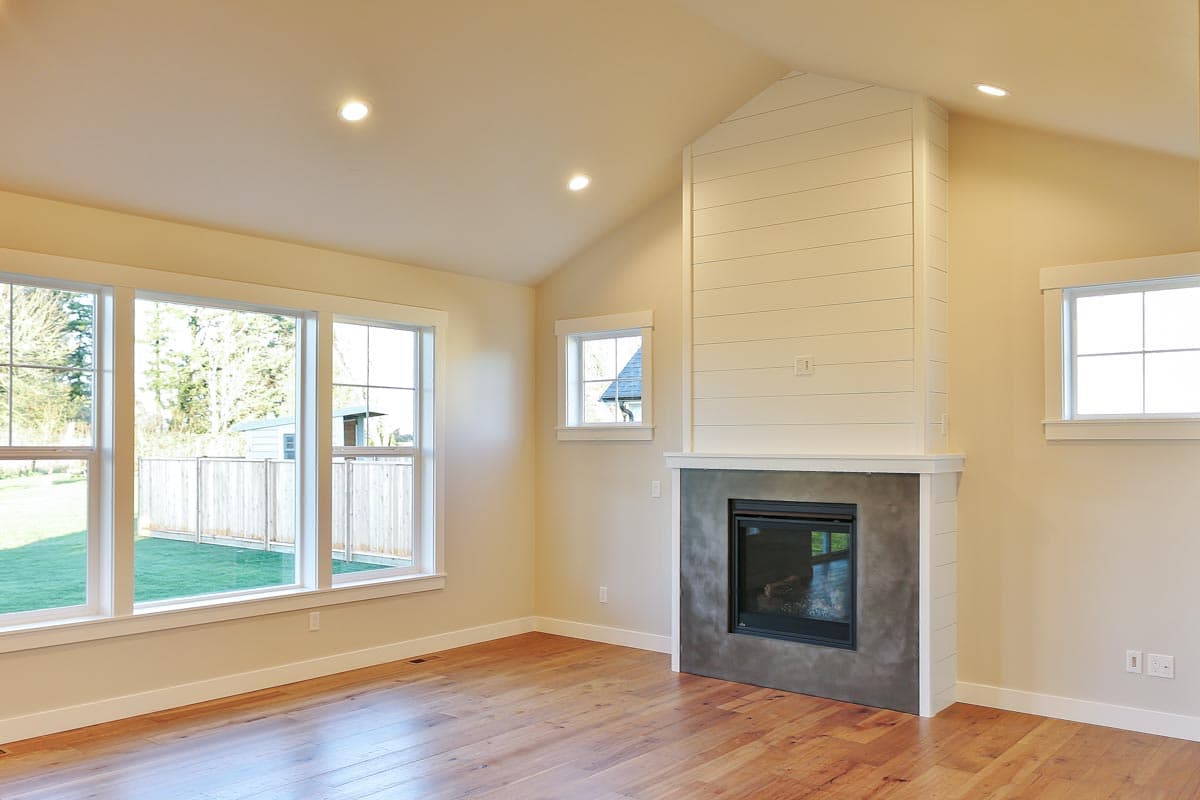

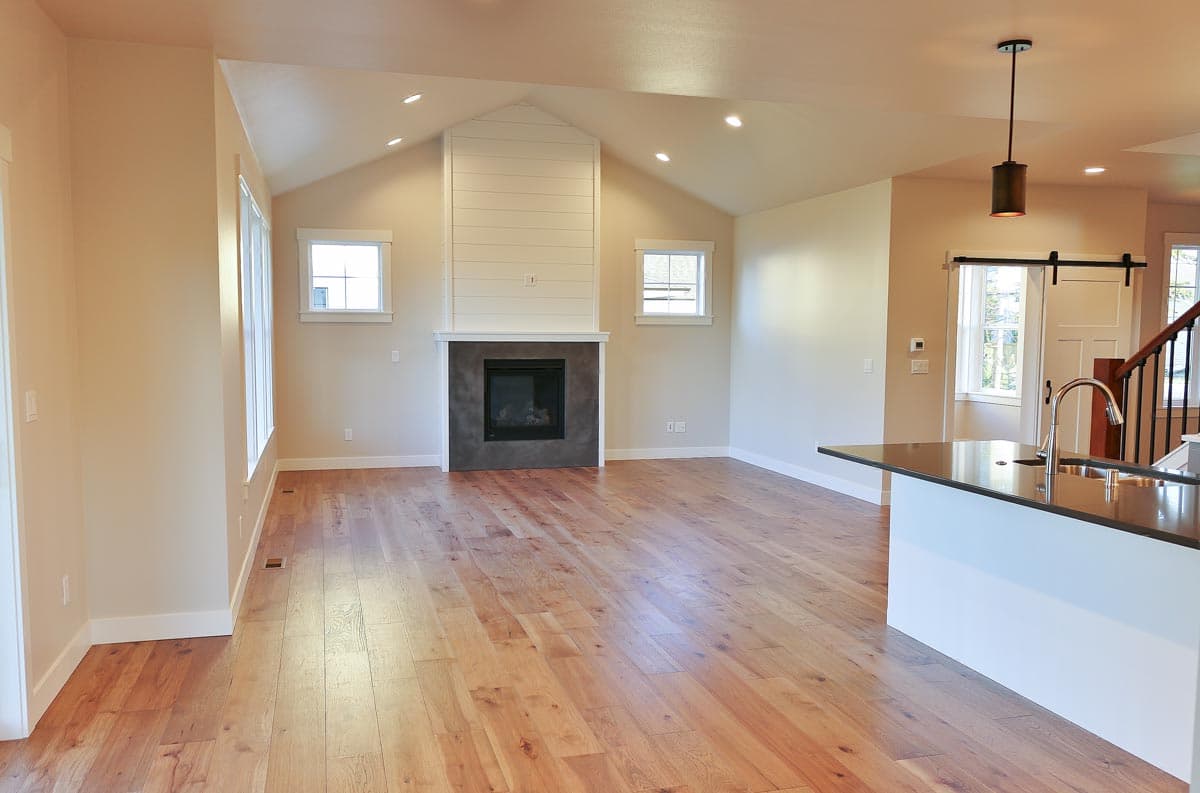

  • The great room has a vaulted ceiling and a fireplace. The room is open to both the kitchen and dining area.

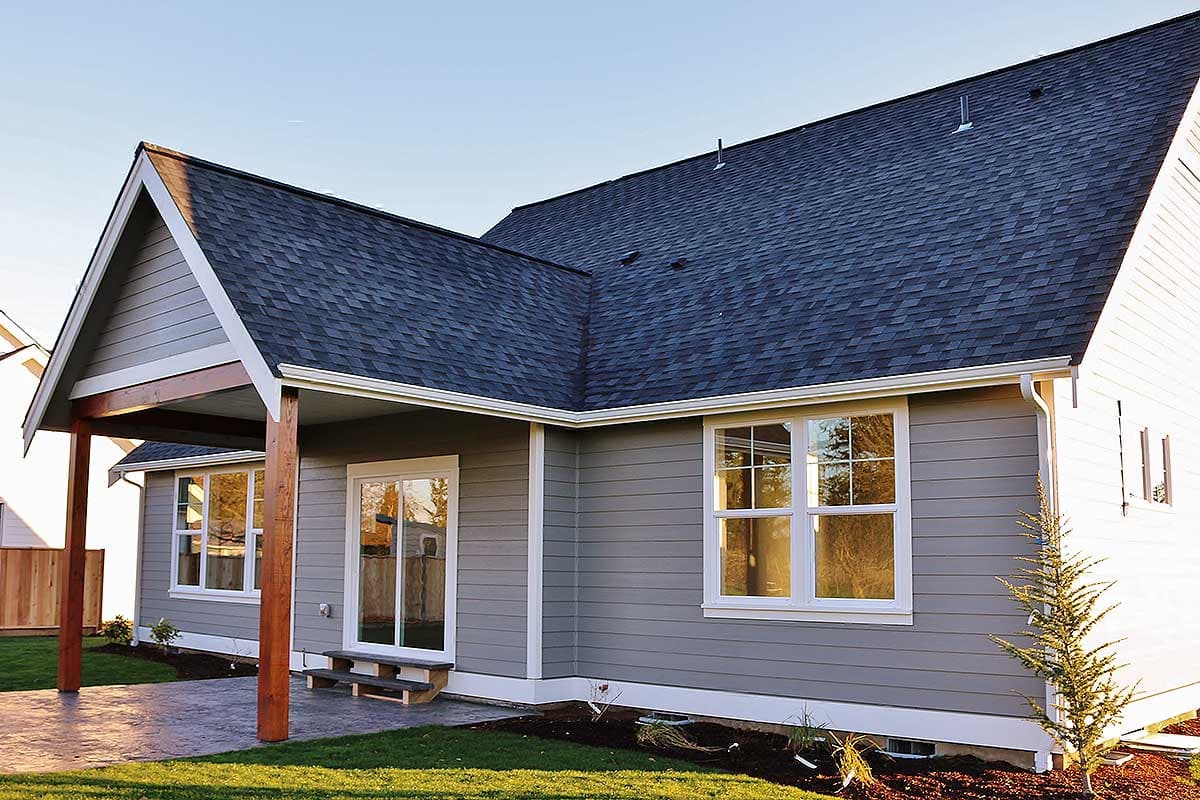

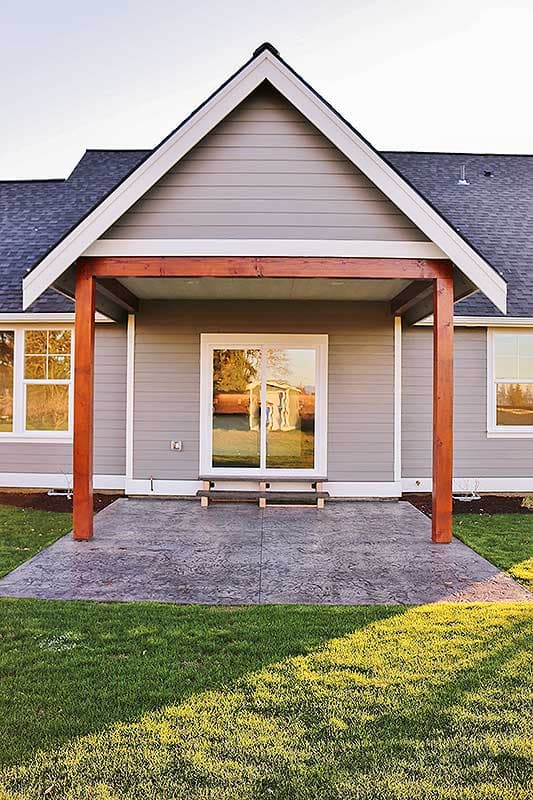

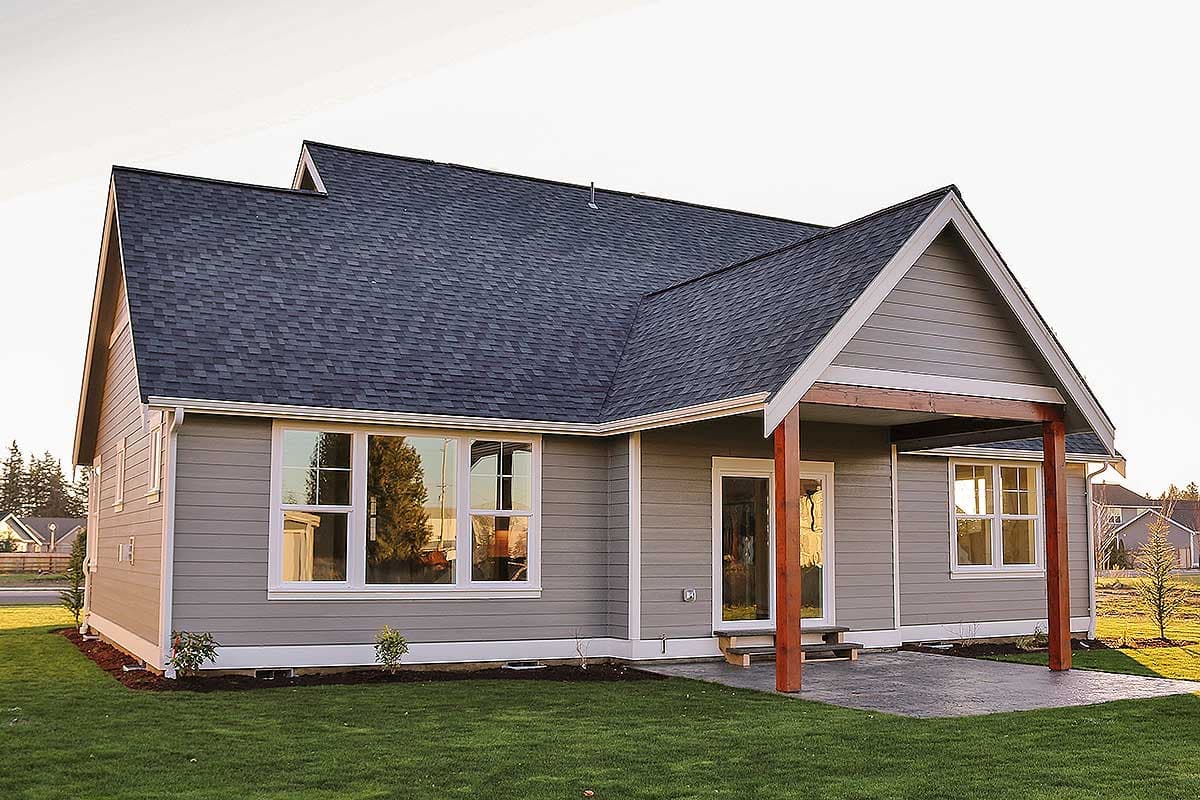

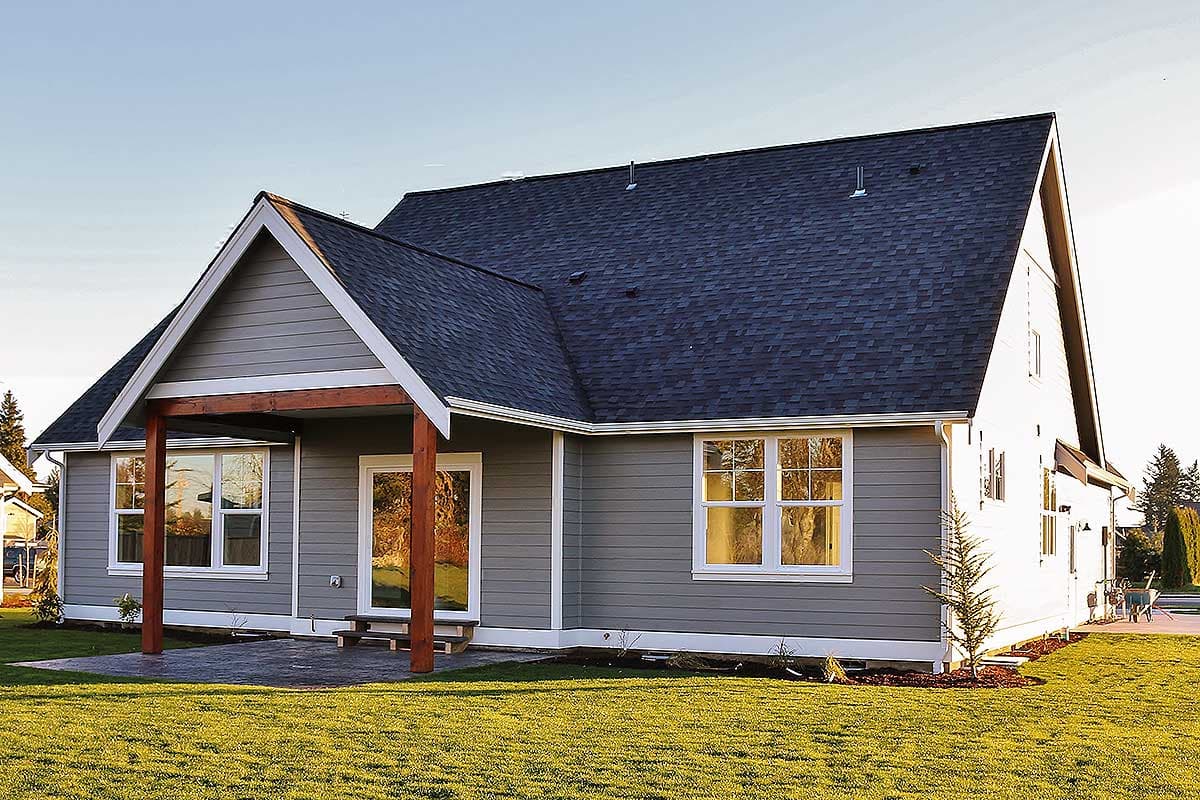

  • The covered patio in back is a great place to enjoy a meal.
  • The master bedroom is on the main floor and has dual vanities, a spa tub and a walk-in shower and a walk-in closet.
  • Upstairs, there are two bedrooms and a bonus room over the garage.
  • Related Plan: Get an alternate version with house plan 280009JWD.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

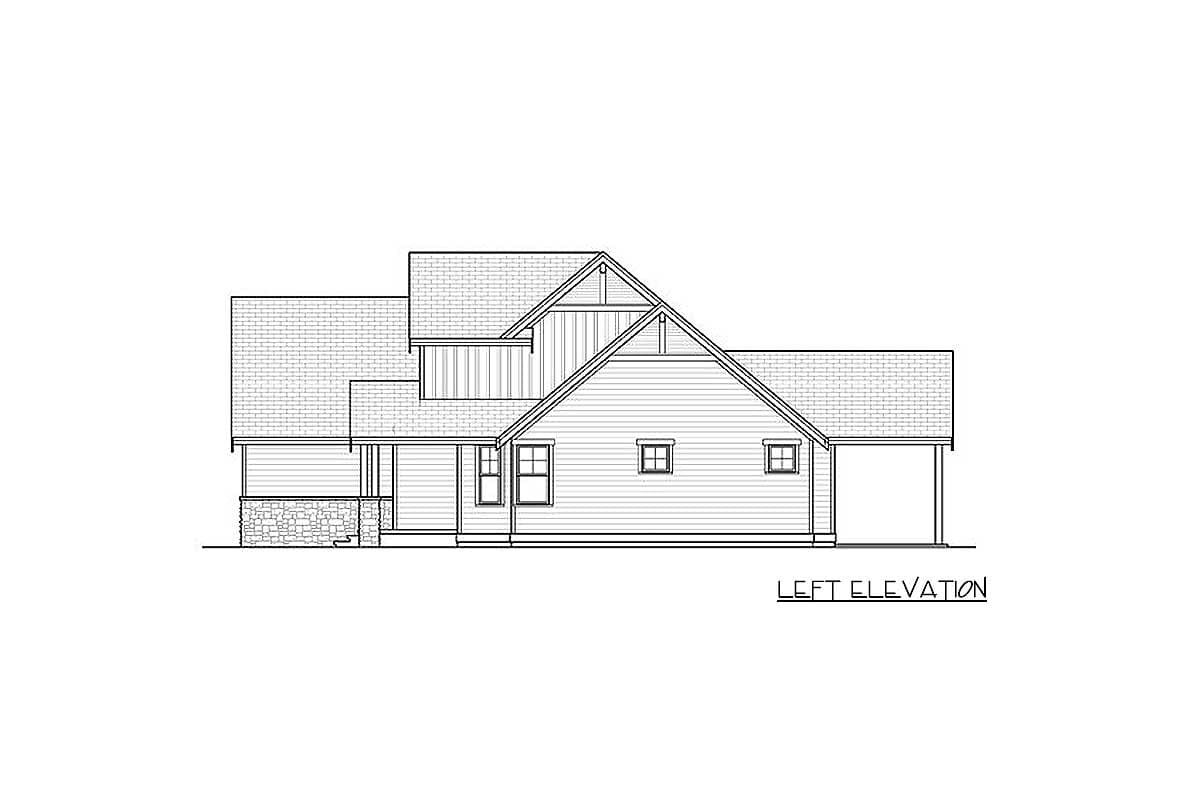

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,310 sq. ft.

1st Floor

1,498 sq. ft.

2nd Floor

506 sq. ft.

Bonus

306 sq. ft.

Porch, Front

76 sq. ft.

Covered Patio

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

55' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

601 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,310 sq. ft.

1st Floor

1,498 sq. ft.

2nd Floor

506 sq. ft.

Bonus

306 sq. ft.

Porch, Front

76 sq. ft.

Covered Patio

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

55' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

601 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
