Plan 36568TX
3-Bed Mediterranean House Plan with Split Beds
Heated S.F.
3,628
Beds
3
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 36568TX

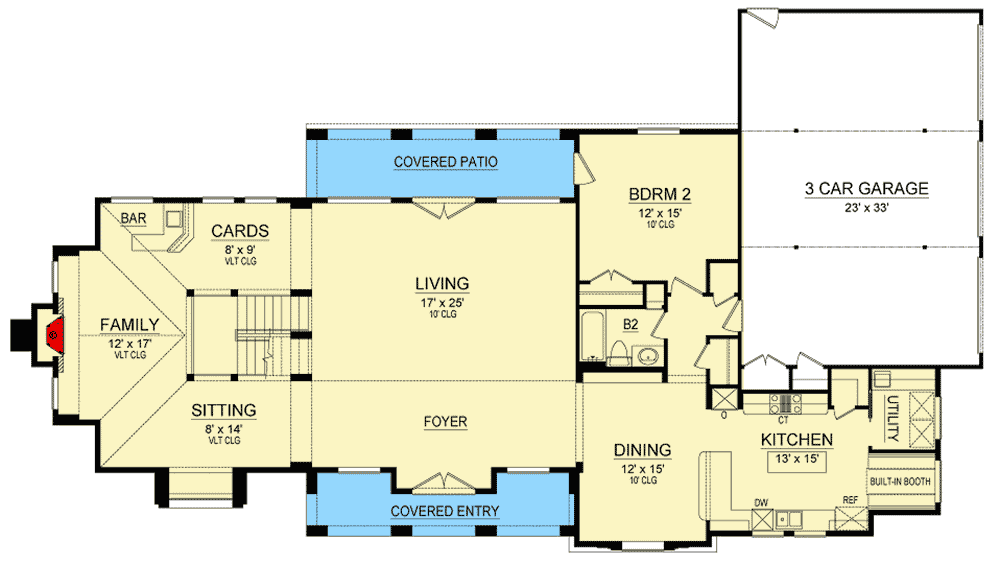

Main Level
slide image 0

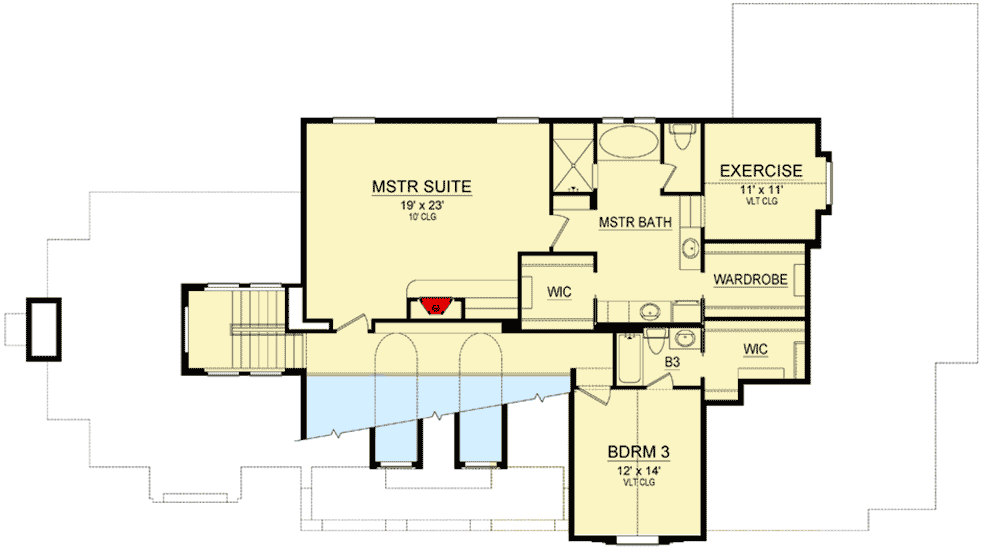

2nd Floor
slide image 1

Plan 36568TX

1-800-854-7852

1-262-521-4596

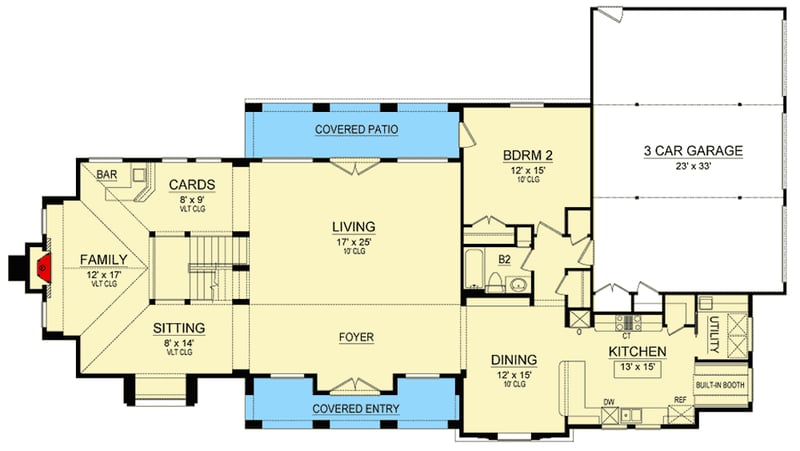

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Arched top dormers protrude from a clay tile roof, while corresponding windows provide charm to the exterior of this 3-bedroom, Mediterranean house plan.
  • Upon entering through double doors, a spacious foyer opens to a large living room. Matching french doors on the back of the home lead to a covered patio.
  • The kitchen resides in front of the 3-car garage, and features a central island for added prep space and a built-in booth for casual meals. The laundry room sits adjacent the kitchen for ease of use.
  • Homeowner's with a passion for entertaining will delight in the left wing of the home, which boasts a fireplace serving as a focal point in the family room, wet bar overlooking a cards area, and a sitting nook.
  • Retreat to the second-level, master suite, which features a cozy fireplace and lavish en suite with dual closets and an exercise room. A second bedroom upstairs includes a full bath and walk-in closet.
  • A third bedroom on the main level is a great space for guests, with access to the back patio and a full bath just outside the door.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

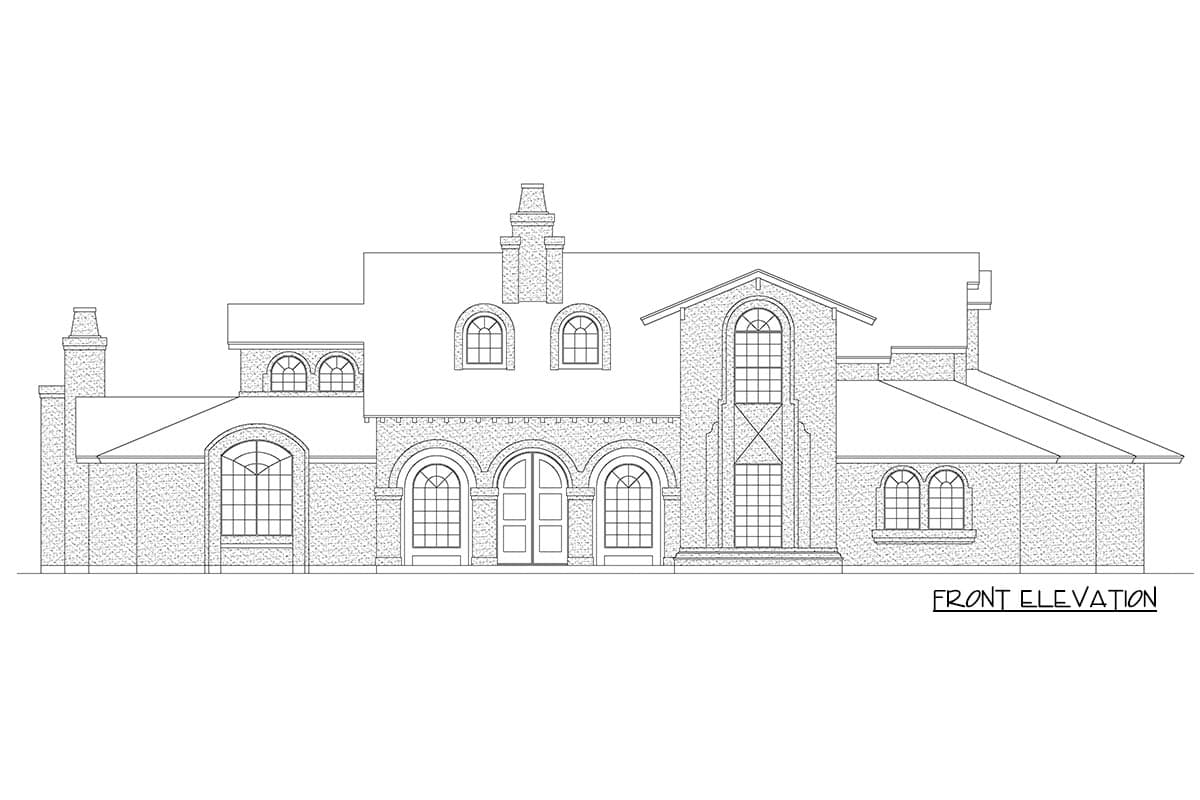

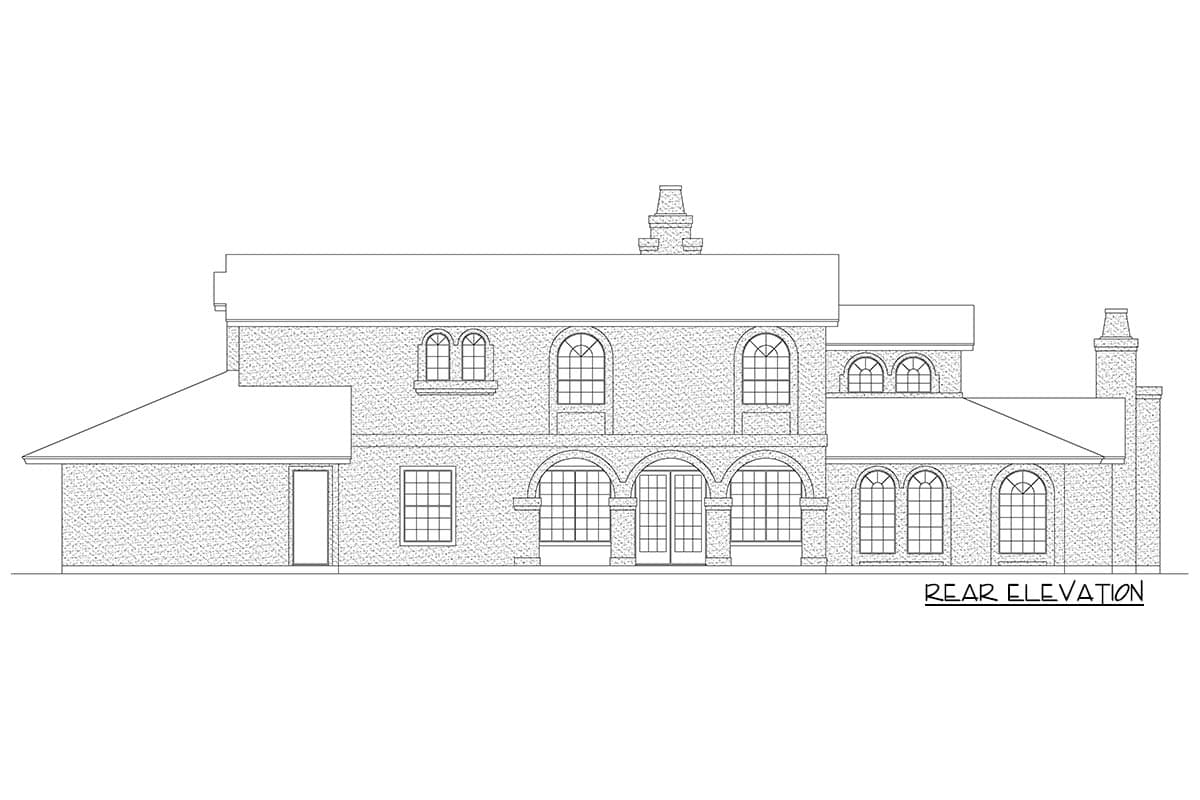

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

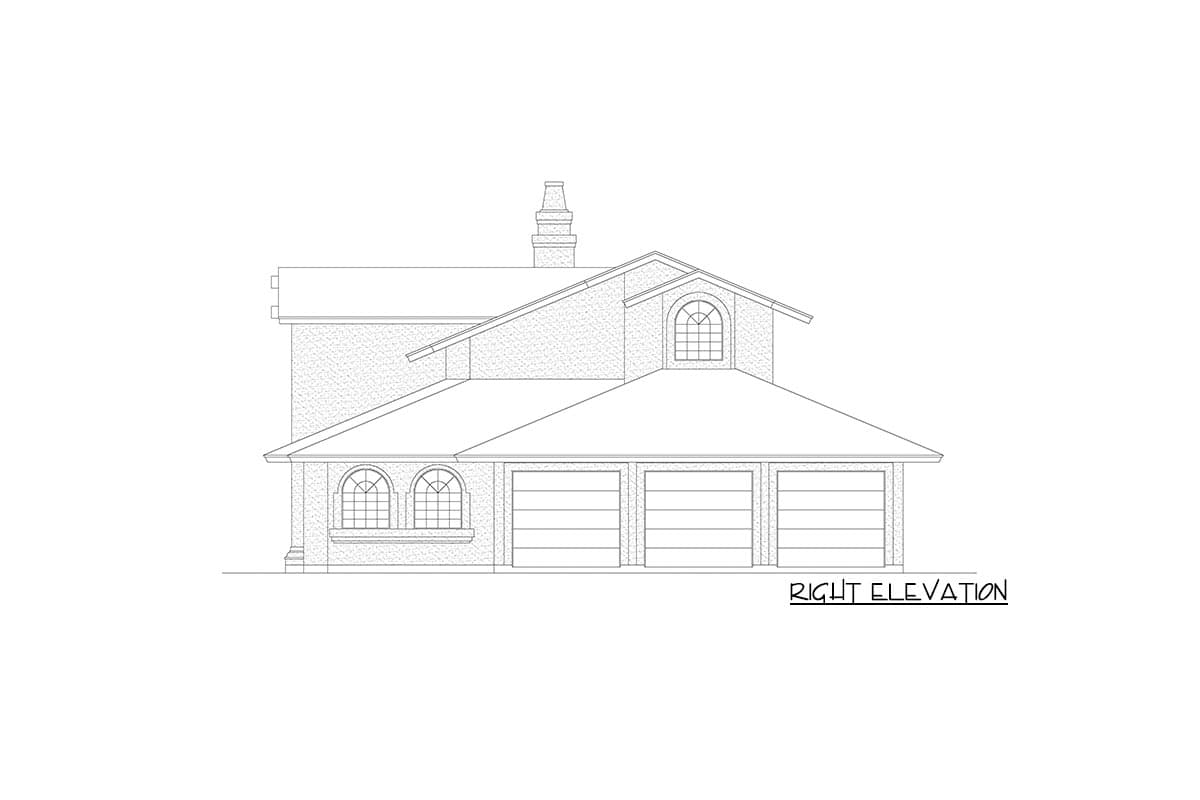

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,628 sq. ft.

1st Floor

2,220 sq. ft.

2nd Floor

1,408 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

92' 0"

Depth

52' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

793 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

5 on 12

Architectural Style

European

Mediterranean

Tuscan

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Wet Bar

Square Footage Breakdown

Total Heated Area

3,628 sq. ft.

1st Floor

2,220 sq. ft.

2nd Floor

1,408 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

92' 0"

Depth

52' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

793 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

5 on 12

Architectural Style

European

Mediterranean

Tuscan

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Wet Bar
