3-Bed Mid Century Modern Home Plan with Wrap Around Patio and Flex Room - 1662 Sq Ft
Heated S.F.
1,662
Beds
3
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 420153WNT

Main Level
slide image 0

Plan 420153WNT

1-800-854-7852

1-262-521-4596

Main Level

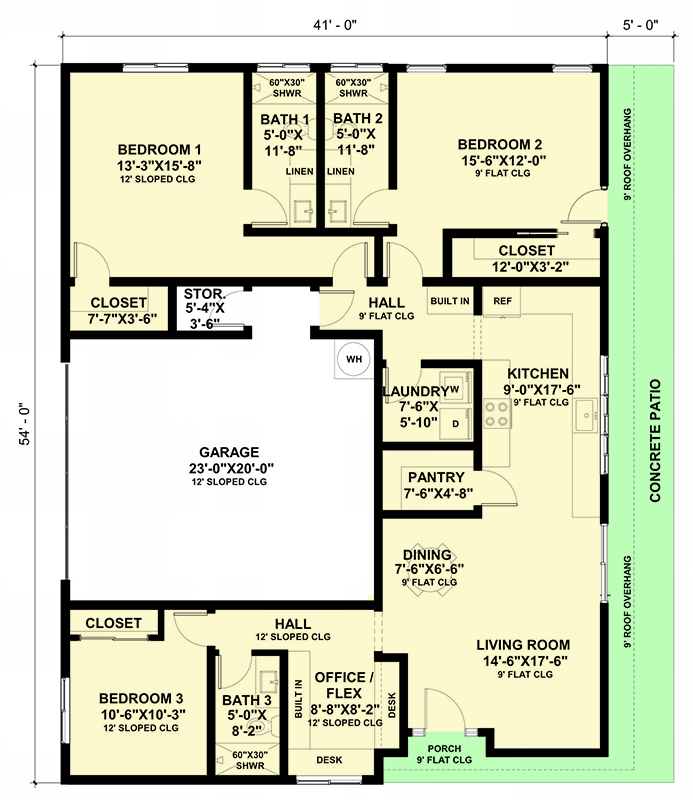

floor plan image Main Level
Plan Details
  • This 3 bed, 4+ bath mid century modern home plan gives you 1,662 square feet of heated living and 2-car side garage (460 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

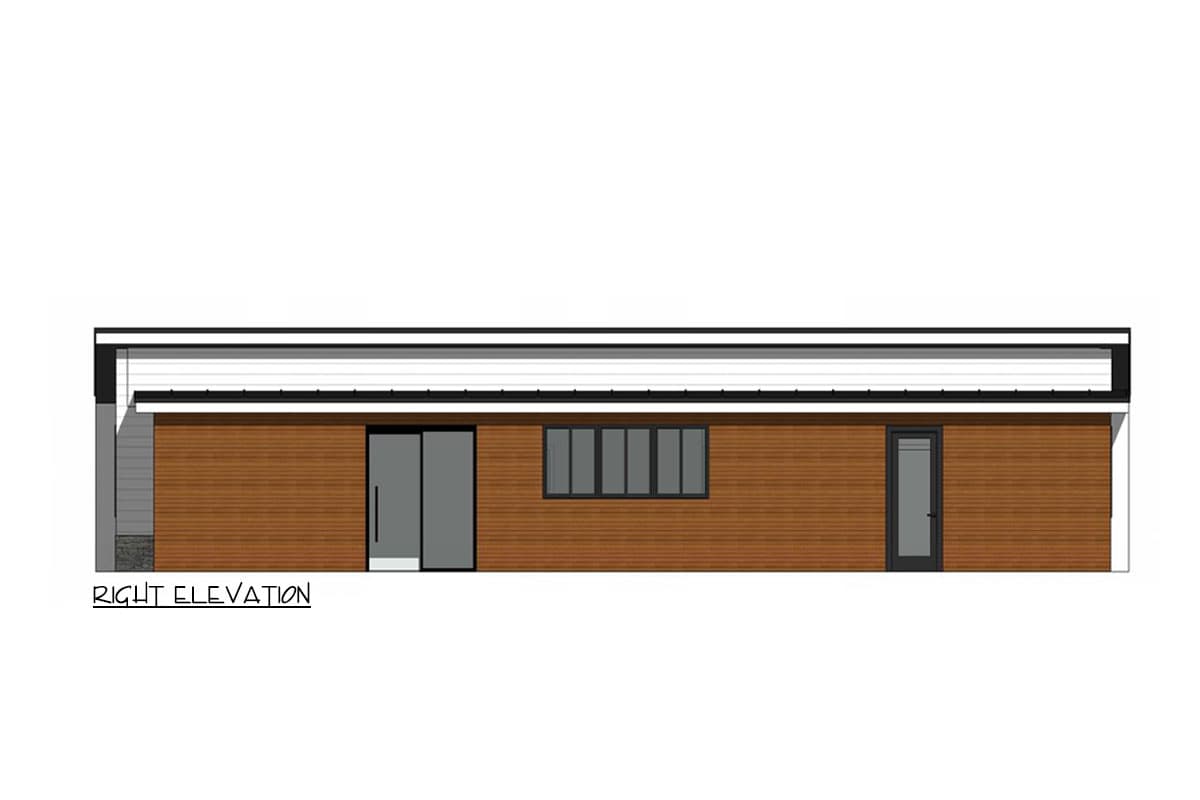

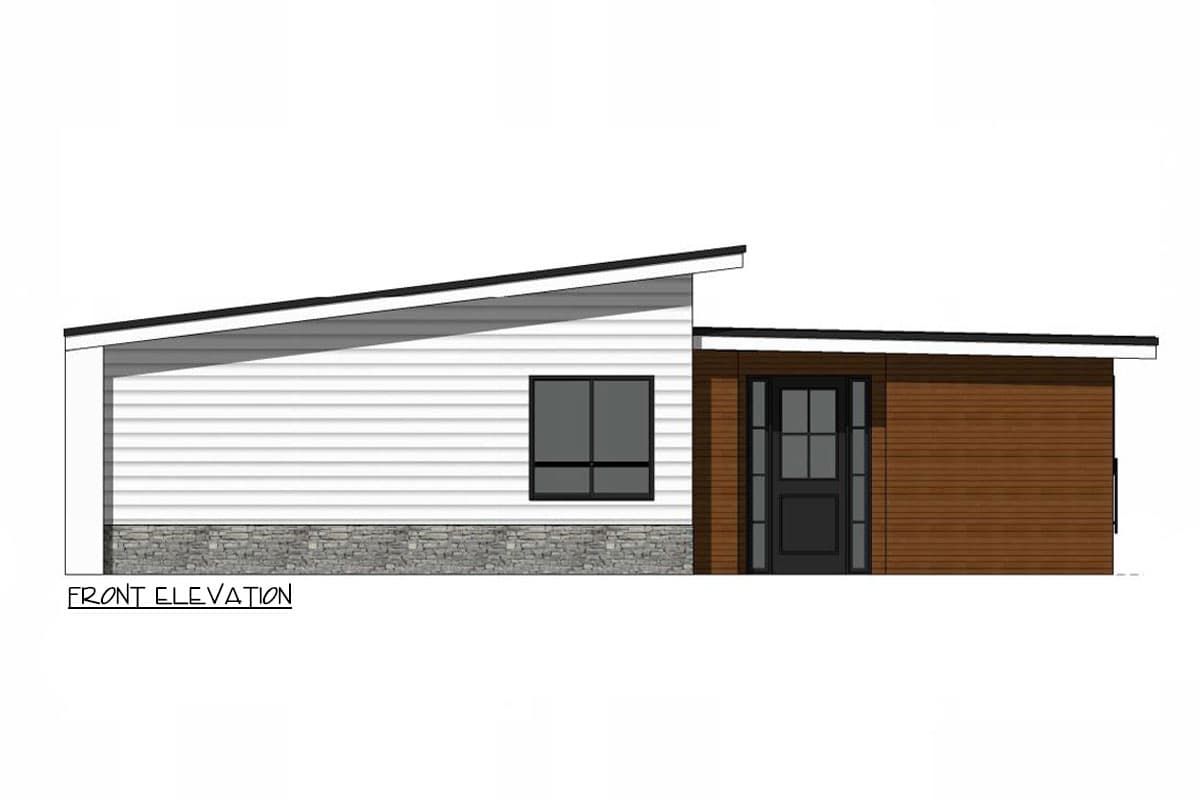

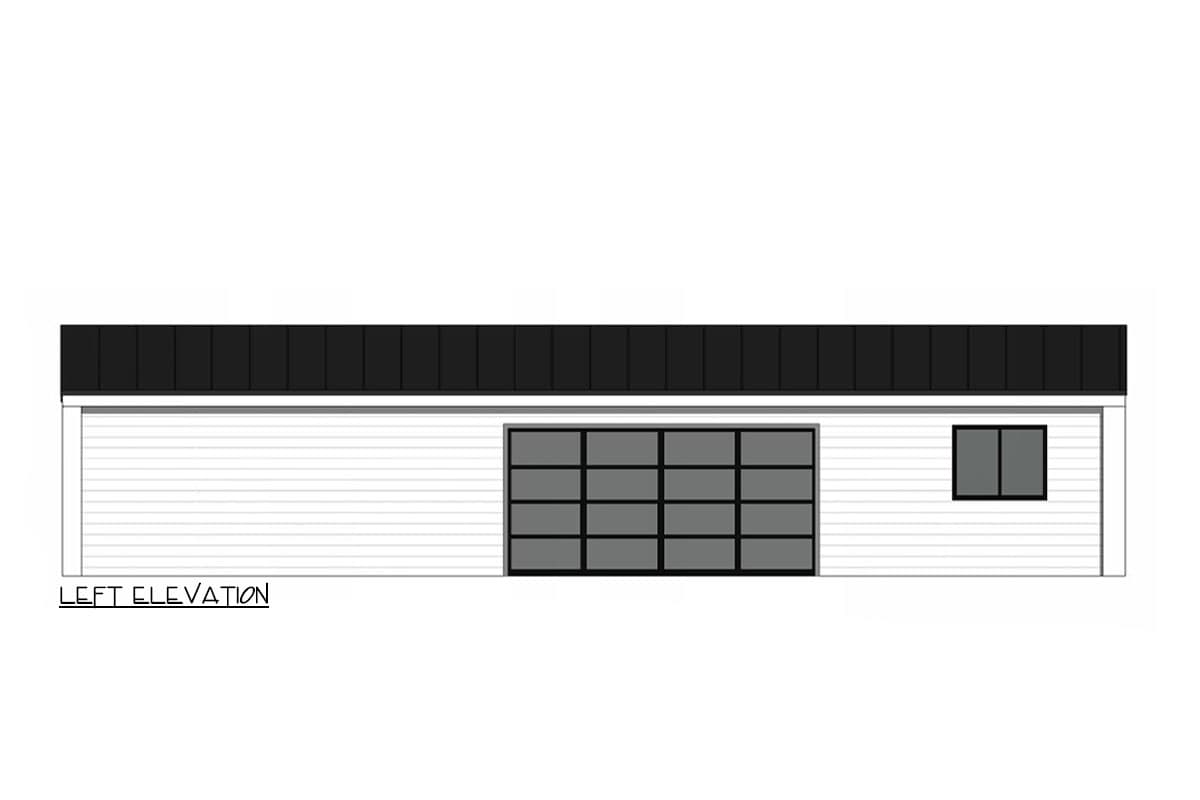

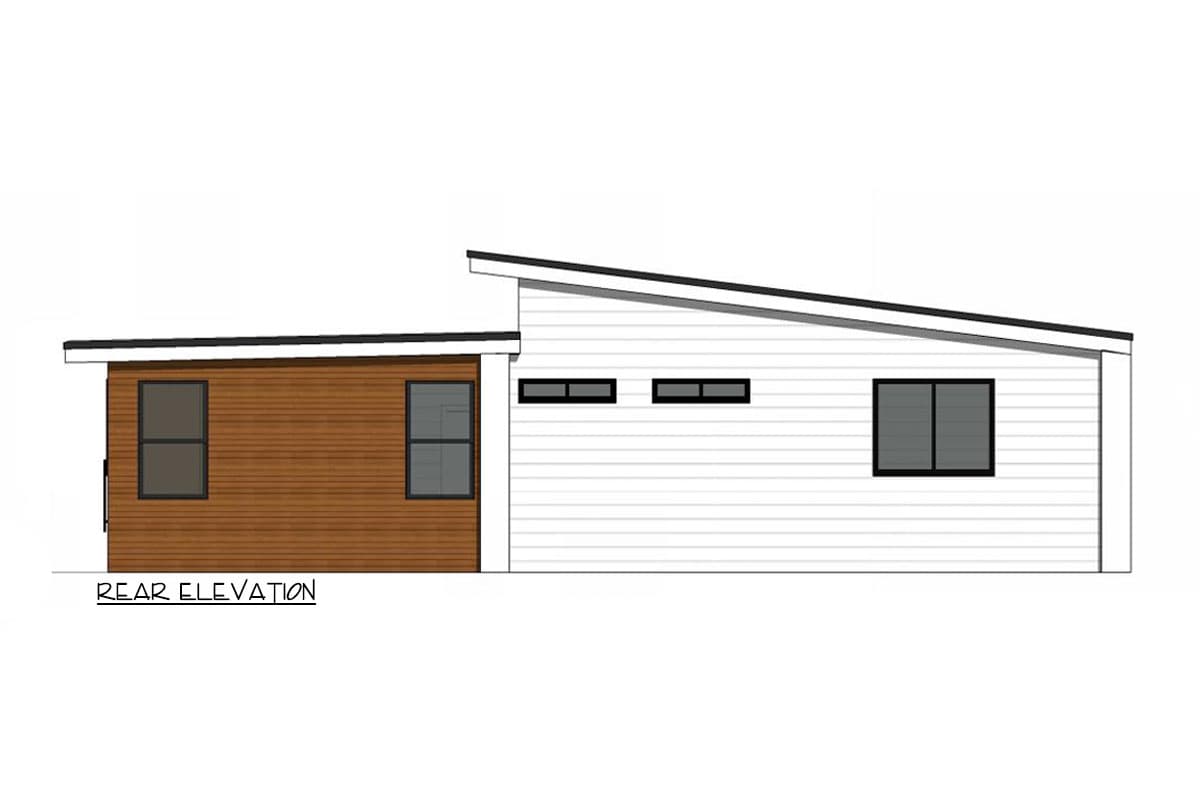

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,662 sq. ft.

1st Floor

1,662 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

272 sq. ft.

Porch, Combined

320 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

54' 0"

Max Ridge Height

13' 5"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Office

Slope

12' 0''

Bedroom 3

Slope

12' 0''

Garage

Slope

12' 0''

Bedroom 1

Slope

12' 0''

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

0.25 on 12

Framing Type

Stick

Architectural Style

Mid Century Modern

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
