Plan 623279DJ
3-Bed Modern Cottage Plan with Two Fireplaces and 2-Car Garage - 2028 Sq Ft
Heated S.F.
2,028
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 623279DJ

Main Level
slide image 0
Optional Walkout Basement
slide image 1

Plan 623279DJ

1-800-854-7852

1-262-521-4596

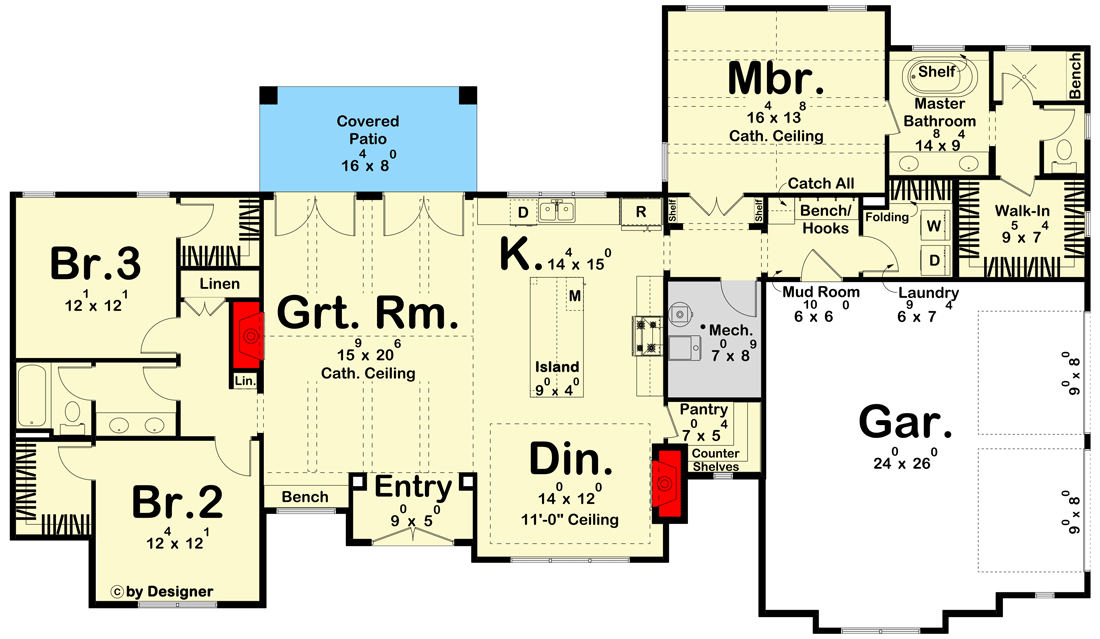

Main Level
floor plan image Main Level

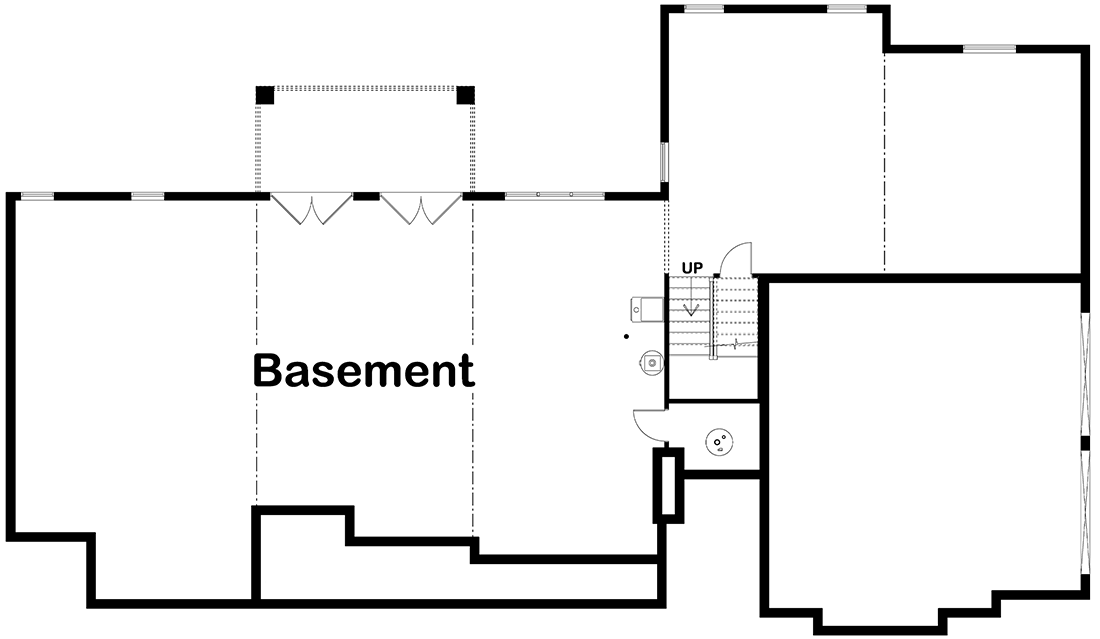

Optional Walkout Basement
floor plan image Optional Walkout Basement
Plan Details
  • This modern cottage gives you 2,028 square feet of heating living space with 3 beds, 2 baths and a 616 square foot 2-car garage.
  • Past the French door entry, a great room with a fireplace and a beamed cathedral ceiling opens to the kitchen and dining room with fire place. Two sets of French doors on the back wall open to a 16'4" by 8' covered patio.
  • The master bedroom with vaulted and beamed ceiling is on the back-right side of the house plan and has a private bath and roomy walk-in closet. Laundry is located by the mud room.
  • Two bedrooms with walk-in closet share a bath on the left side of the home.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,028 sq. ft.

1st Floor

2,028 sq. ft.

Porch, Combined

131 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 0"

Depth

47' 0"

Max Ridge Height

24' 4"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Architectural Style

Cottage

Country

European

New American

Ranch

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,028 sq. ft.

1st Floor

2,028 sq. ft.

Porch, Combined

131 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 0"

Depth

47' 0"

Max Ridge Height

24' 4"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Architectural Style

Cottage

Country

European

New American

Ranch

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
