Plan 680451VR
3-Bed Modern Farmhouse Plan with Wrap-Around Porch - 2733 Sq Ft
Heated S.F.
2,733
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 680451VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680451VR

1-800-854-7852

1-262-521-4596

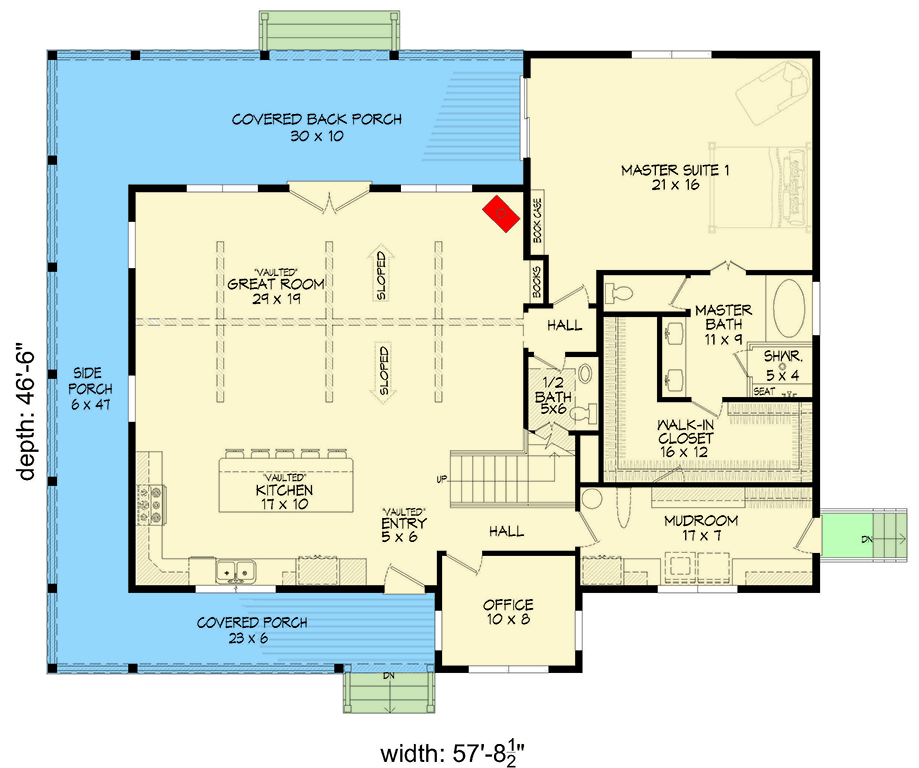

Main Level
floor plan image Main Level

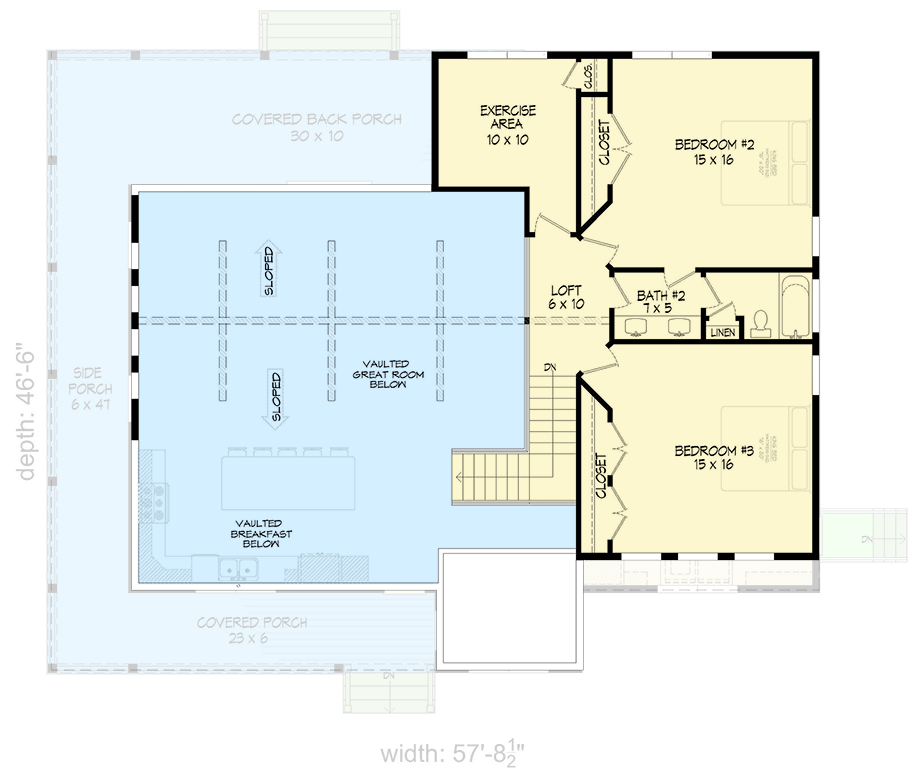

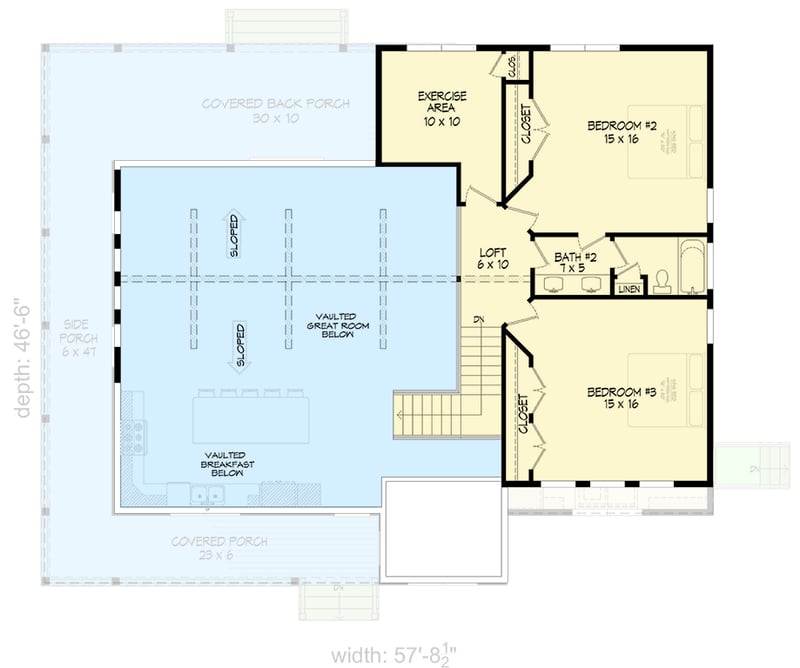

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3-bed modern farmhouse plan has a wraparound porch giving you fresh air space with views in three directions. The exterior has blend of board and batten siding and stone and has a rugged standing seam metal roof.
  • The main entry is off the wraparound porch and takes you into the home. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • French doors on the back wall of the vaulted great take you to the 10'-deep back porch. The main floor master has back porch access as well through sliding doors.
  • Upstairs, two bedrooms share a bath and a loft along with a exercise room with views to the great room below.
  • A mudroom provides transition space - and laundry and cubbies - between the home and the outdoors accessible by the side door.
  • Related Plan: Get a 2-car garage with house plan 68723VR (2,277 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

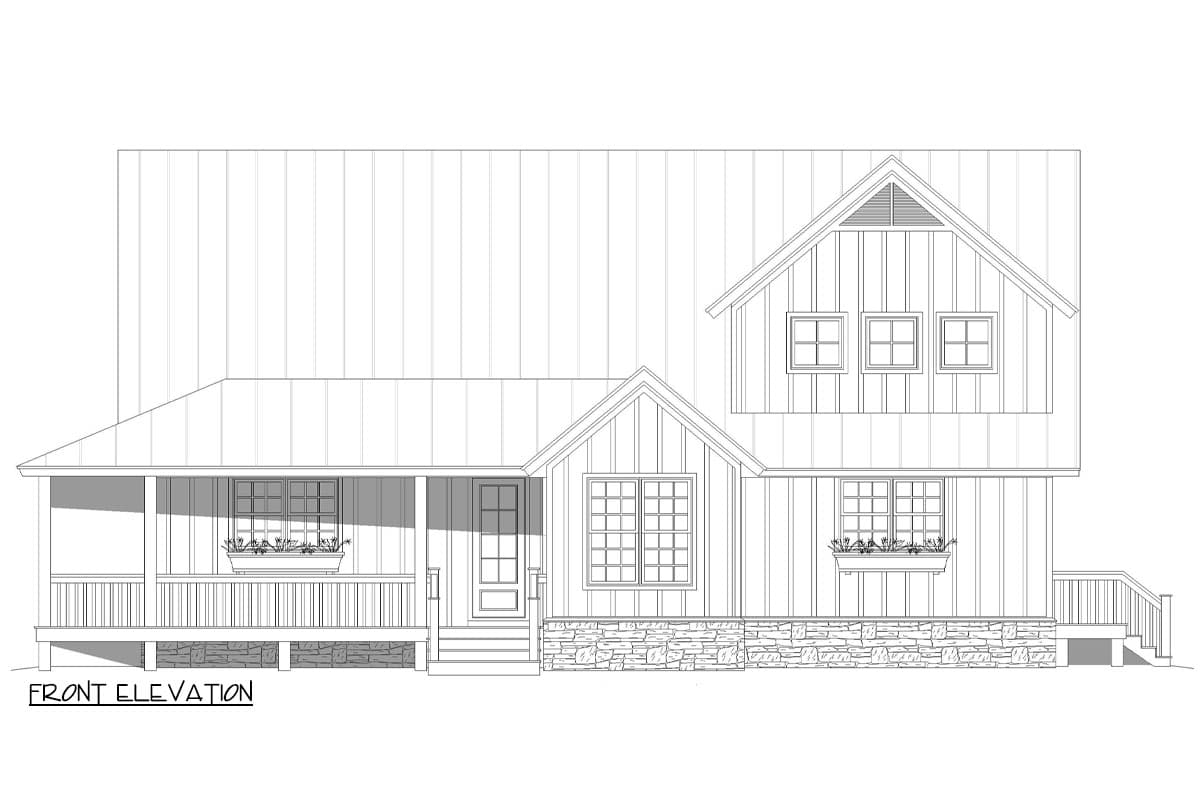

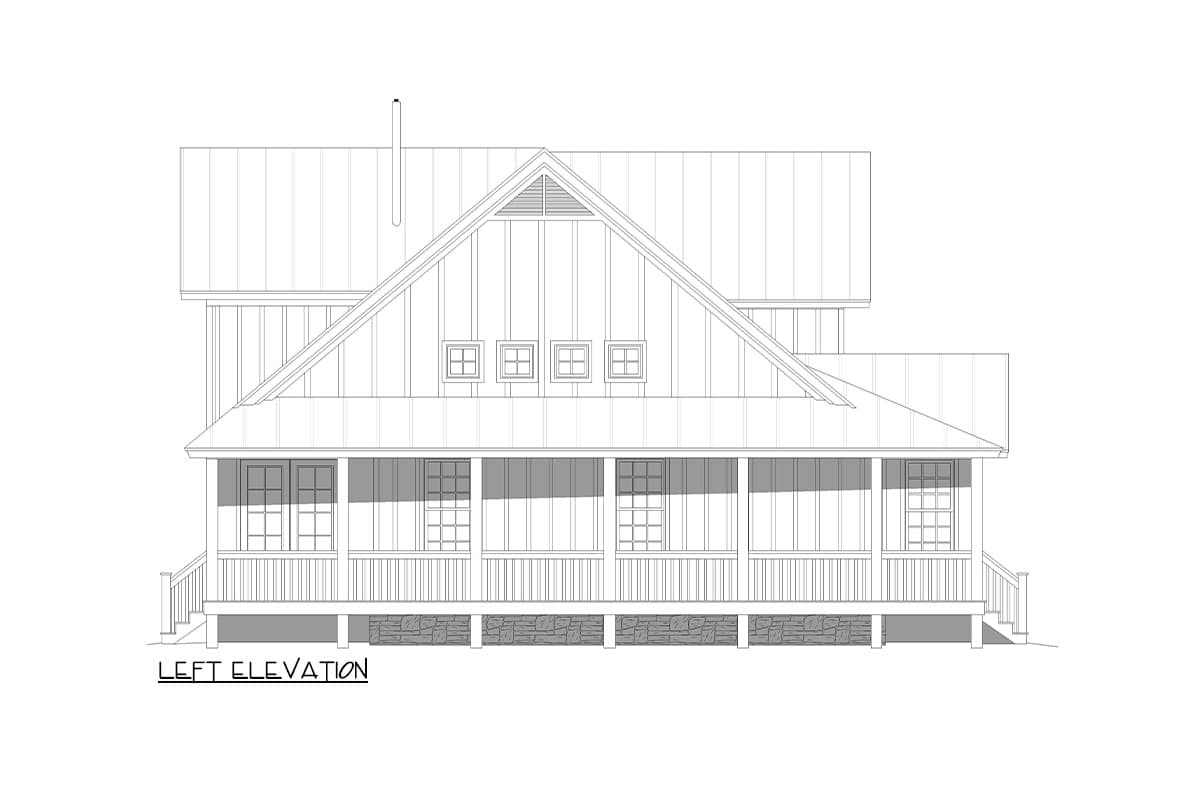

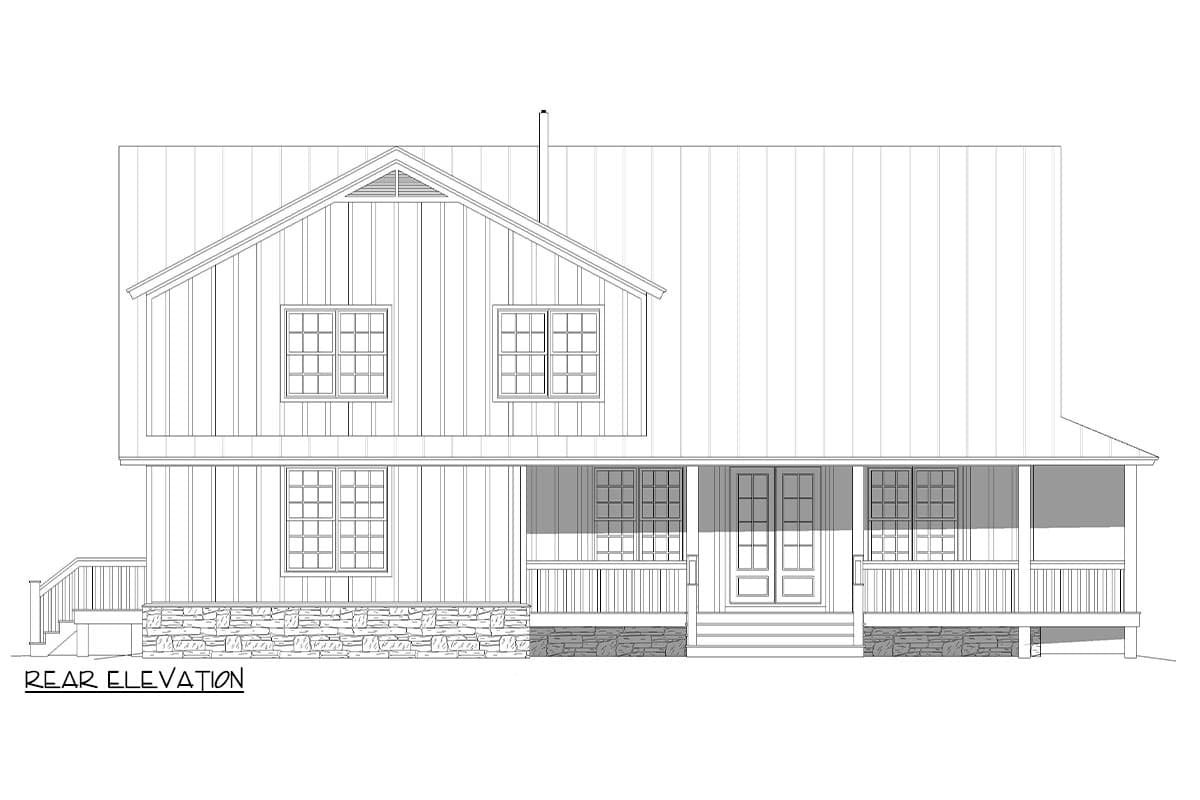

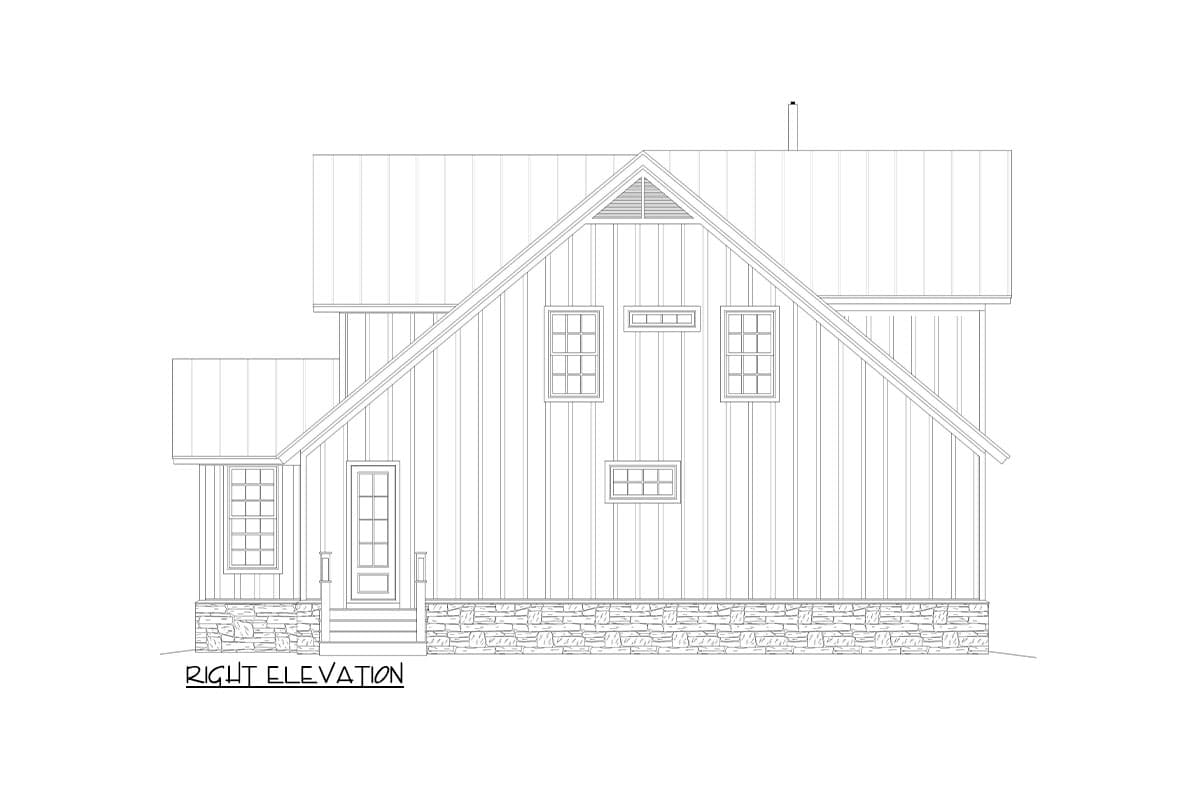

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,733 sq. ft.

1st Floor

1,865 sq. ft.

2nd Floor

868 sq. ft.

Porch, Combined

712 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 9"

Depth

46' 6"

Max Ridge Height

26' 8"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

Mountain

Rustic

Special Features

Game/Rec Room

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wrap Around Porch
