Plan 430090LY

Exclusive

3 Bed Modern Hill Country House Plan Under 2500 Square Feet
Heated S.F.
2,466
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 430090LY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 430090LY

1-800-854-7852

1-262-521-4596

Main Level

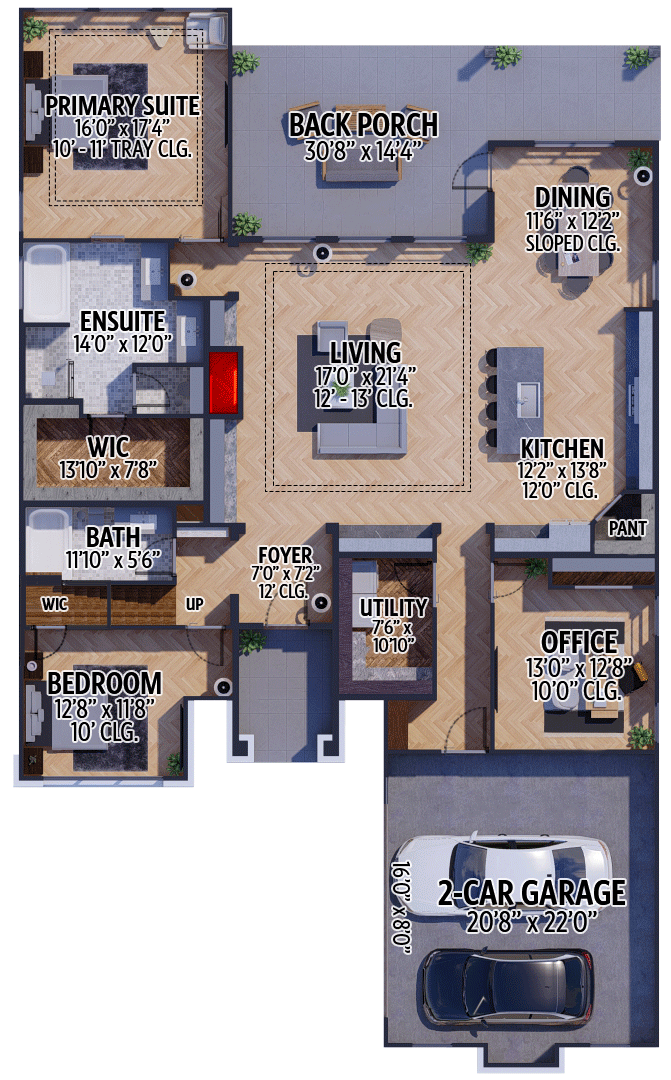

floor plan image Main Level
2nd Floor

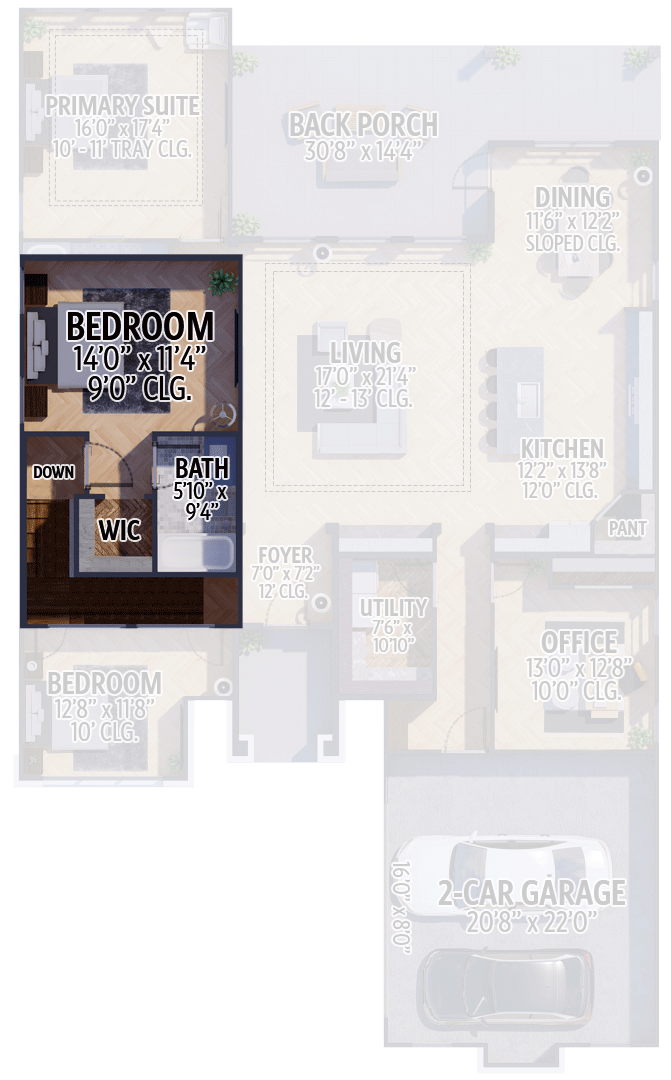

floor plan image 2nd Floor
Plan Details
  • This 3 bed, 3 bath house plan has an attractive mixed material exterior. Inside, it gives you 2,466 square feet of heated living area and a 2-car 468 square foot courtyard entry garage with a single 16' by 8' overhead door.
  • The front door is protected by a covered entry with 12' ceiling. Ahead, the living room has a 13' tray ceiling with a light cove between the 12' and 13' divide creating a dramatic effect. Three windows line the back wall and look out across the back porch with 10' ceiling. A door in the dining room with a sloped ceiling gives you access to this outdoor space.
  • A corner pantry and a 3'6" by 8' island are in the kitchen which has views to the dining and living rooms.
  • Bedrooms line the left side of the home with Bed 2 with a hall bath in front and the master suite with 11' tray ceiling and barn door access to the 5-fixture bath in back. Stairs between the hall bath and the front bedroom take you to the upstairs bedroom suite.
  • A door on the right of the garage entry opens to a home office. Across from the hall, a door open to the utility room with washer, dryer and sink.

What's Included
  • Cover sheet
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,466 sq. ft.

1st Floor

2,170 sq. ft.

2nd Floor

296 sq. ft.

Porch, Front

79 sq. ft.

Covered Patio

361 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 5"

Depth

79' 11"

Max Ridge Height

26' 11"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

12' 0''

Utility Room

10' 0''

Garage Door Dimensions

8' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Hill Country

New American

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,466 sq. ft.

1st Floor

2,170 sq. ft.

2nd Floor

296 sq. ft.

Porch, Front

79 sq. ft.

Covered Patio

361 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 5"

Depth

79' 11"

Max Ridge Height

26' 11"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

12' 0''

Utility Room

10' 0''

Garage Door Dimensions

8' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Hill Country

New American

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
